SKU: 7107

LS 4 Pole Multi Trigger Timing Chain Gears set, Keyway Adjustable, Double Roller, 58X, Single Bolt, Billet Steel Gears

$583.44

or 4 payments of $145.86 with Info

In Stock

Description

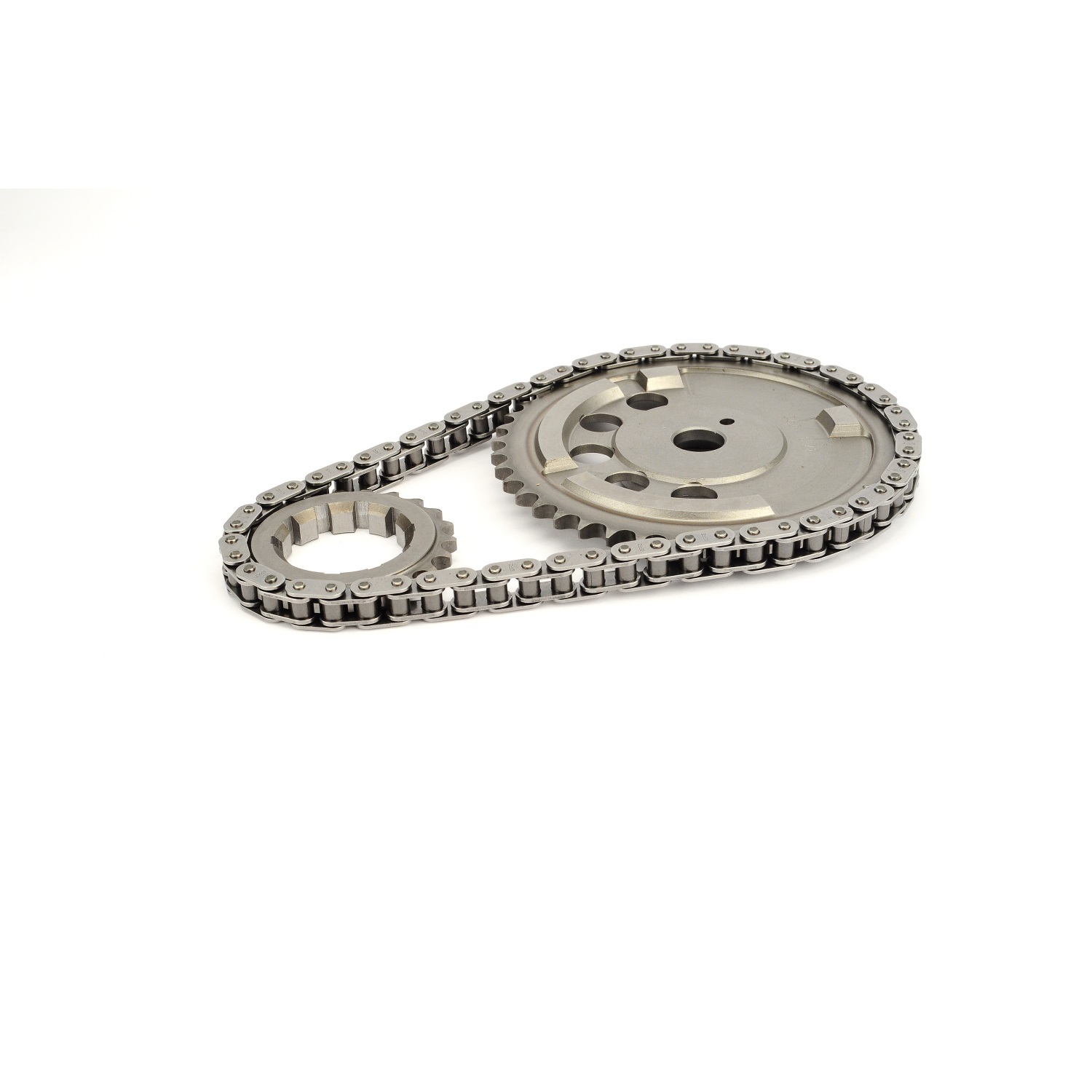

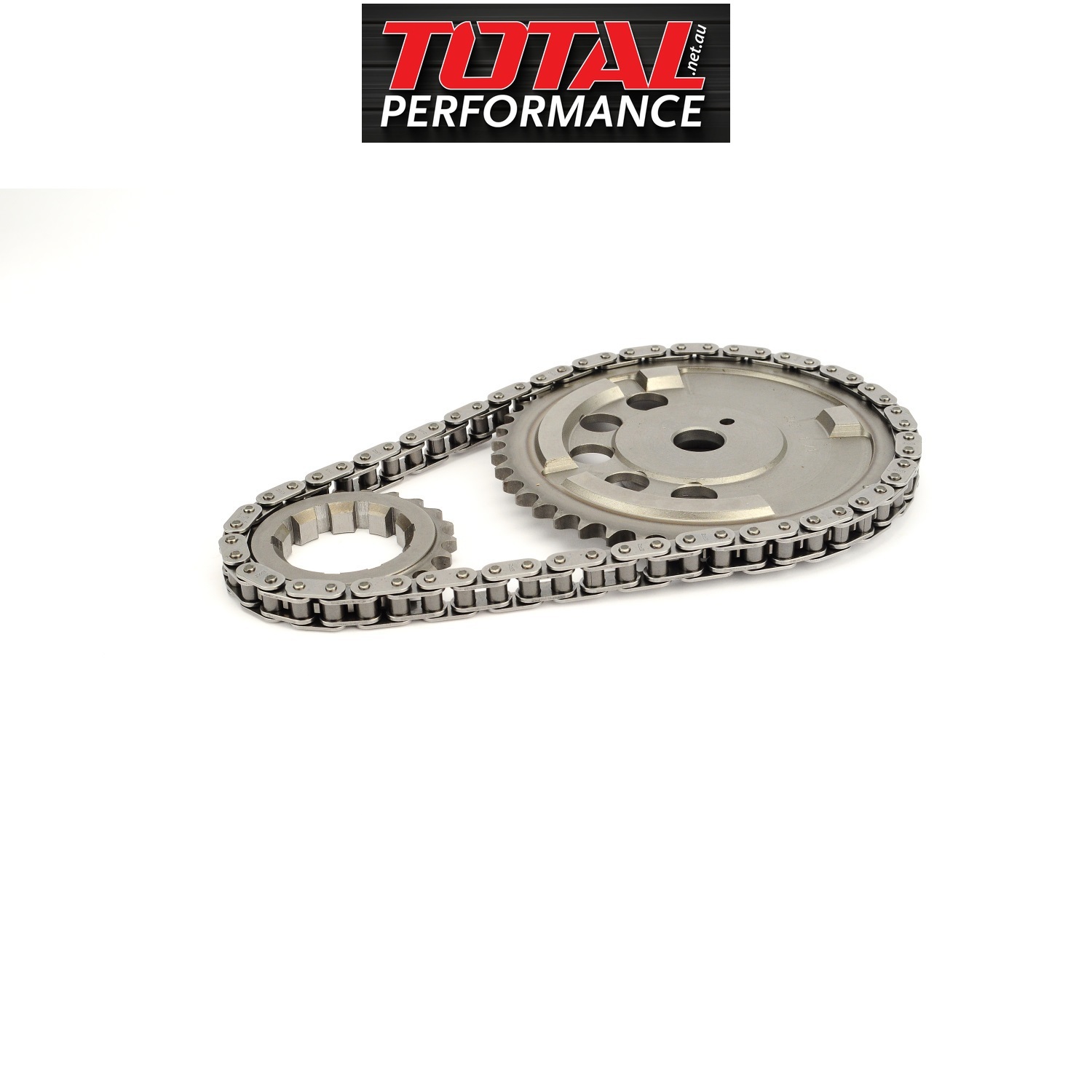

COMP Cams 7107 LS Multi Trigger Keyway Adjustable Billet Timing Sets, Single Bolt.

COMP Cams keyway adjustable billet timing sets are an exceptional choice for your street or race vehicle. Whether you're building, replacing, or upgrading, these sets will deliver the performance you need. The chains are available in single- and double-roller style—and are designed for fitment on a wide range of engine-specific applications.

* Induction-hardened steel billet gears for durability
* 9-keyway crank sprocket for 2-degree incremental adjustability, 8-degree maximum advance/retard
* Pre-stretched, heat-treated single or double roller chain with heavy-duty large pin design
* Includes Torrington roller thrust bearing for reduced friction

Timing Chain Included:  Yes

Timing Chain Style:  Single roller

Maximum Advance/Retard at Camshaft:  4 degree

Maximum Advance/Retard at Crankshaft:  8 degree

Cam Gear Included:  Yes

Cam Gear Material:   Billet steel

Crank Gear Included:  Yes

Crank Gear Material:  Billet steel

VVT Gear Included:  No

Tensioner Included:  No

Thrust Bearing Included:  Yes

Bolts/Studs Included:    No

Notes:

With 4 pole reluctor. When installing a double roller timing chain and gears in an LS engine, the oil pump is spaced out from the block for clearance. On most applications, this will create a clearance issue between the timing cover and oil pump. Test fit and grind as needed for clearance, before final assembly.

Specifications

Chevrolet:Small-Block Gen II:350 (5.7L)

SKU 7107
Barcode # 00085347071074
Brand COMP CAMS
Timing Set Series Keyway Adjustable Billet
Maximum Advance 8
chain type Double Roller
Number Of Crankshaft Keyways 9
Crankshaft Gear Material Billet Steel
Maximum Retard 8
Camshaft Gear Material Billet Steel
