SKU: CK201-300-17

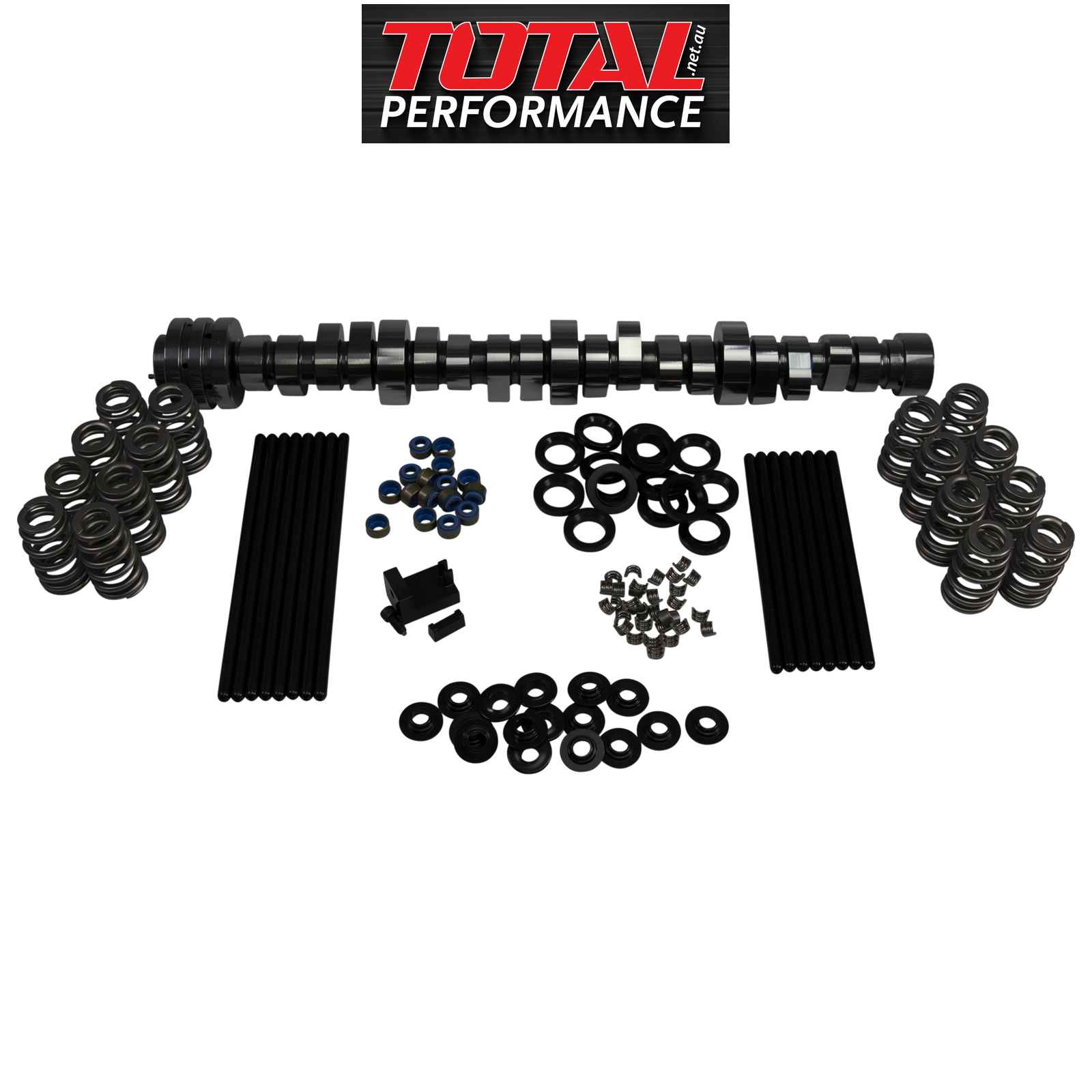

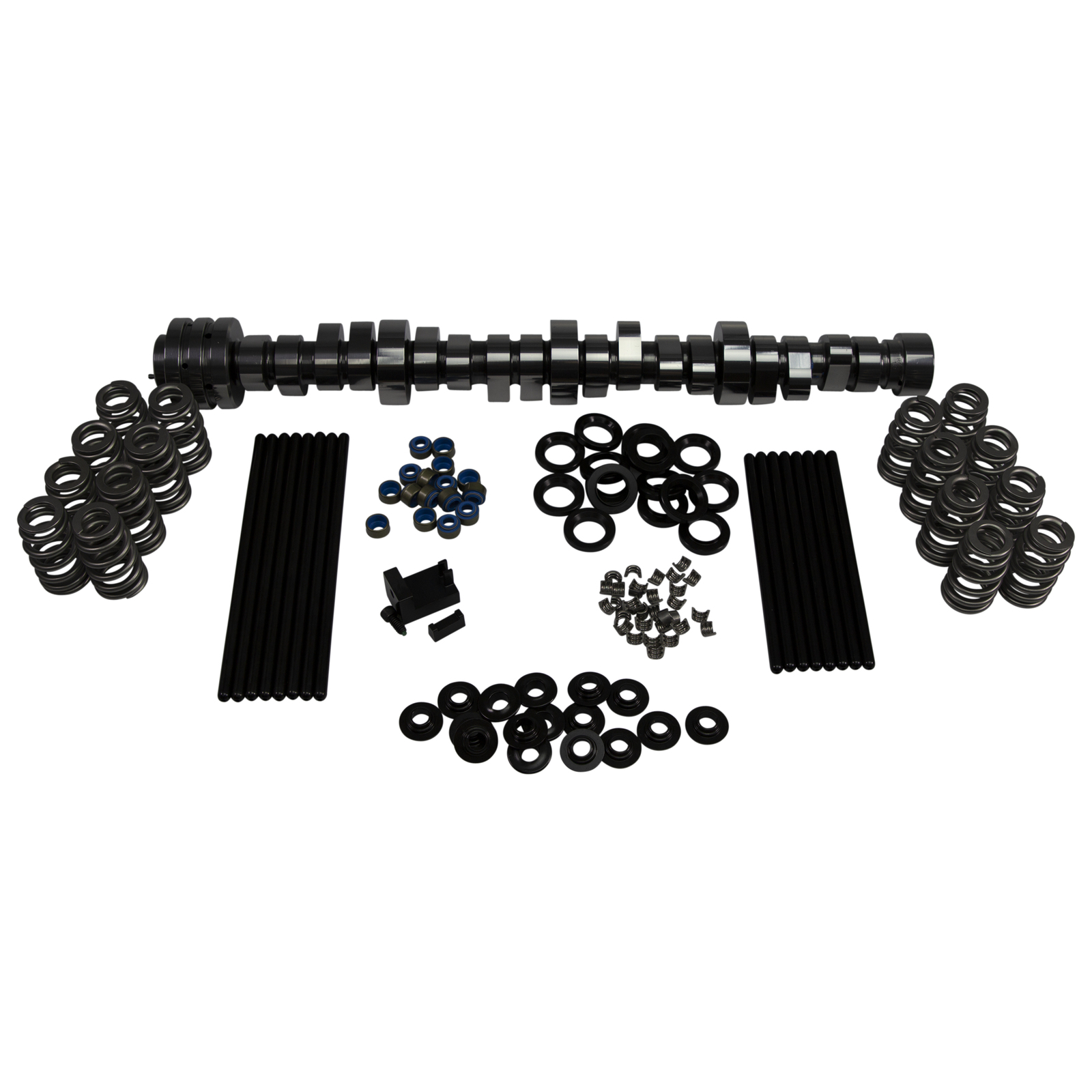

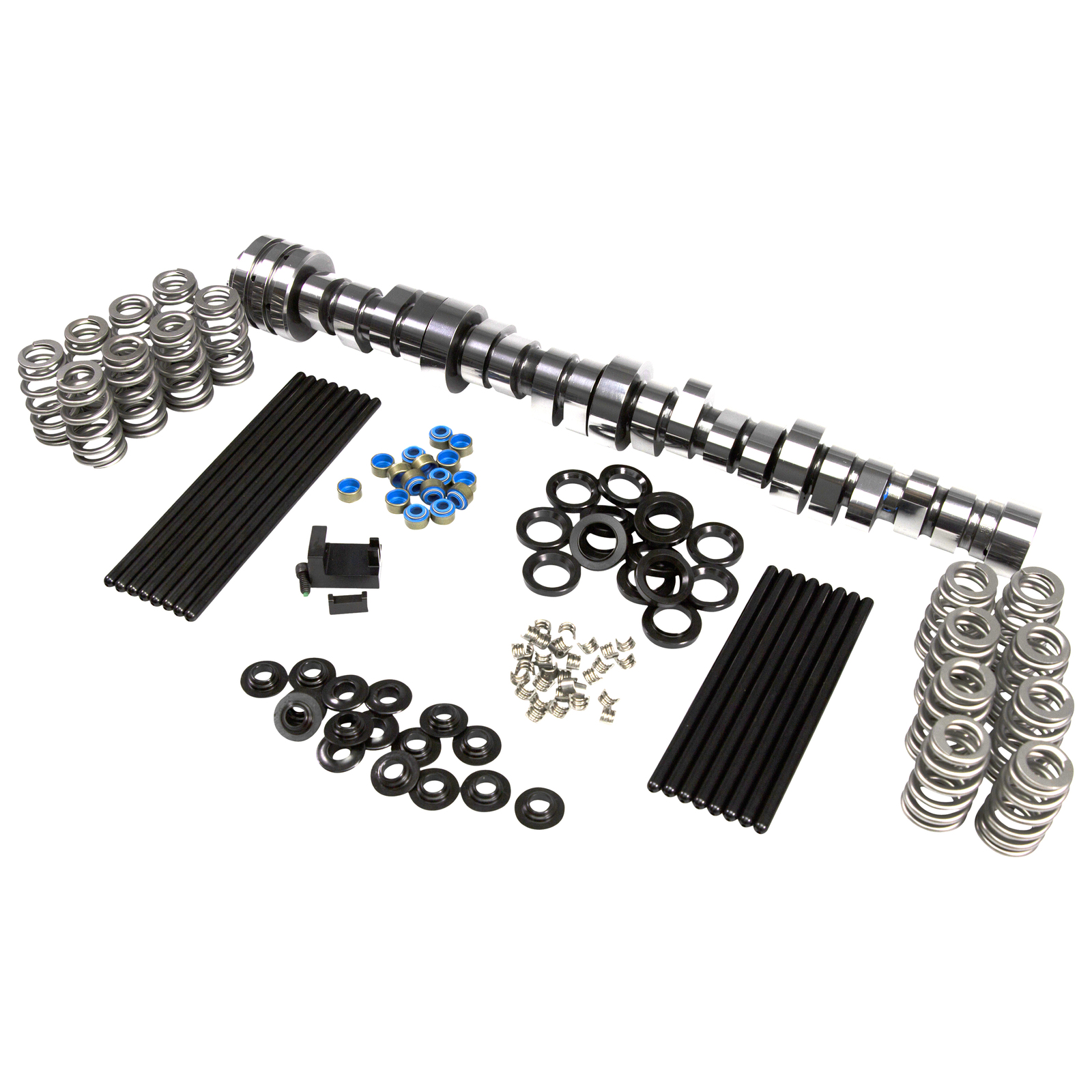

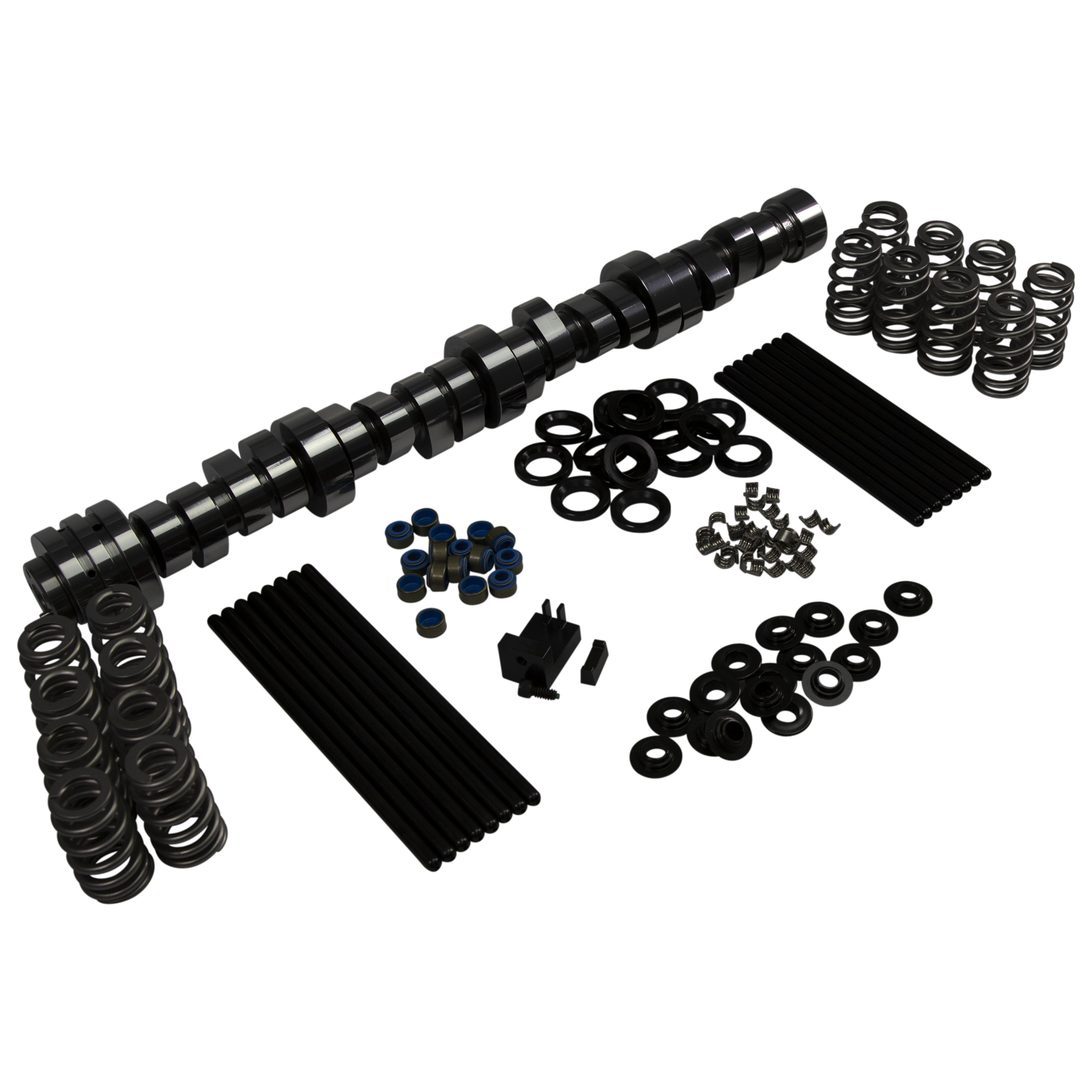

Stage 1 HRT No Springs Required MK-Kit for '09+ 5.7L HEMI


Sold Out


No Springs Required (NSR) Stage 1 Grind for 5.7L Gen. IV Hemi. Great mid-range torque w/ excellent power. Perfect for heavier vehicles, has great throttle response.


SKU CK201-300-17
Barcode # 036584405269
Basic Operating Rpm Range 1,800-6,800
Lobe Separation 114
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Gaskets Included No
Valve Spring Seats Included Yes
Stage 1
Retainers Included Yes
Camshaft Gear Attachment 1-Bolt
Grind Number LST269HR14
Intake Duration At .050 Inch Lift 218
Advertised Intake Duration 271
Exhaust Valve Lift 0.545
Valve Seals Included Yes
Pushrods Included Yes
Valve Springs Included Yes
Lifters Included No
Camshaft Series HRT NSR
Exhaust Duration At .050 Inch Lift 228
Advertised Exhaust Duration 279
intake valve lift 0.571
Estimated Horsepower Gain With Kit 61
Timing Set Included No
Locks Included Yes
Camshaft Material Billet Steel
