SKU: ED7535

Ford 302W Dual Quad Intake Manifold Dual-Plane Performer RPM AIR-GAP, Windsor 302 347 8.2 Deck SBF

RRP $900.90 SAVE $42.90 (5%)
$858.00

or 4 payments of $214.50 with Info

IN STOCK  FREE SHIPPING

Description

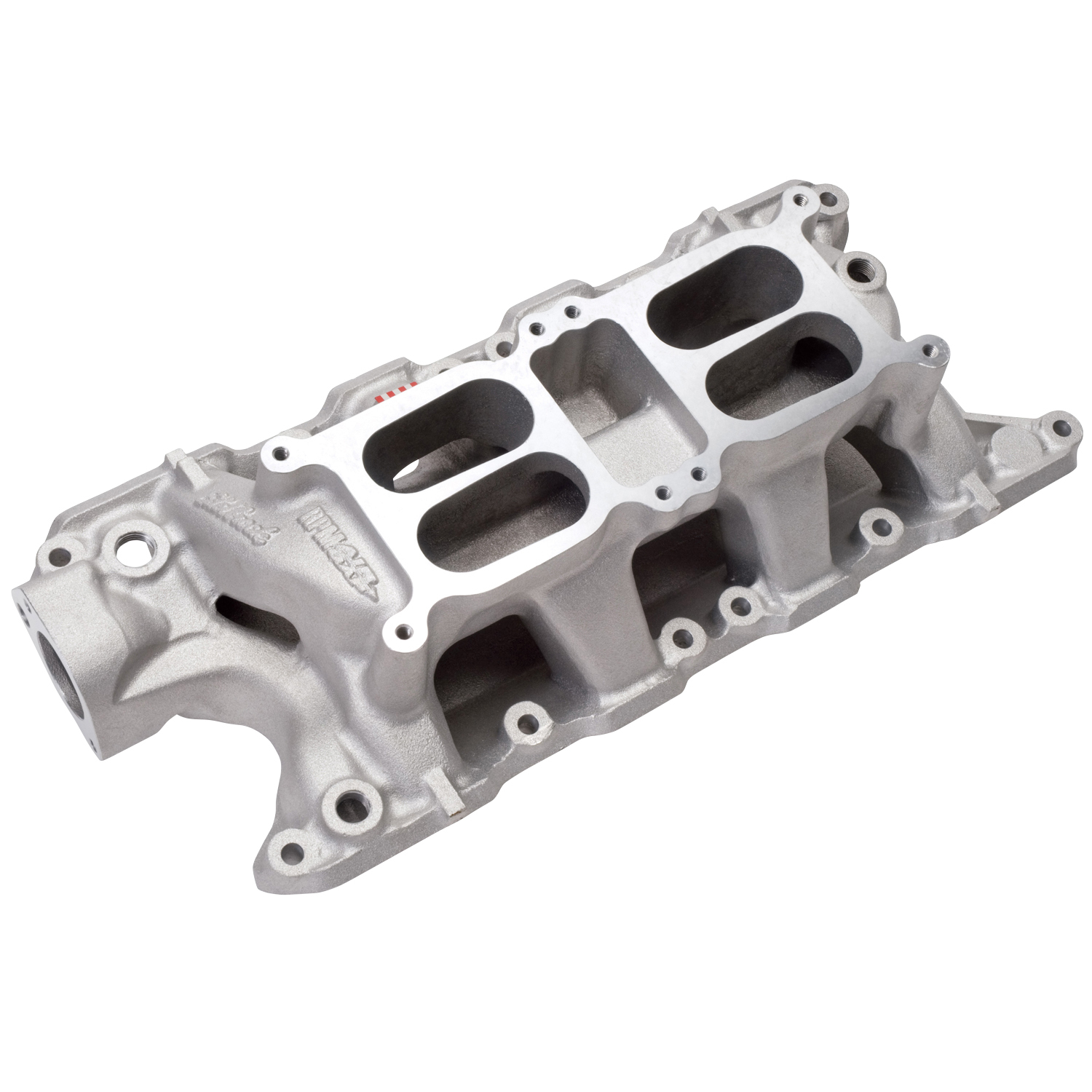

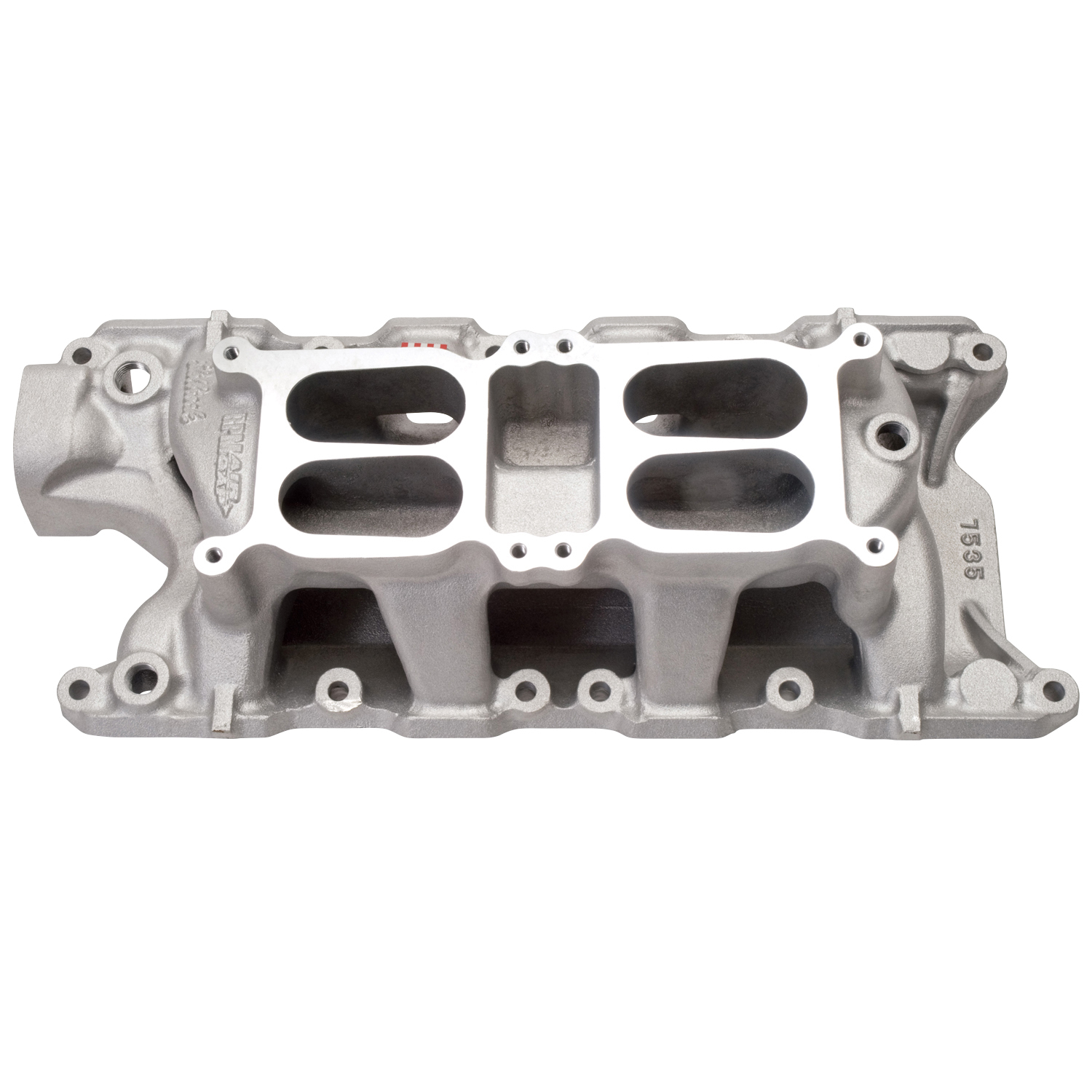

7535 Edelbrock RPM Air-Gap Dual Carby Intake Manifold for Ford 302W 347 Small-Block V8.

Dual Carby Bad Ass looks with Smooth Street Performance to Boot!

The Edelbrock ED7535 Dual Quad intake for the Ford 302W 347 Windsor. This Dual Quad RPM Air-Gap manifold is a dual plane intake manifold which combines dual four-barrel carby's. Maximum excitement and Street manners to boot! Made for the 302-347 small-block Ford Windsor. This Dual Carby intake is taller than the low-profile F-28 intake and offers performance improvements in the 1500-6500 rpm range, perfect for all round street performance!.The large runners of this Dual Carburettor manifold have the Edelbrock unique Air-Gap design that separates the runners from the hot engine valley. This air gap allows for a cooler, denser charge and more horsepower. Carb center to carb center is 6-7/16". Designed to be used with progressive linkage, which results in great smooth, street drivability and a crisper throttle response. The Edelbrock RPM Air-Gap Dual-Quad  part No 7535 intake manifold is a dual-plane, intake manifold with a 180 deg firing order and patented runner design that you won't find in other brands. This patented design greatly improves torque over a wide rpm range for excellent throttle response, especially off-idle through the mid-range. Years of design and testing in the area of induction technology have given the Edelbrock team invaluable insights into which characteristics work best under what conditions. The Edelbrock RPM Air-Gap Dual-Quad #7535 also features a polished aluminum finish for a brilliant shine and classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.

Installation Notes:

  • Cannot Run Holley type Carby's as the fuel bowls hit, you must run an Edelbrock / Carter style carb.
  • Recommend Carby’s: Edelbrock AVS 1903 or 1904 or 1403 and 1405
  • Recommended Dual Qual Linkage Kit: Edelbrock 7094
  • Recommended intake gasket: Edelbrock part No 7220
  • Manifold height: A-4.85", B-5.70"
  • Carby pad height: 5.28"
  • Port exit dimensions: 1.05" x 1.90"
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminium.

Specifications

Ford:Small-Block:289 (4.7L)-347 (5.7L)

SKU ED7535
Barcode # 00085347075355
Brand Edelbrock
