750 cfm, Carburetor, Carby, For 400+ Cubes, Economy Performer series, 4-barrel, square-bore, 4150, EPS,

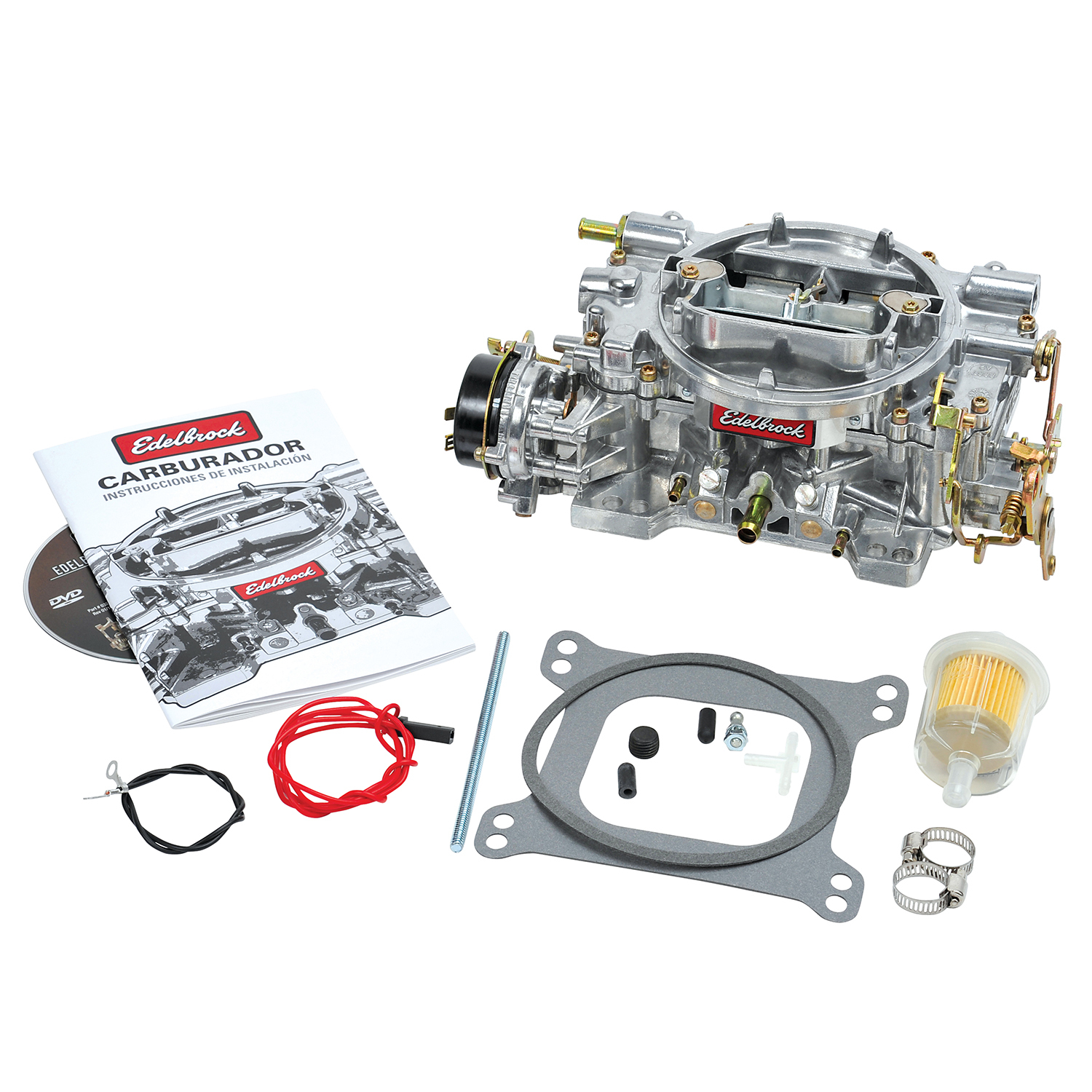

Edelbrock Performer Series 750 cfm, Square-Flange, Electric Choke Carburetor (non-EGR).

The Edelbrock 1411 Performer Series 750 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 1411 Performer Series 750 CFM electric choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation.

Series    Performer

CFM Rating  750cfm

Metering Rod Size           .075 x .047 in

Gasket Or Seal Included                Yes

Barrel Quantity 4 Barrel

Flange Type        Square

Secondary Jet Diameter                0.107

Main Venturi Diameter 1.44

Body Height       3.25

Bore Diameter  Primary Bore 1.69; Secondary Bore 1.69

Spring Force       5" Hg (Orange)

Body Colour          Satin Finish

Choke Type        Electric

Finish    Satin

Marine Approved            No

Material               Aluminum

CFM Rating         750 cfm

Primary Jet Diameter     0.110

Calibration Tuning Kit to suit: 1489 (sold separately)

Installation Notes

Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel.; The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels; The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor
