SKU: 11-605-5

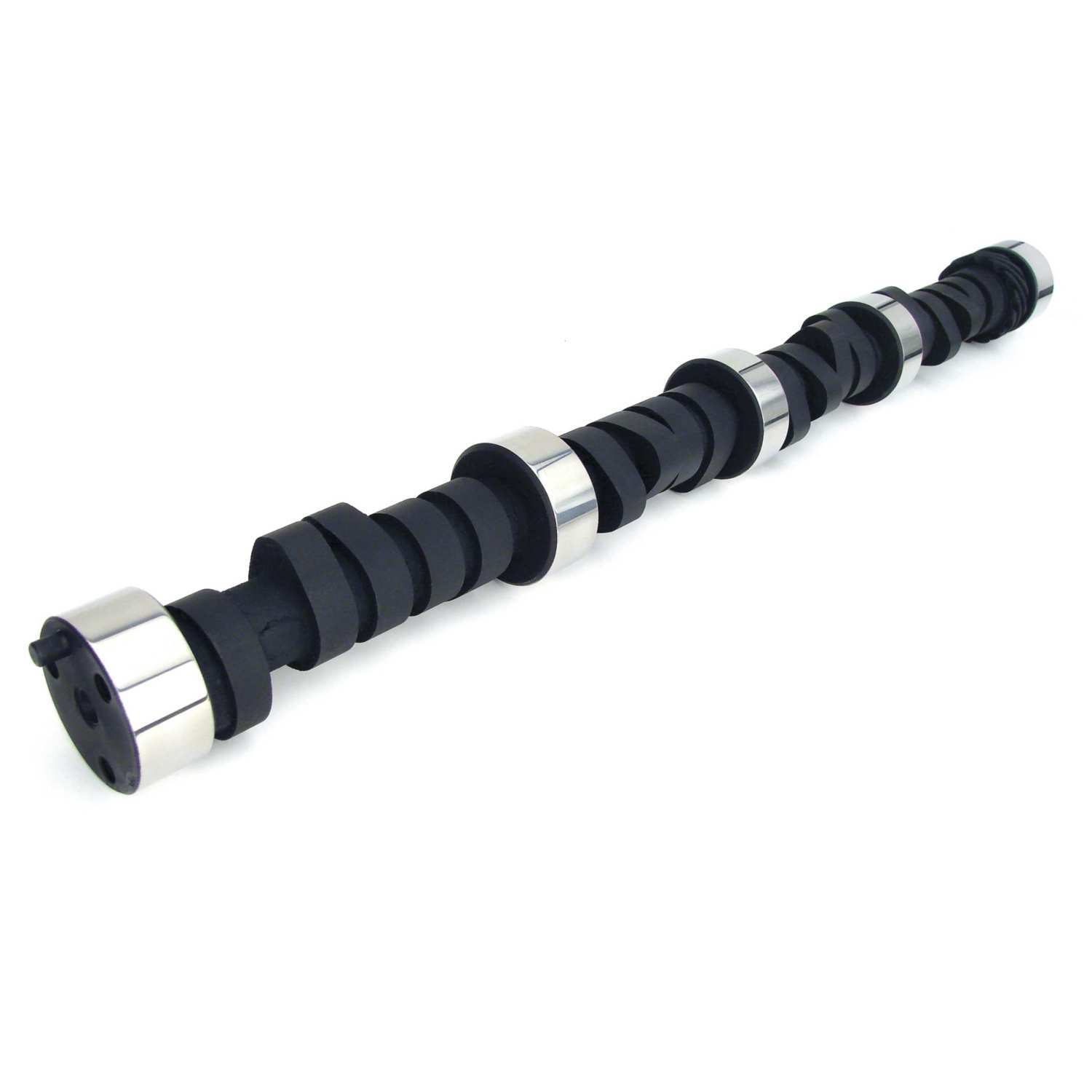

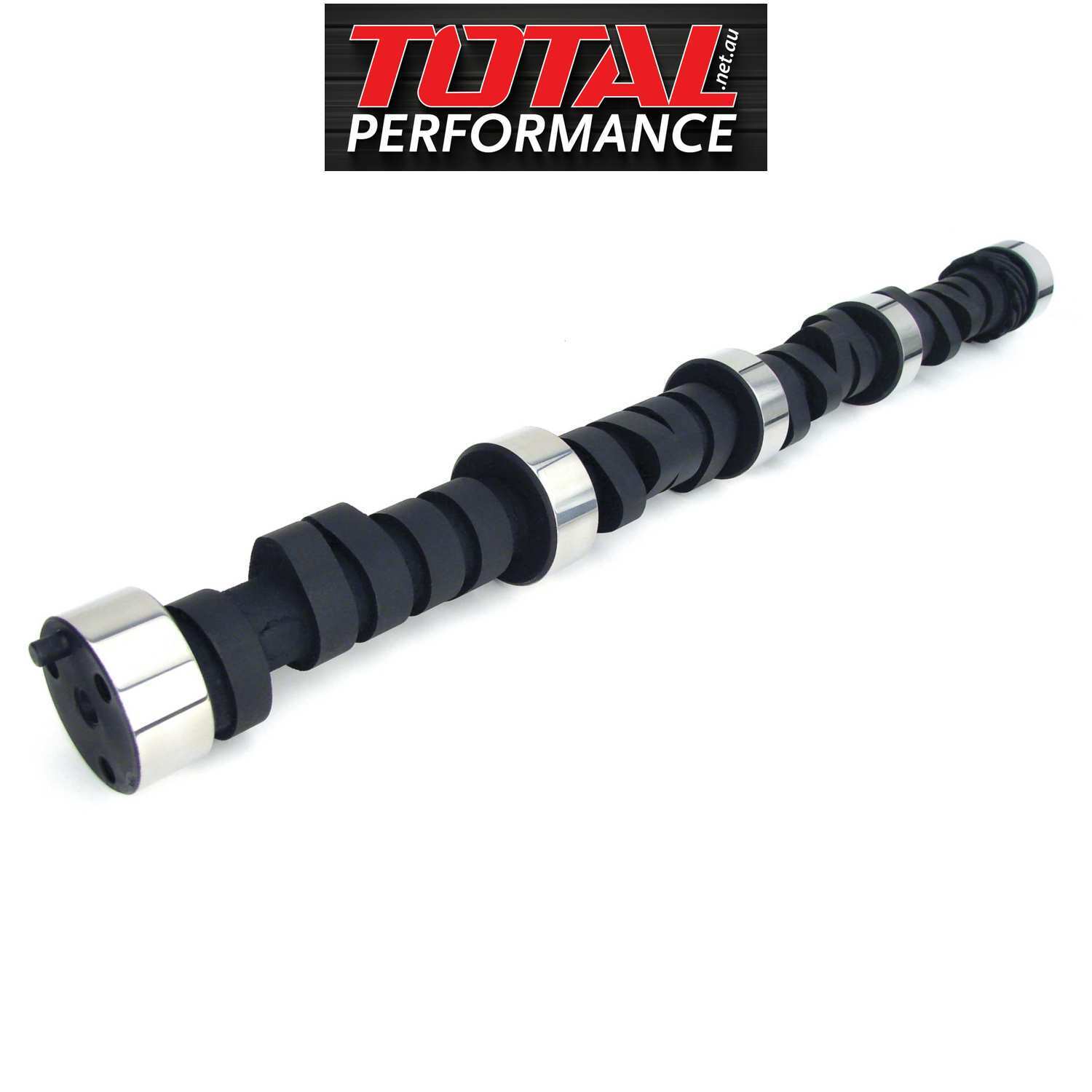

11-605-5 Magnum Marine/Drag Race 270/276 Solid Flat Cam for Chevrolet Big Block 396-454

$582.27

or 4 payments of $145.57 with Info

SOLD OUT

Description

2600-3000 lbs. car, 11.5:1+ compression with 4500+ stall. Excellent for 427-454c.i. Jet boat with B impeller. Flat and hydro. Bracket race. Use tunnel ram.

Specifications

SKU 11-605-5
Barcode # 036584540298
Brand COMP CAMS
intake valve lift 0.638
Exhaust Valve Lift 0.631
Lifter Type Solid Flat Tappet
Advertised Exhaust Duration 314
Advertised Intake Duration 310
Cam Type Solid Flat Tappet
Exhaust Duration At .050 Inch Lift 276
Intake Duration At .050 Inch Lift 270
Lobe Separation 108
Camshaft Series Magnum Marine
Grind Number 310B-8
Basic Operating Rpm Range 4,200-7200
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Cast Iron
