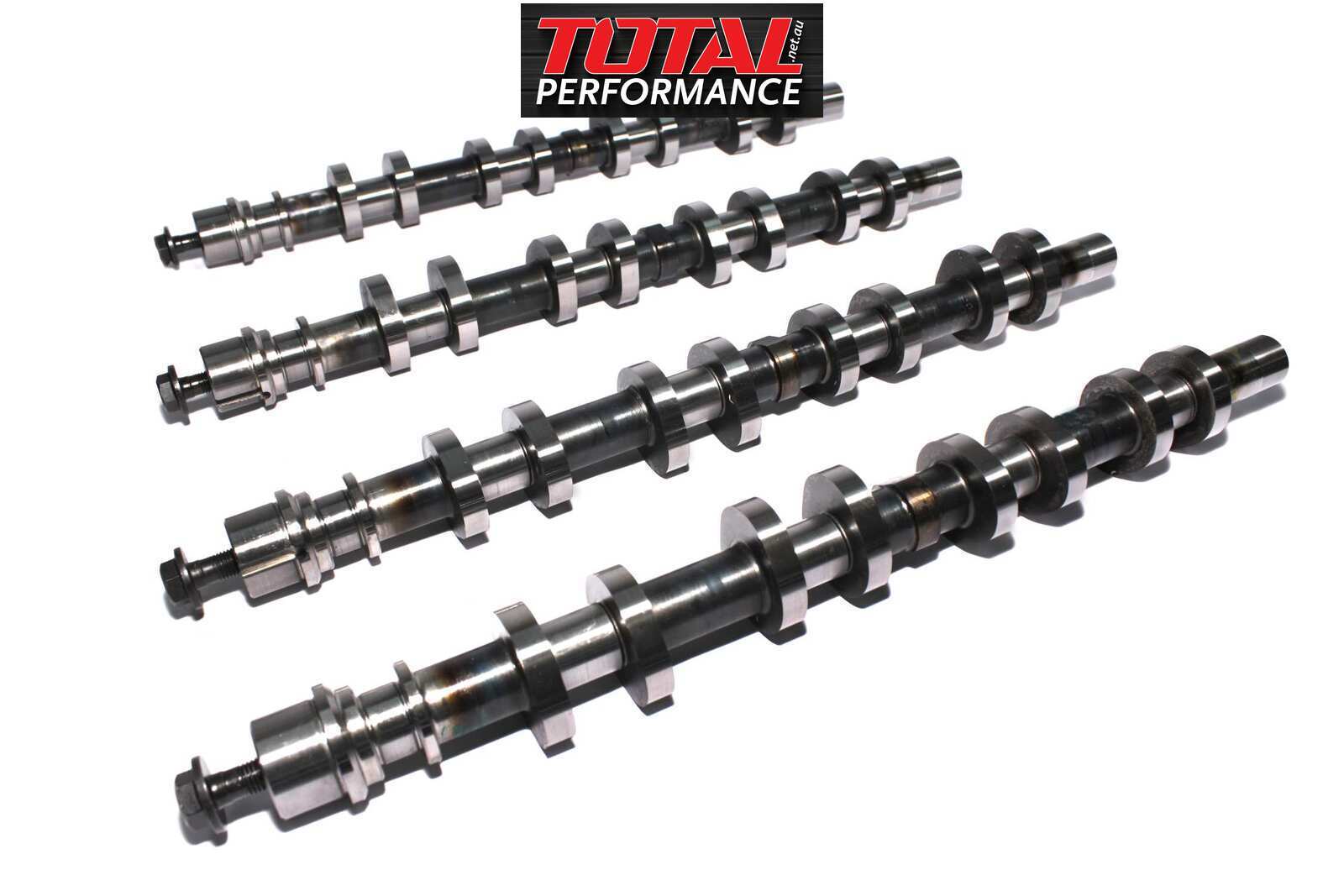

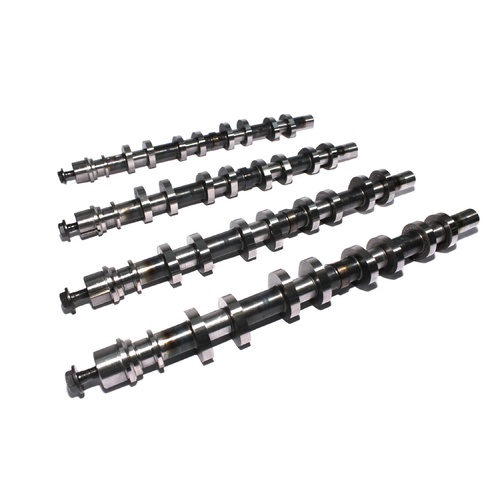

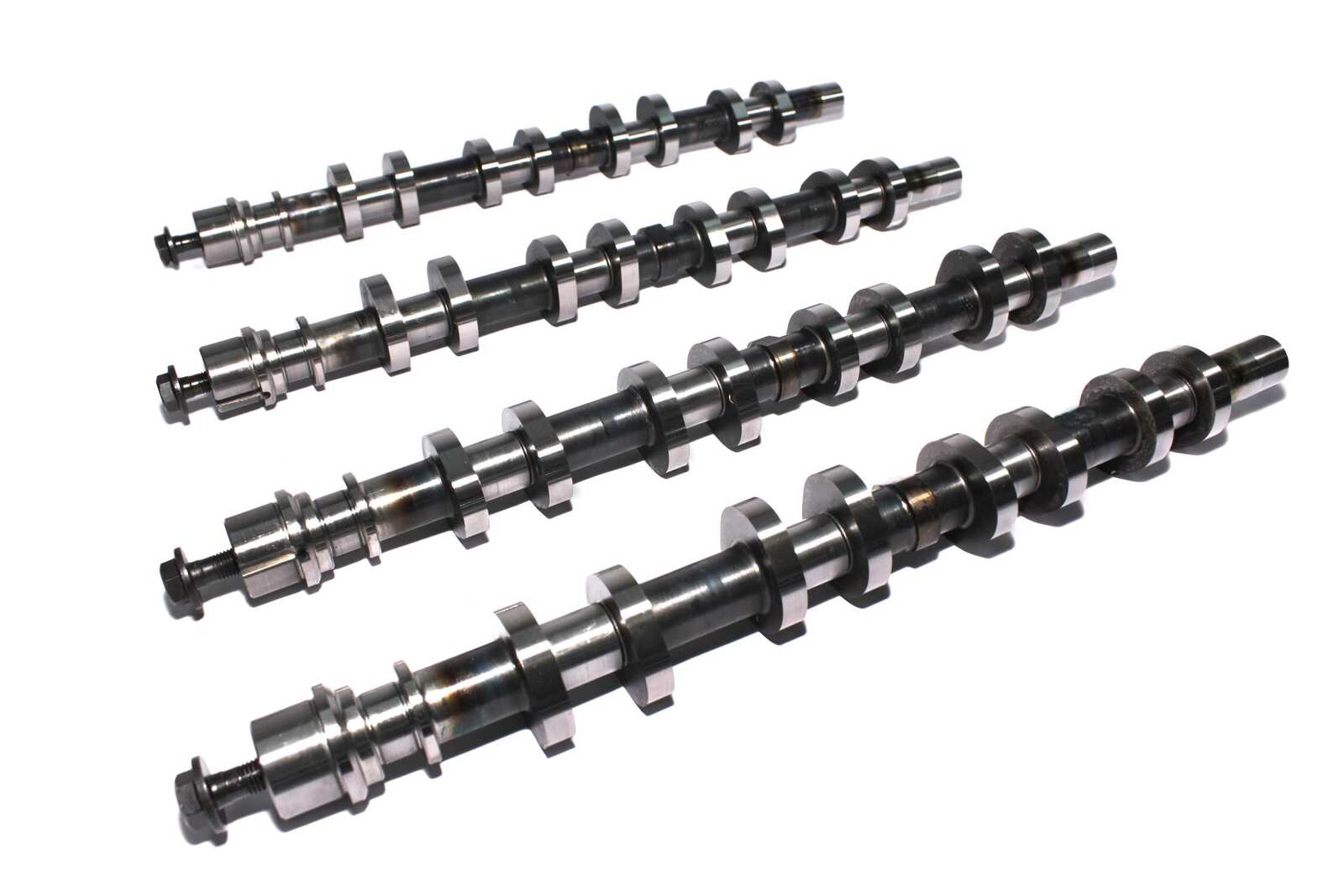

Ford Modular 4 Valve XE-R Super Charged/Blower N2O, 230/232 Hydraulic Roller Camshaft 4.6, 5.4, 5.8 Modular 4V 1993+

COMP CAMS 106360 Ford Modular 4V - Suits Blower Supercharger & NO2 applications.

Xtreme Energy™-R Super Charged & Blower or N2O upgrades. Camshaft size is 230/232 Hydraulic Roller with Finger Follower Cams for Ford 4.6, 5.4, 5.8 Modular 4-V Xtreme XE-R Supercharged and Nitrous 230/232 Hydraulic Roller camshaft upgrade. Serious street effort for supercharged or nitrous applications. Lower Gear ratios & 2000+ stall. Mildly rough idle. Requires custom tuning.

DOHC - Serious street effort for Supercharged or Nitrous engines. Requires computer modifications, lower gears & spring number 26123. Automatics will require a 2000 stall. Mild rough idle.

Engine Family:  Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)

RPM Operating Range:  1,500-6,000

Grind Number:  XE266BH-116

Cam Type:  Hydraulic Roller Swinging Follower

Lifter Style:  Hydraulic Roller Swinging Follower

Camshaft Series:  XE-R Supercharged and Nitrous

Usage:  Street/Performance

Advertised Intake Duration:  230

Advertised Exhaust Duration:  267

Intake Duration at .050 Inch Lift:  230

Exhaust Duration at .050 Inch Lift:  232

Intake Valve Lift:  0.475

Exhaust Valve Lift:  0.45

Lobe Lift Intake:  0

Lobe Lift Exhaust:  0

Lobe Separation:  116

Intake Centerline:  114

Exhaust Close ATDC:  0

Intake Open BTDC:  0

Exhaust Open BBDC:  0

Intake Close ABDC:  0

Camshaft Gear Attachment:  1-Bolt
