SKU: 127500

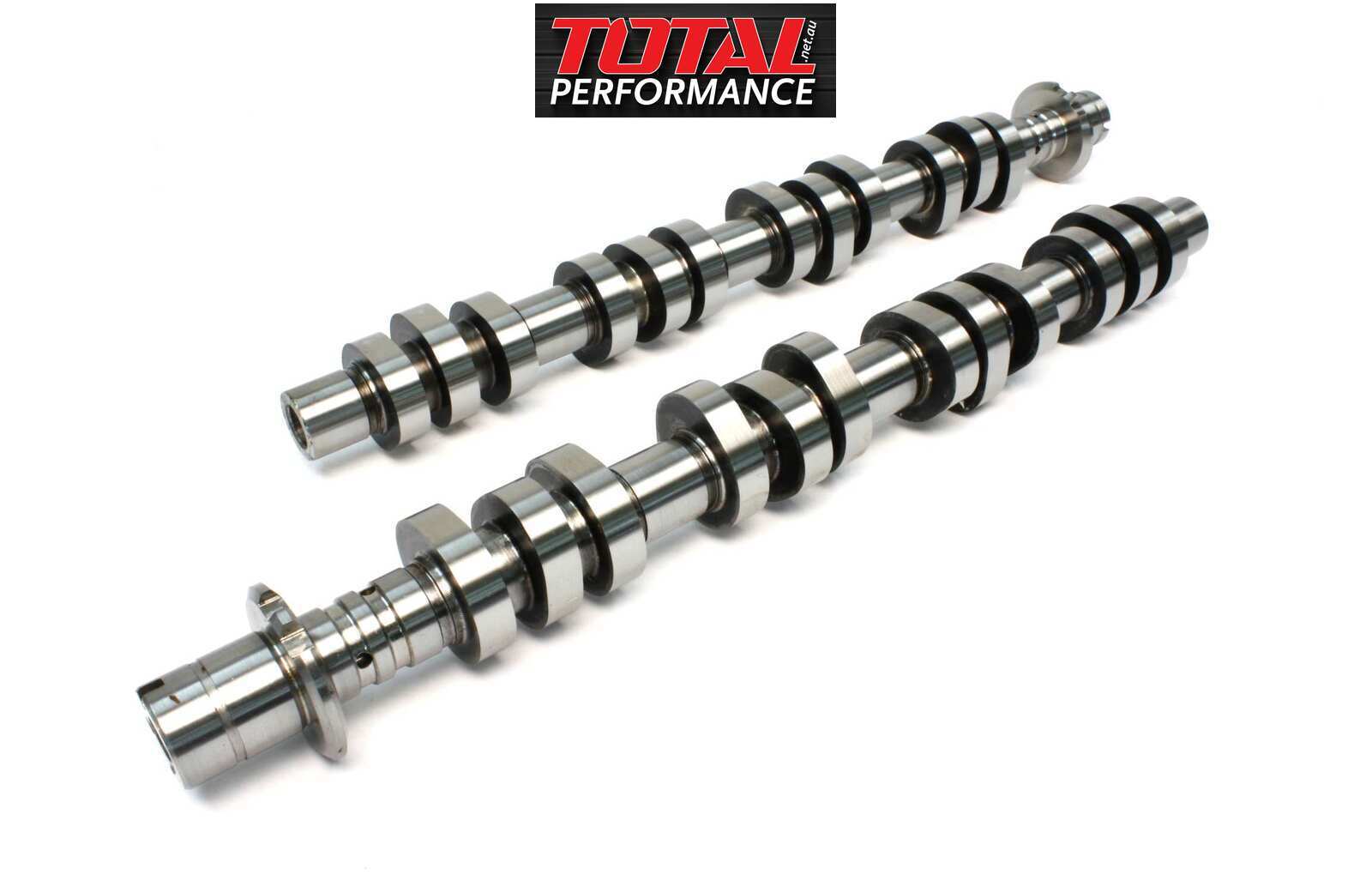

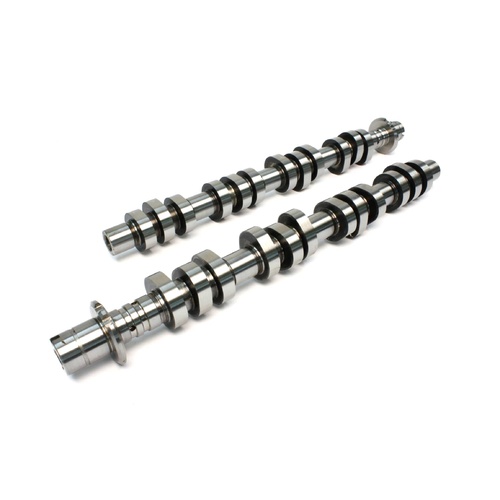

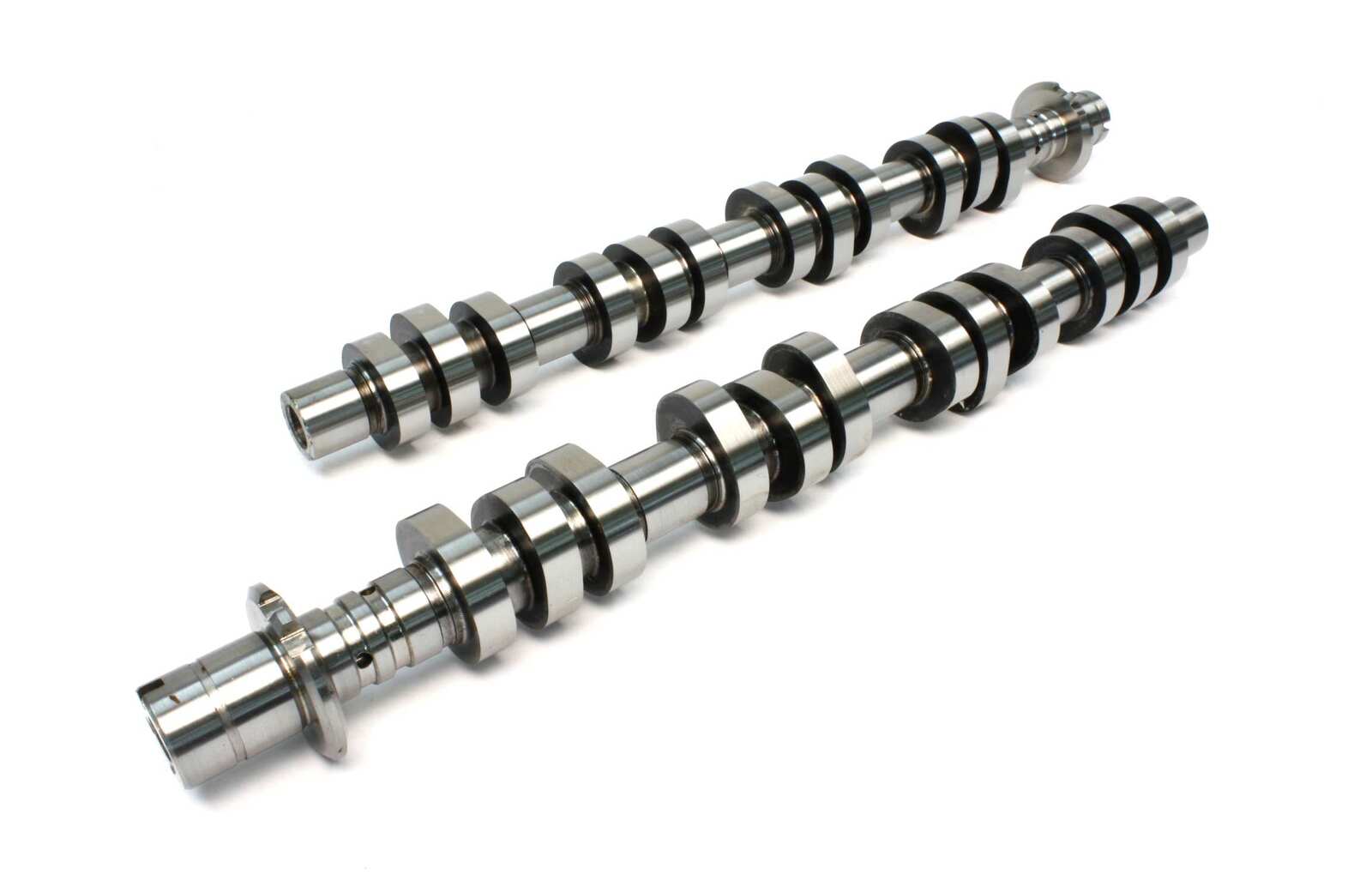

127500 XFI SPR 229/236 Hydraulic Roller Cams for Ford 4.6/5.4L Modular 3 Valve

$1,643.44

or 4 payments of $410.86 with Info

SOLD OUT

*Free shipping on orders over $200

Description

POSSIBLE SPRING TO USE TBC 26125-24 THIS IS A 3 VALVE ENGINE

Specifications

SKU 127500
Barcode # 036584183846
Brand COMP CAMS
intake valve lift 0.535
Exhaust Valve Lift 0.55
Lifter Type Hydraulic Roller Swinging Follower
Advertised Exhaust Duration 275
Advertised Intake Duration 264
Cam Type Hydraulic Roller Swinging Follower
Exhaust Duration At .050 Inch Lift 236
Intake Duration At .050 Inch Lift 229
Lobe Separation 112
Camshaft Series XFI SPR (Spring and Phaser Modes Required)
Grind Number XE264PH-12
Basic Operating Rpm Range 950-6,900
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 1-Bolt
Camshaft Material Billet Steel
