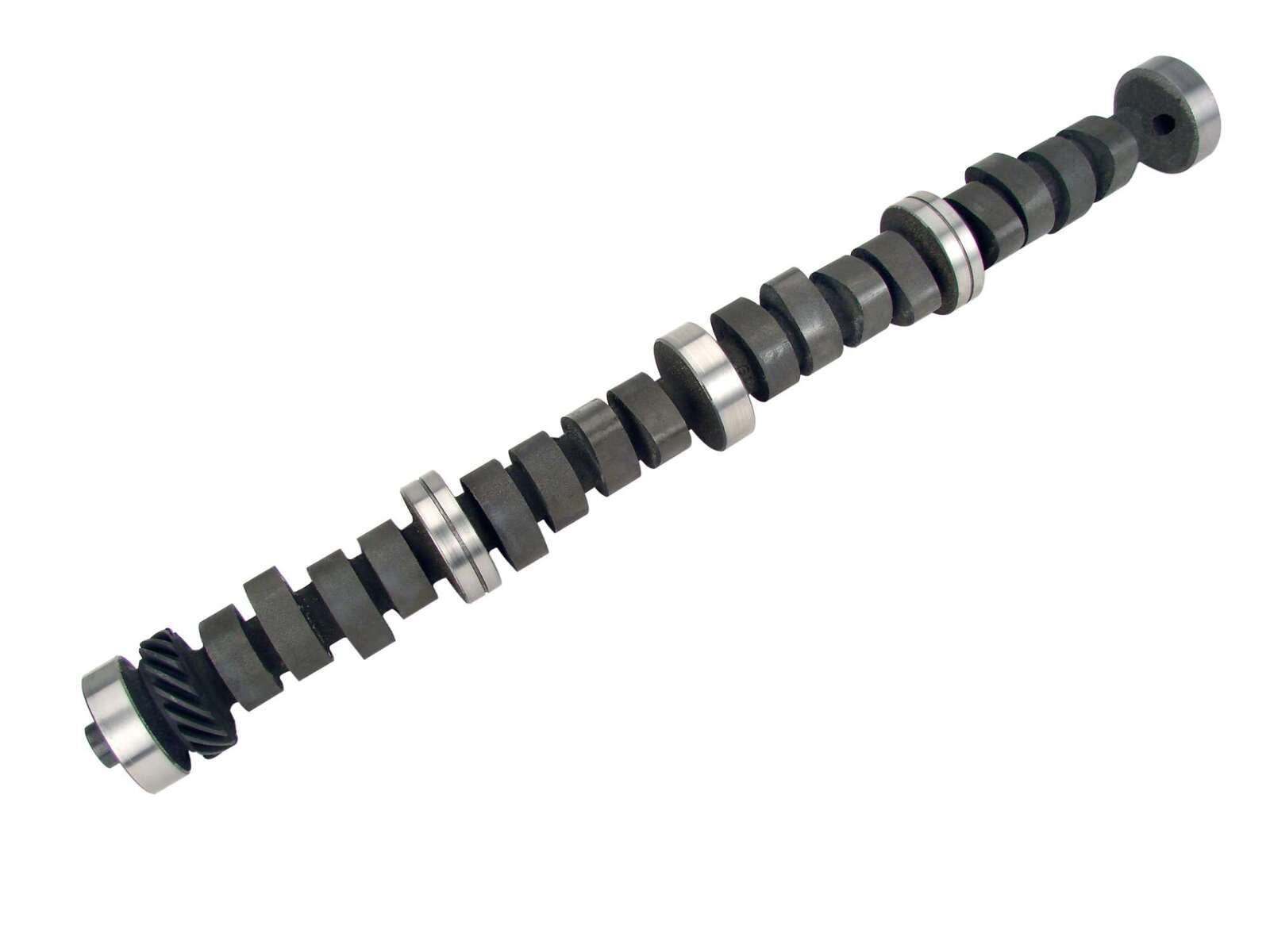

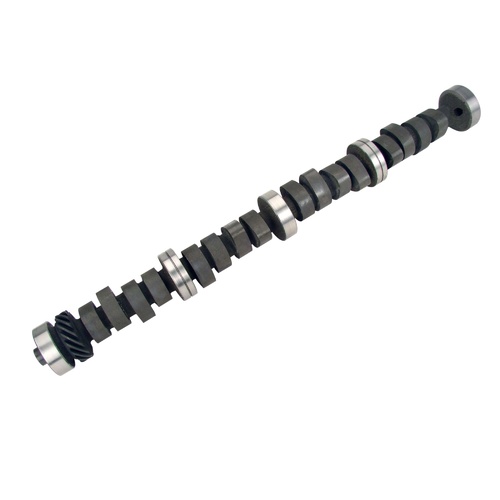

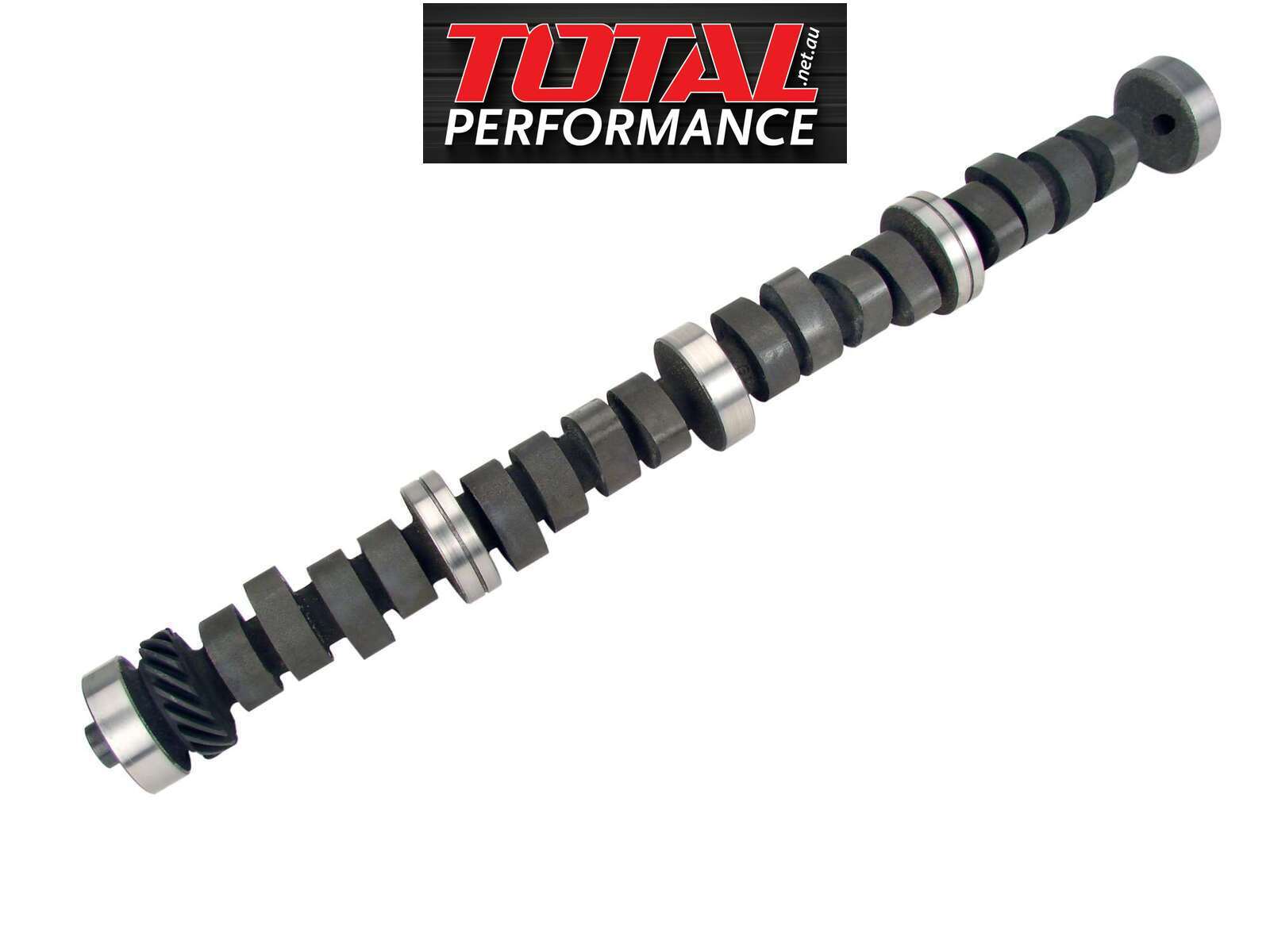

33-238-4 Xtreme Energy 218/224 HYDRAULIC FLAT TAPPET CAMSHAFT FORD 390 428 FE BIG BLOCK

** CLOSED UNTIL 12TH JANUARY - SHIPPING STARTS 12TH JANUARY 2026**

Description

Strong torque, excellent throttle response. Will work with stock converter but prefers 1800+ stall.

Specifications

SKU	33-238-4
Barcode #	036584080299
Brand	COMP CAMS
intake valve lift	0.513
Exhaust Valve Lift	0.52
Lifter Type	Hydraulic Flat Tappet
Advertised Exhaust Duration	270
Advertised Intake Duration	262
Cam Type	Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift	224
Intake Duration At .050 Inch Lift	218
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XE262H
Basic Operating Rpm Range	1,300-5,600
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Cast Iron

Reviews

Be The First To Review This Product!

Help other Total Performance users shop smarter by writing reviews for products you have purchased.

Write a product review
