SKU: 11-560-4

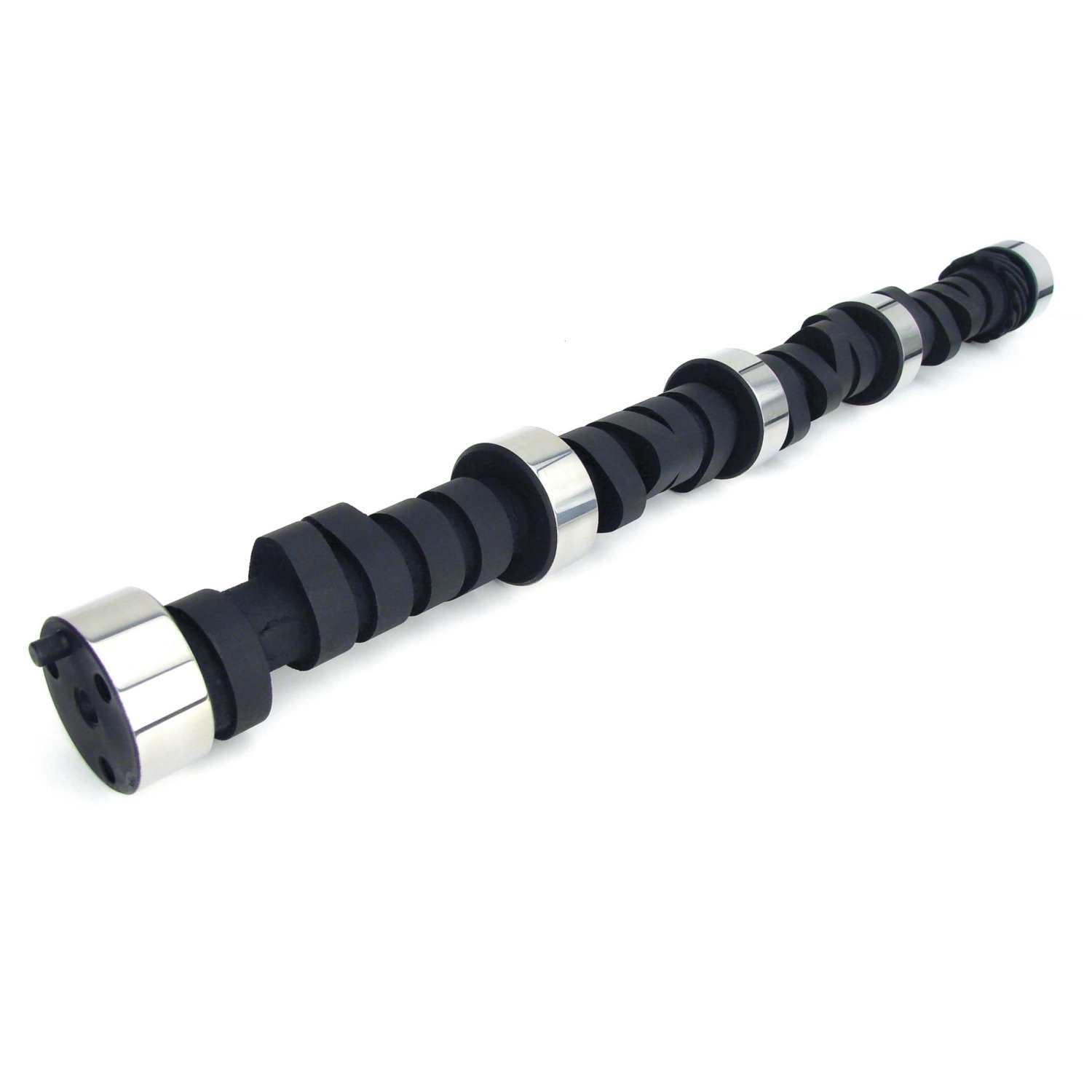

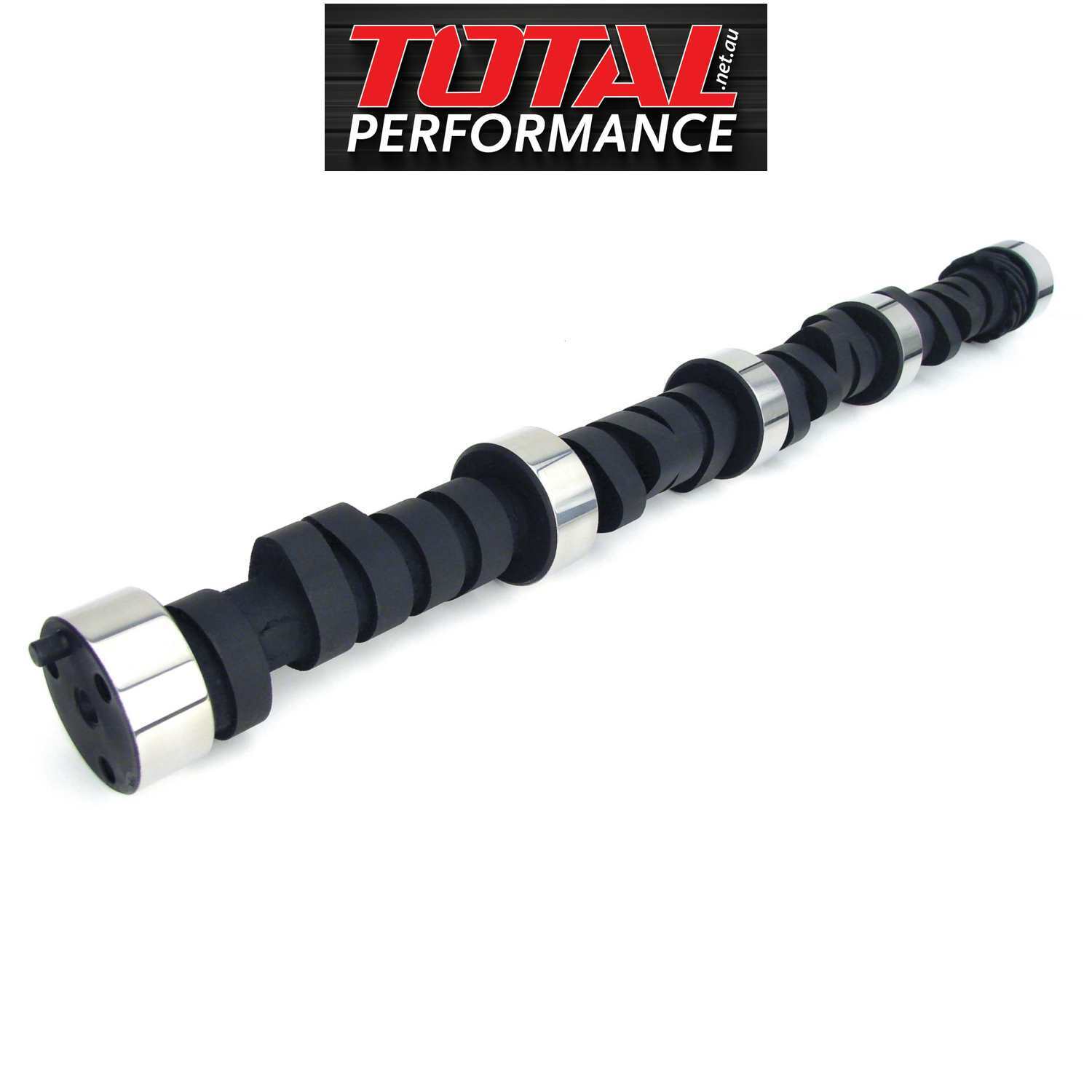

11-560-4 Nitrous HP 224/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454

$280.59

or 4 payments of $70.15 with Info

Sold Out

Description

Street machines with 125+ hp nitrous kit, needs 2000+ stall, 3.73 gear, choppy idle.

Specifications

SKU 11-560-4
Barcode # 036584038726
Brand COMP CAMS
Lifters Included No
Camshaft Series Nitrous HP
Exhaust Duration At .050 Inch Lift 236
Advertised Exhaust Duration 286
intake valve lift 0.515
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,000-6,200
Lobe Separation 113
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number NX268H
Intake Duration At .050 Inch Lift 224
Advertised Intake Duration 268
Exhaust Valve Lift 0.547
Camshaft Material Cast Iron
