SKU: 21-305-4

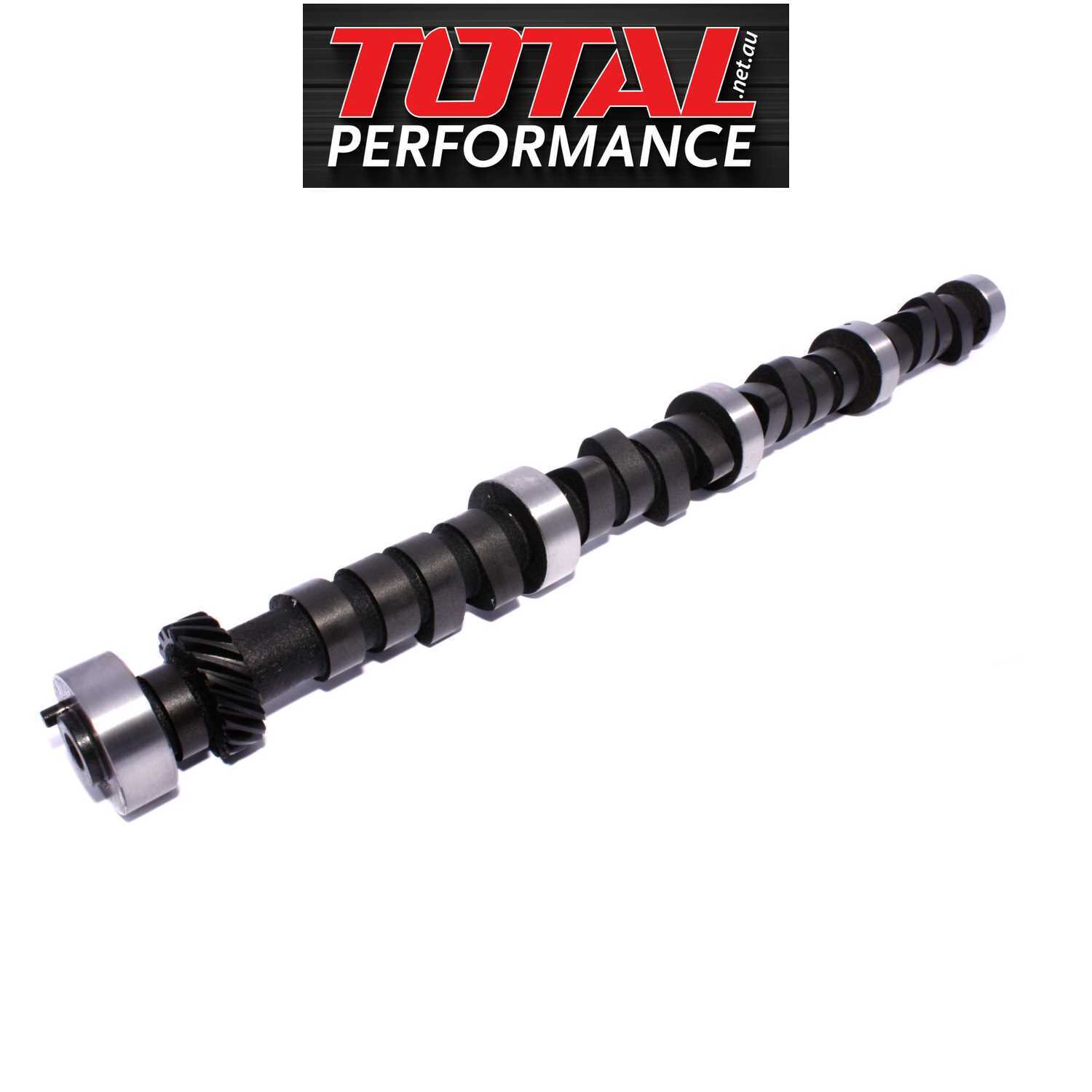

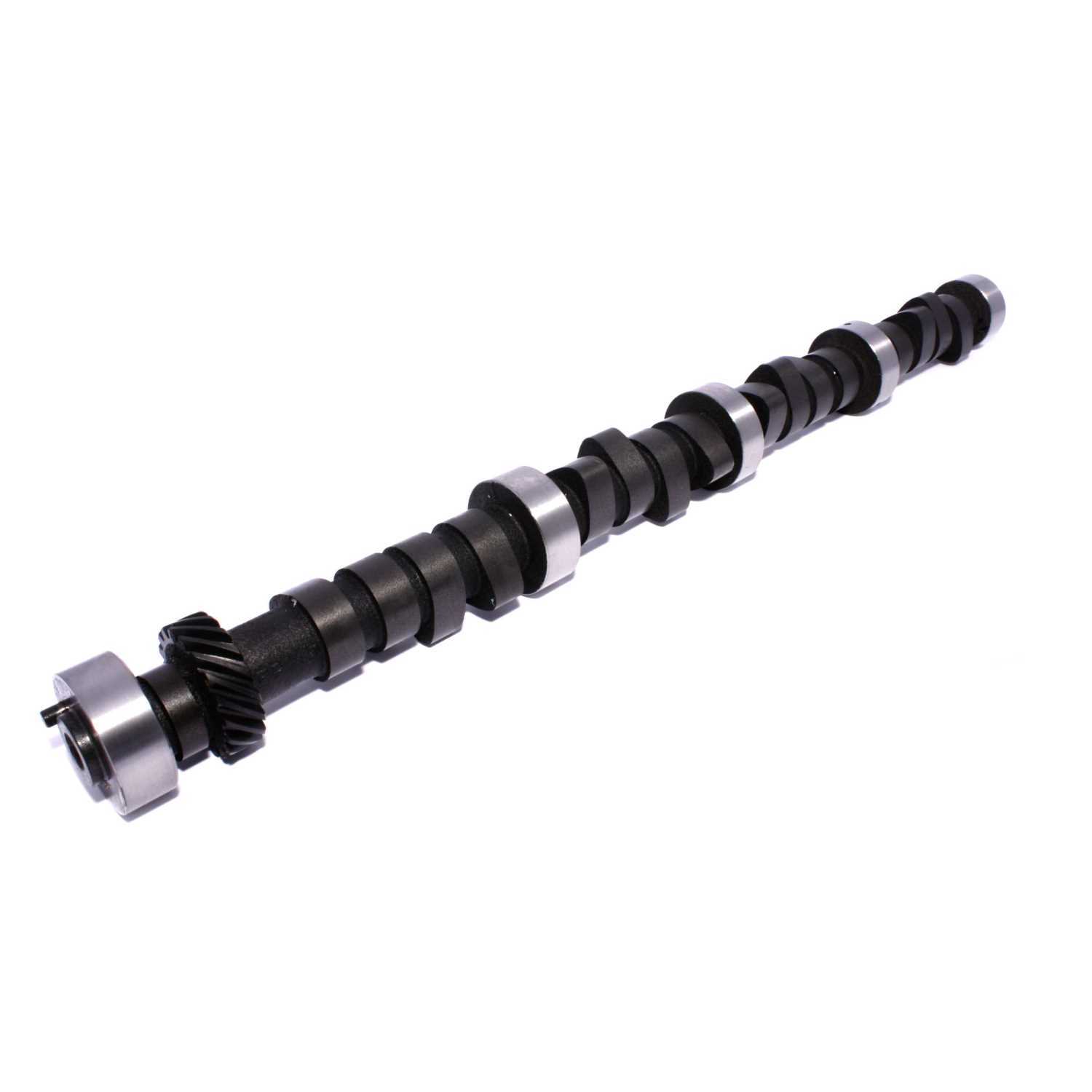

21-305-4 Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 383-440

$280.59

or 4 payments of $70.15 with Info

Sold Out

Description

Factory I.D. 2806980 for: 383c.i., 1968-70, factory 335 HP, 383c.i., 1971, factory 300 HP, 440c.i., 1967-70, factory 375/390 HP, 440c.i., 1971, factory 370/385 HP.

Specifications

SKU 21-305-4
Barcode # 036584612254
Brand COMP CAMS
Lifters Included No
Camshaft Series Magnum Muscle
Exhaust Duration At .050 Inch Lift 226
Advertised Exhaust Duration 276
intake valve lift 0.464
Camshaft Gear Attachment 1-Bolt
Basic Operating Rpm Range 1,600-5,600
Lobe Separation 110
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number 268AH-10
Intake Duration At .050 Inch Lift 222
Advertised Intake Duration 268
Exhaust Valve Lift 0.464
Camshaft Material Cast Iron
