SKU: CK224-302-13

CK224-302-13 Stage 2 LST Cam Kit for LT1 Camaro and Corvette w/ AFM Delete

$1,971.49

or 4 payments of $492.87 with Info

Sold Out

Description

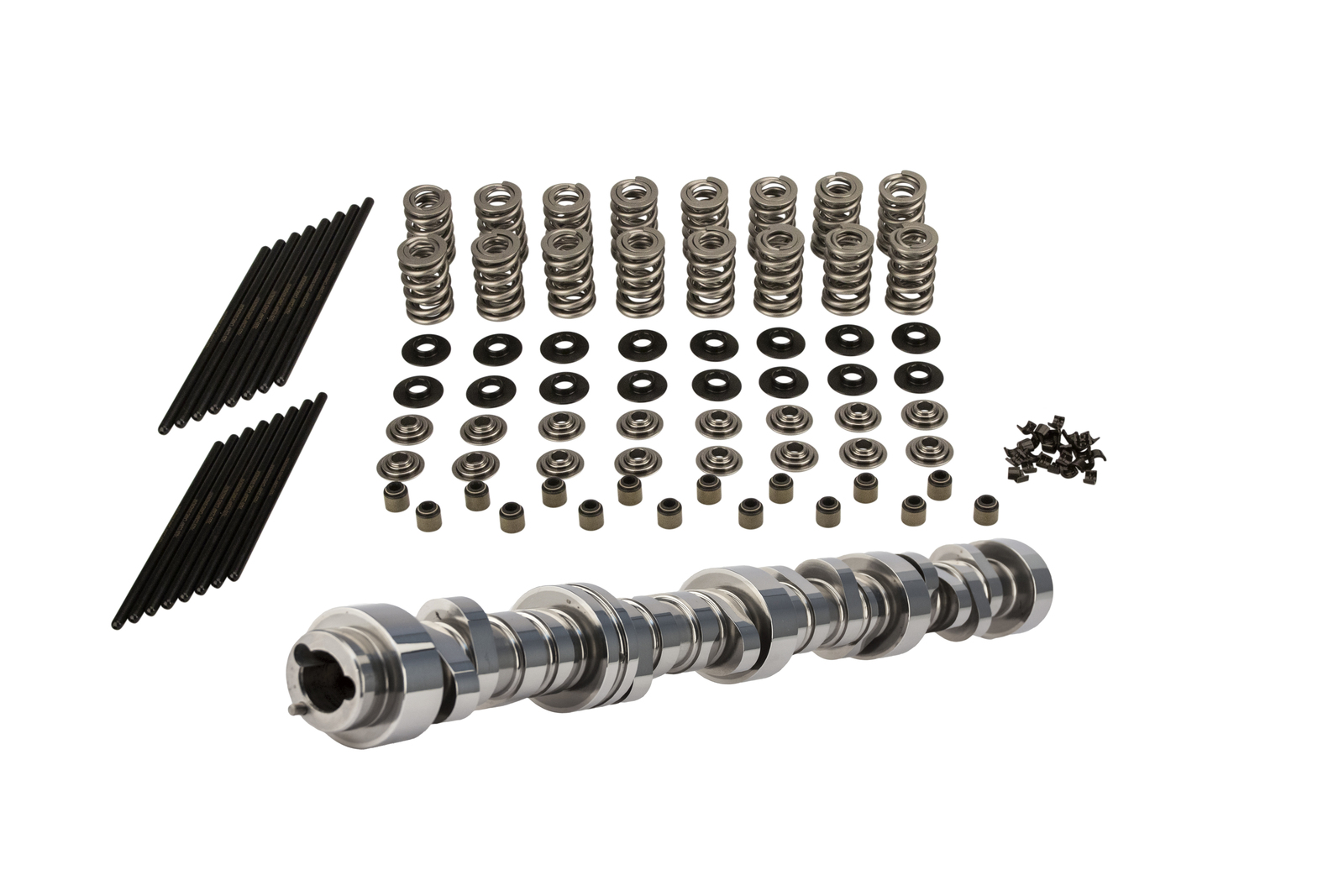

The Stage 2 LST Cam Kit for LT1 GEN V Camaro and C7 Corvette delivers max horsepower from 4,000 to 7,400 RPM. Deletes AFM and includes pushrods, dual springs, retainers, locks, spring seats and seals.

Specifications

SKU CK224-302-13
Barcode # 036584387343
Brand COMP CAMS
Basic Operating Rpm Range 2,700-7,400
Lobe Separation 120
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Gaskets Included No
Valve Spring Seats Included Yes
Stage 2
Retainers Included Yes
Camshaft Gear Attachment 1-Bolt
Grind Number 290LMH20
Intake Duration At .050 Inch Lift 235
Advertised Intake Duration 290
Exhaust Valve Lift 0.643
Valve Seals Included Yes
Pushrods Included Yes
Valve Springs Included Yes
Lifters Included No
Camshaft Series Low Shock Technology
Exhaust Duration At .050 Inch Lift 248
Advertised Exhaust Duration 297
intake valve lift 0.65
Timing Set Included No
Locks Included Yes
Camshaft Material Billet Steel
