Description

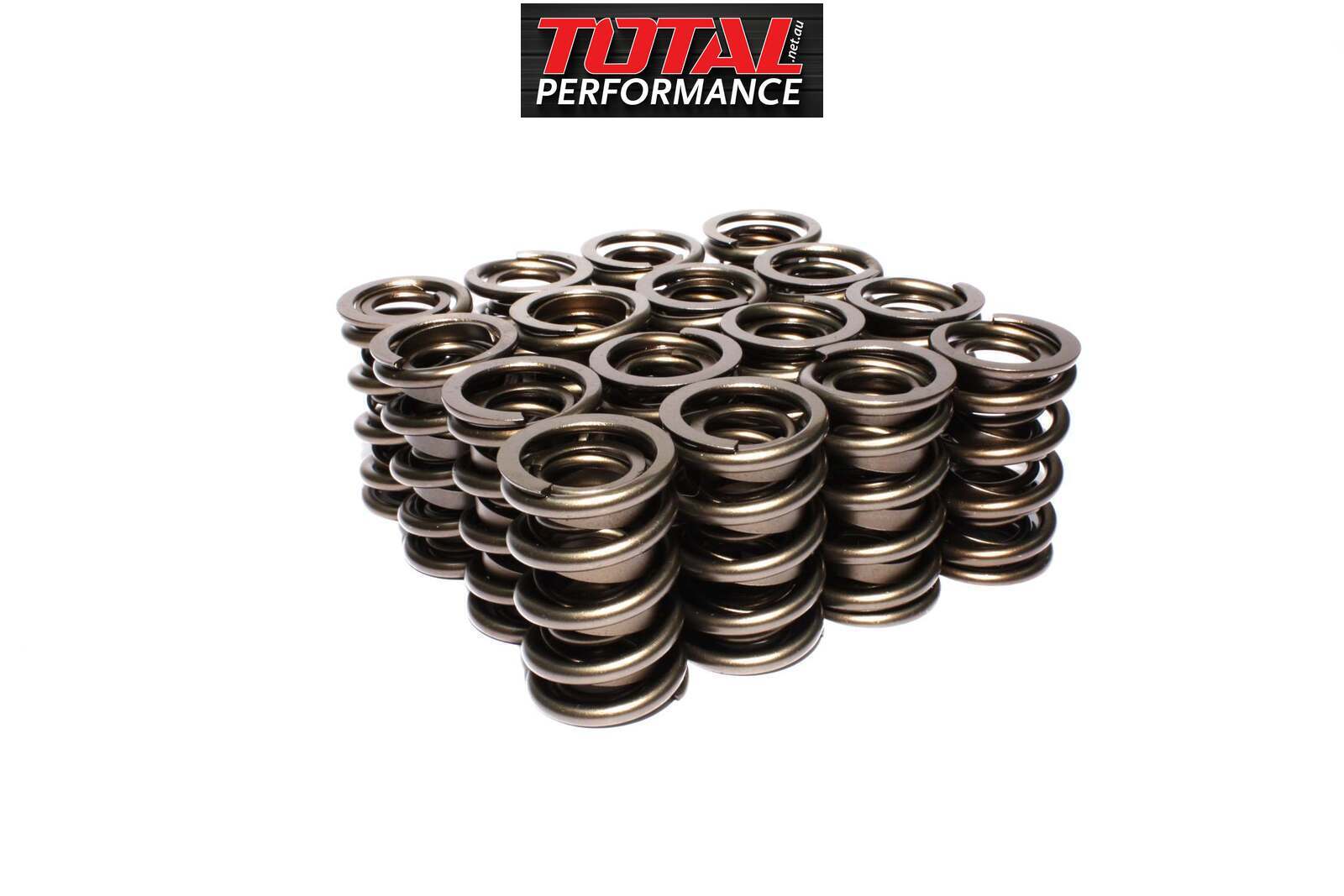

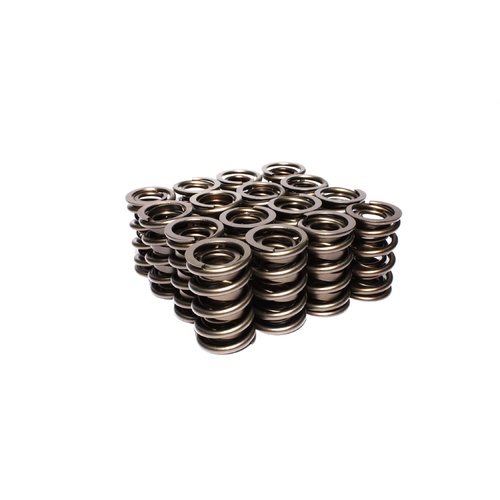

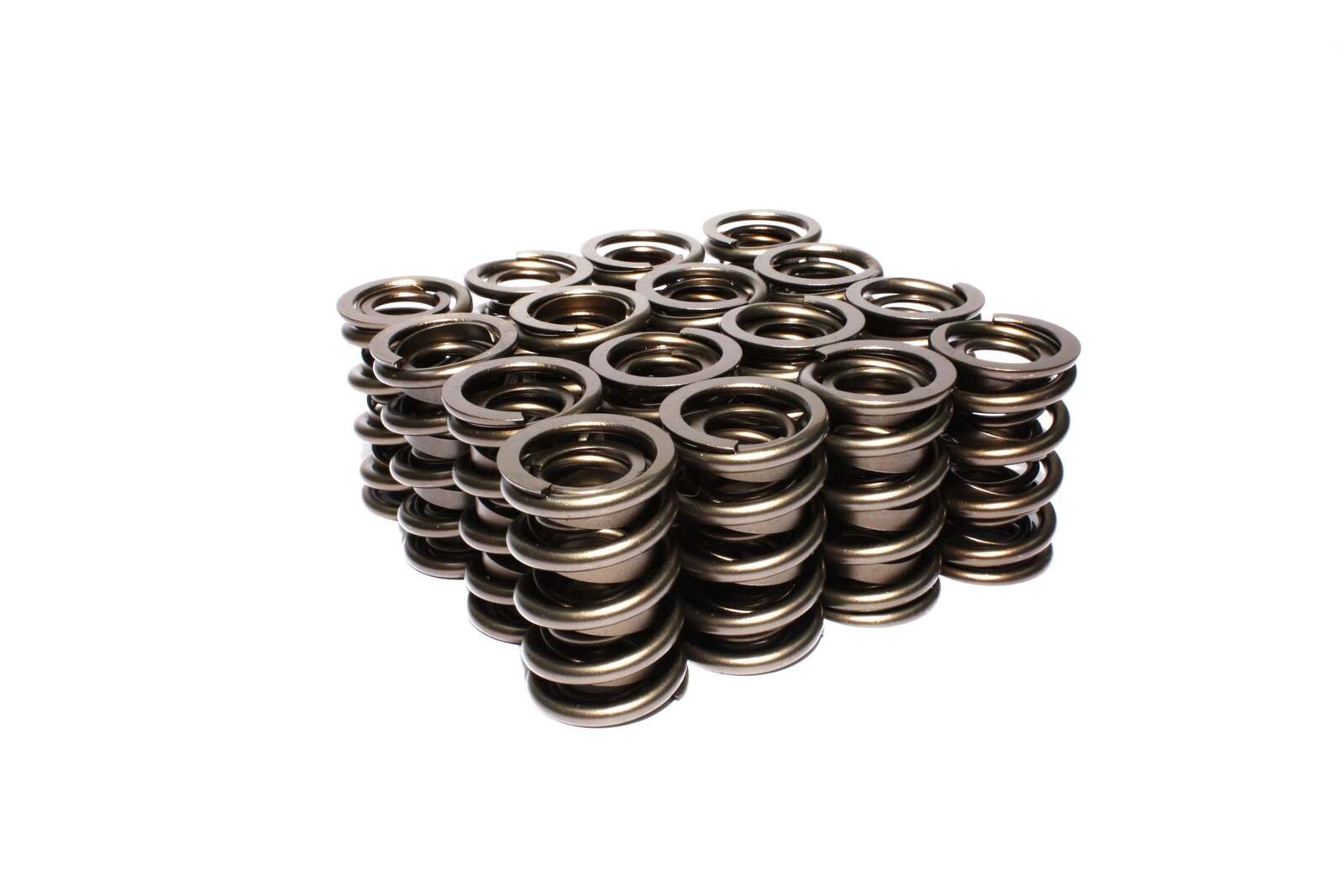

Street Series - Solid Roller Dual Valve Springs. Suits the Holden 304 308 & Small Block Chevy & Small Block Ford 302W 351W Cylinder heads*
Dual Valve Springs from COMP Cams® are manufactured from Super Clean™ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter what the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams® Dual Valve Springs exceed the expectations of today’s engine builders and racers.
Max Lift: 0.655"
Installed Height: 1.800"
Coil Bind Height: 1.085"
O.D. of Outer:1.55
I.D. of Inner:0.737
I.D. of Outer:1.137
Spring Style:Dual
Spring Rate: 473 lbs/inch
Seat Pressure: 195lbs @ 1.800"
Damper: Yes
*May require machine work and modification.
Specifications
| SKU | 953-16 |
| Barcode # | 036584270720 |
| Brand | COMP CAMS |
| Seat Height | 1.9 |
| Damper | Yes |
| Seat Pressure | 148 |
| Outer Spring Outside Diameter | 1.55 |
| Outer Spring Inside Diameter | 1.137 |
| Number Of Springs | 2 |
| Inner Spring Inside Diameter | 0.737 |
| Coil Bind Height | 1.085 |
| Spring Rate | 473 |
