351C Dual Valve Springs High RPM Hydraulic Roller .700" Max Lift 159lbs@1.900" 427lbs/in. GM LS7 & 351C Cleveland, BBC 454
Installs @ 1.900" - High RPM Series - Hydraulic Roller
or 4 payments of $224.53 with
Info
*FREE SHIPPING ON ORDERS OVER $200!
Description

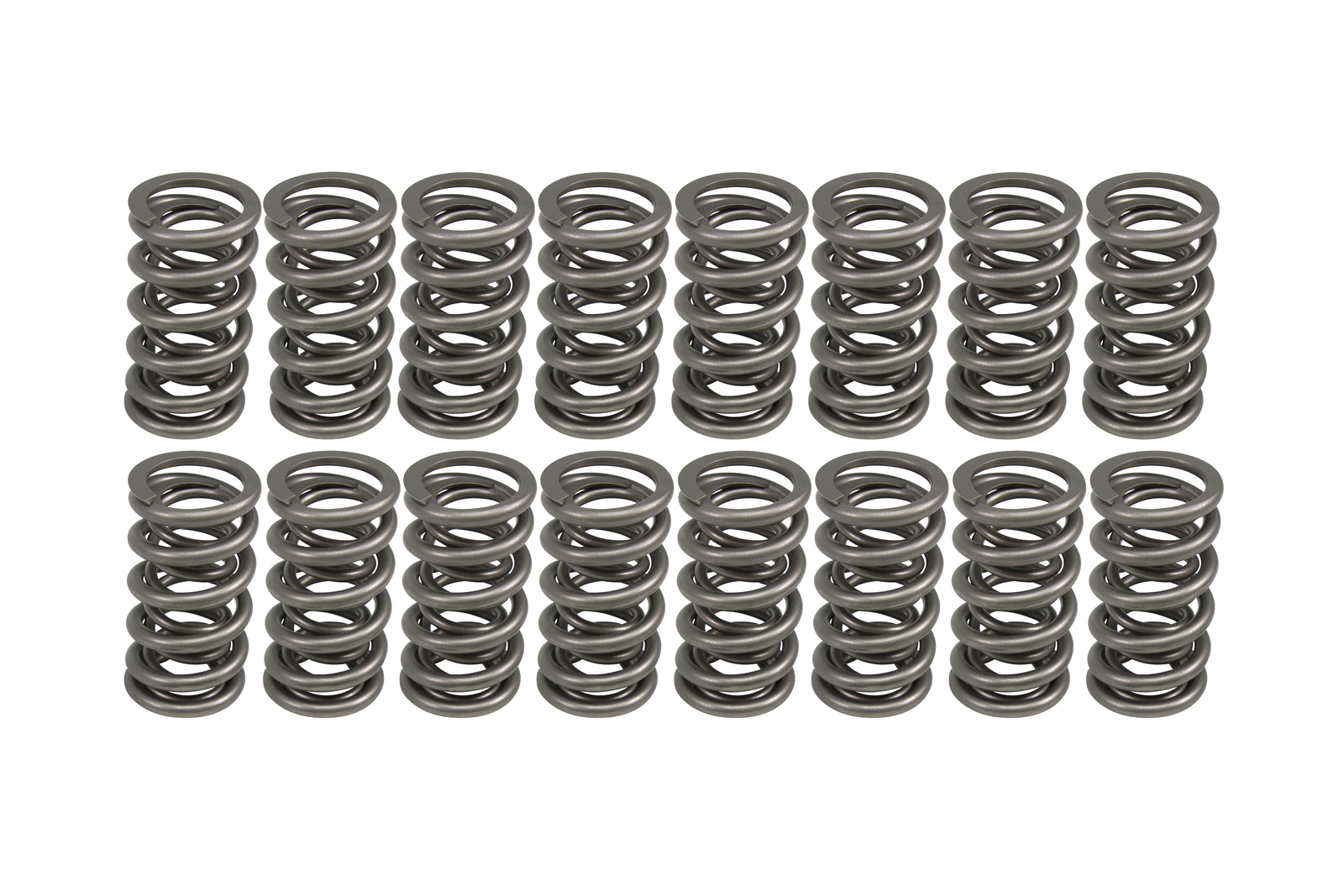

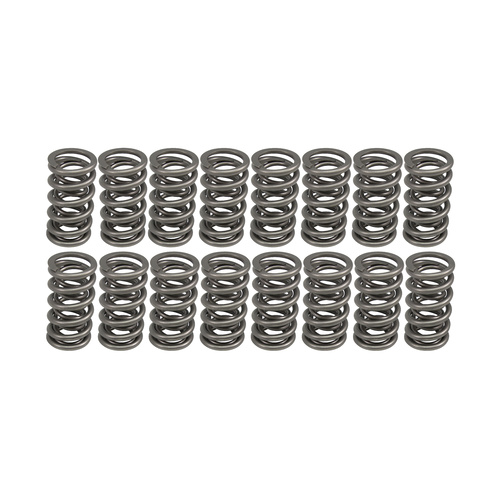

Comp Cams Premium Dual Valve Springs. Hydraulic Roller
Can be used on the LS7, 351c Cleveland and BBC 454 Hydraulic Rollers.
- Part# 26527-16
- OD: 1.301"
- ID inner: 0.646"
- Seat Load: 159@1.900
- Open Load 458@ 1.200" (0.600" lift)
- Spring Rate: 427 lbs/in
- Coil bind: 1.150"
- Max lift: 0.700" (with 050" safety)
Retainers to use:
- 11/32" stem: 714-16 - 7 deg
- 8mm stem : 713-16 - 7 deg
Locators to use: 4682-16 (.570" guide)
Specifications
| SKU | 26527-16 |
| Barcode # | 036584384779 |
| Brand | COMP CAMS |
| Damper | No |
| Seat Pressure | 159 |
| Outer Spring Outside Diameter | 1.301 |
| Outer Spring Inside Diameter | 0.924 |
| Number Of Springs | 2 |
| Inner Spring Inside Diameter | 0.646 |
| Valve Spring Series | Dual |
| Coil Bind Height | 1.15 |
| Spring Rate | 427 |
| Spring Style | Dual |
| Open Load | 458 |
| Installed Height | 1.9 |
Reviews
Be The First To Review This Product!
