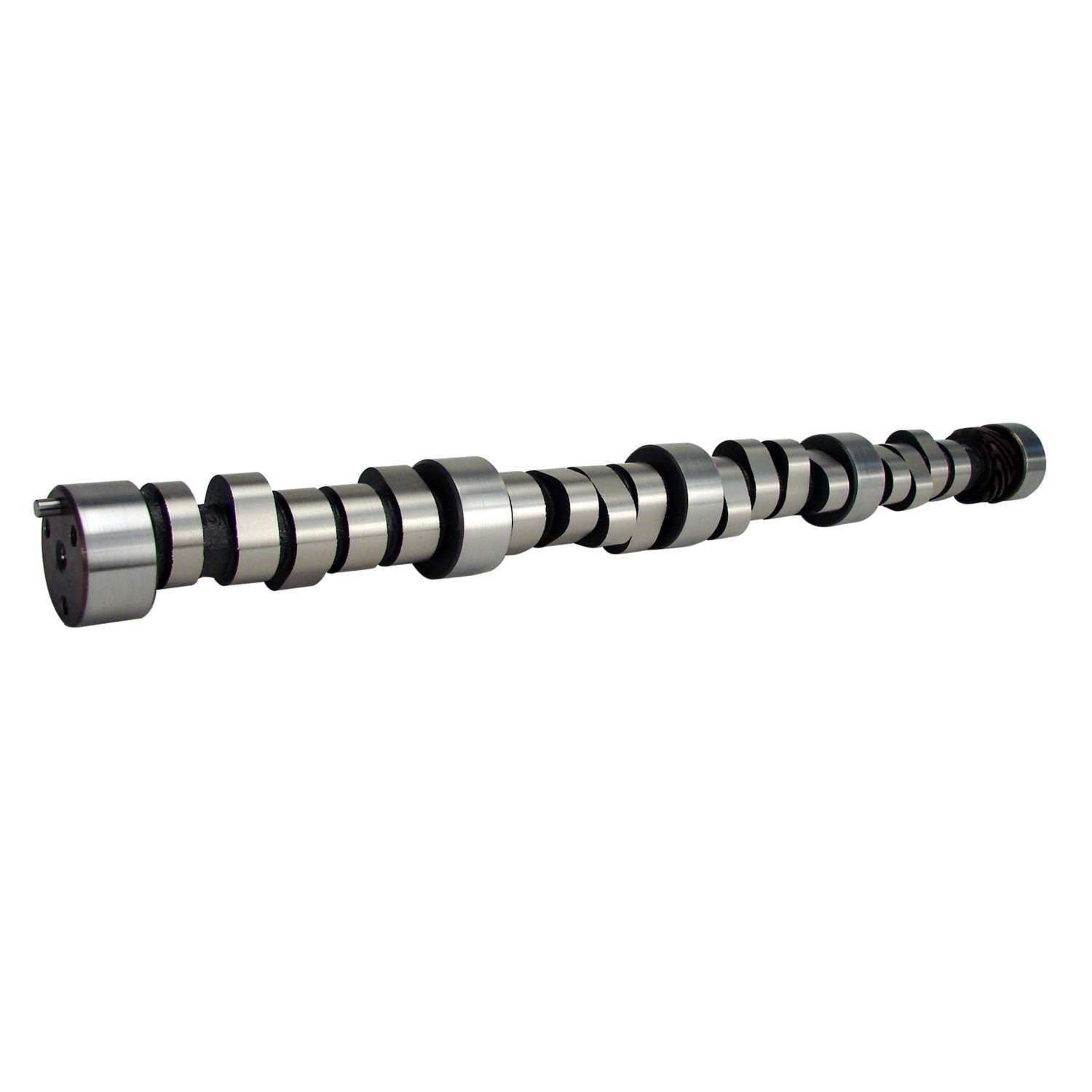

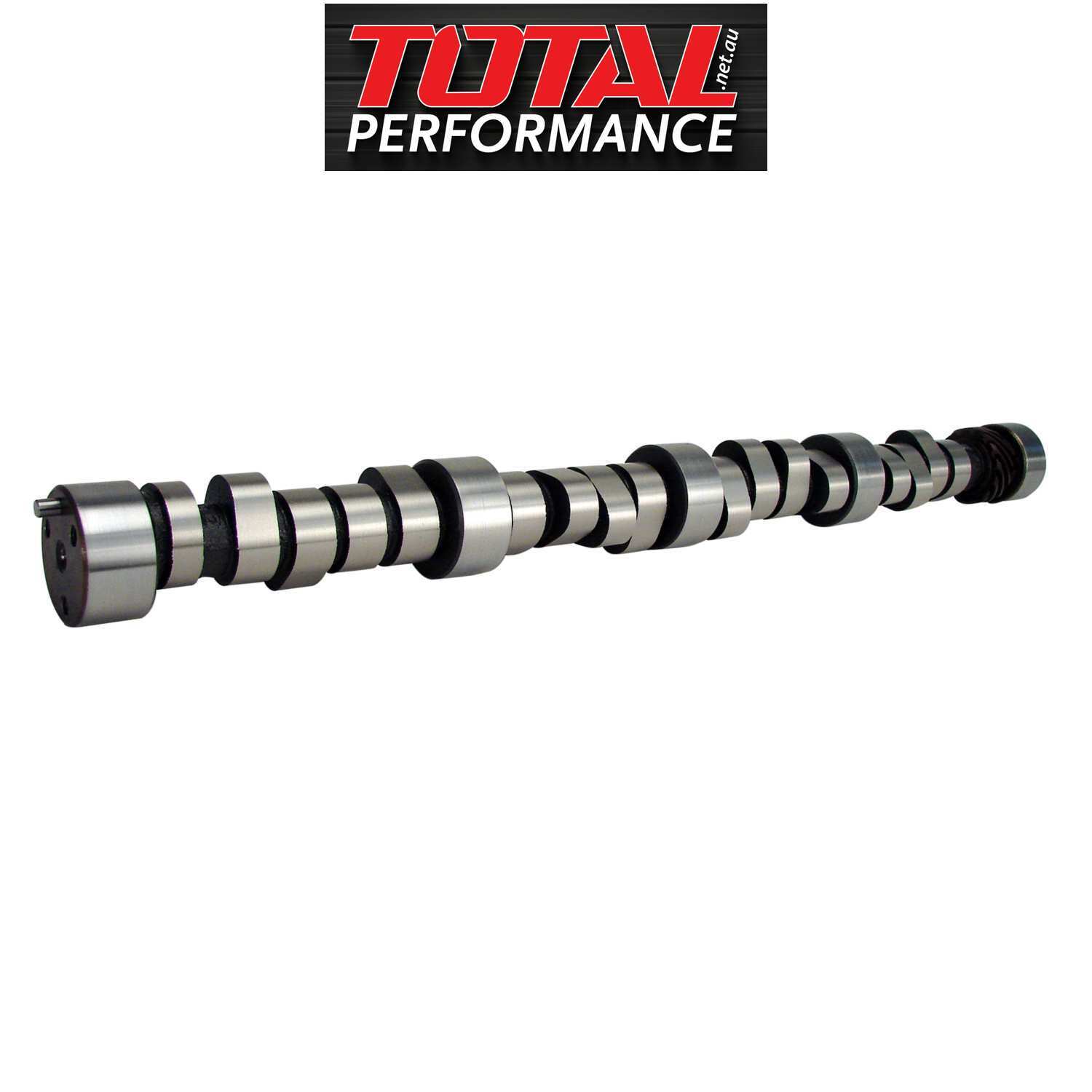

11-423-8 Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Big Block 396-454

** CLOSED UNTIL 12TH JANUARY - SHIPPING STARTS 12TH JANUARY 2026**

11-423-8 Xtreme Energy 224/230 LSA 110 Hydraulic Roller Cam for Chevy Big Block 396 454 BBC

Description

Great for street machines, needs intake, headers, 2000+ stall and gears.

Specifications

SKU	11-423-8
Barcode #	036584024859
Brand	COMP CAMS
intake valve lift	0.51
Exhaust Valve Lift	0.51
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	282
Advertised Intake Duration	276
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	230
Intake Duration At .050 Inch Lift	224
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR276HR
Basic Operating Rpm Range	1,900-5,600
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Austempered Ductile Iron
