SKU: 433420

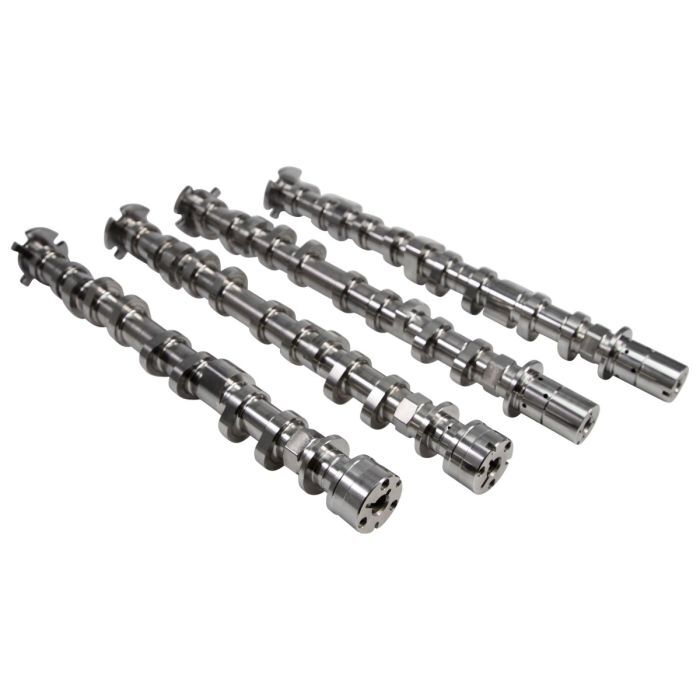

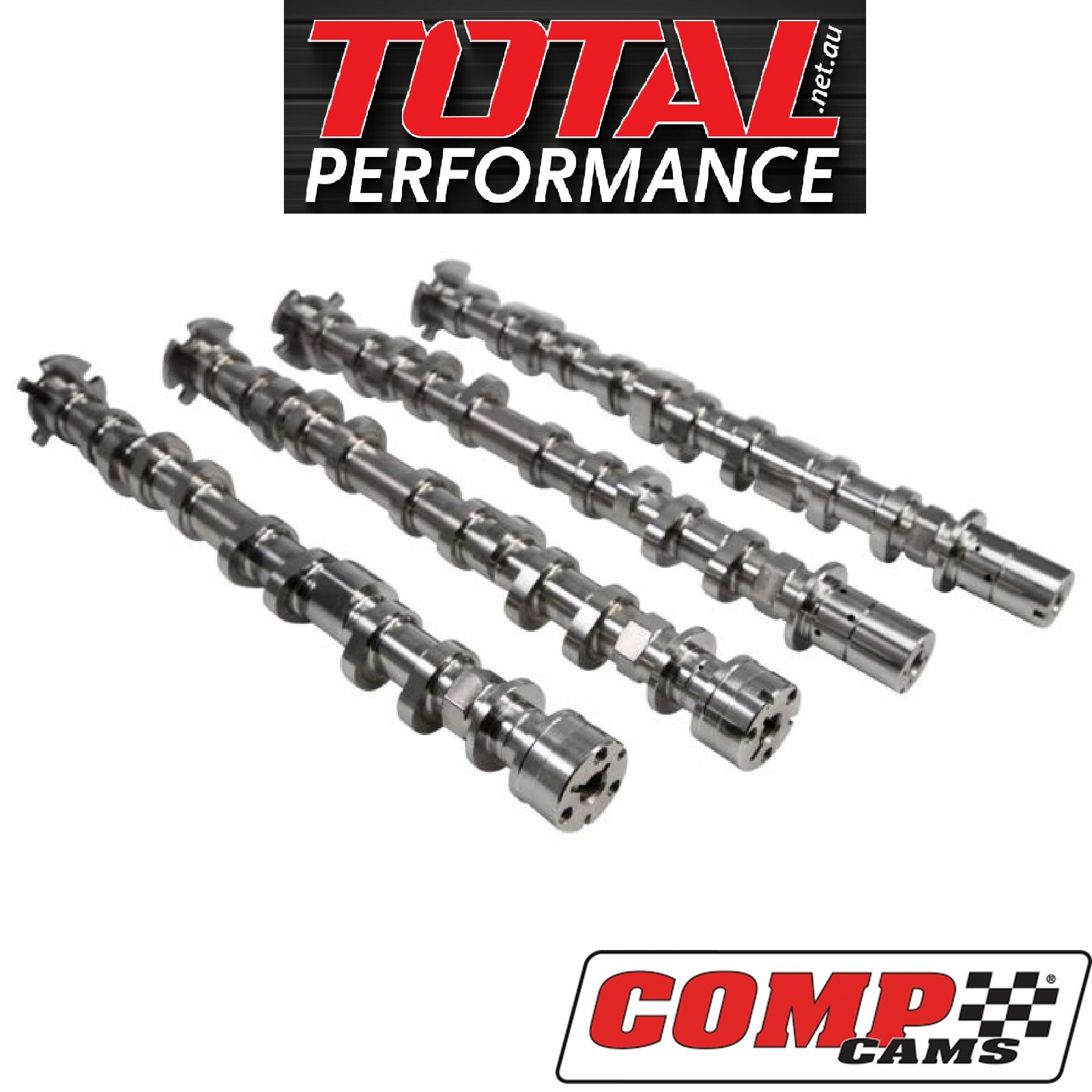

Stage 1 Upgrade Camshafts No Springs Required Set for 2018+ Ford 5.0 Coyote

Stage 1 Upgrade Camshafts

$3,563.11

or 4 payments of $890.78 with Info

IN STOCK  FREE SHIPPING

*Free shipping on orders over $200


Description

COMP Cams 433420, 2018+ Ford 5.0L Coyote Applications

Stage 1 NSR Grind Cams for N/A . Best choice for factory intake and stock gearing, especially in auto cars. Great power and response. DOHC – No Springs Required (NSR)

Stage 1 grind for 2018+ Coyote. Best choice for factory intake and stock gearing, especially in auto cars. Great power and response. DOHC – No Springs Required (NSR) The Ford Coyote engine has proven itself as an awesome base for modifications since its debut in 2011, and COMP Cams® now offers six different performance cam options that range from mild to wild for the newer direct Injection 2018+ Coyote engine. These brand new profiles, designed using data from GT350 race engines, are optimized for the 2018+ cylinder head geometry and flow, providing optimized power for any combination of modifications. The cams are designed to take advantage of the engine’s direct injection to not only make more horsepower, but to also maximize the fuel flow and power capability of the camshaft driven direct injection pump. In addition, these grinds are more stable at high RPM than the factory cam profiles while also producing more power across the entire RPM range.

Specifications

SKU 433420
Barcode # 036584402299
Brand COMP CAMS
intake valve lift 0.55
Exhaust Valve Lift 0.55
Advertised Exhaust Duration 286
Advertised Intake Duration 276
Cam Type Hydraulic Roller Finger Follower
Exhaust Duration At .050 Inch Lift 230
Intake Duration At .050 Inch Lift 228
Lobe Separation 123
Camshaft Series NSR
Basic Operating Rpm Range 1,900-7,600
Valve Springs Required No
Camshaft Material Billet Steel
Individual Cam Pt #s Included 433-421-11LE,433-422-11LI, 433-423-11RE, 433-424-11RI
Stage 1

Reviews

Be The First To Review This Product!

Help other Total Performance users shop smarter by writing reviews for products you have purchased.

Write a product review
