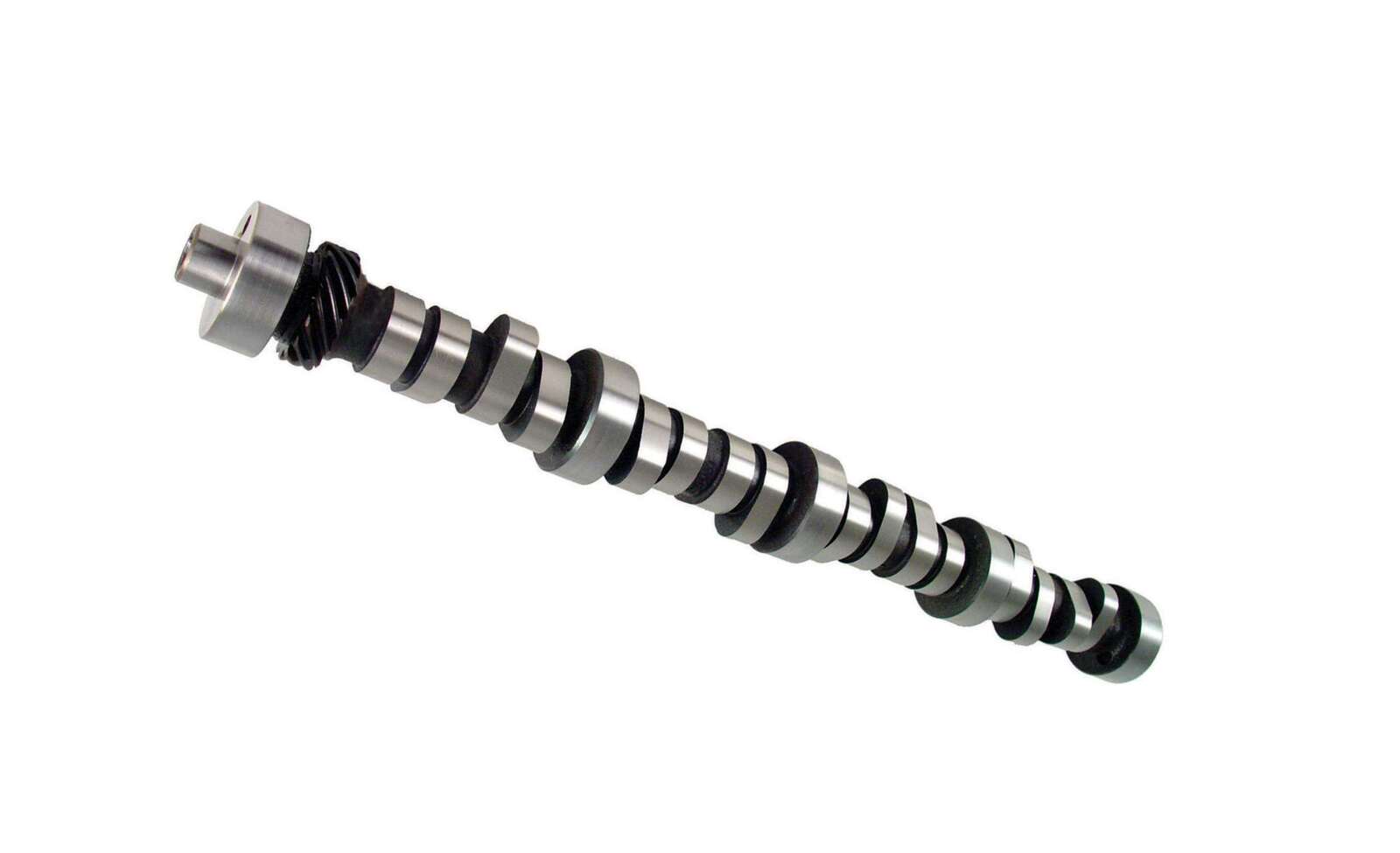

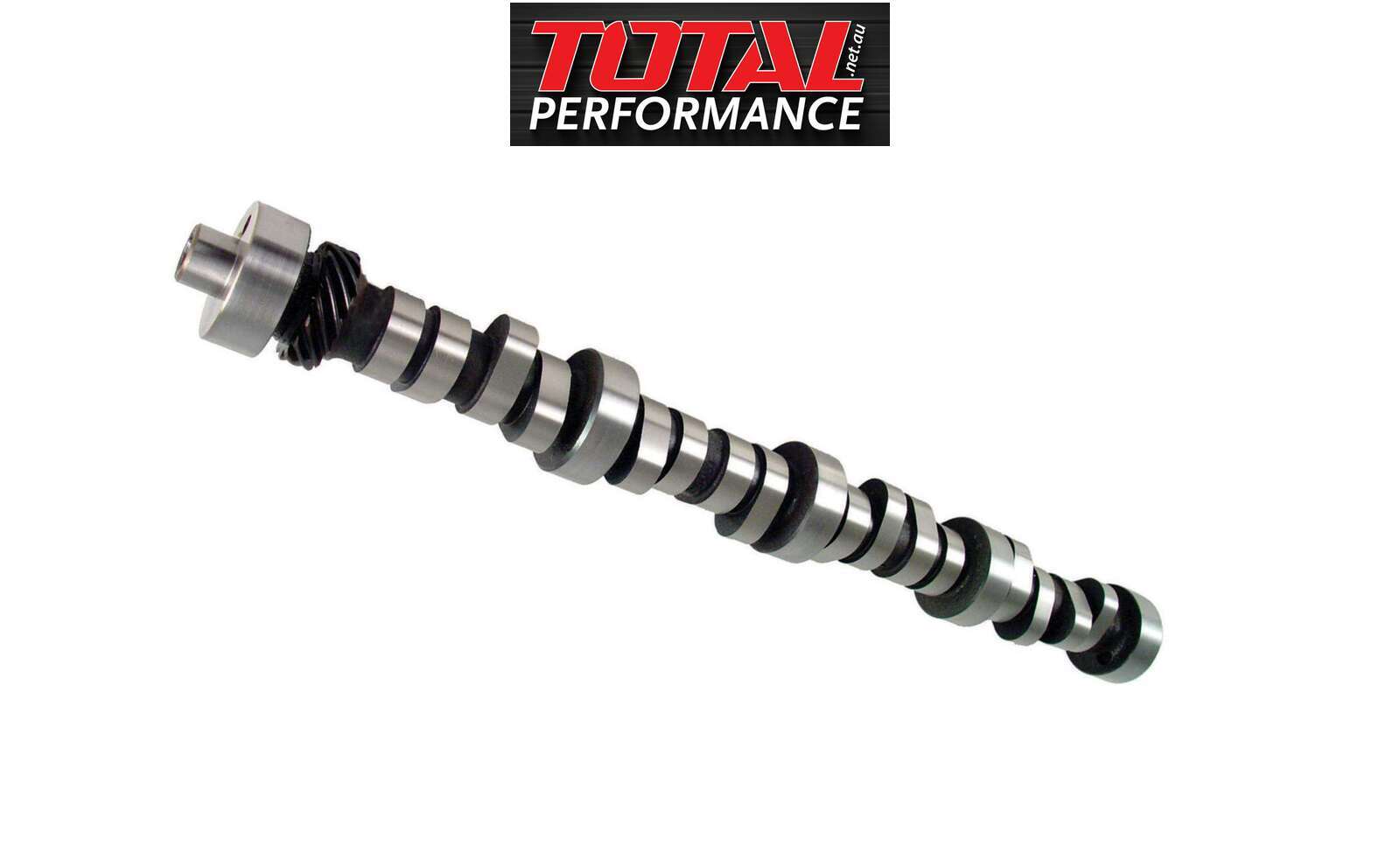

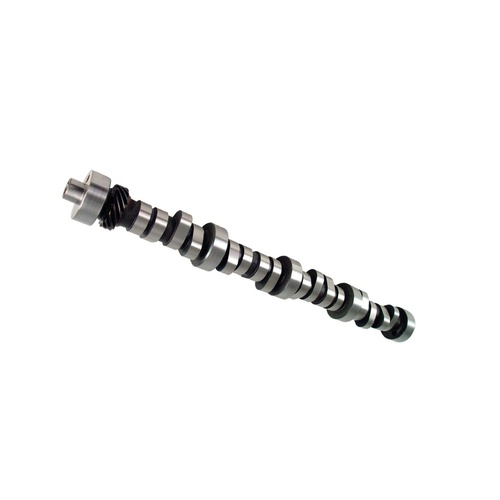

XE264HR Xtreme Energy Computer Controlled 212/218 LSA 114 Hydraulic Roller Camshaft Ford 5.0L for EFI, large base circle

Comp Cams Ford Windsor 5.0L EFI Hydraulic Roller Camshaft

Mild street performance, good upgrade for stock cam. Works with O.B.D.1.

Xtreme Energy™ Computer Controlled 212/218 Hydraulic Roller Cam for Ford 5.0L (For EFI). Mild street performance. Good upgrade from a stock cam. Works with O.B.D.1. (Note: for 1985-95 Engines Originally Equipped w/ Hydraulic Roller Cams.)

Engine Family:  Ford 5.0L (1985-2002)

RPM Operating Range:  1,500-5,500

Grind Number:  XE264HR

Cam Type:  Hydraulic Roller Cam

Lifter Style:  Hydraulic Roller Lifters - both OEM & Tie Bar type

Camshaft Series:   Xtreme Energy Computer Controlled

Usage:  Street/Performance

Advertised Intake Duration:  264

Advertised Exhaust Duration:  270

Intake Duration at .050 Inch Lift:  212

Exhaust Duration at .050 Inch Lift:  218

Intake Valve Lift:  0.512

Exhaust Valve Lift:  0.512

Lobe Lift Intake:  0.321

Lobe Lift Exhaust:  0.321

Lobe Separation:  114

Intake Centerline:  110

Exhaust Close ATDC:  17

Intake Open BTDC:  22

Exhaust Open BBDC:  73

Intake Close ABDC:  62

Camshaft Gear Attachment:  1-Bolt

Notes:  Will need to be tuned + Valve Springs upgrade

Comp Cams - made in USA.

Recommended Valve Springs:

• DRP-8374S-16  - StreetLine Series Small OD LS Springs
• DRP-8374S-SBKIT - Street Series "Full Kit" Small OD LS Springs
• DRP-9415P-16  - Proline Series - High RPM Endurance Small OD LS Springs
• DRP-9415P-SBKIT - Proline Series "Full Kit" - High RPM Endurance Small OD LS Springs
