SKU: DRP-351WTEK-HFT-400

351W Top End Kit Windsor 400HP Aluminium Cylinder Heads & Intake with Camshaft Hydraulic Flat Tappet Package

400HP Kit - Hydraulic Flat Tappet Camshaft

$3,957.34

IN STOCK  FREE SHIPPING
Please allow 3 days for assembly. If you need the heads sooner, please advise and we will do our best to get them done.

Customise Your Purchase

Hi-Tech Double Roller Race Timing Chain Gear Set. Early Block 69-'84 Ford 351W and 351W HO Windsor Suits 2 Piece Fuel eccentric

Hi-Tech Double Roller Race Timing Chain Gear Set.

$165.86

QTY
3138 Hi-Tech Roller Race Timing Chain Gear Set for '84-'92 Ford 5.0L, 302, 351W Windsor SBF Small Block Ford

3138 Hi-Tech Roller Race Timing Chain Gear Set for

$168.92

QTY
35-226-3 280H Magnum 230/230 LSA 110 Hydraulic Flat Tappet Camshaft Ford 302W 351W Windsor SBF

35-226-3 280H Magnum 230/230 LSA 110 Hydraulic Fla

$478.17

QTY
Xtreme Energy 230/236 LSA 110 Hydraulic Flat Tappet Camshaft Ford 302W 351W Windsor SBF

Xtreme Energy 230/236 LSA 110 Hydraulic Flat Tappe

$464.68

QTY
Dual Plane Performer style Intake Manifold Small Block Ford 351W Windsor 9.5" Deck

Dual Plane Performer style Intake Manifold Small B

$318.00

QTY
SINGLE Plane Intake Inlet Manifold Small Block Ford 351W Windsor 9.5" Deck

SINGLE Plane Intake Inlet Manifold Small Block For

$325.00

QTY

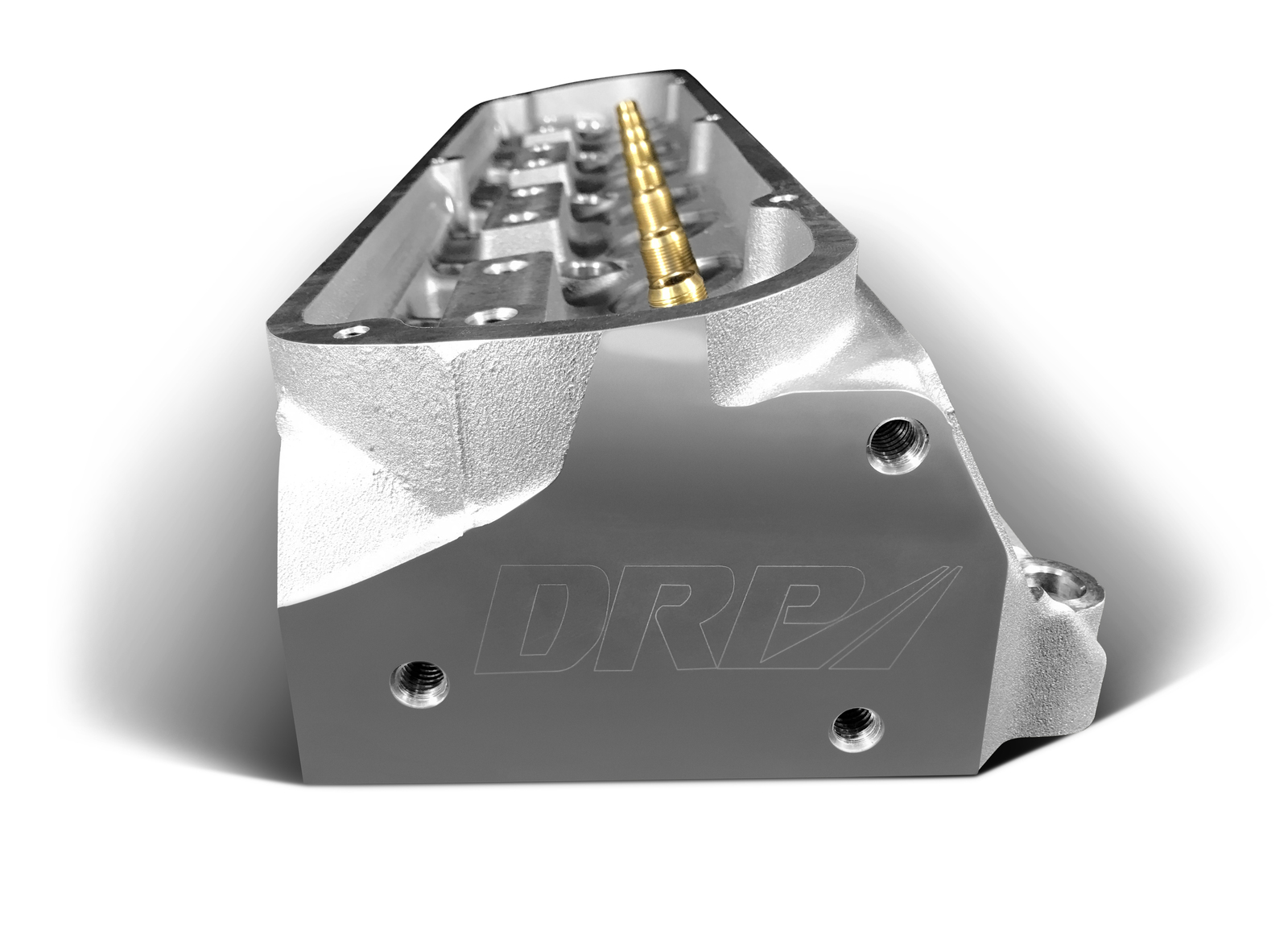

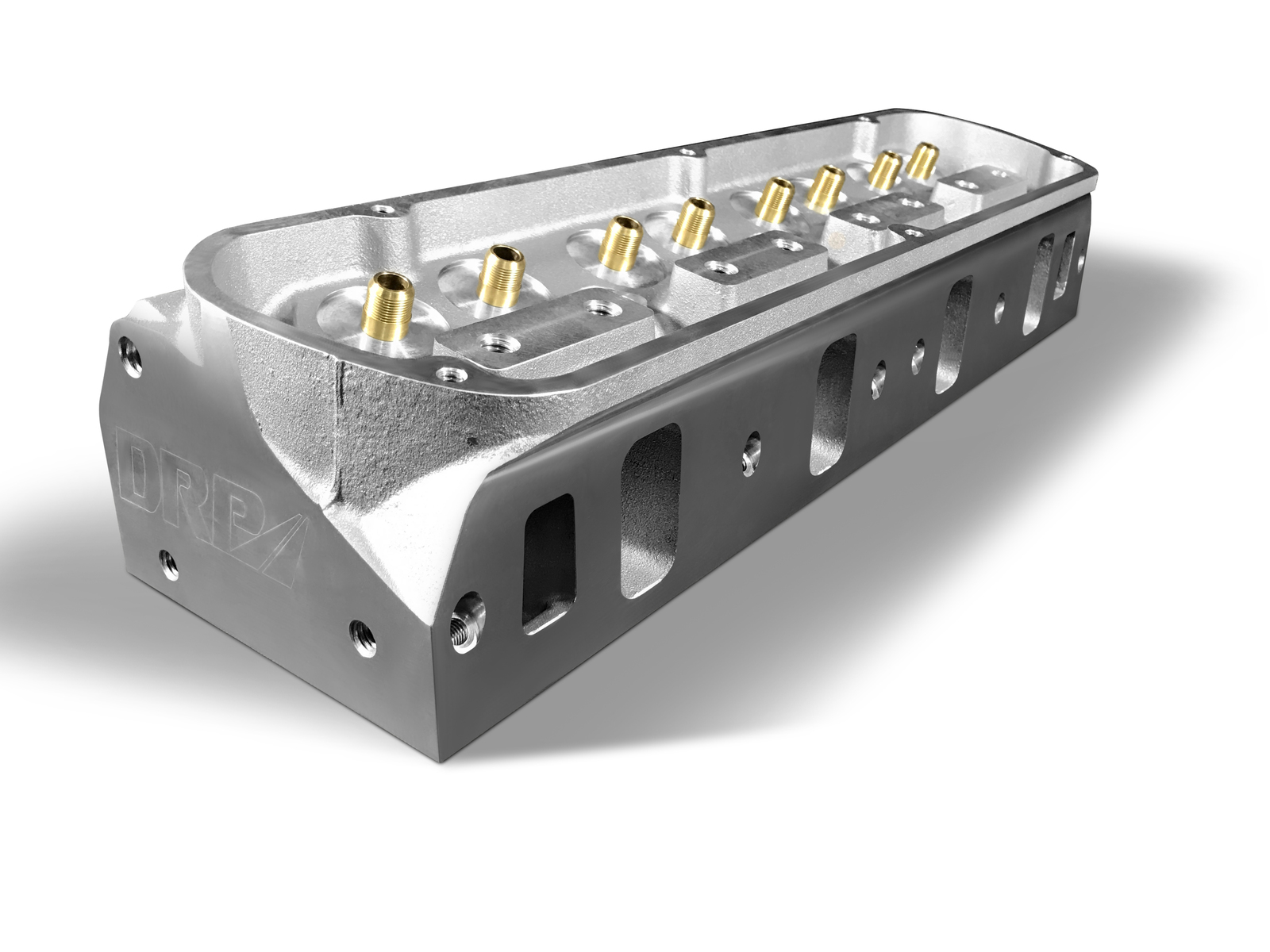

ASSEMBLED PAIR Ford V8 SBF Windsor Aluminium Cylinder Heads by DRP 302 351W HYD FLAT TAPPET

ASSEMBLED PAIR Ford V8 SBF Windsor Aluminium Cylin

$2,112.09

QTY
Intake Inlet manifold gaskets Ford SBF 289 302W 347 351W Windsor

Intake Inlet manifold gaskets Ford SBF 289 302W 34

$50.96

QTY

Description

351W Top End Kit - 400hp.

Suitable for Street Hydraulic Flat Tappet

Whats included:

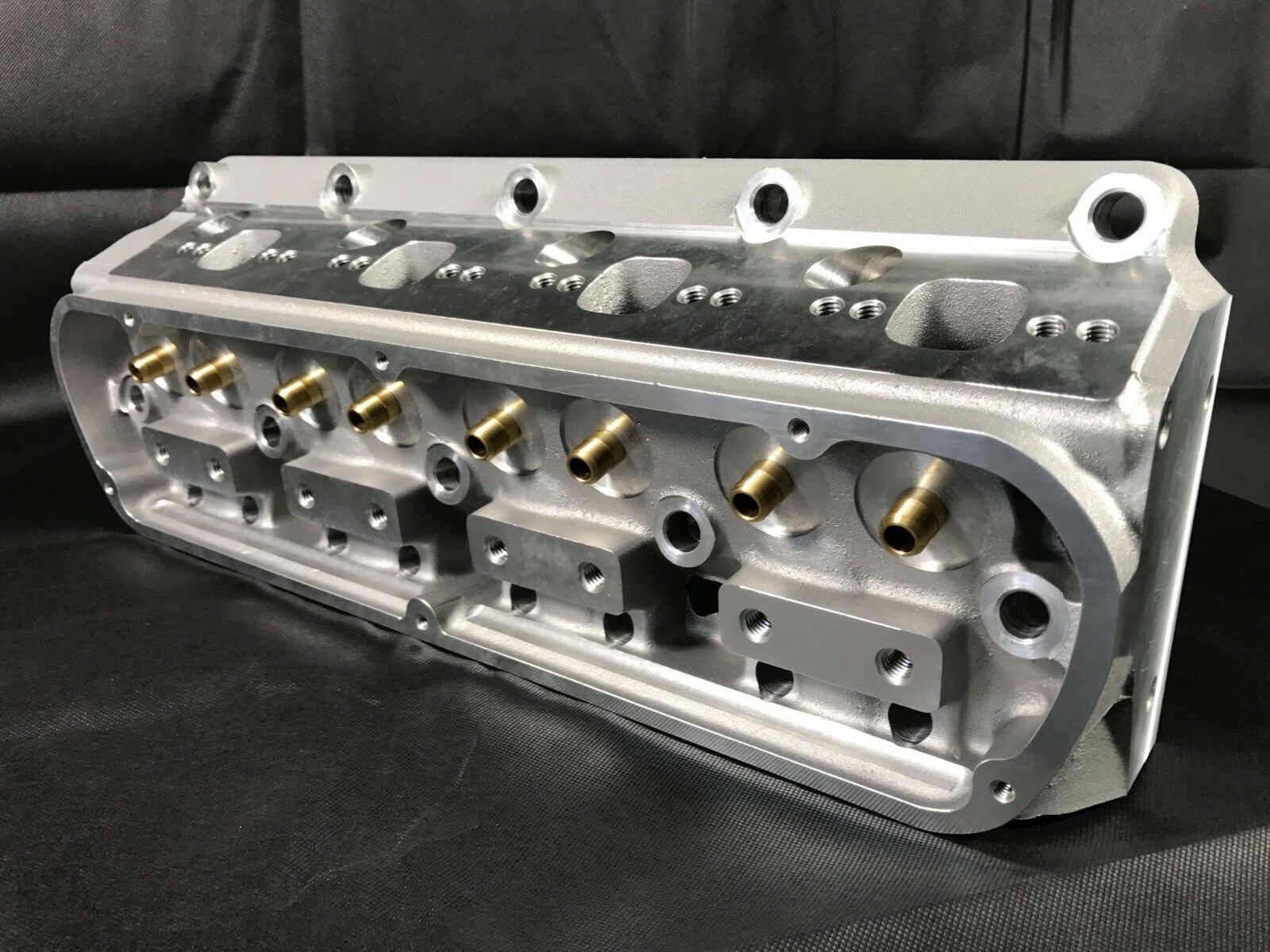

  • Assembled DRP Cylinder heads (185 Series) with Comp Cams Dual Valve Springs  (Comp Cams retainers + locks+ seats + seals)
  • Choice of DRP 5000 or Ferrea 5000 Series Stainless Steel Valves.
  • Choice of Intake Manifolds (depending on availability)
  • Assembled - ready to bolt on.
  • Comp Cams - Hydraulic Flat Tappet Camshaft
  • Comp Cams - Hydraulic Flat Tappet Lifters
  • Comp Cams - Double Row timing Chain set
  • Fel-Pro Full Gasket set
  • Comp Cams break in additive
  • See our other listing for Hydraulic Roller/Solid Roller /Solid Flat Tappet
  • Contact us if you need a combo to match your cam or higher lift.
  • We can leave the inner spring out if required for Camshaft break in - just ask.

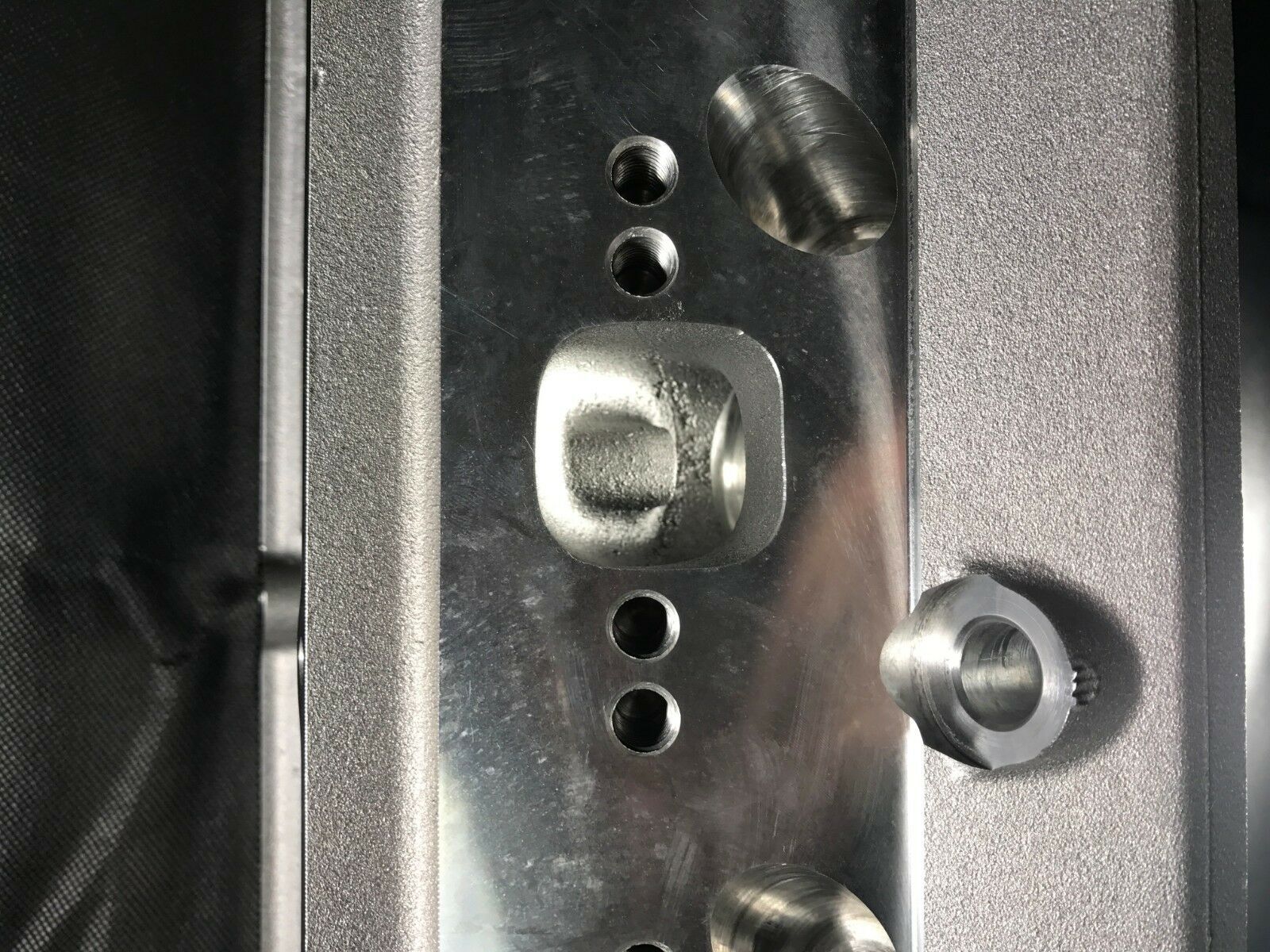

  • Port Shape, High Torque inlet runners that flow 500hp @ .450" lift
  • Internal Cast Quality ( Super Smooth Water Jackets for maximum flow - see our photos of the internal casting)
  • Optimal Spark Plug position.
  • Premium Bronze Valve Guides.
  • Hard 355-T6 Aluminium - Race Quality.

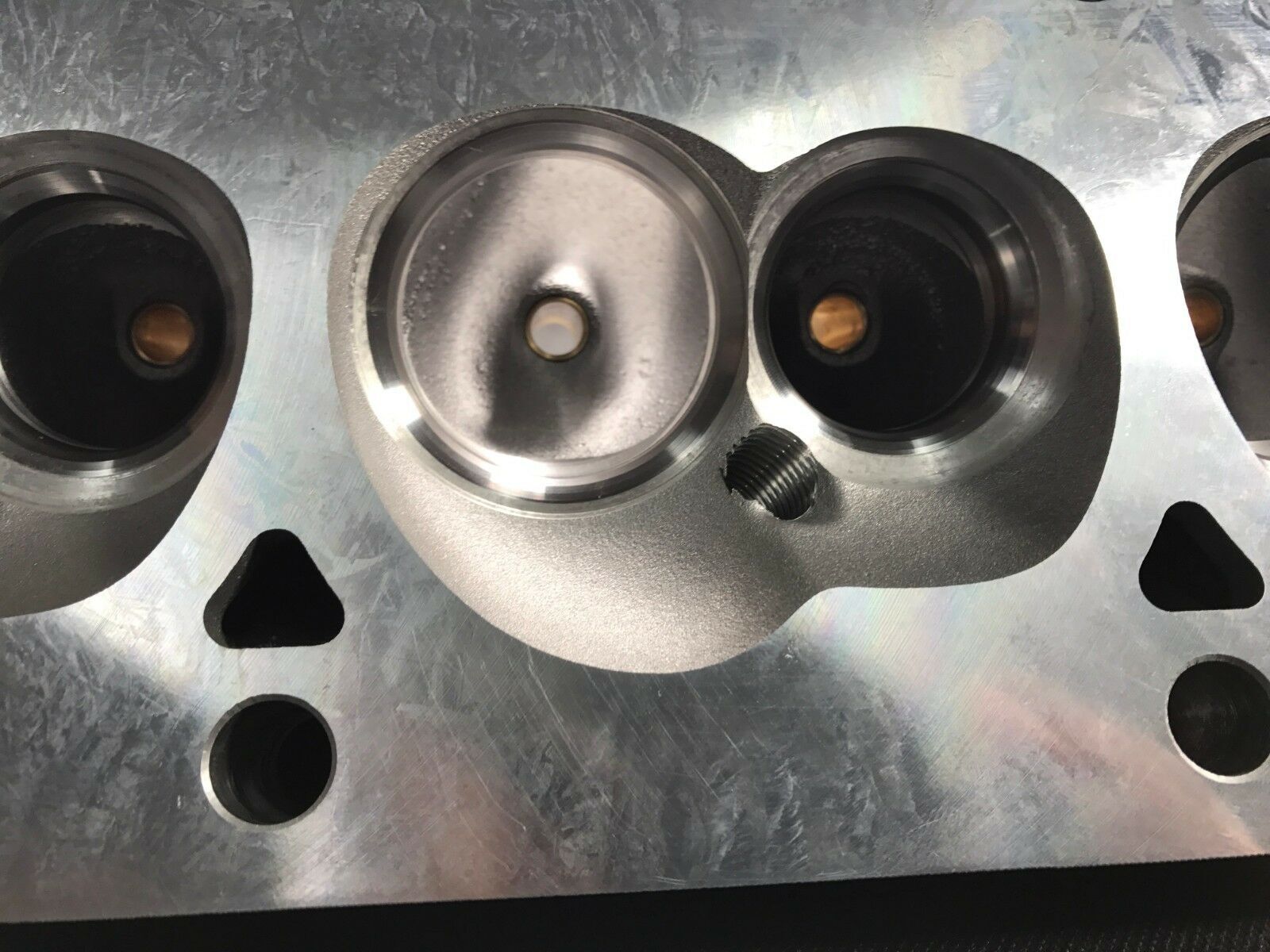

  • 3 Angle CNC Valve SeatS

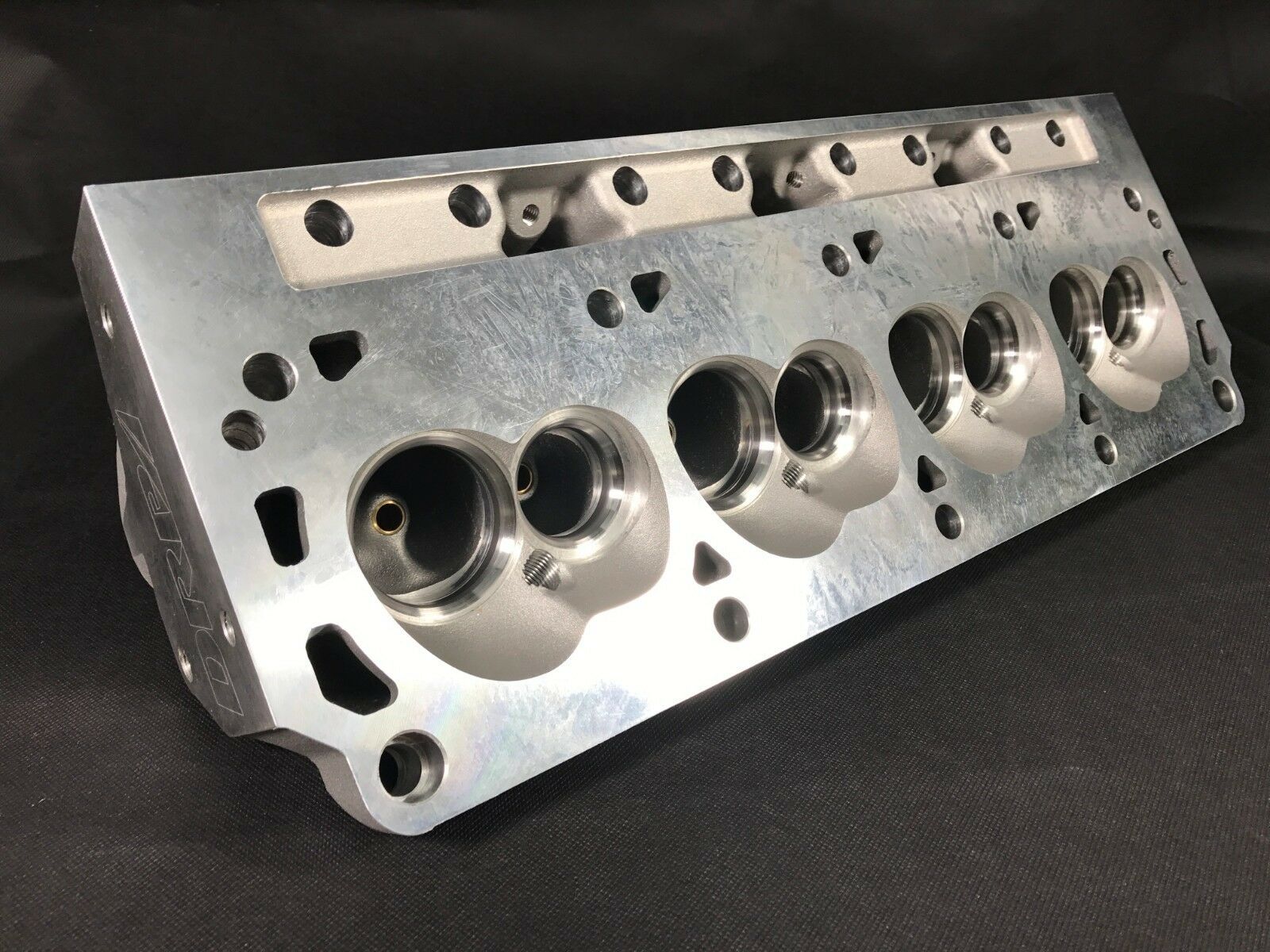

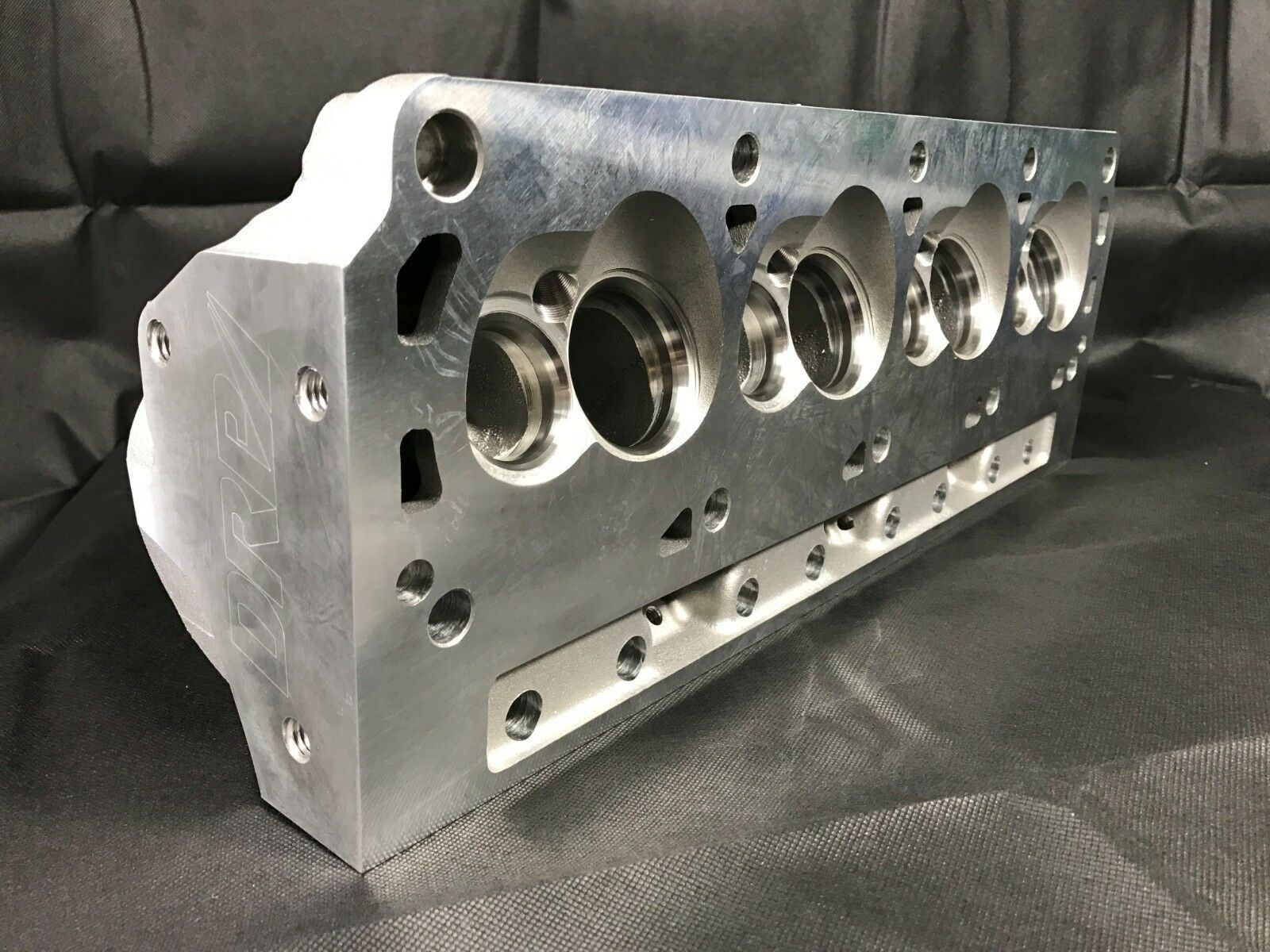

  • 60CC Chambers
  • Intake Valve size: 2.02"
  • Exhaust Valve size: 1.60"
  • 61cc Chamber size
  • Recommended Spark Plugs: 750 reach gasketed 5/8 hex. NGK-BCPR7ES
  • Recommended Intake Gaskets: Felpro 1262
  • Recommended Guide Plates: Comp Cams 4816-8
Flow Figures:  Lift 0.xxx" and flow in CFM note:
HP figures are "Potential" based on Flow/Velocity calculations*
Lift          Intake          Exhaust
200          120               87
300          181             134
400          223             159
450          244             163   -   503hp* + Exh flow 66% of Inlet
500          250             167   -   516hp*
550          256             168   -   527hp* + Exh flow 66% of Inlet
600          260             167   -   537hp* + Exh flow 64% of Inlet
650          261             169
700          262             168

*Output will be determined by your combination and quality of the motor build.



Have confidence and pride these are quality items Hand Assembled right here in Melbourne Australia.

Exceptional Quality for a Wow factor of a price!

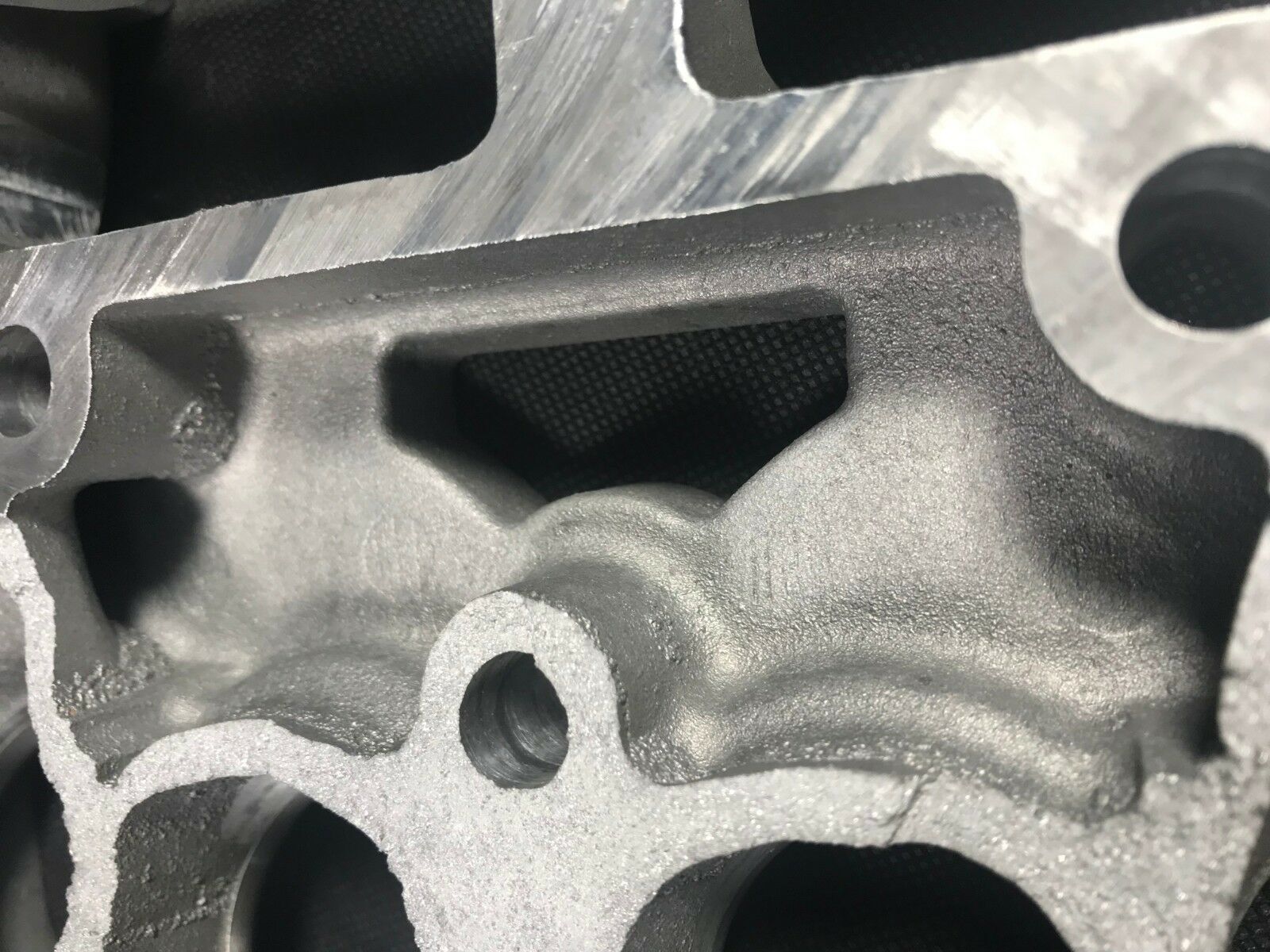

*See the photo of the internal cast quality. We cut a cylinder head in half to verify the thickness and quality. These castings are exceptional quality

These Cylinder heads flow and work like you wont believe. Best Bang for your Buck!

Dont waste your time or money on rebuilding old Cast Iron units - upgrade now. Forget the headaches, poor valve seats and crack testing woes.



Always trust TOTAL PERFORMANCE for the right parts.
Established in 1979
Add us to your favourites as we are constantly adding more parts.
Like us on Facebook - TOTAL PERFORMANCE
                     THANK YOU FOR YOUR INTEREST.



Specifications

SKU DRP-351WTEK-HFT-400
Brand DRP
Unit Of Measure ctn
Custom Bundle Yes
MOTOR TYPE 351 WINDSOR
