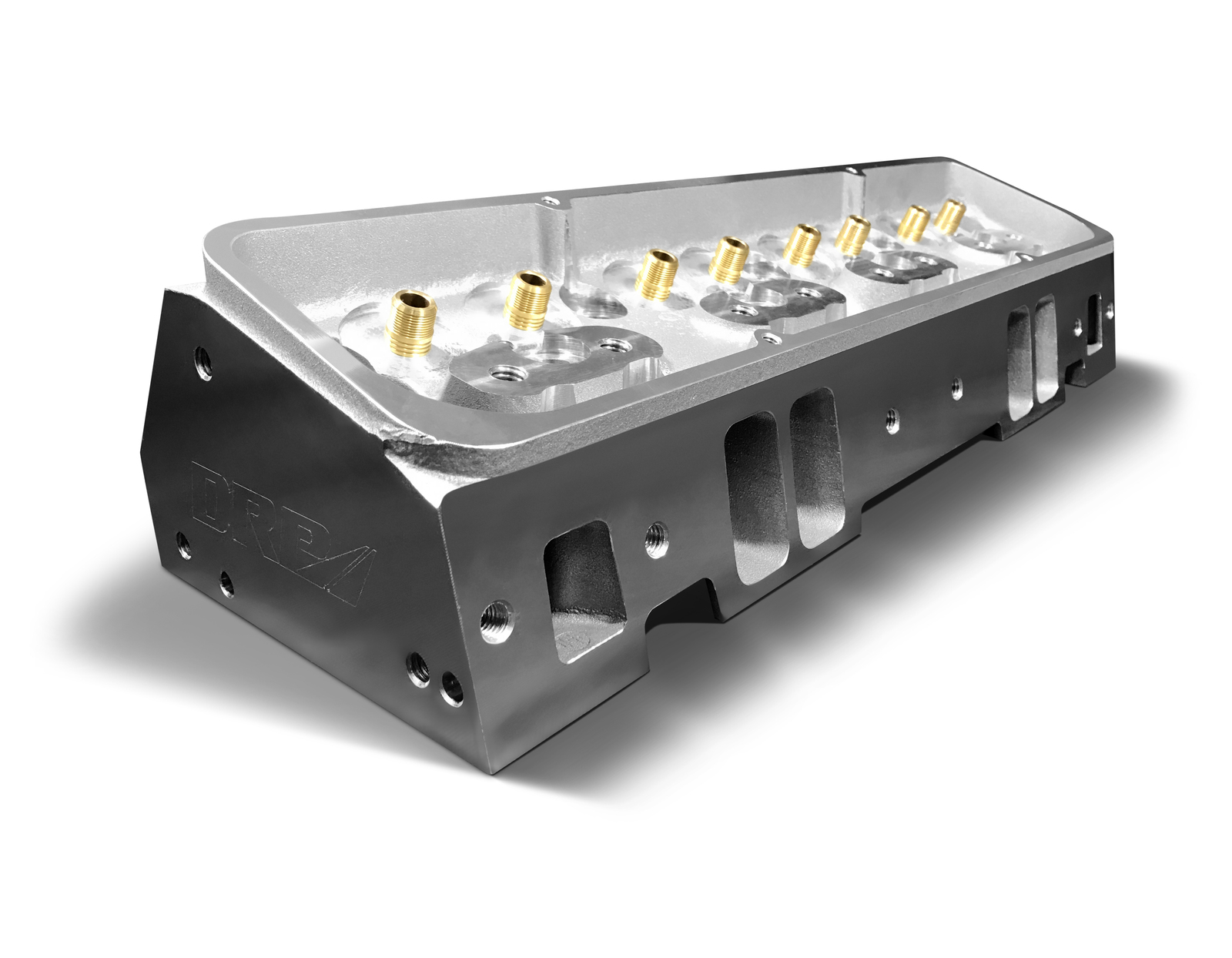

*Pair* 500HP + Cylinder Heads Fits Small Block Chevy 350, ASSEMBLED for HYDRAULIC FLAT TAPPET - Angle Plug SBC.

The best high performance Small Block Chevy 350 Aluminium Cylinder Heads.

Premium Chevy 350 Cylinder heads, you wont find better. These 350 Chevy heads are hand assembled here in Australia using premium internals, Like PAC Racing Valves springs made especially for DRP, Comp Cams hardware & Ferrea 5000 Stainless Steel Valves. No need to be dissasembled and checked like the other heads on the market. These Chevy 350 Heads suit HYDRAULIC FLAT TAPPET.

Upgrade to the DRP Cylinder heads using the PAC Small OD LS syle Dual Valve Springs, these small diamter dual spirngs allow a lighter valve train meaing sharper throttle response and more RPM!

DRP Chevy 350 Cylinder heads for Hydraulic Flat Tappet - Assembled Build Specs:

• DRP Cylinder Heads - Hand assembled by Total Performance using Comp Cams hardware and Ferrea Valves & PAC Valve Springs. (hand built in Melbourne)
• DRP Valve Springs by PAC Racing - Streetline Series (Dual) inners can be left out for cam break in - just ask.
• Comp Cams - Hardware
• Ferrea - 5000 Series valves

Please allow 1 day to assemble the heads. * If you need these sooner, just ask.

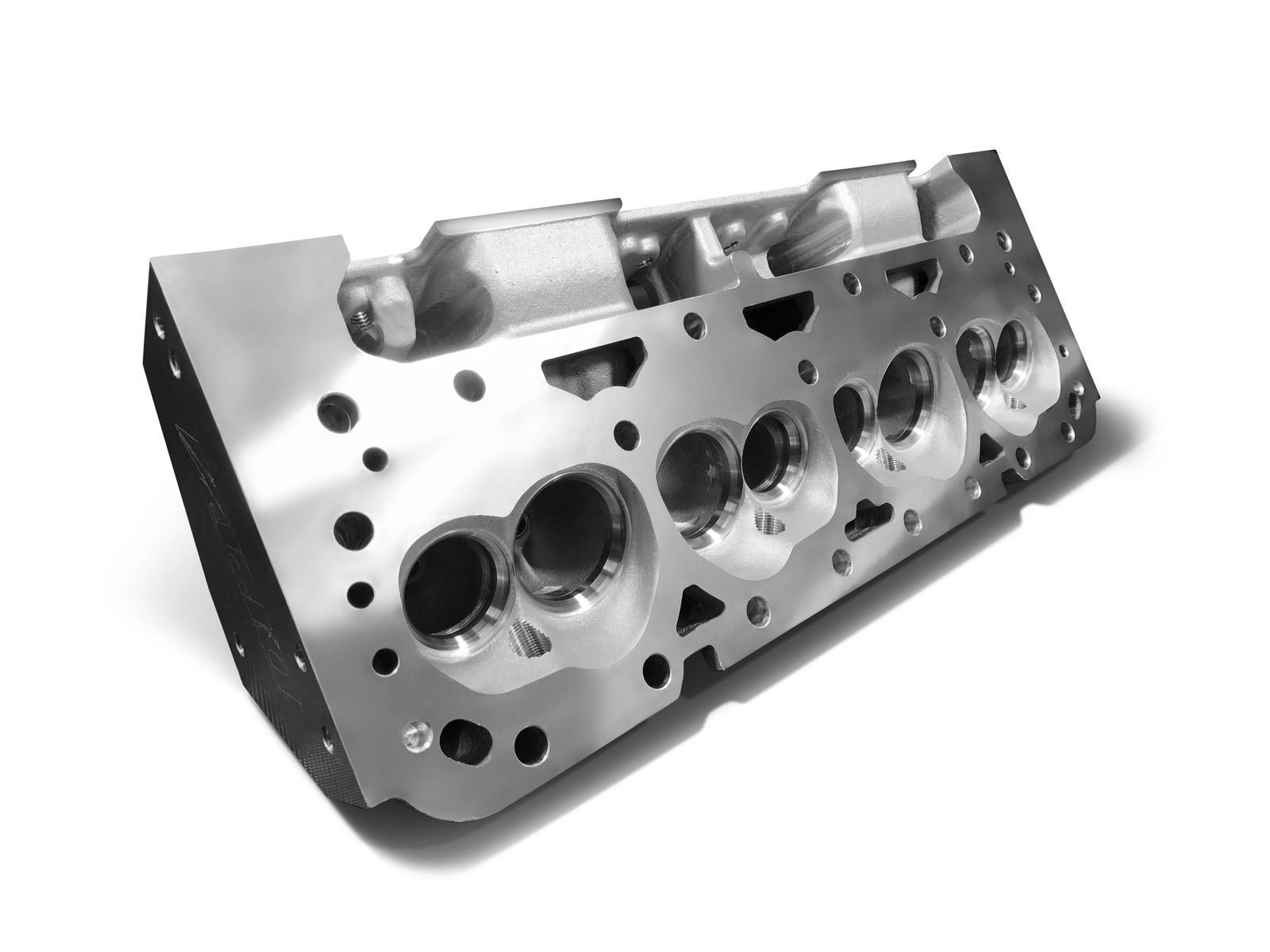

DRP Chevy 350 Cylinder Heads Specs:

• Chev 23° DRP-200A Aluminium Cylinder heads
• Angle Spark Plug - fits Ram Horn manifolds - see photo.
• High Torque/Velocity inlet runners that flow 500hp @ .450" lift
• 196cc Intake runner volume + 75cc Exhaust

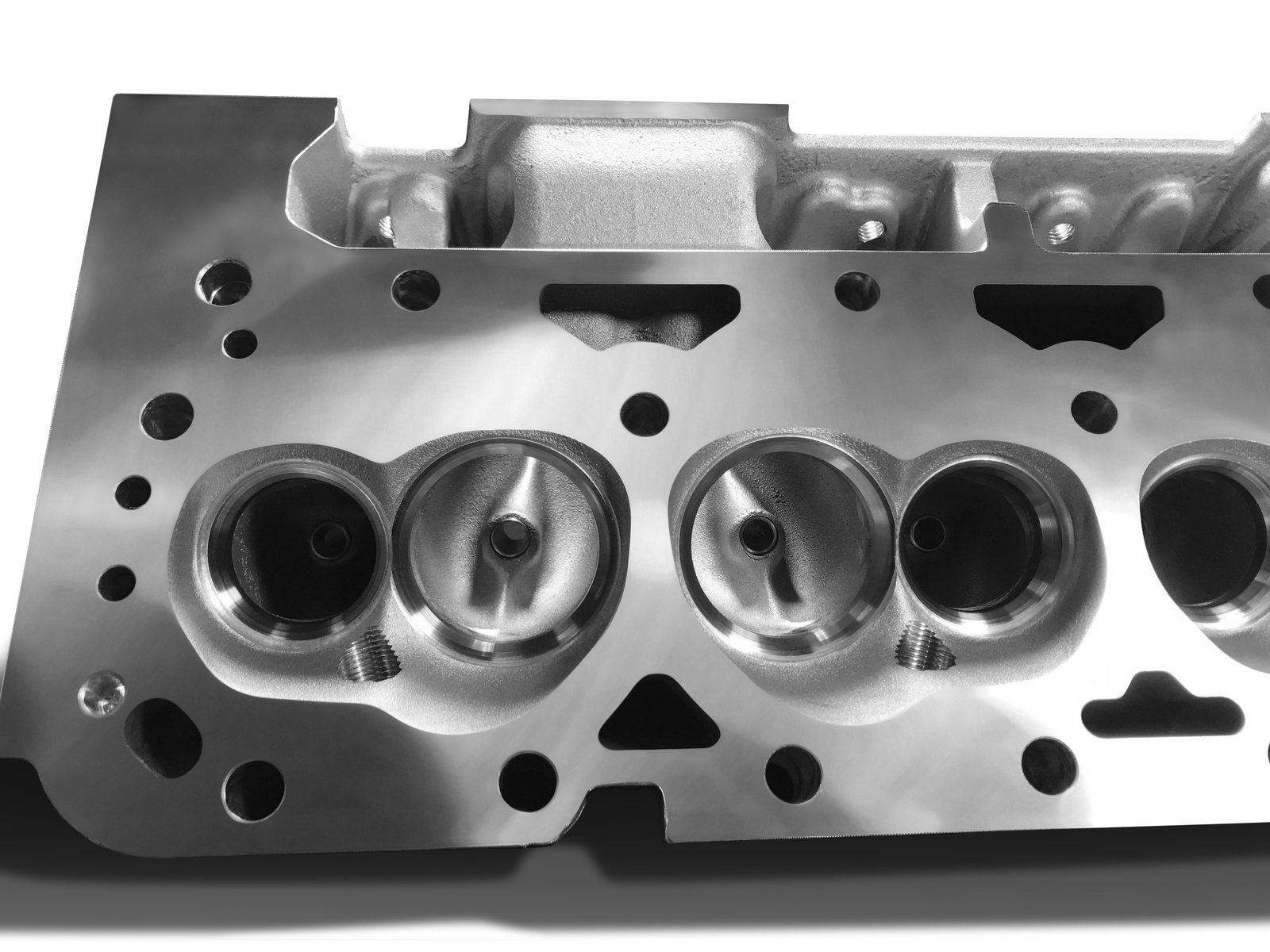

• 64cc Chamber size (these heads can be milled down to 60cc)
• Crisp throttle response.

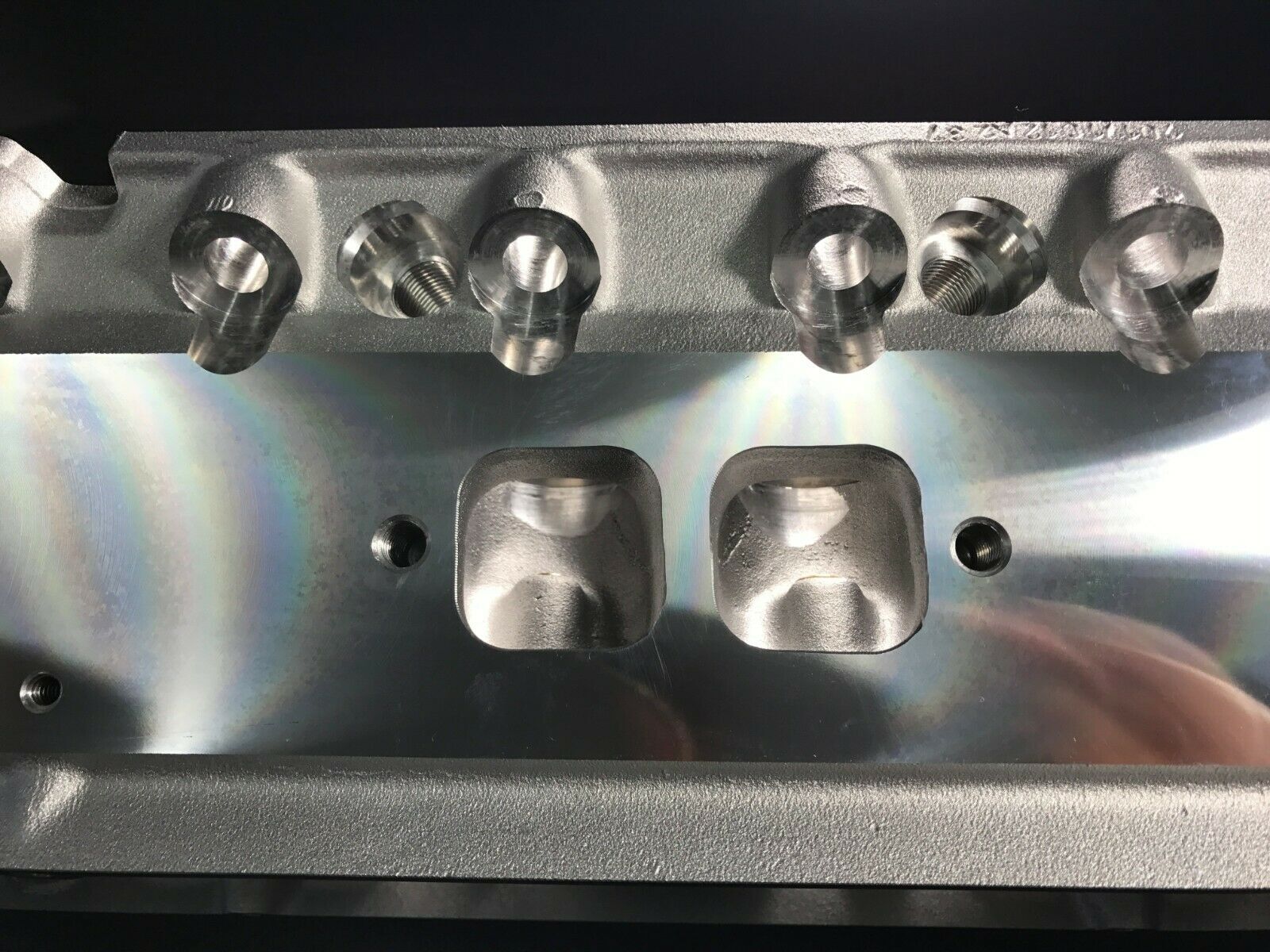

• Internal Cast Quality + Thick ( Super Smooth Water Jackets for maximum flow - see our photos of the internal casting)
• Optimal Spark Plug position. The copies dont have this location.
• Premium Bronze Valve Guides. 0.570" OD
• Use Valve Stem Steals: Comp Viton: 518-16   Teflon: 503-16
• Guide Seal Size 0.530" x 11/32
• Hard 355-T6 Aluminium - Race Quality.
• 3 Angle Valve Seats
• Intake Valve size: 2.02"
• Exhaust Valve size: 1.60"
• Recommended Spark Plugs: 750 reach gasketed 5/8 hex. NGK-BCPR7ES
• Recommended Intake Gaskets: Felpro 1205 std Port or Felpro 1206 for Ported
• Recommended Adjustable Guide Plates: Comp Cams 4835-8 & DRP-4835-8
• Valves needed: Intake: 2.020" x 5.011" Long x 11/32" stem.
• Valves needed: Exhaust: 1.600" x 5.011" long x 11/32" Stem.
• Intake Valves: Ferrea F5027-8 & DRP-5027-8
• Exhaust Valves: Ferrea F5025-8 & DRP-5025-8
• Temp Sender Size: 3/8" NPT

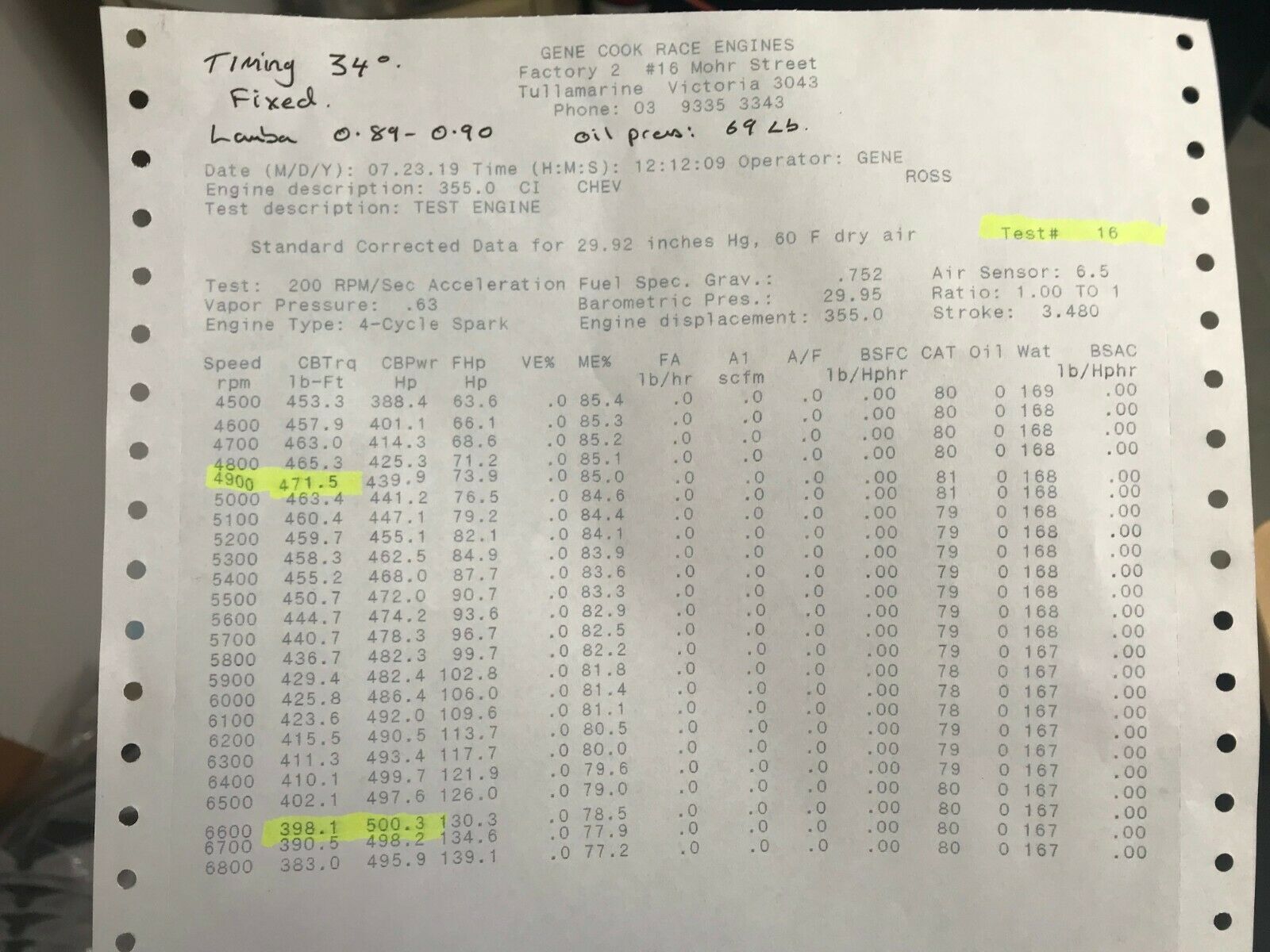

500HP and 460ft/lb of Torque from a 350 Small Block Chev*

Wow of a price for such a great Horsepower and Torque!!

*Dyno results are from a 350 Chev with a Solid Flat Tappet.

These heads flow 530hp @ 0.550" lift

Flow Figures*:

Lift          Intake          Exhaust

200          145             106

300          192             135

400          232             160

450          242             168   503hp

500          250             178

550          257             179   530hp

600          261             181   537hp

650          260             187

700          255             190

* Flown on a Superflow 600 with a 4.030" Bore and a 30° back cut to the intake valve.

* Results will vary depending on your build and combination of other items.

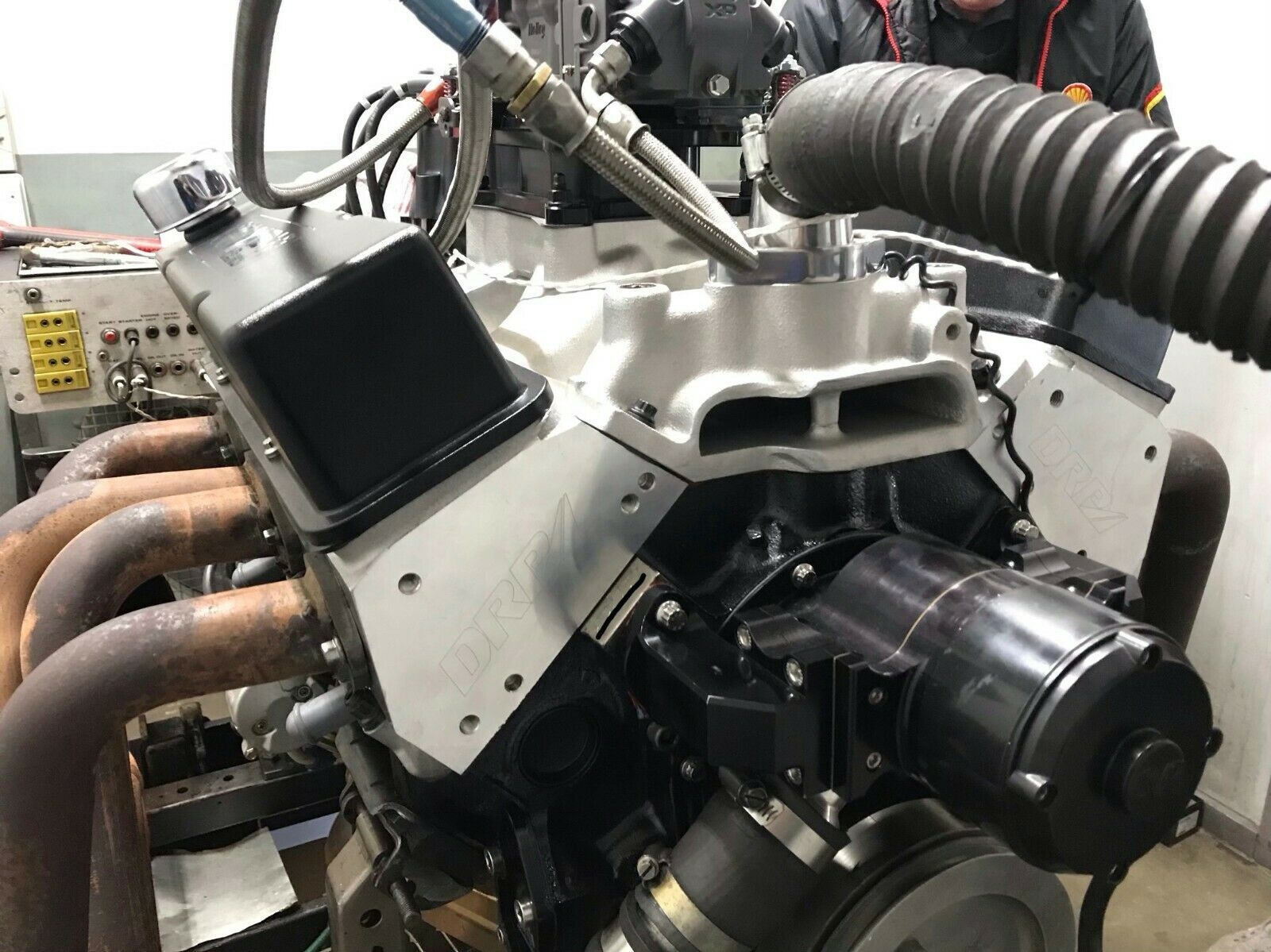

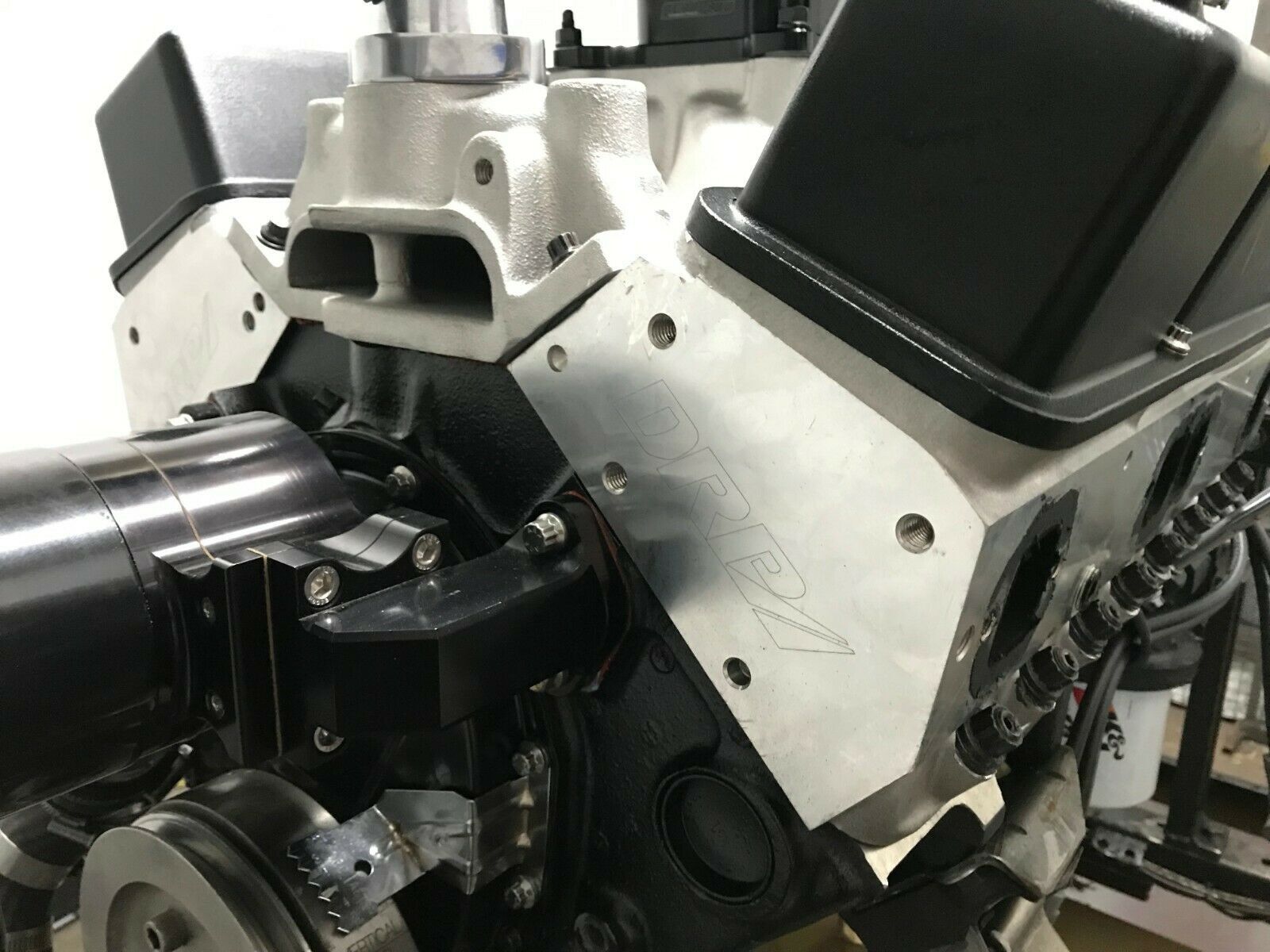

This Dyno test was carried out with a Solid Flat Tappet Camshaft,255/256 Duration and 0.540/0.534" valve lift with a 106 LSA. 1 3/4 Headers, Electrical Water pump, Edelbrock Victor Jnr Single plane intake (we feel you will achieve similar results with an air gap dual plane. 11:1 Compression with a domed Piston. 34°
