SKU: DRP-SBF347-4030-FTF

4.030 Ford 302W 347W Windsor Stroker Pistons Flat Top -5cc Forged 4032 SBF CH 1.090 (3.400 x 5.400)

Flat Top - Suits 3.400" Stroker x 5.400" Conrod

$1,071.38

or 4 payments of $267.85 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

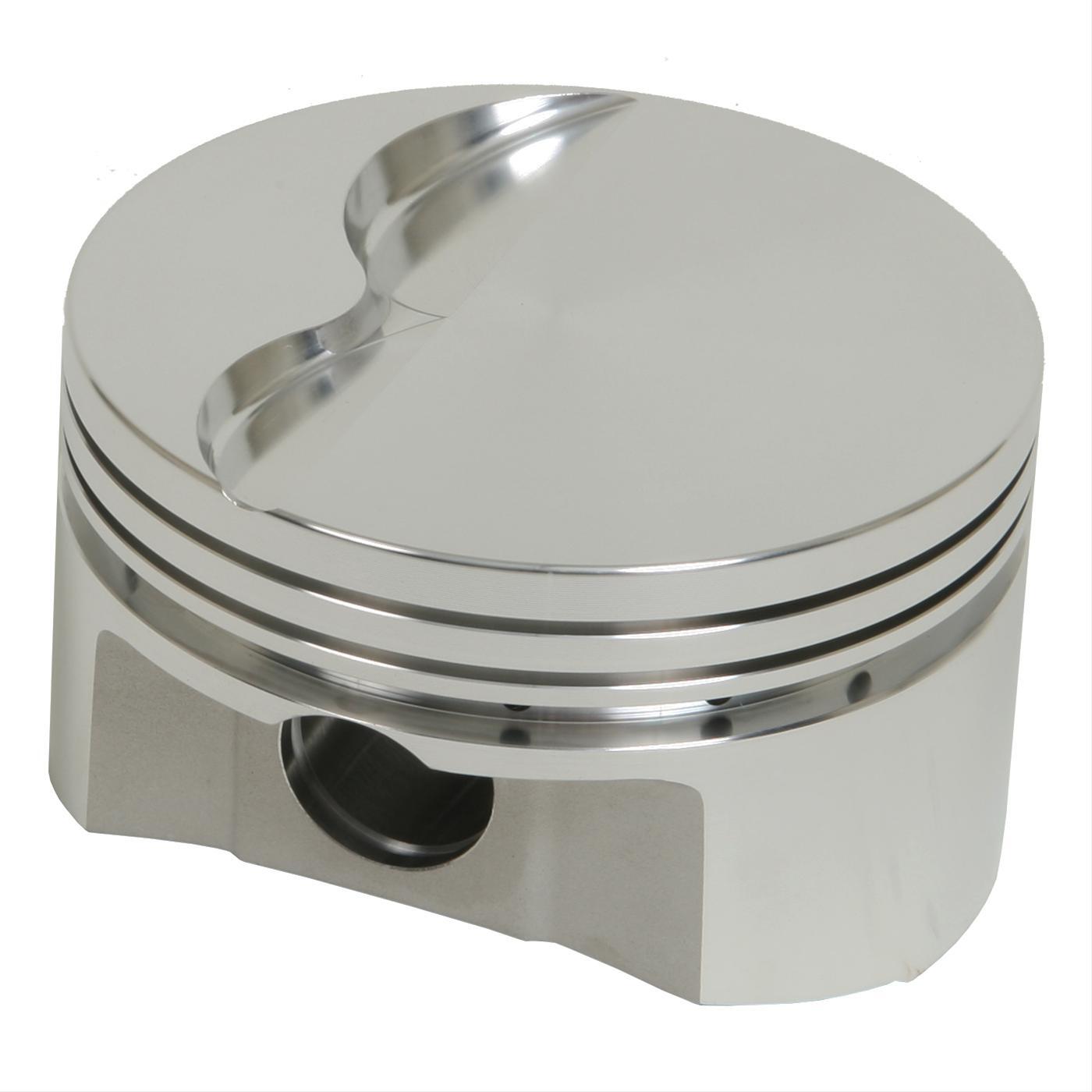

DRP 347 Forged Stroker Pistons

302 Windsor Small Block Ford Stroked 347 Windsor

4.030" Flat Top - Forged Pistons

Suits: Small Block Ford 302 Windsor with a  347 - Stroker crankshaft

DRP Forged Pistons Specs

  • 347 Stroker, Suits Combination: 3.400" stroke Crankshaft & 5.400" Conrods.
  • Piston Compression Height: 1.090"
  • Wrist Pin Size: 0.927"  (Chevy - suits most aftermarket rods)
  • Piston Bore Size: 4.030"
  • Piston Top: Flat Top -5c valve reliefs

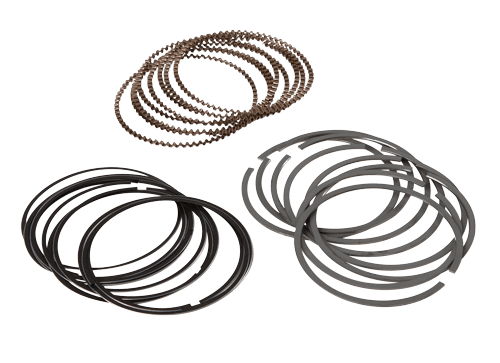

  • Rings Size: 1.5 x 1.5 x 3.00mm
  • Piston Rings included: YES
  • Piston Rings: Steel Nitride Top Ring & Napier 2nd - rings made in Japan by NPR
  • Manufactured on forged side relief, 4032 low expansion, high silicon material excellent for street or strip applications.
  • Diamond turned skirts

MADE IN USA

Specifications

SKU DRP-SBF347-4030-FTF
Brand AUTOTEC
