SKU: SCAT-2-350-5700-2100

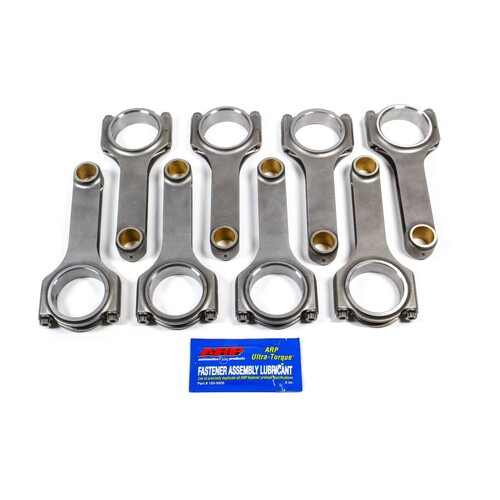

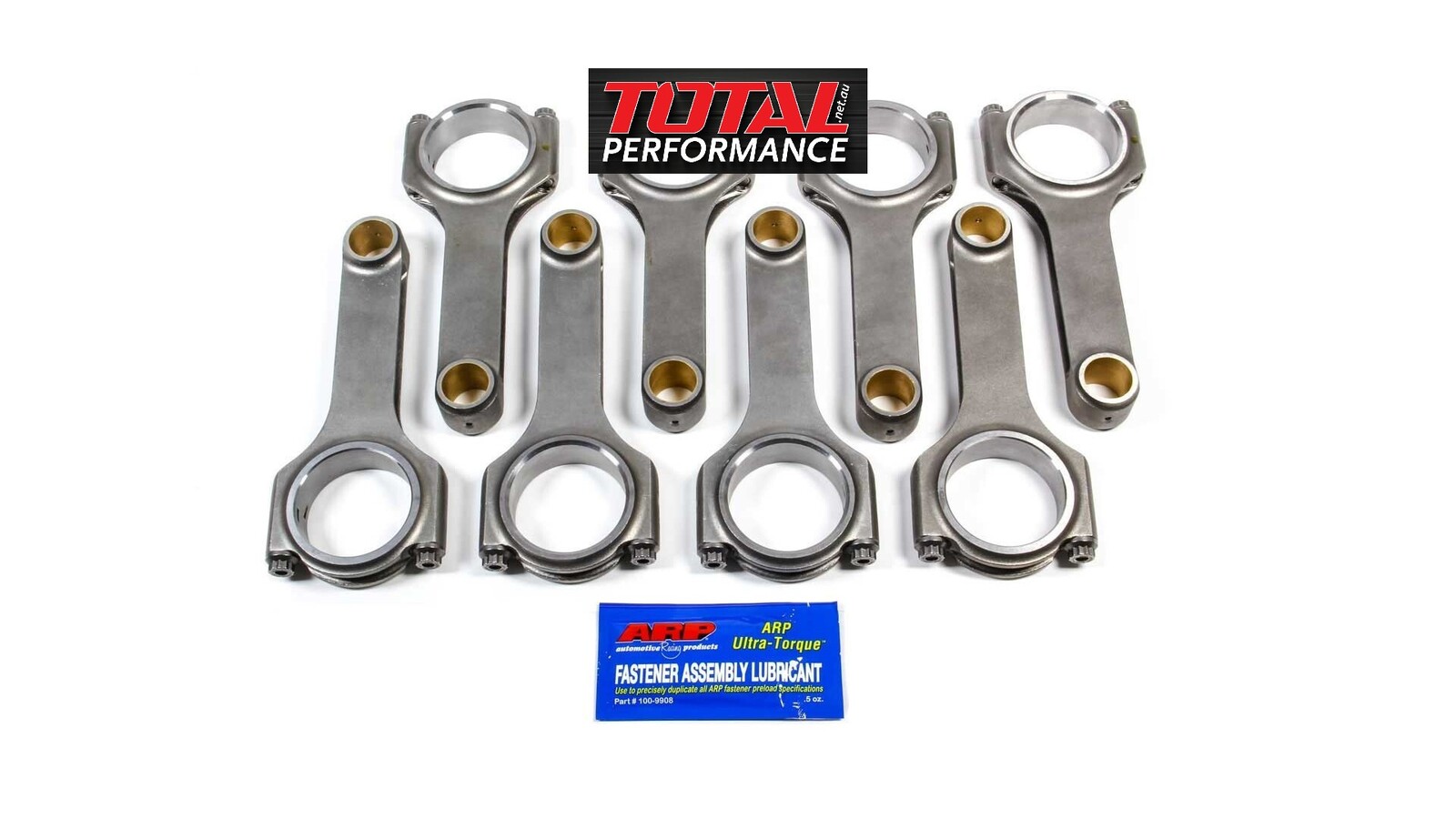

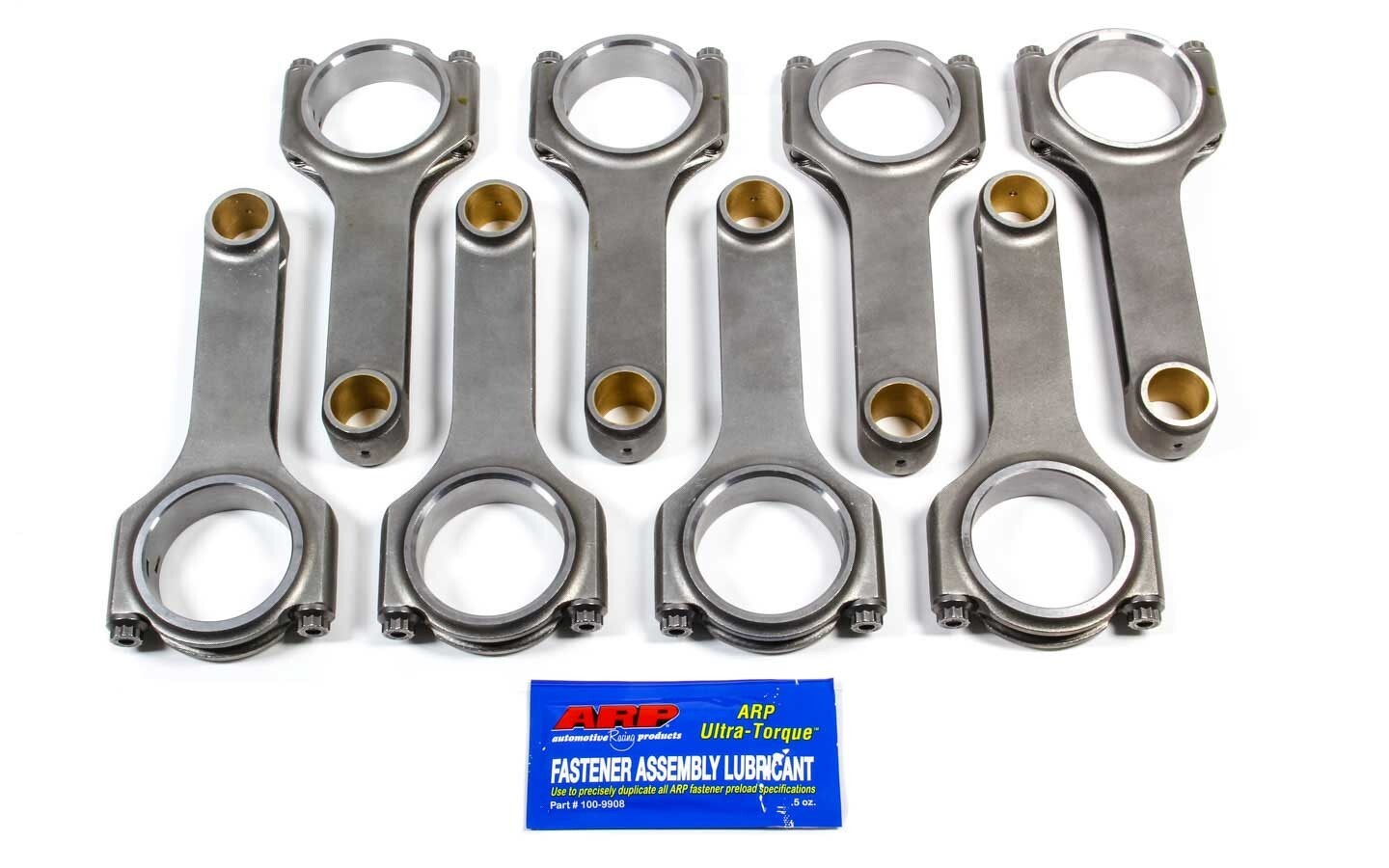

5.700" LJ 4340 H-BEAM CONRODS, 12 Point ARP 8740 bolts, SBC Chevy 350 Small Block, 6570021

H Beam & 8740 Rod Bolts

$988.20

or 4 payments of $247.05 with Info

IN STOCK  FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!


Description

Scat H-beam connecting rods are the strongest Scat connecting rods available by Scat. These Scat H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications. Forged 4340 material with ARP 7/16 8740 rod bolts make them very strong and affordable. H Beam rods with ARP 8740 Bolts are rated to 750 horsepower on small blocks and 850 on big blocks,

Rod Series:  Standard Weight

Rod Length Center to Center (in.):  6.000 in.

Rod Beam Style:  H-beam

Rod Material:  Forged 4340 steel

Rod Finish:  Shot-peened and tumbled

Wrist Pin Style:  Floating

Rod Journal Diameter (in.):  2.100 in.

Big End Bore Diameter (in.):  2.2250 in.

Big End Width (in.):  0.940 in.

Pin End Bore Diameter:  0.927 in.

Clearanced for Stroker:  No

Cap Retention Style:  Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Material:   8740 chromoly steel

Fastener Tensile Strength (psi):   180,000 psi

Connecting Rod Bolt Head Style:   12-point

Weight Matched Set:  Yes

Advertised Weight:   (average)

Magnafluxed:  No



Specifications

SKU SCAT-2-350-5700-2100
Brand SCAT
