Description

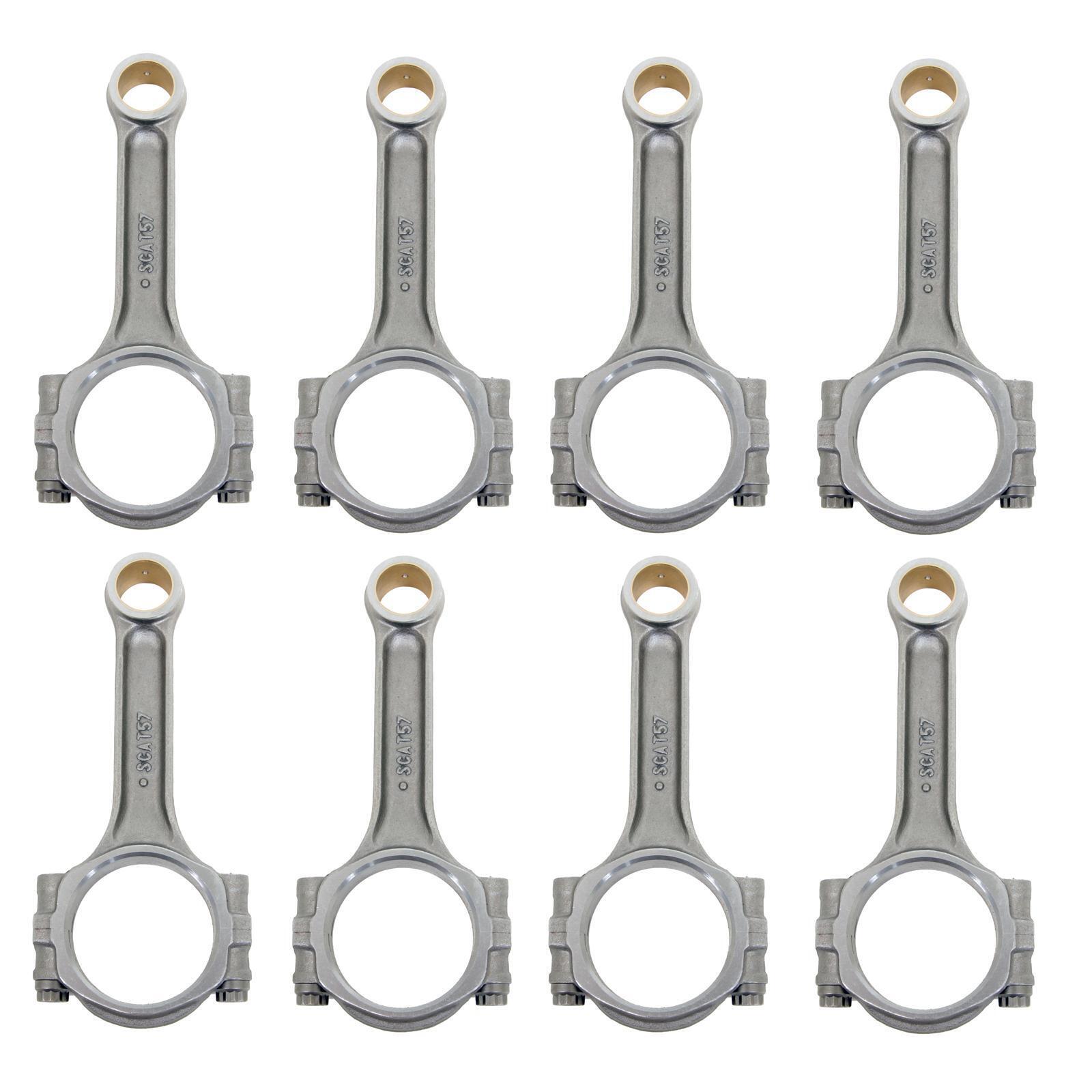

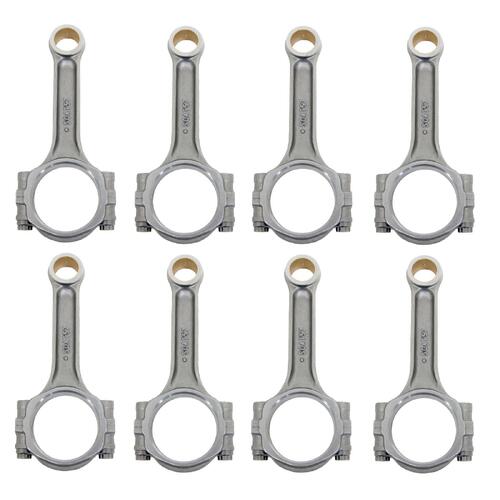

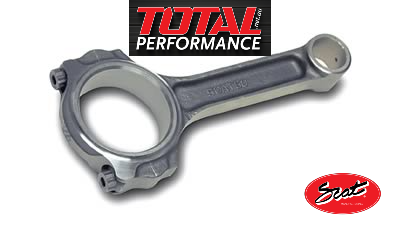

Scat 2-ICR5700 Pro Stock I-Beam Connecting Rods - Chevy 350 & Holden 355 Stroker
These Scat 25700 Pro-Stock I-beam connecting rods suit Standard Chevy 350, Stroker 383 Chevy and the Holden 355 stroker kits. Scat Pro Stock rods incorporate all of the best features possible for an I-beam rod, including some strength-adders found in H-beam designs. They are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, and special hollow dowels with ARP cap screw bolts to greatly increase strength and horsepower capabilities.
Suits: Chevy 383 & Holden 355 Stroker kits
Connecting Rod Length Center to Center (in.): 5.700 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Connecting Rod Finish: Natural
Wrist Pin Style: Floating / Bushed
Rod Journal Diameter (in.): 2.100 in. Large Journal
Big End Bore Diameter (in.): 2.2250 in.
Big End Width (in.): 0.940 in.
Pin End Bore Diameter: 0.927 in.
Clearanced for Stroker: No
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Weight Matched Set: Yes
Magnafluxed: No
Quantity: Sold as a set of 8.
Specifications
SKU | SCAT-2-ICR5700 |
Barcode # | 846091011019 |
Brand | SCAT |
