SKU: CSB6385ES3BDAX

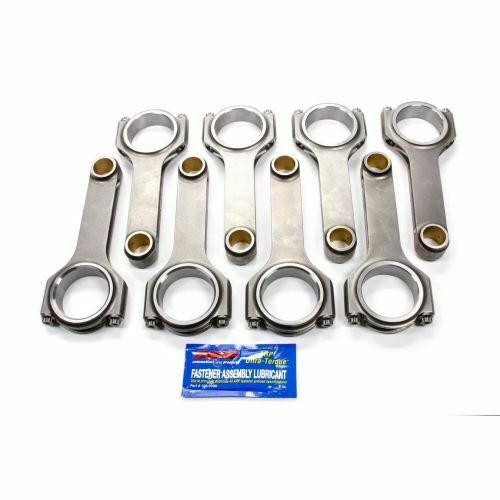

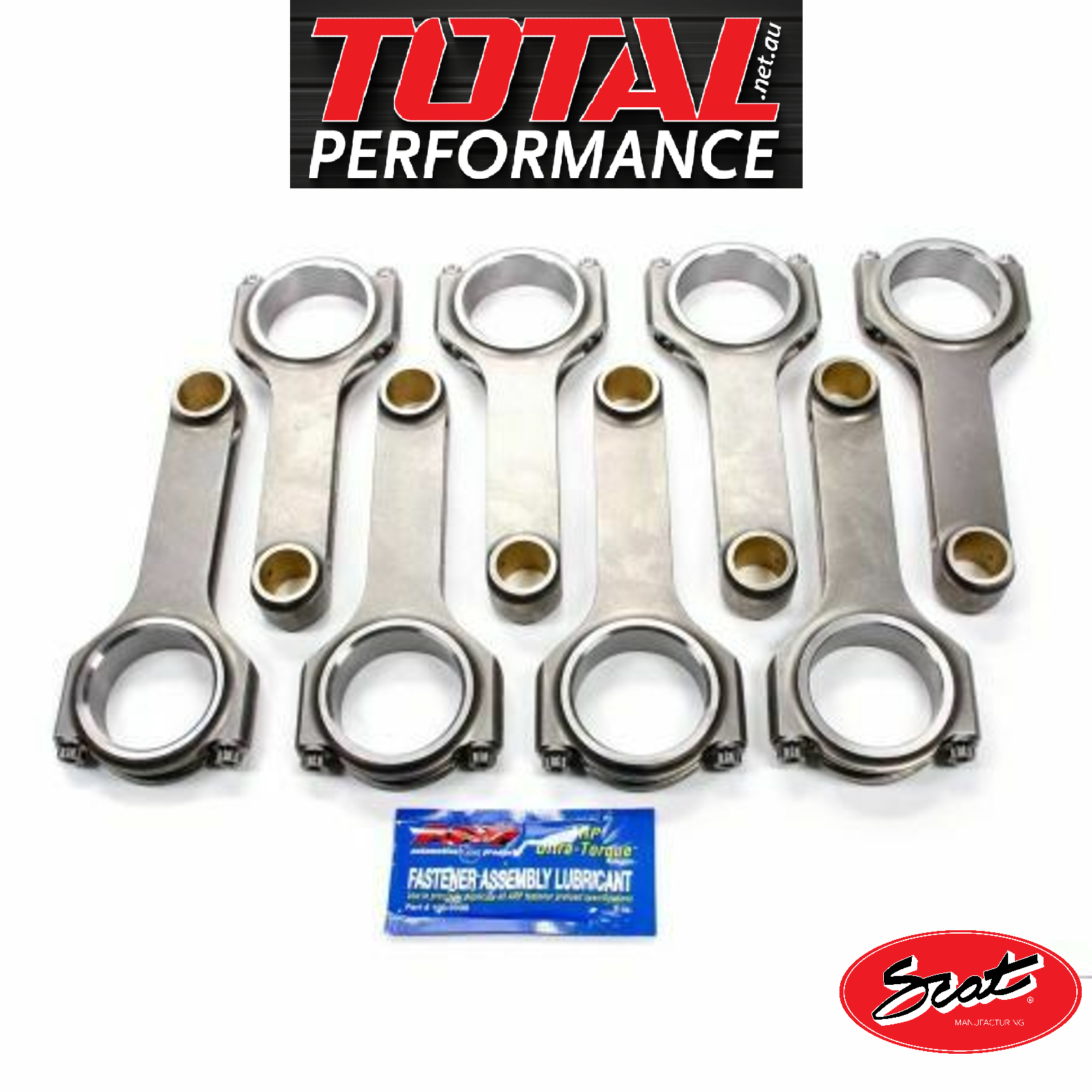

6.385" BBC 454 CHEVY BIG BLOCK STROKER 4340 H BEAM CONRODS W/ ARP 2000 BOLTS SET OF 8

ARP 2000 ROD BOLTS

$1,749.00

or 4 payments of $437.25 with Info

Sold Out

Description

Compstar Xtreme, H Beam  BIG BLOCK CHEVY, 454, STROKER, CONRODS, H BEAM, WITH ARP 2000 ROD BOLTS.

CSB6385ES3BDAX

6.385" Long, Bushed, 7/16" Cap Screws, ARP2000

SUITS BBC BIG BLOCK CHEVY WITH A STROKER CRANKSHAFT.

Connecting Rods

Designed for power adder or diesel applications, Compstar Xtreme connecting

rods feature 4340 steel construction and thickened H-beam flanges for enhanced

strength. Non-essential weight is then removed from the rod to keep the overall

weight in check. All Compstar Xtreme rods come with ARP2000 or ARP L19 fas-

teners, as indicated. Sold as a set of eight.




  • 6.385" LONG BY BBC CHEV JOURNAL
  • SET OF 8 HIGH QUALITY H BEAM RODS
  • COMES WITH GENUINE 2000 SERIES ARP ROD BOLTS
  • INCLUDES ARP ASSEMBLY LUBE
  • Connecting Rod Length Center to Center (in.):  6.385 in.

    Connecting Rod Beam Style:  H-beam

    Connecting Rod Material:  Forged 4340 steel

    Connecting Rod Color:  Shot-peened and tumbled

    Wrist Pin Style:  Floating

    Rod Journal Diameter (in.):  2.200 in.

    Big End Bore Diameter (in.):  2.3250 in.

    Big End Width (in.):  0.992 in.

    Pin End Bore Diameter:  0.990 in.

    Cap Retention Style:   Cap screw

    Connecting Rod Bolt Brand:    ARP

    Connecting Rod Bolt Diameter:   7/16 in.

    Connecting Rod Bolt Material:   ARP2000 alloy  200,000 psi

    Connecting Rod Bolt Head Style:   12-point

    Weight Matched Set:Yes

    Notes:   Custom pistons are required when using connecting rods with any length other than OE length.
