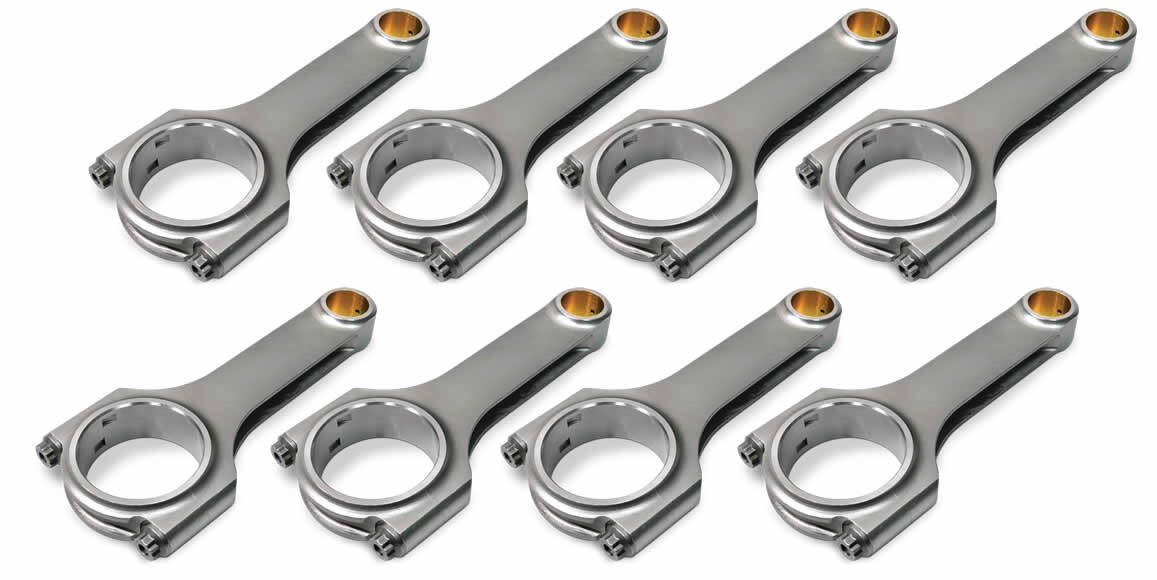

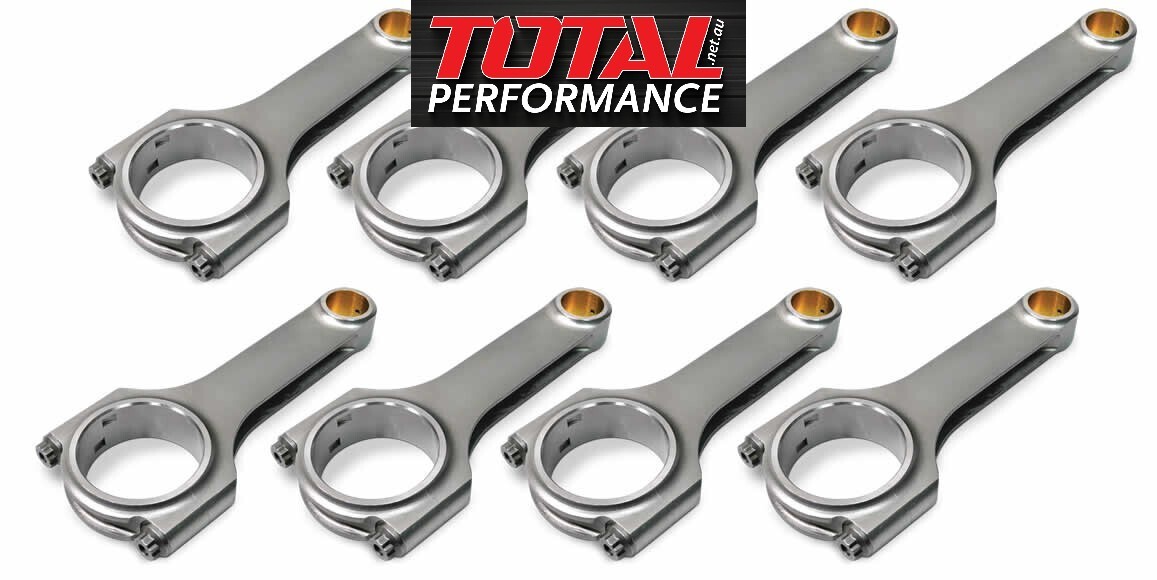

I Beam 6.125" Connecting Rods, LS1 Conrods SBC CHEV LS1 LS2 LS3, Rod Bolts Pro Series 26125716

Scat 2-ICR6125-716 I-Beam 6.125 Connecting Rods - Suits the LS Stroker Connecting Rods.

Features: I Beam & ARP Rod Bolts

These LS connecting rods are the I-beam style for budget & strength. These Scat I-beam connecting rods are perfect for Street/Strip LS upgrade & Stroker applications.  Popular budget upgrade over stock and the more expensive H beam rods. These conrods are know as LS1 conrods, however fit LS2 LS2 standard strokes (piston pin height change required) and LS strokers.

Scat short part number: 26125716

Connecting Rod Length Center to Center (in.):   6.125 in.

Connecting Rod Beam Style:   I-beam

Connecting Rod Material:   Forged 4340 steel

Connecting Rod Finish:   Shot-peened and tumbled

Wrist Pin Style:   Floating

Rod Journal Diameter (in):   2.100 in.

Big End Bore Diameter (in.):   2.2250 in.

Big End Width (in.):   0.940 in.

Pin End Bore Diameter:   0.927 in.

Clearanced for Stroker:  Yes

Cap Retention Style:   Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:   7/16 in.

Connecting Rod Bolt Material:   ARP 8740

Fastener Tensile Strength (psi):

Connecting Rod Bolt Head Style:   12-point

Weight Matched Set:   Yes

Quantity:   Sold as a set of 8

Notes:   Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
