LS1 LS2 LS3 BEEHIVE OEM REPLACEMENT 1.290" OD Beehive Valve Spring FULL KIT
FULL KIT
Description
BEEHIVE VALVE SPRING KIT

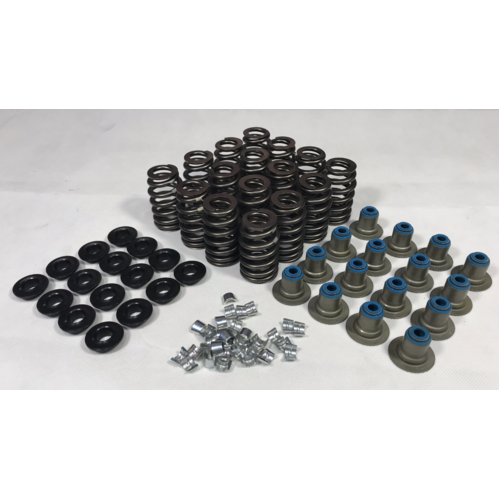

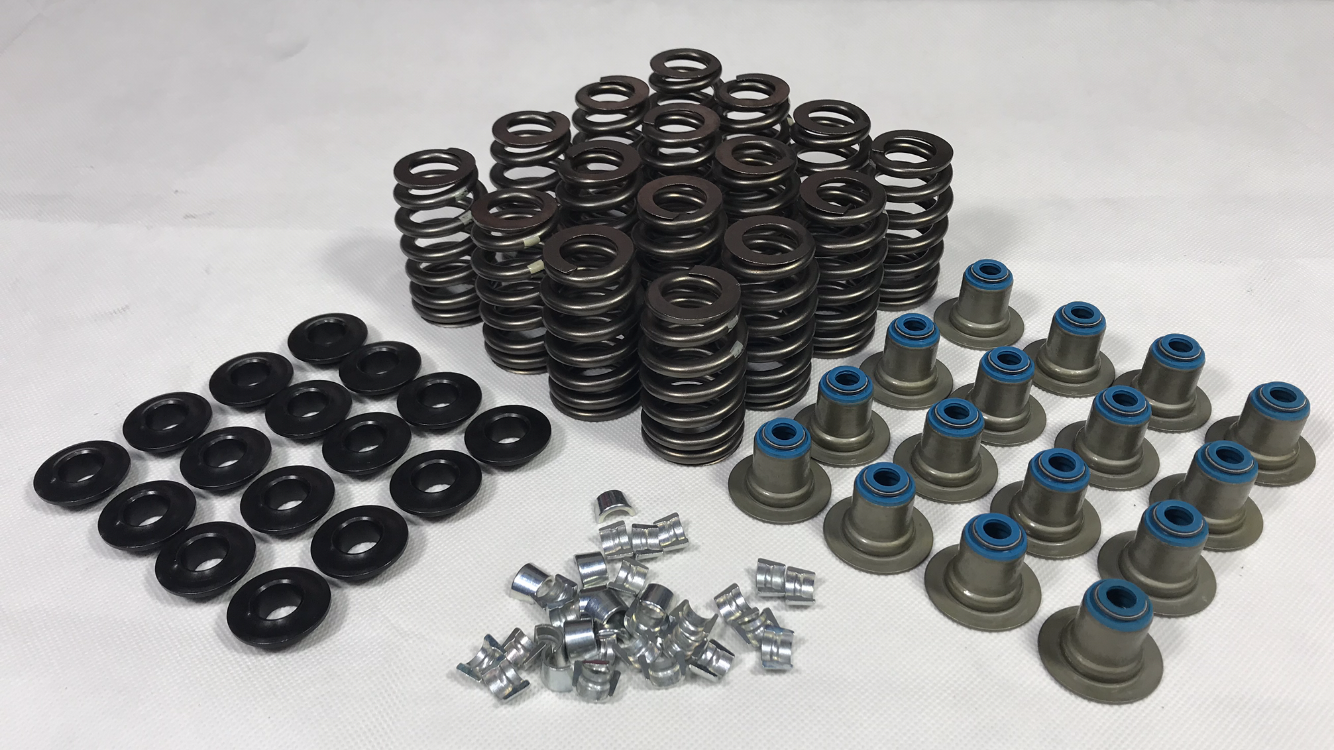

Whats in the kit?
- DRP - OEM factory Replacement upgrade springs for the LS1 (Cathedral port) and LS3 (Square port) heads. Replacement for GM 12499224 springs.

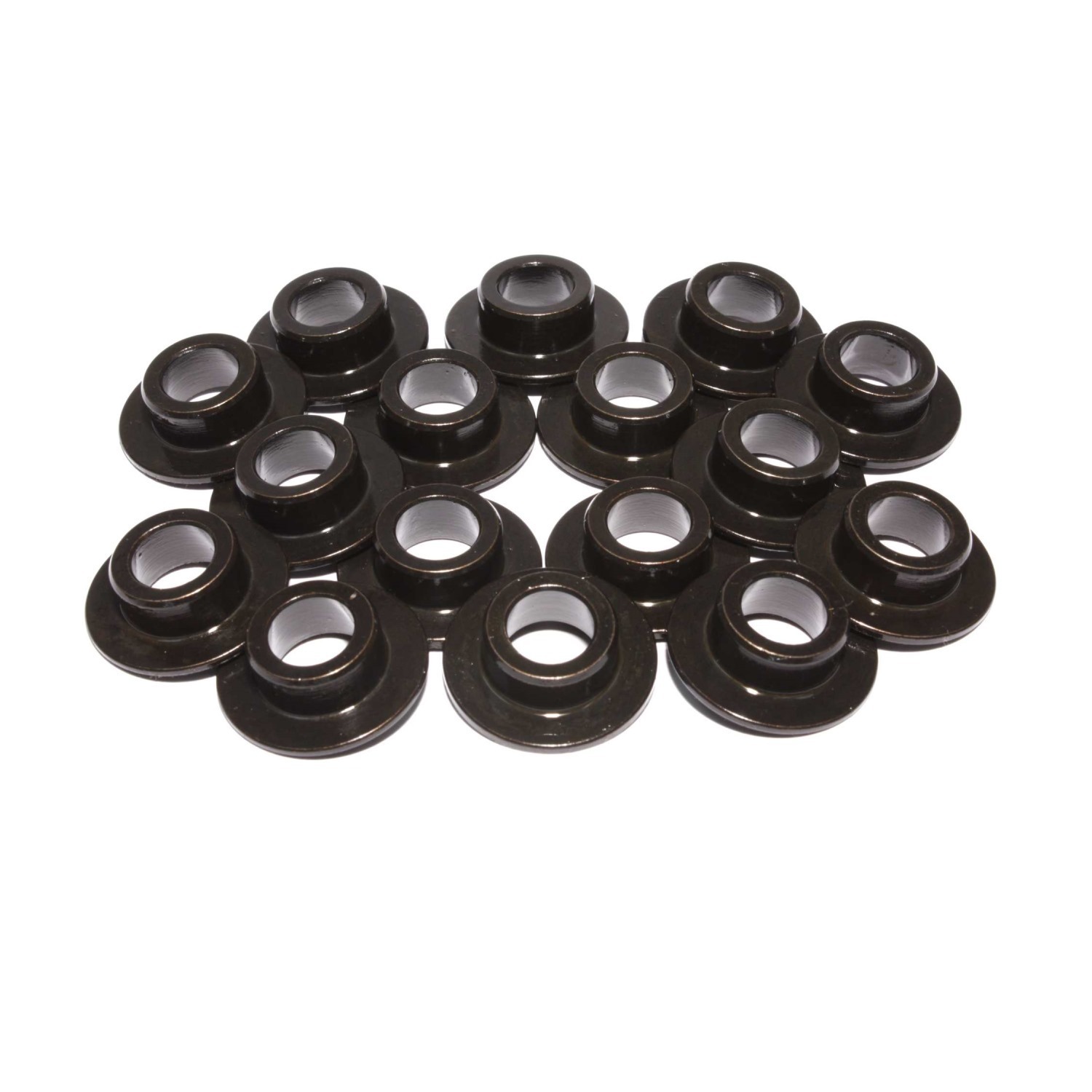

- COMP CAMS Retainers -

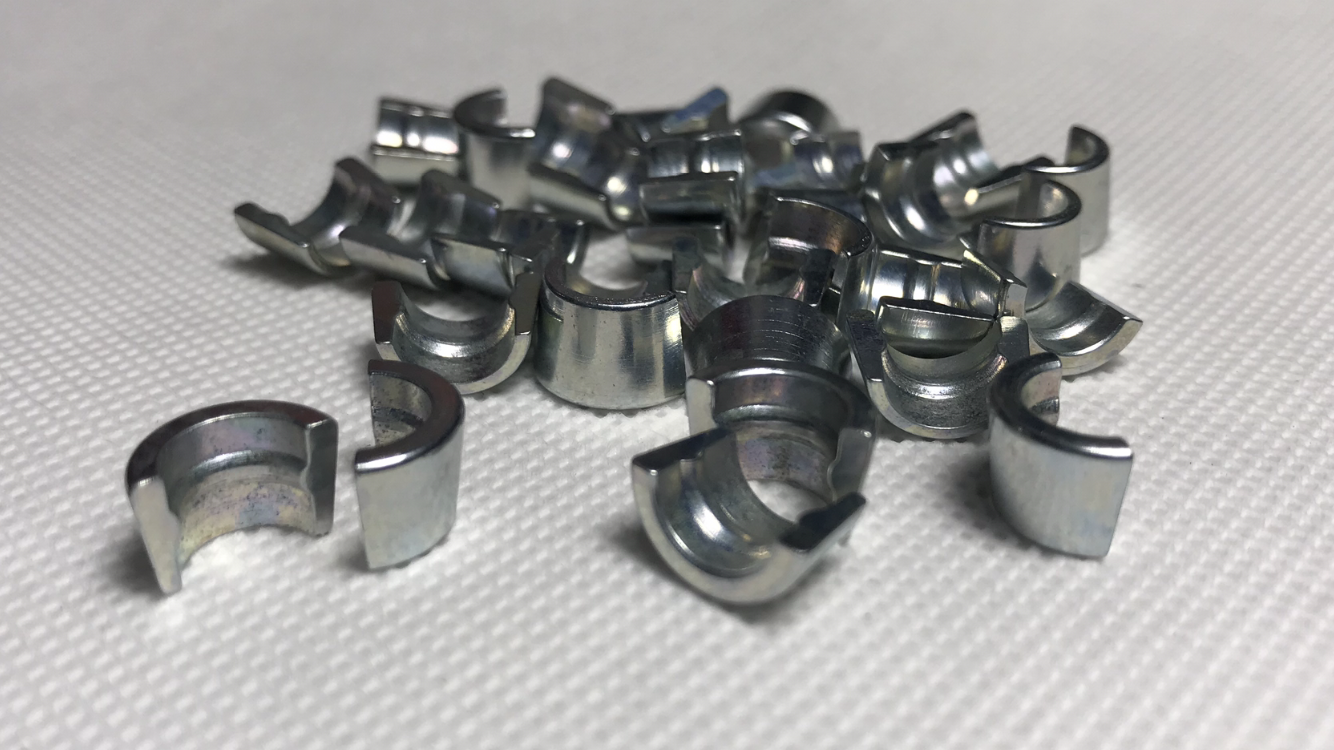

- DRP Machined 7° valve locks for 8mm valve stems -

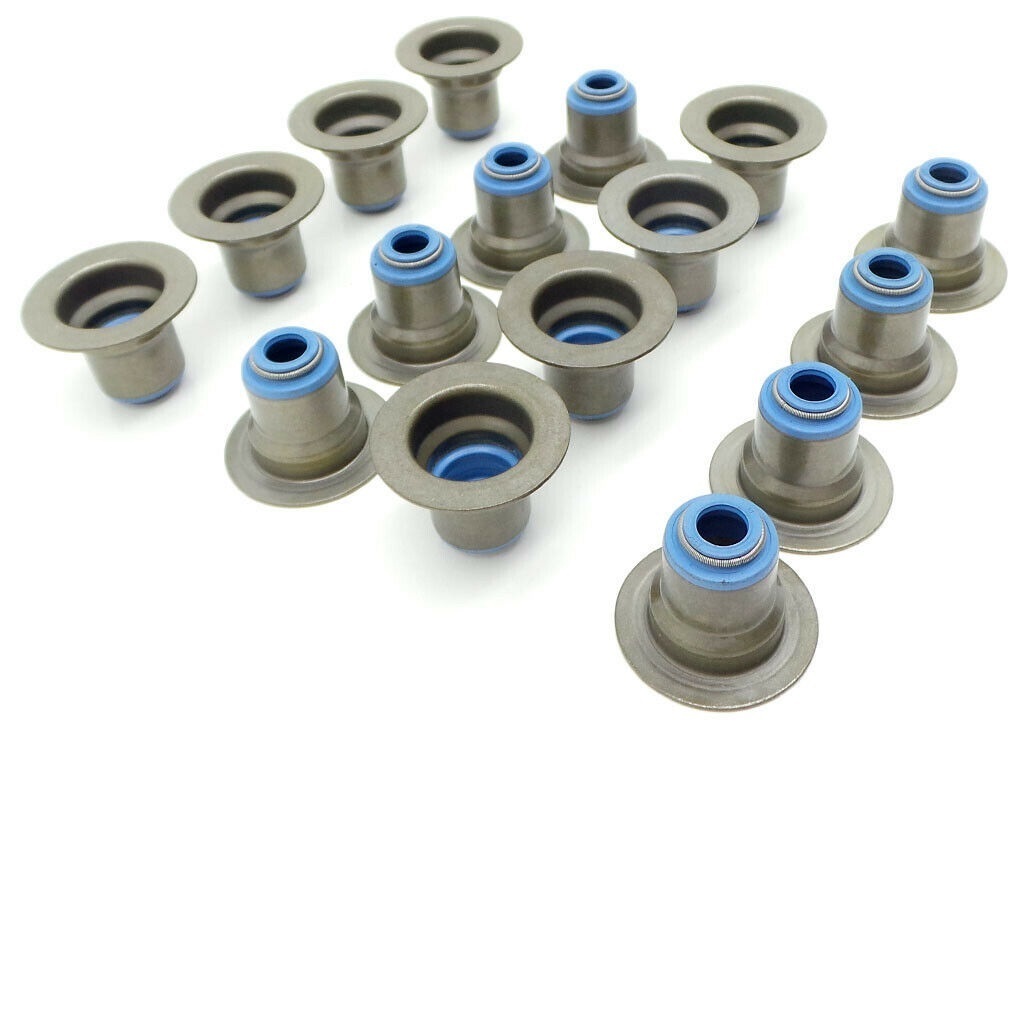

- DRP - Valve Stem Seals - OEM hat type.
SPRINGS SPECS:
1.29" O.D.
1.170" Coil Bind Height
- 370 lbs./in. Spring Rate
- 90lbs Seat pressure/ installed @ 1.800"
- 300lbs @ 0.570" lift
- Max Lift .570" (with 060" clearance)
- Set of 16
- *PHOTOS ARE OF ACTUAL PRODUCTS
Specifications
| SKU | DRP-BHS-LSOEM-KIT |
| Barcode # | 036584072676 |
| Brand | DRP |
| Seat Height | 1.8 |
| Damper | No |
| Outer Top Spring Outside Diameter | 1.055 |
| Outer Top Spring Inside Diameter | 0.65 |
| Outer Bottom Spring Outside Diameter | 1.29 |
| outer bottom spring inside diameter | 0.885 |
