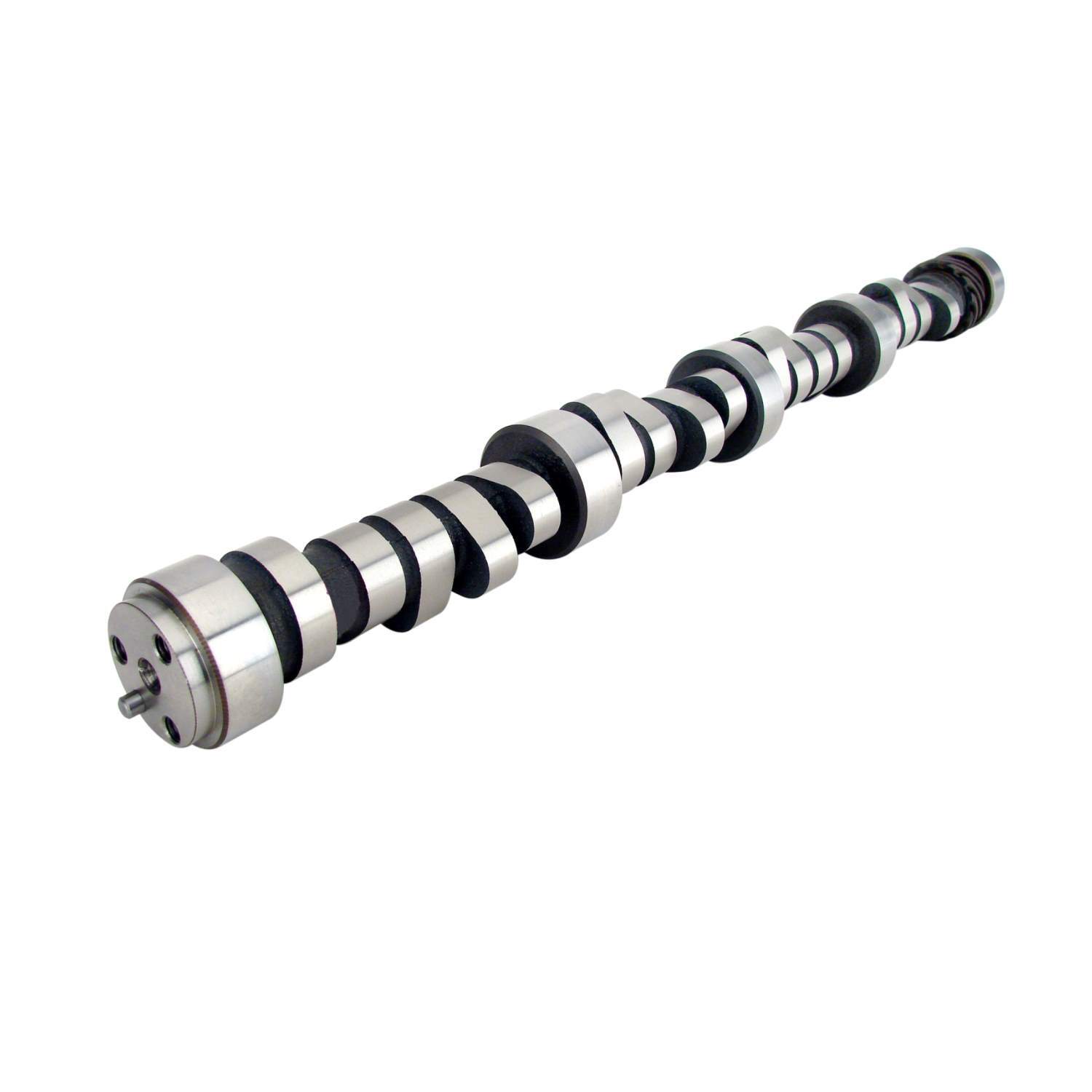

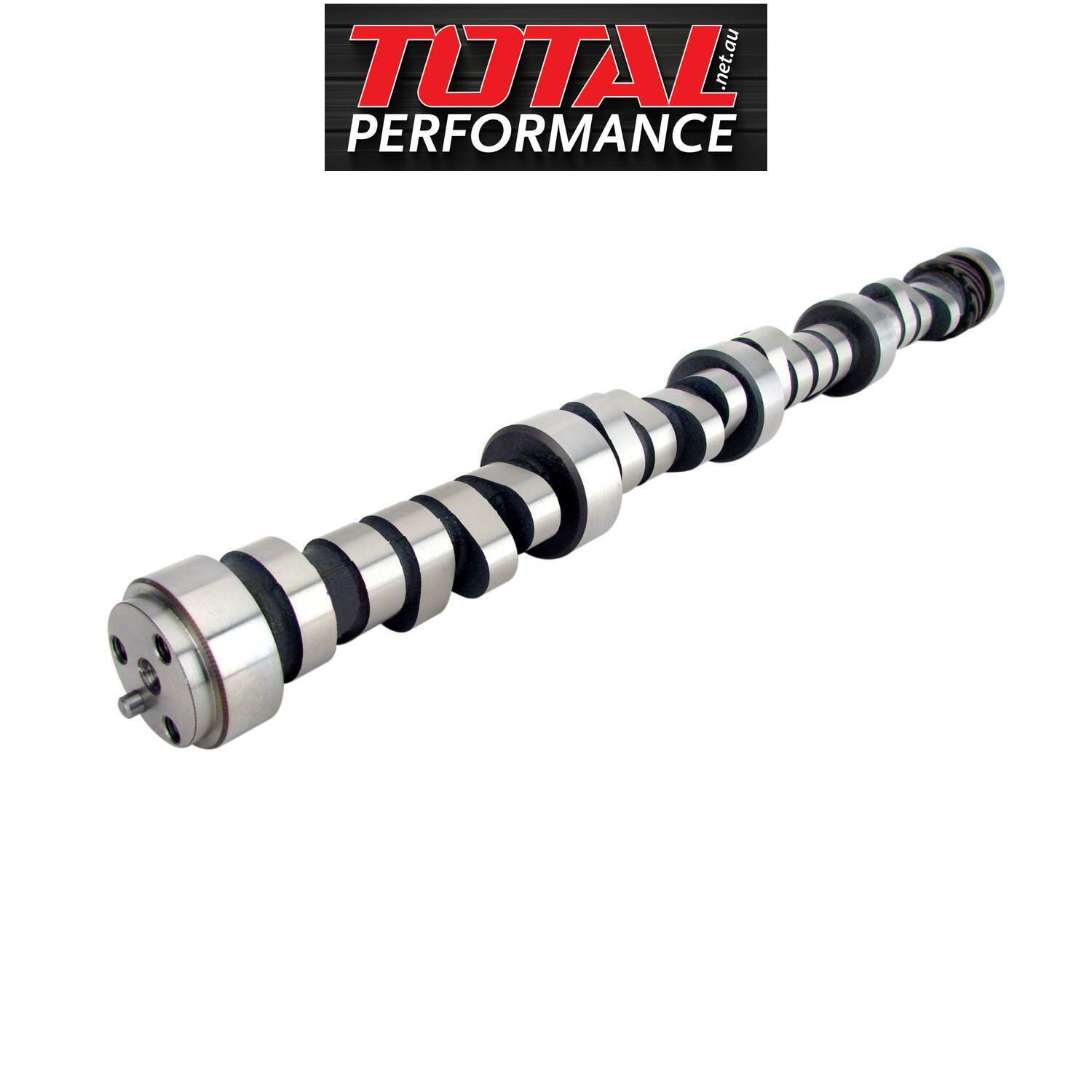

XE276HR 224/230 EFI OEM Hydraulic Roller Camshaft, Big Block Chevy 454, 502, GEN 6 Vortec

** FREE SHIPPING ON ORDERS OVER $200 **

Description

Comp Cams 01-417-8, XR276HR Xtreme Energy™ EFI 224/230 OEM Hydraulic Roller Cam for Chevy Big Block Vortec GEN 6. Great in performance applications with custom tuning and a 2200+ stall

Engine Family: Chevy Big Block GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)

OEM hydraulic Roller - Vortec engines.

RPM Operating Range: 1,800-5,800

Grind Number: XR276HR-13

Cam Type: Hydraulic Roller

Camshaft Series: Xtreme Energy Computer Controlled / EFI

Usage: Street/Performance

Advertised Intake Duration: 276

Advertised Exhaust Duration: 282

Intake Duration at .050 Inch Lift: 224

Exhaust Duration at .050 Inch Lift: 230

Intake Valve Lift: 0.51

Exhaust Valve Lift: 0.51

Lobe Separation: 113

Camshaft Gear Attachment: 3-Bolt

Specifications

SKU	01-417-8
Barcode #	036584079910
Brand	COMP CAMS
intake valve lift	0.51
Exhaust Valve Lift	0.51
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	282
Advertised Intake Duration	276
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	230
Intake Duration At .050 Inch Lift	224
Lobe Separation	113
Camshaft Series	Xtreme Energy Computer Controlled
Grind Number	XR276HR-13
Basic Operating Rpm Range	1,800-5,800
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Austempered Ductile Iron
