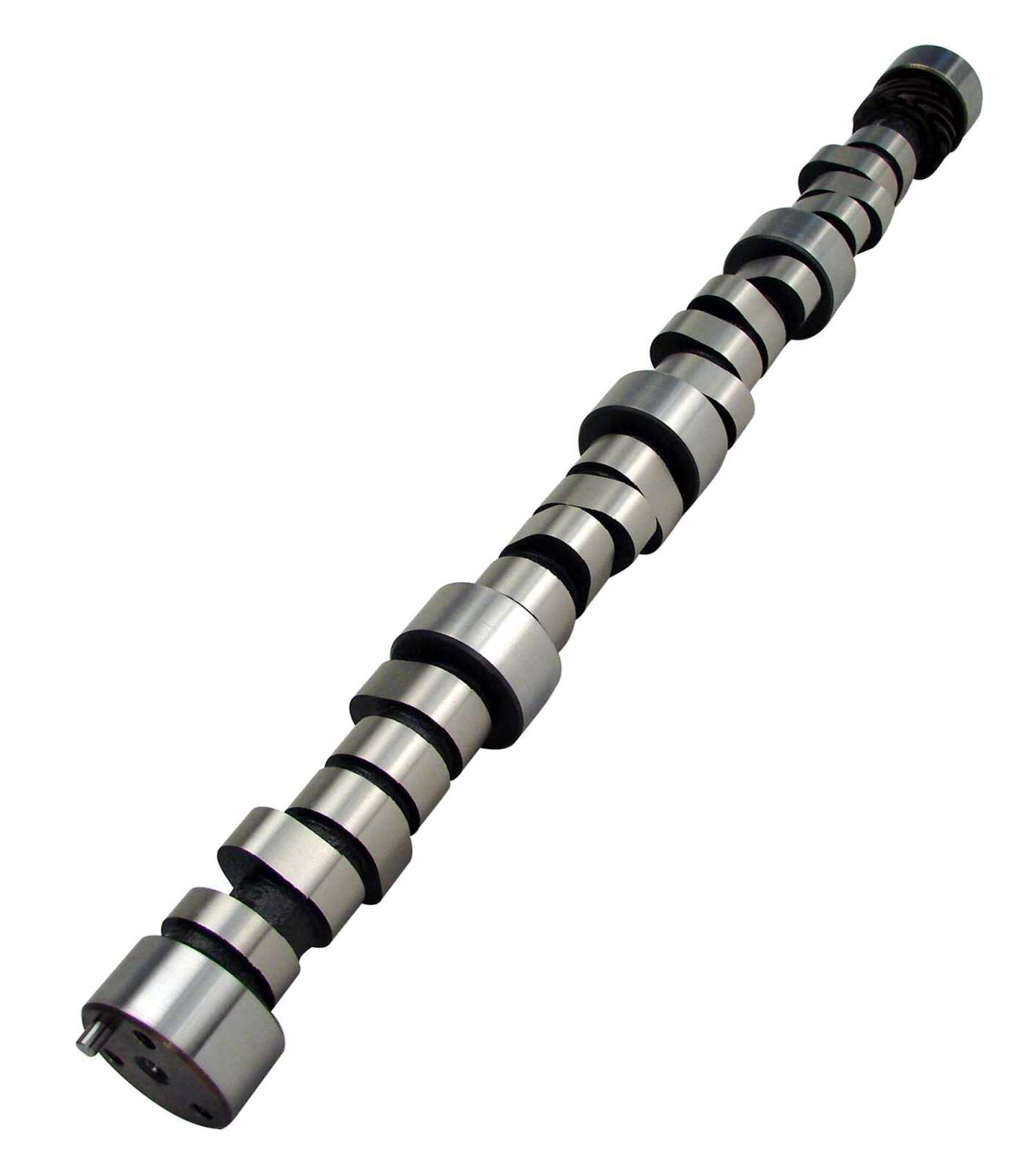

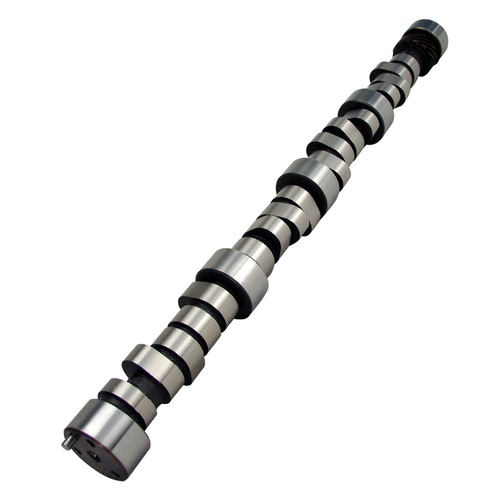

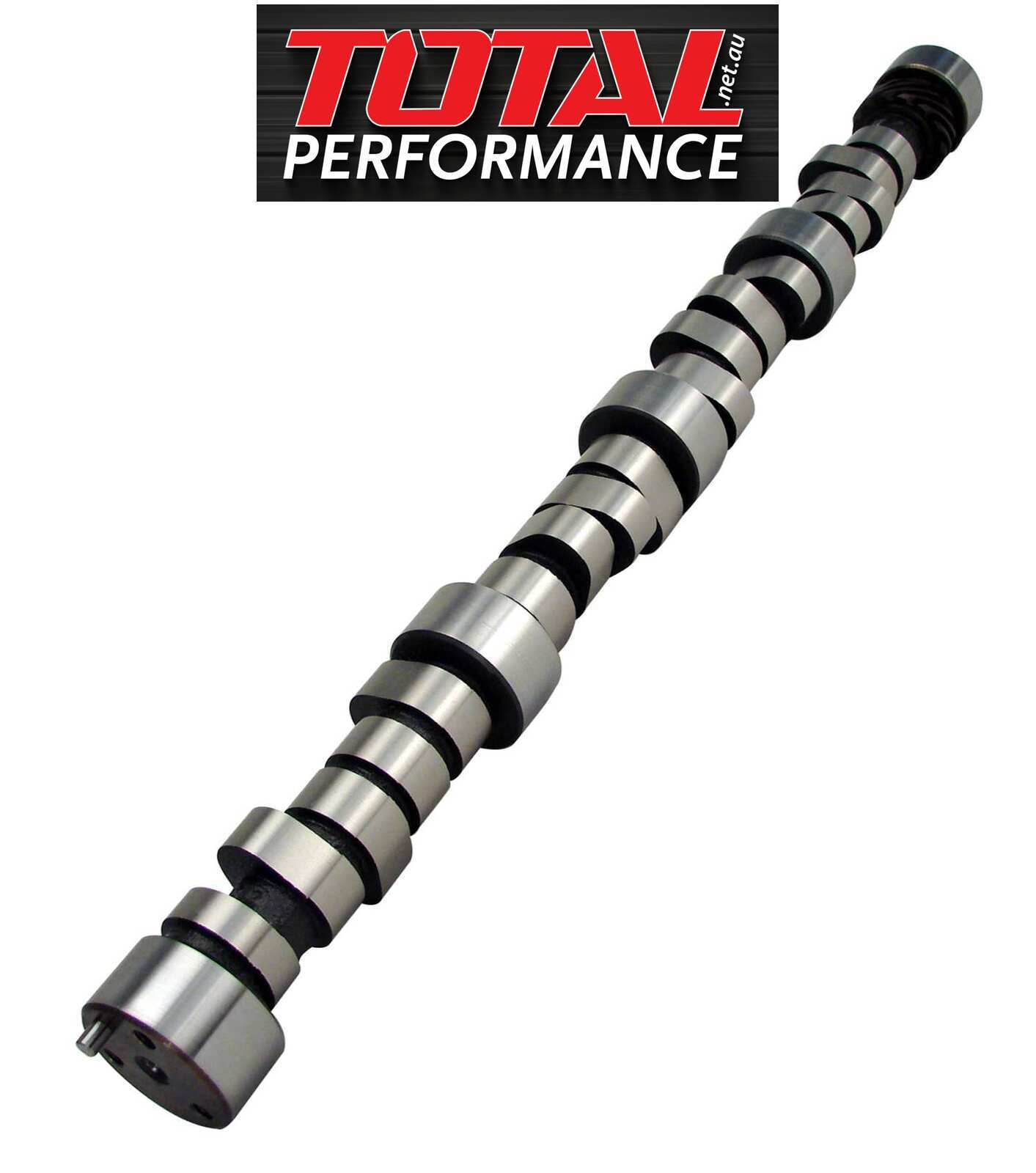

Comp Cams 12-430-8 Magnum 224/224 SBC Hydraulic Roller Cam Retrofit Chevrolet Small Block

** FREE SHIPPING ON ORDERS OVER $200 **

SBC Magnum 224/224 LSA 110 Hydraulic Roller Camshaft Chevy Small Block 350

Description

Limited high performance street. Aftermarket intake, headers, 2200+ stall, and 3.40 to 410 gears. Mild rough idle.

Specifications

SKU	12-430-8
Barcode #	036584700272
Brand	COMP CAMS
intake valve lift	0.525
Exhaust Valve Lift	0.525
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	280
Advertised Intake Duration	280
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	224
Intake Duration At .050 Inch Lift	224
Lobe Separation	110
Camshaft Series	Magnum
Grind Number	280HR
Basic Operating Rpm Range	2,000-5,500
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Austempered Ductile Iron
