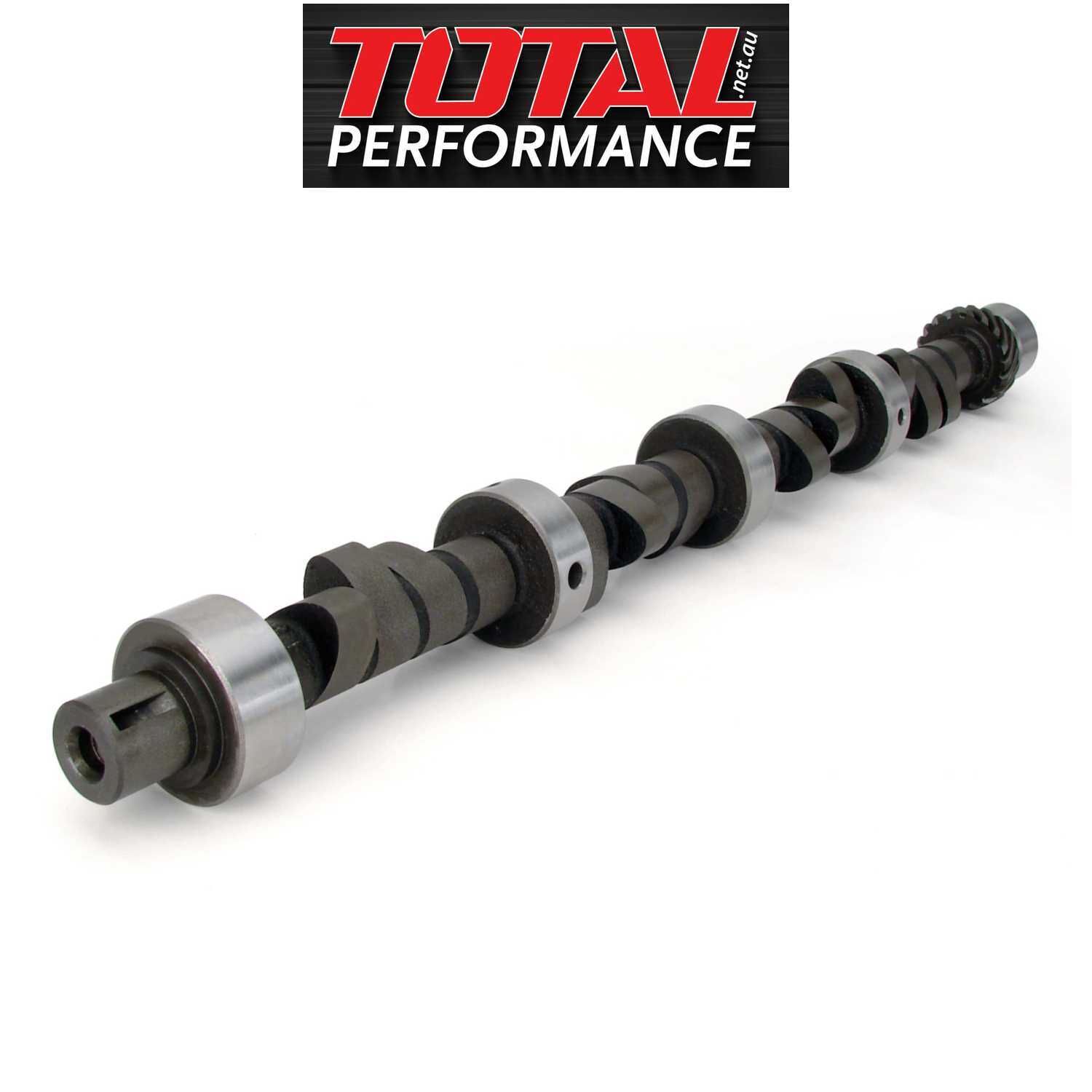

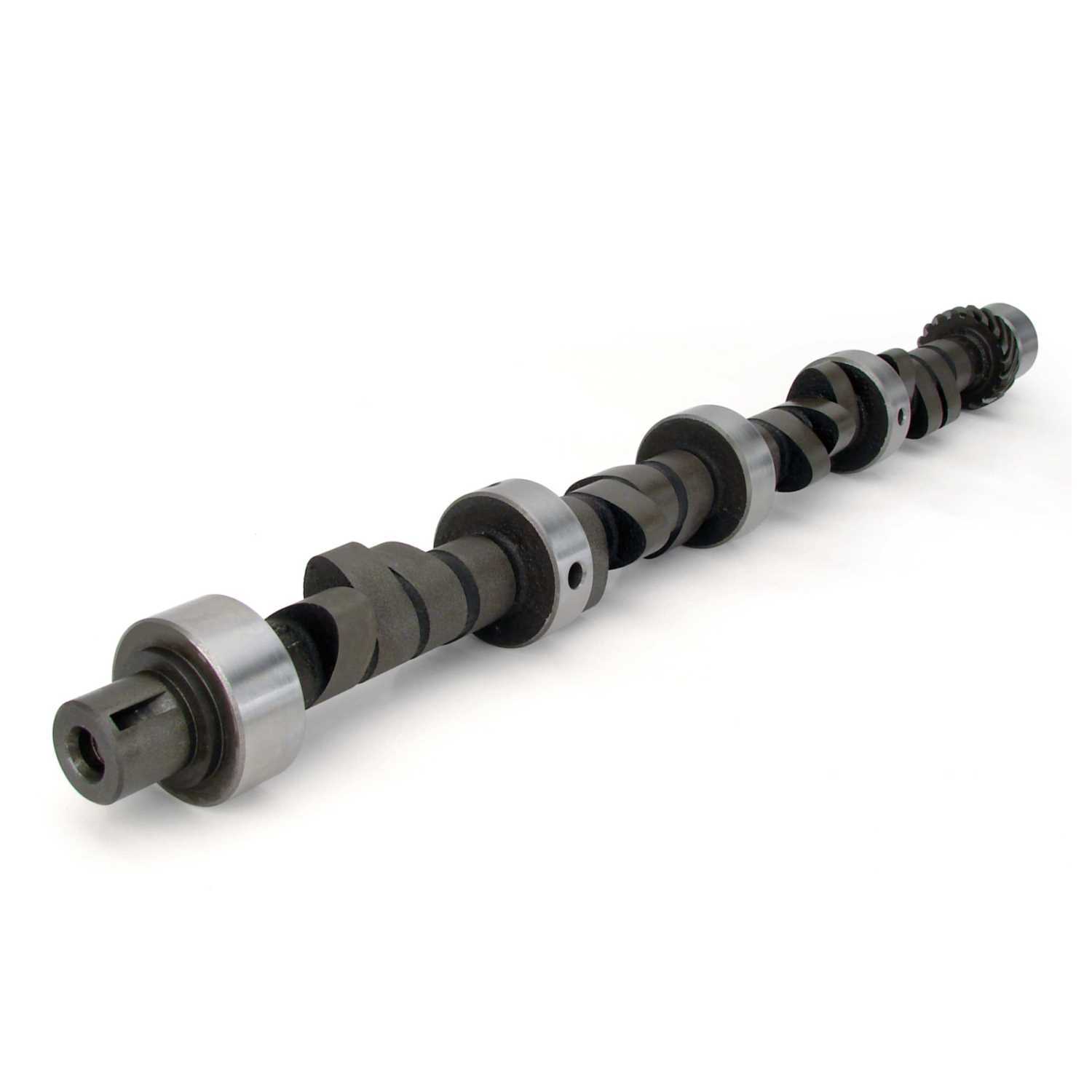

Comp Cams 20-232-4 Magnum 230/230 Hydraulic Flat Cam for Chrysler 273-360

** CLOSED UNTIL 12TH JANUARY - SHIPPING STARTS 12TH JANUARY 2026**

Description

Use in 340-360 street machine. Dual exhaust, 3.53-3.91 gear, 9:1 compression. Headers and aftermarket intake, 2500 stall.

Specifications

SKU	20-232-4
Barcode #	036584520245
Brand	COMP CAMS
intake valve lift	0.48
Exhaust Valve Lift	0.48
Lifter Type	Hydraulic Flat Tappet
Advertised Exhaust Duration	280
Advertised Intake Duration	280
Cam Type	Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift	230
Intake Duration At .050 Inch Lift	230
Lobe Separation	110
Camshaft Series	Magnum
Grind Number	280H
Basic Operating Rpm Range	2,500-6,000
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Cast Iron
