SKU: 12-675-5

Small Block Chevy Solid Flat Tappet Camshaft 224/230 LSA 110 0.477"/0.488"

RPM Range: 1300 - 5800


In Stock

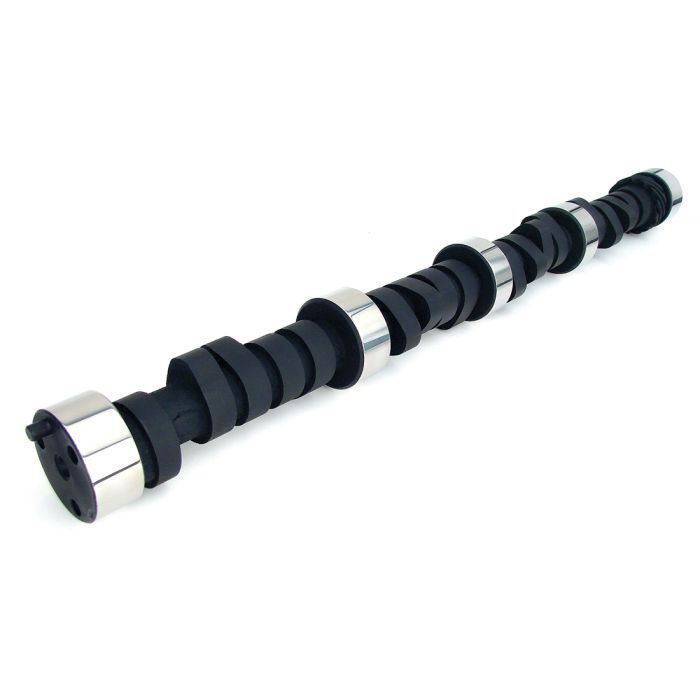

Xtreme Energy™ 224/230 Solid Flat Tappet Camshaft for Chevy Small Block 350

Excellent response, good mid-range and a noticeable idle.

Engine Family:   Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)

RPM Operating Range:   1,300-5,800

Grind Number:   XS262S

Cam Type:   Solid Flat Tappet

Lifter Style:   Solid Flat Tappet

Camshaft Series:   Xtreme Energy

Usage:  Street/Performance

Advertised Intake Duration:   262

Advertised Exhaust Duration:   268

Intake Duration at .050 Inch Lift:   224

Exhaust Duration at .050 Inch Lift:   230

Intake Valve Lift:   0.477

Exhaust Valve Lift:  0.488

Lobe Lift Intake:  0.318

Lobe Lift Exhaust:  0.325

Lobe Separation:   110

Intake Centerline:  106

Exhaust Close ATDC:   20

Intake Open BTDC:  25

Exhaust Open BBDC:   68

Intake Close ABDC:   57

Camshaft Gear Attachment:   3-Bolt




SKU 12-675-5
