SKU: 26089-16

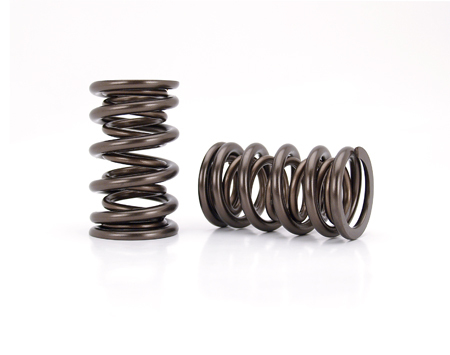

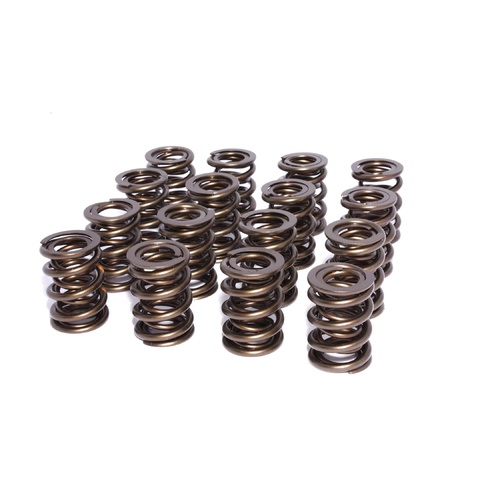

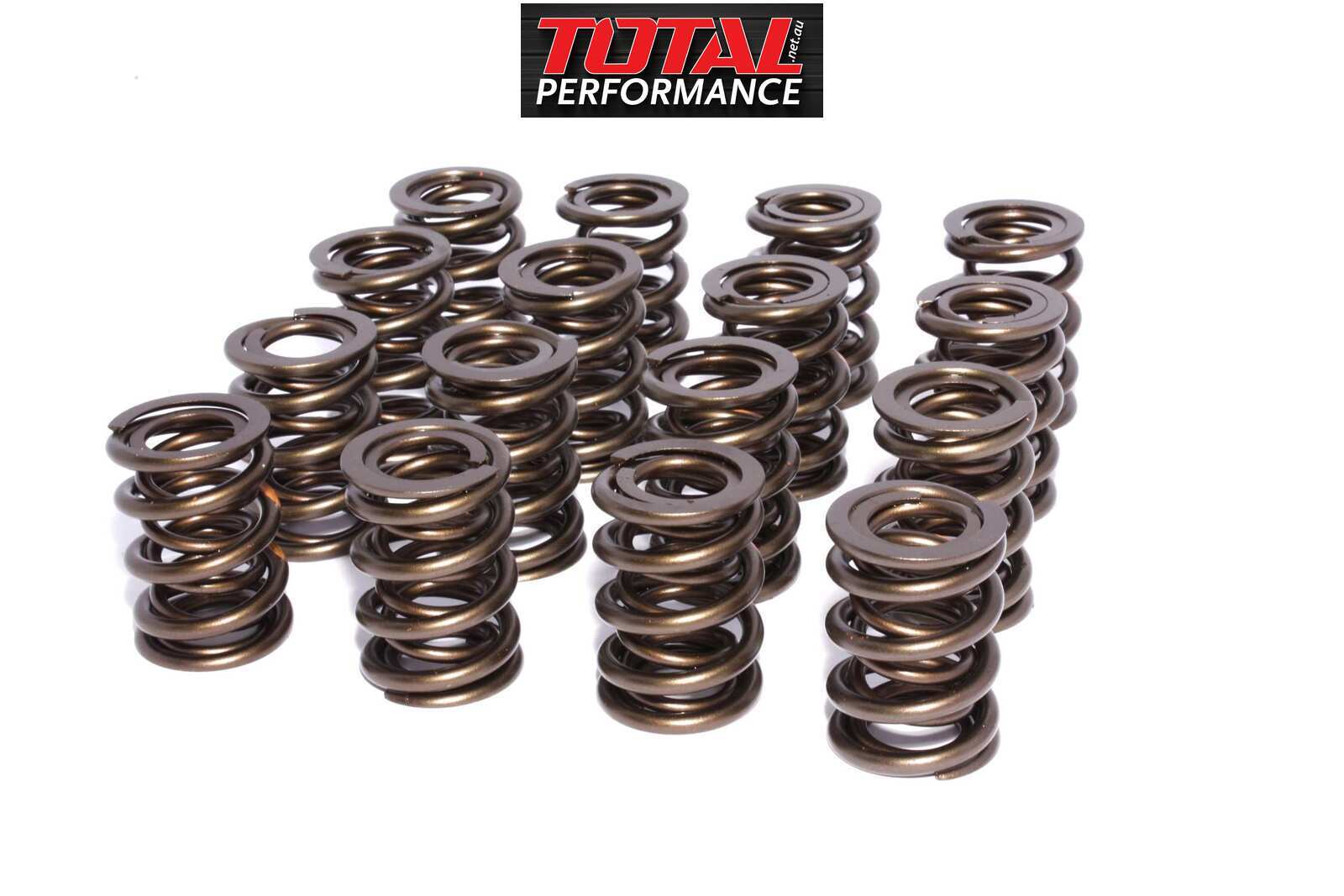

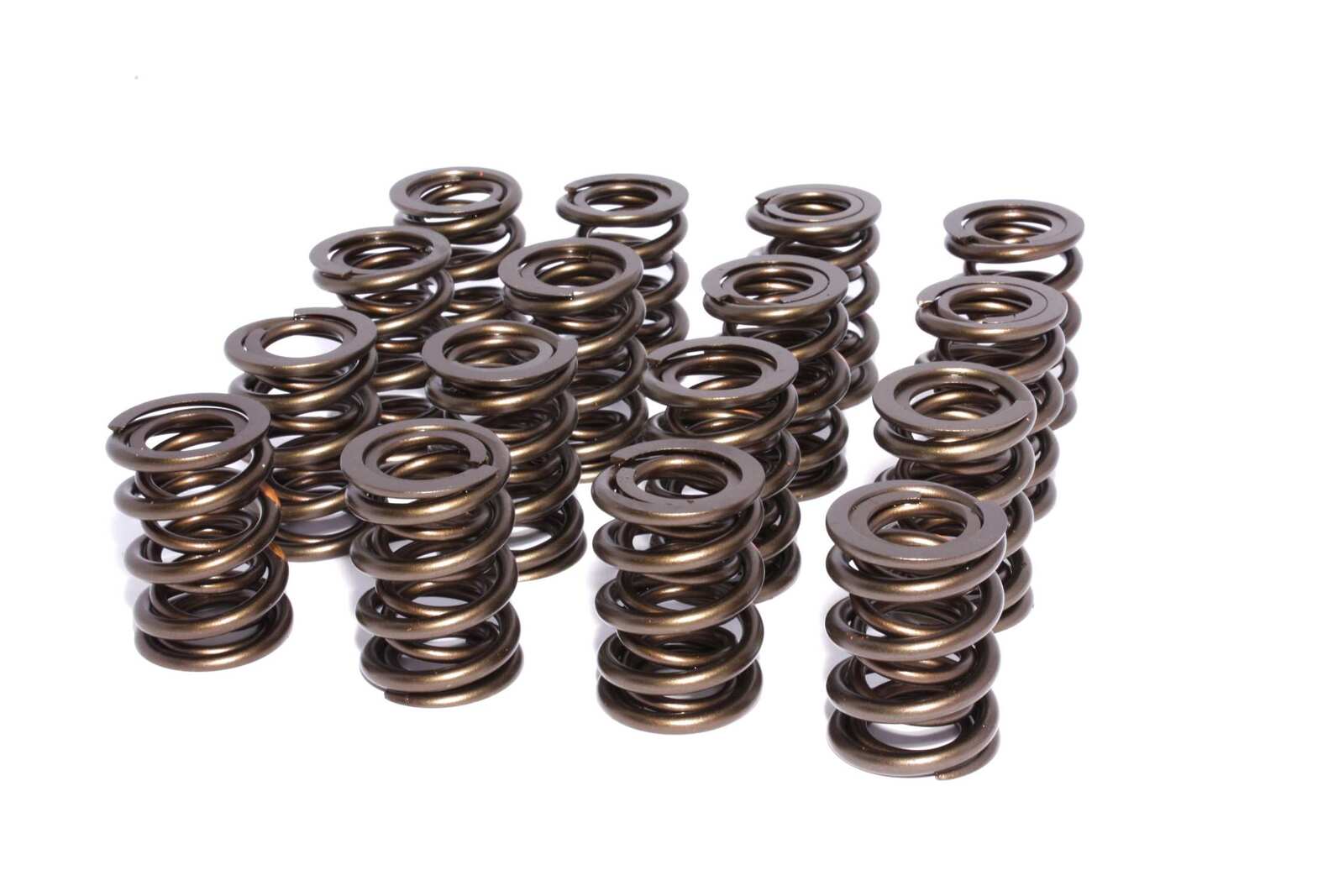

*DISCONTINUED* Dual Valve Springs Race Endurance 1.565" OD 230 lbs@ 2.000" & 500lbs/inch rate

$928.55

or 4 payments of $232.14 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

COMP Cams® Dual Valve Springs for race applications are manufactured from Super Clean™ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams® Dual Valve Springs exceed the expectations of today’s engine builders and racers.

Max Lift:   0.710”

Installed Height:  2.000”

Coil Bind Height:   1.230”

O.D. of Outer:   1.565

I.D. of Inner:   0.803

I.D. of Outer:   1.127

Spring Style:  Dual

Spring Rate:  500

Seat Pressure:   230

Damper:   No

COMP CAMS MATCHING COMPONENTS:

Component Part Number

Spring Cup (O.D. Locator):  4700-16

Spring Seat (.570" Guide Dia.):  4785-16

Spring Seat (.630" Guide Dia.):   4777-1

Steel Retainers:  731-16  /   720-16  /   749-16

Tool Steel Retainers:  1731-16

Specifications

SKU 26089-16
Barcode # 036584061229
Brand COMP CAMS
Seat Height 2
Damper No
Seat Pressure 230
Outer Spring Outside Diameter 1.565
Outer Spring Inside Diameter 1.127
Number Of Springs 2
Inner Spring Inside Diameter 0.803
Valve Spring Series Race Endurance
Coil Bind Height 1.23
Spring Rate 500
