SKU: 954-16

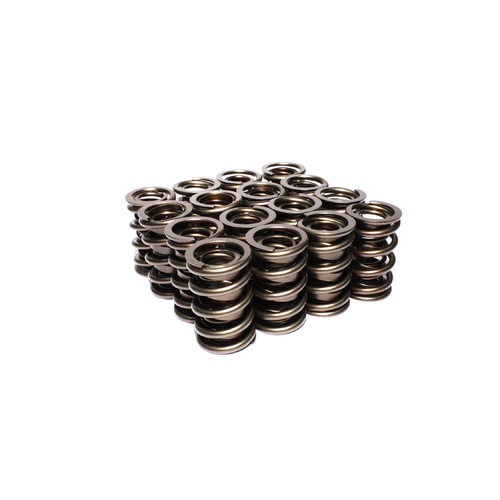

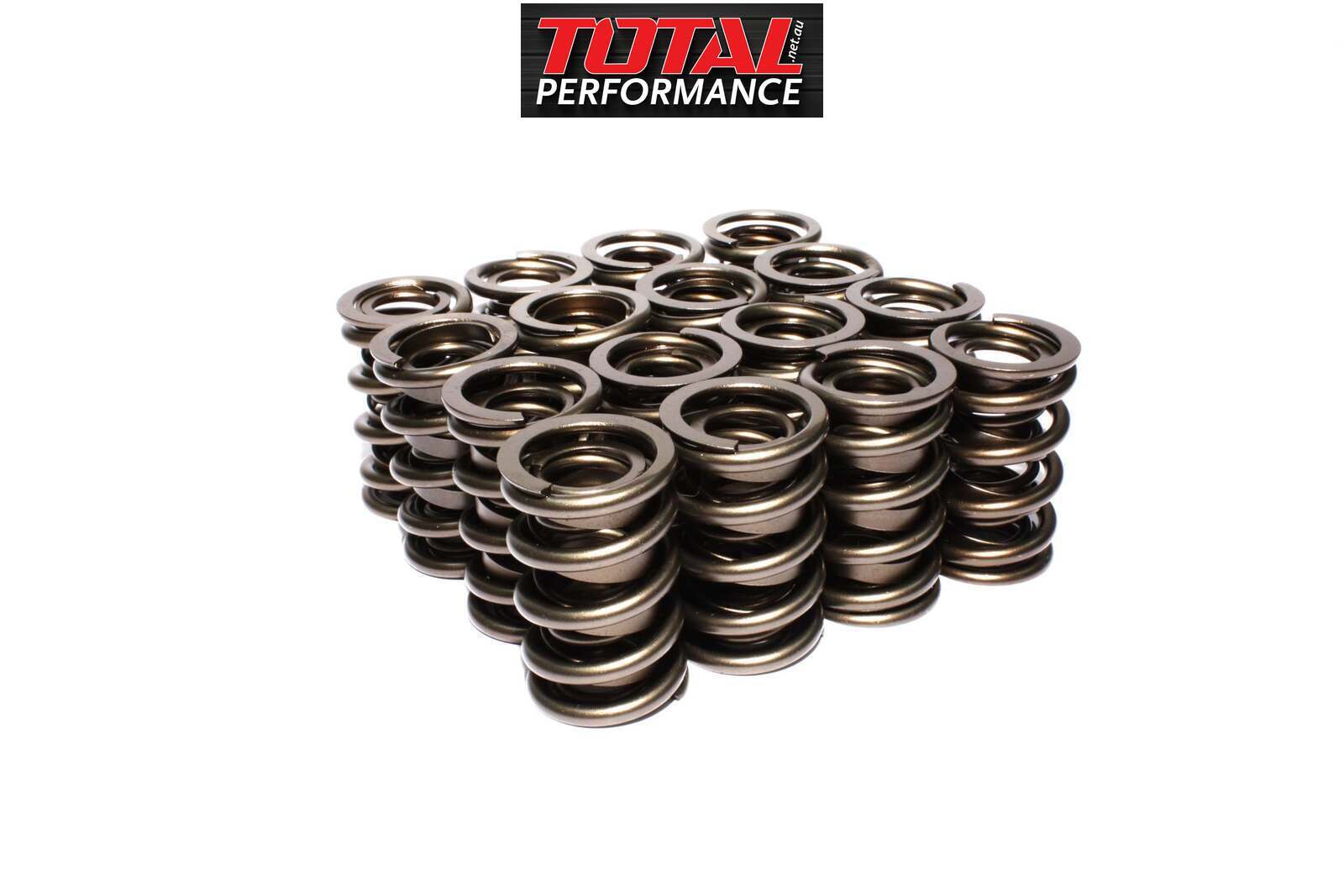

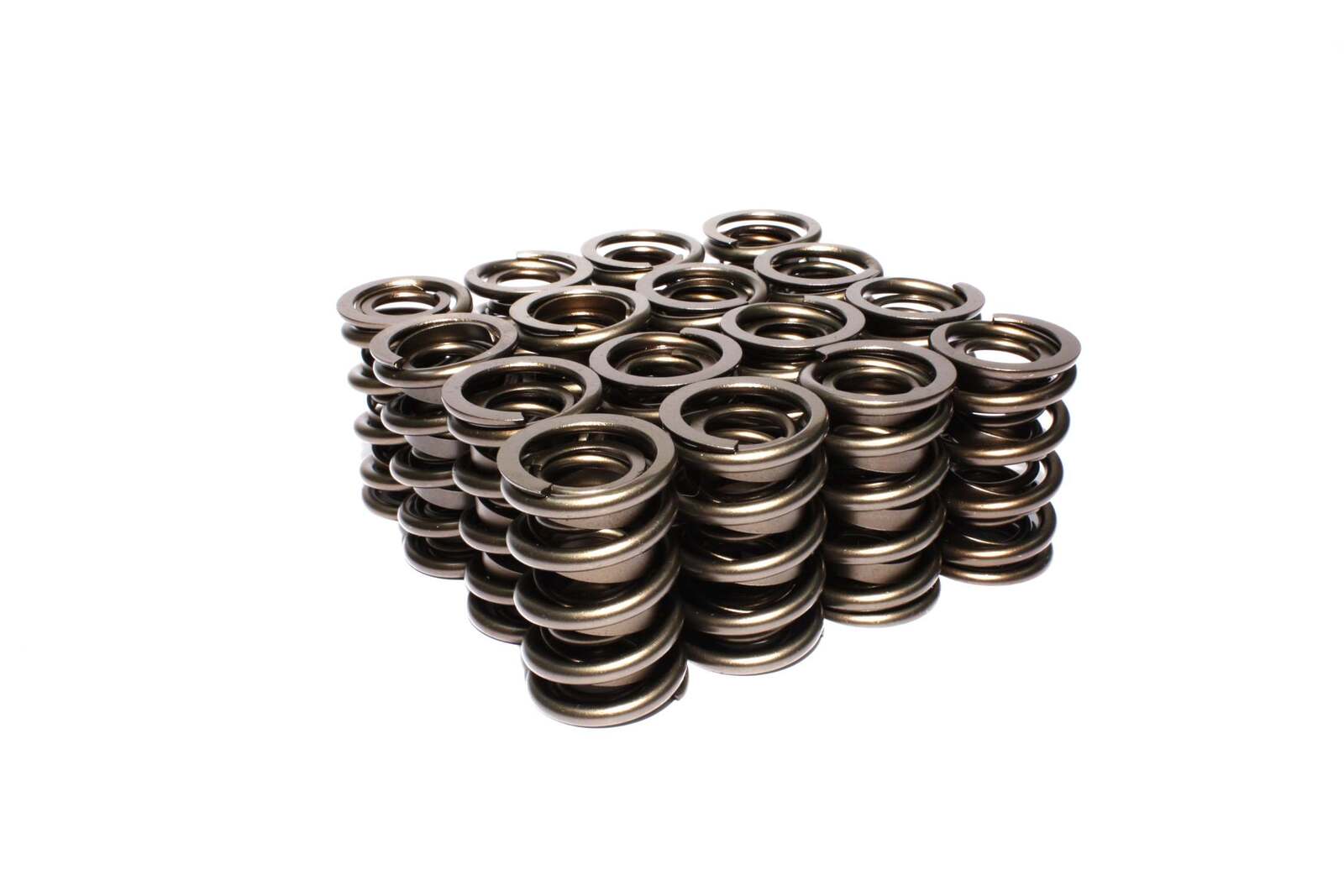

954-16 Engine Valve Spring Kit

Ford351C + BBC heads.

$265.57

or 4 payments of $66.39 with Info

In Stock

Description

Dual Valve Springs: 1.525" O.D. Outer, .730" I.D. Inner

Suitable for Street Series Solid Roller Camshafts.

**Requires machining on OEM cylinder heads.

Matching Components:

Spring Cup (O.D. Locator):  4700-16

Spring Seat (.570" Guide Dia.):4781-16

Spring Seat (.630" Guide Dia.):4782-16

Steel Retainers:721-16  /   732-16  /   741-16

Tool Steel Retainers:1732-16



Specifications

SKU 954-16
Barcode # 036584270799
Brand COMP CAMS
Seat Height 1.9
Spring Rate 483
Number Of Springs 2
Seat Pressure 210
Coil Bind Height 1.17
Outer Spring Inside Diameter 1.112
Damper Yes
Inner Spring Inside Diameter 0.72
Outer Spring Outside Diameter 1.536
