SKU: 985-16

*SUPERSEDED* TO 26987-16 Dual Engine Valve Springs - Hydraulic Roller, 145lbs@1.800", 366lbs rate SBC Chevy 350 302 SBF Windsor Chrysler 360,

Suits Hydraulic Roller + Solid Flat tappet.

$264.47

or 4 payments of $66.12 with Info

SOLD OUT

Description

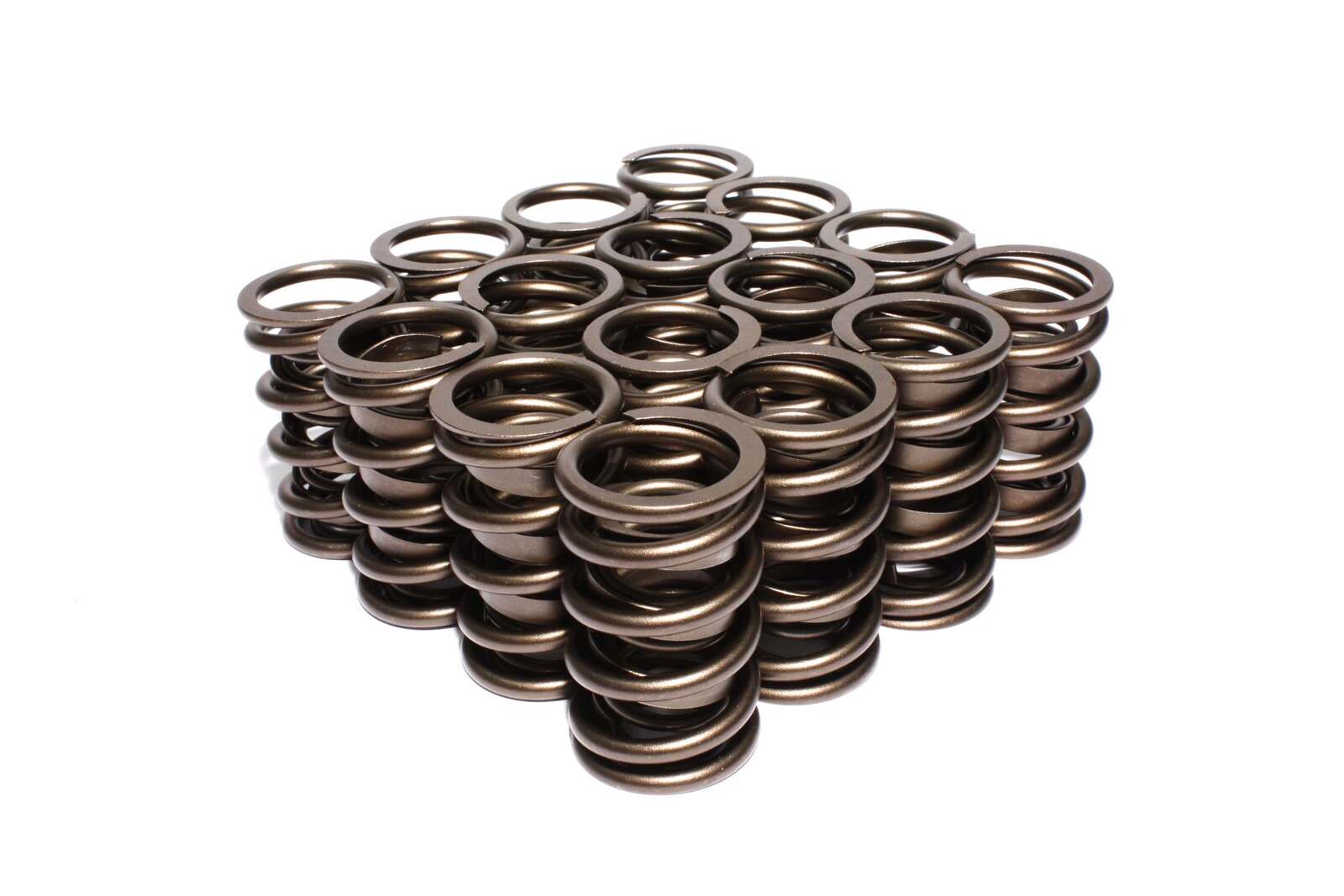

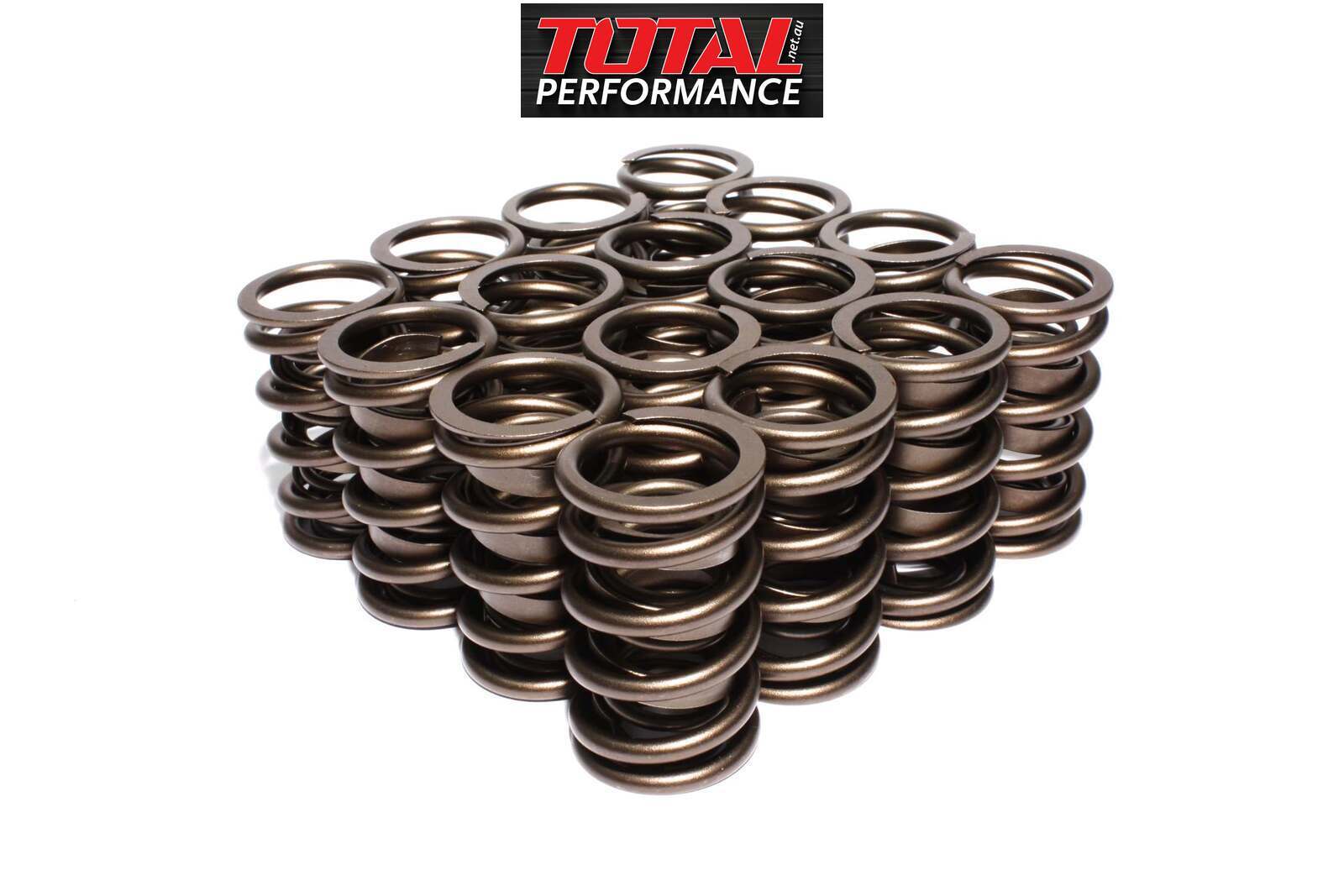

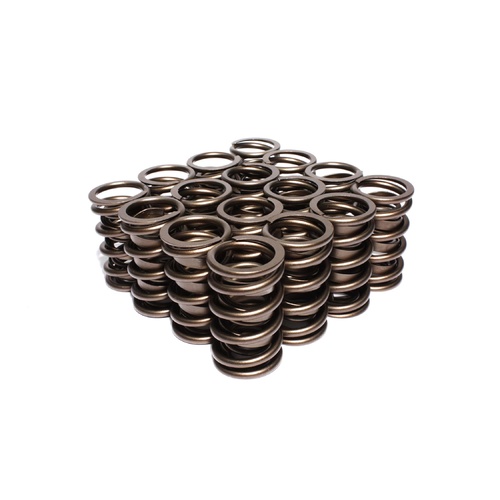

COMP CAMS  985-16, Dual Valve Springs - suit Hydraulic Roller.

Suits aftermarket cylinder heads when using a Hydraulic Roller Camshaft or a Solid Flat Tappet Camshaft

  • SBC Chevy 350,
  • 302 SBF Windsor,
  • Holden V8 253-380*OEM heads will need machining
  • Chrysler 318-360,

Specifications:

  • Type: Dual Spring with Dampner
  • Seat Pressure: 145lbs@1.800"
  • Open Pressure: 330lbs @ .500" Lift
  • Open Pressure: 345lbs @ .550" Lift
  • 366lbs rate
  • Max lift:  0.590" (@ .060" to coil bind)
  • Coil Bind:  1.150"

Comp Cams

Specifications

SKU 985-16
Barcode # 036584272069
Brand COMP CAMS
Seat Height 1.75
Damper Yes
Seat Pressure 165
Outer Spring Outside Diameter 1.43
Outer Spring Inside Diameter 1.07
Number Of Springs 2
Inner Spring Inside Diameter 0.7
Coil Bind Height 1.15
Spring Rate 366
