Dual Valve Springs Kits Hydraulic Flat Tappet, Ford 351C Cleveland Factory Cast Iron Heads, Multi 4 Groove Valves

Comp Cams Valve Springs kits. *

351 Cleveland, Dual Vavle Spring kit for a Hydraulic Flat Tappet Camshaft.

Available for the Cast Iron Cleveland Cylinder heads with factory Multi 4 Groove valve applications. Total Performance has matched up Comp Cams high performance Dual valve springs with the proper chrome moly steel retainers, metal body Viton valve seals,  Multi 4 Groove valve locks.

Suits Ford 302 and 351 Cleveland applications.

Specifications:

• Fits: Cleveland cast Iron 2V & 4V Cylinder heads* Machining required.
• Application: Hydraulic Flat Tappet Camshaft.
• Spring OD: 1.509"
• Inner Spring ID: 0.697"
• Valve Stem seal: 0.530" Guide* Needs maching to fit.
• Seat Load- 112 Lbs @ 1.900"- Valve Closed Installed Height
• Seat Load - 129 Lbs @ 1.850" Valve Closed Installed Height
• Open Load @ .500" Lift: 285 Lbs.
• Open Load @ .550" Lift: 303 Lbs.
• Valve Spring Rate- 347 Lbs/inch
• Max Lift: 0.665" lift with .060" clearance.  (Coil Bind 1.175")
• *Spring seat machining: Yes, will need to accept the inside spring.

High Quality Comp Cams Valve Springs, Retainers & Locks

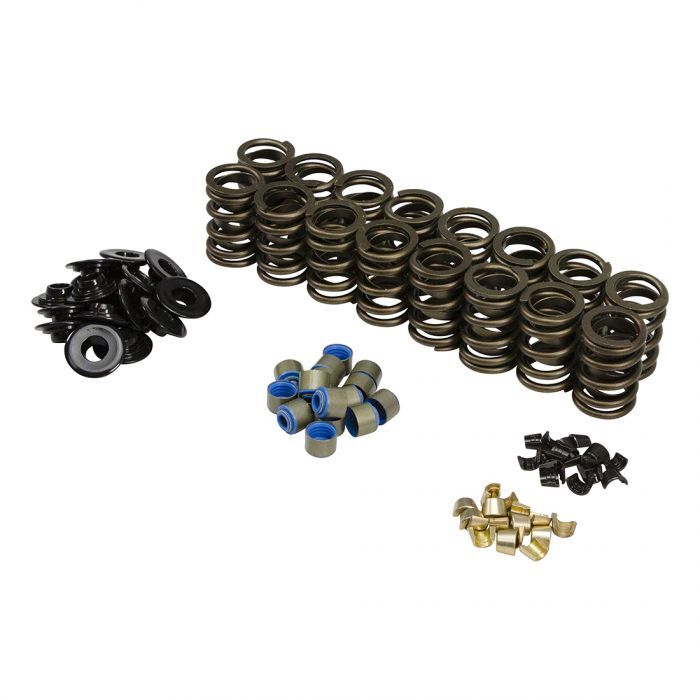

The Cleveland Dual Valve Spring kit includes

•Comp Cams Dual valve springs, Comp Cams 10 deg Multi 4 groove locks, and Comp Cams chromoly steel retainers

•Viton Valve seals

Made in USA.

*Cylinder Heads will require machining to accept the Dual Valve Springs and Valve Stem seal.
