Description
DRP Detroit Racing Products

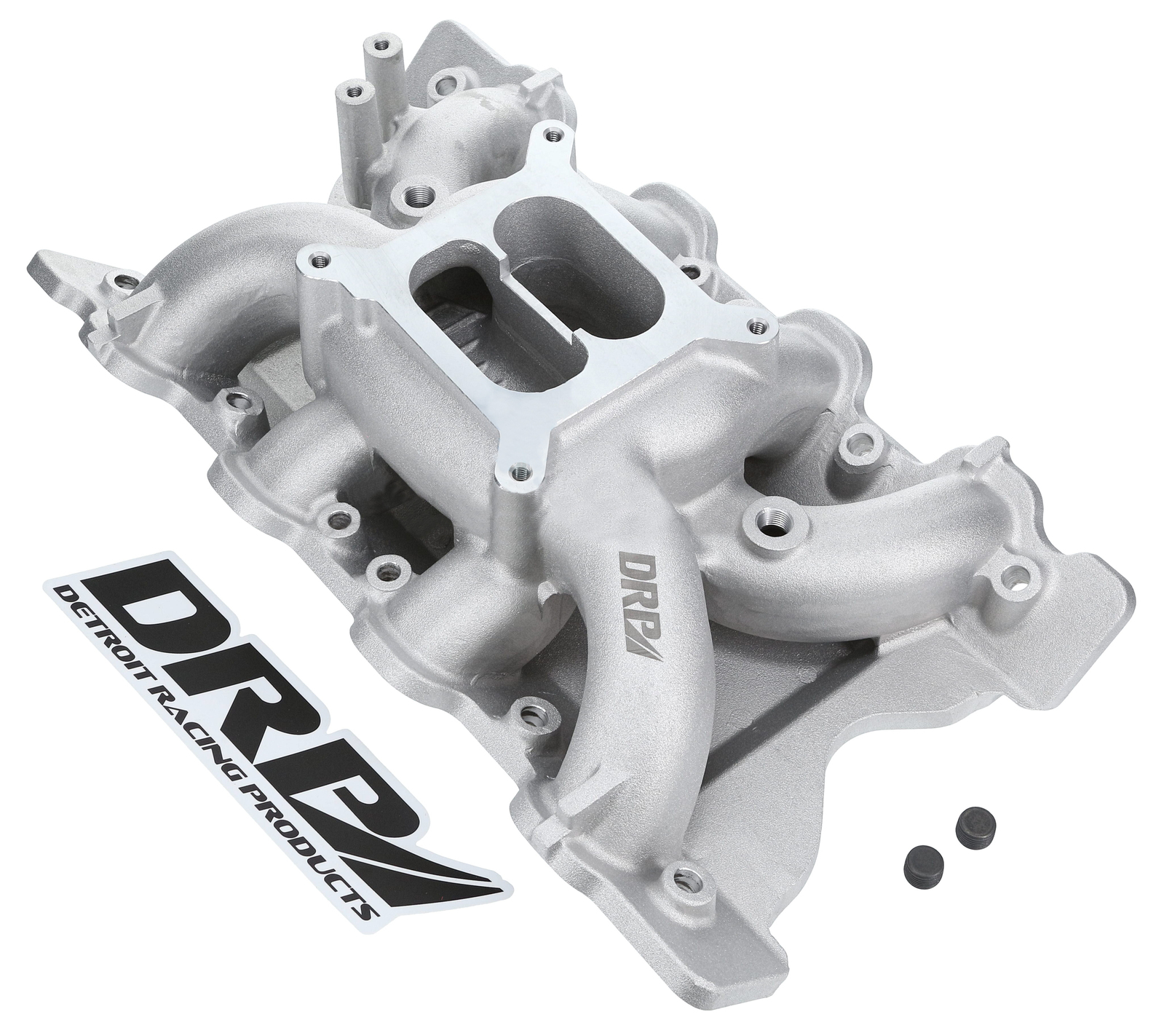

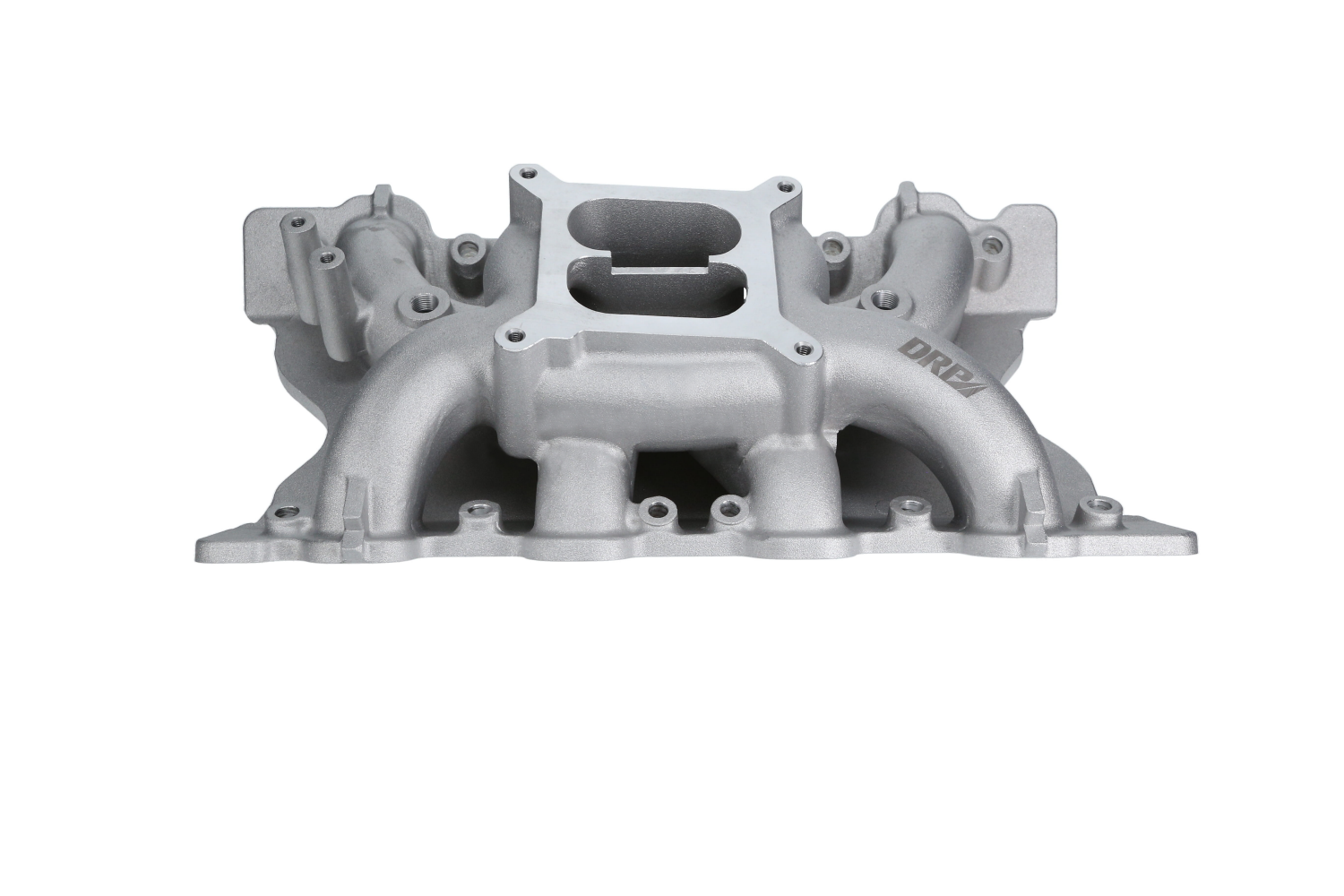

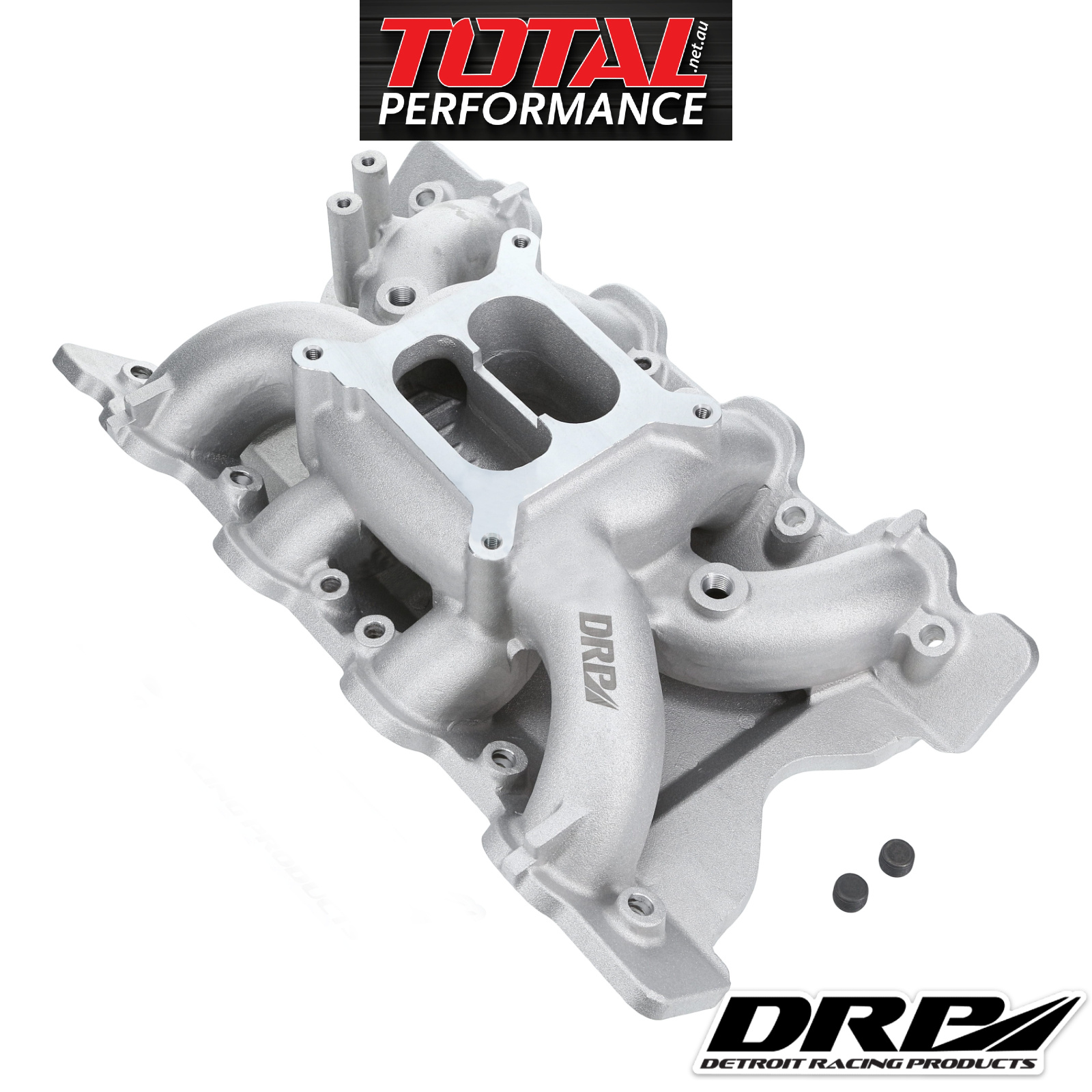

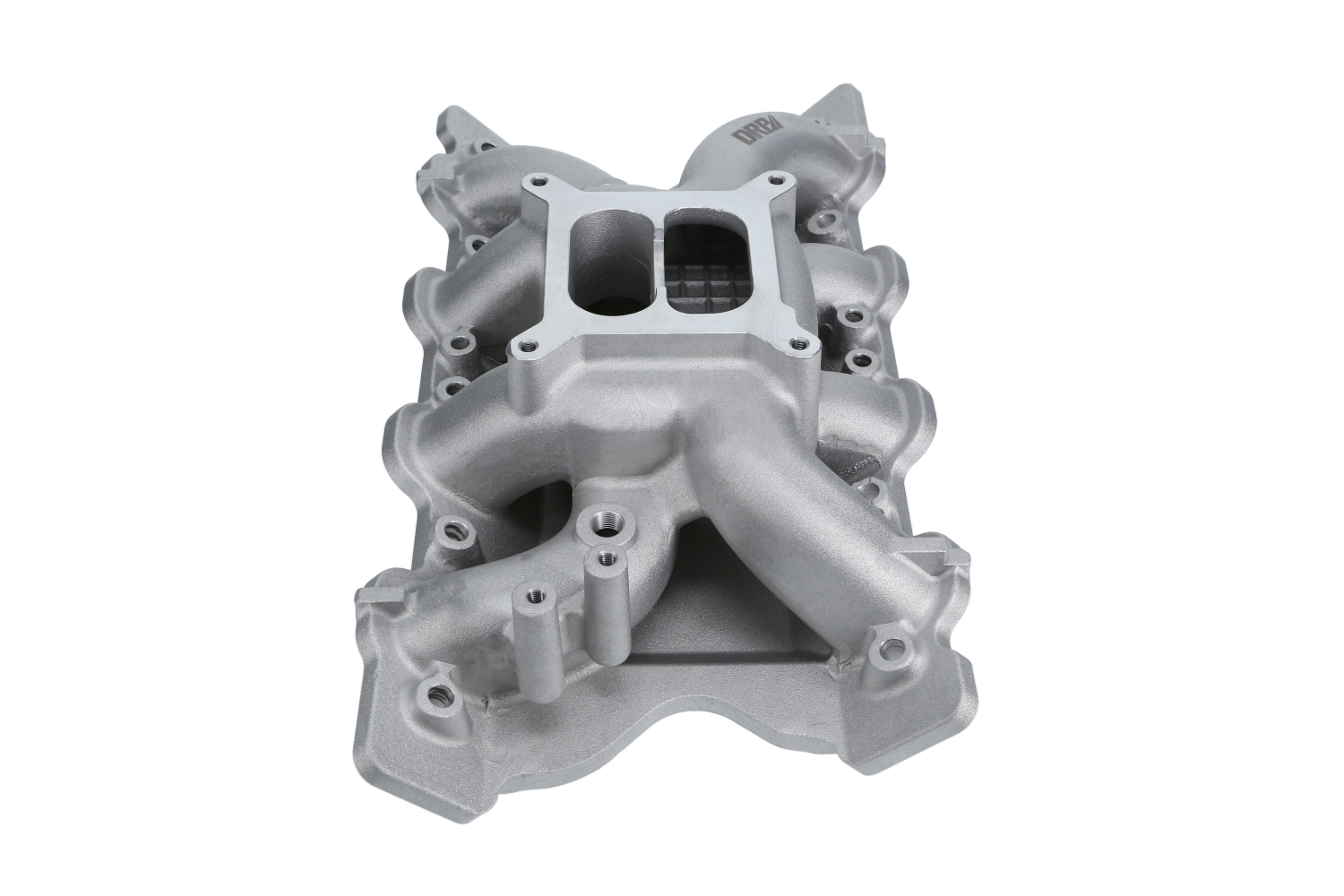

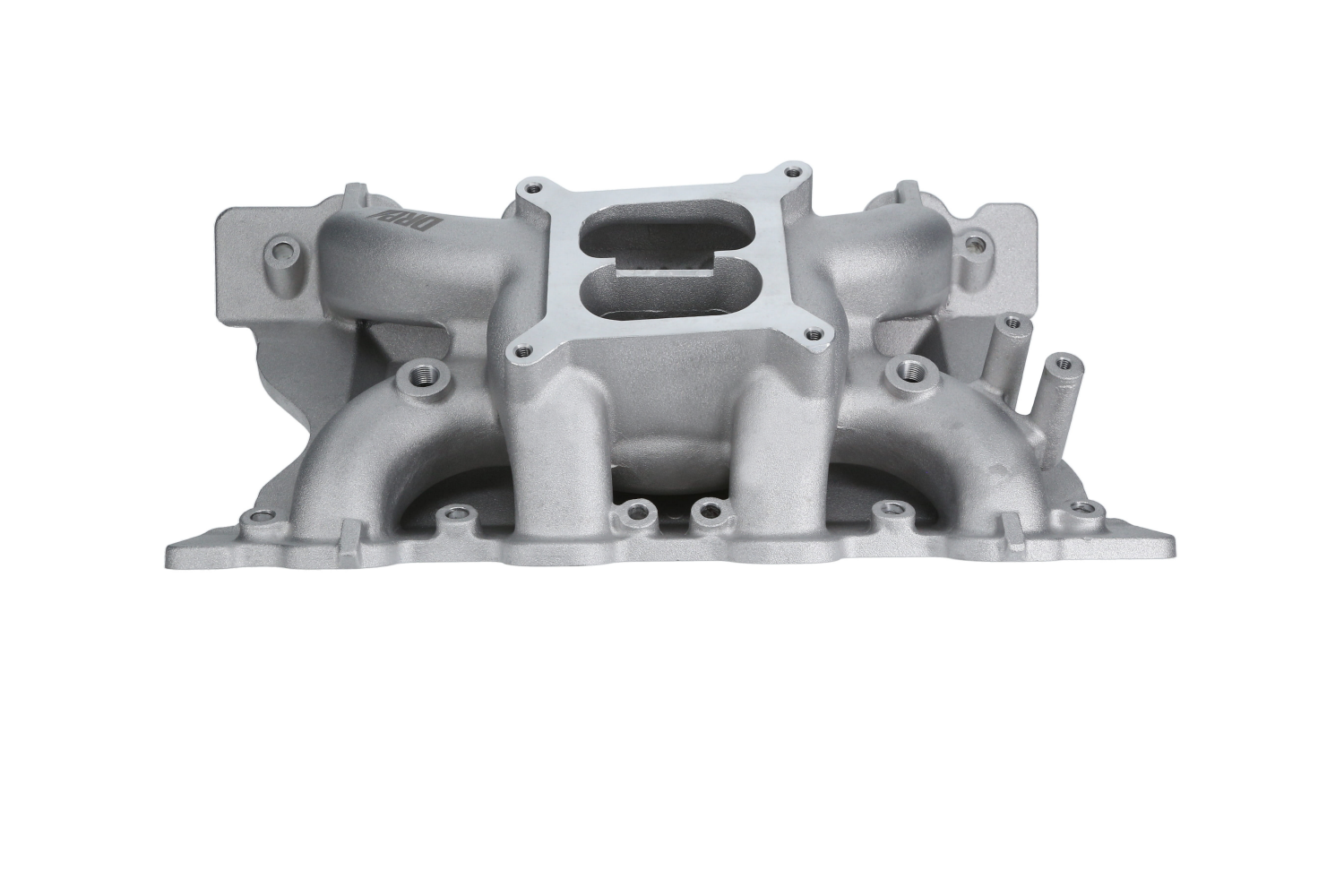

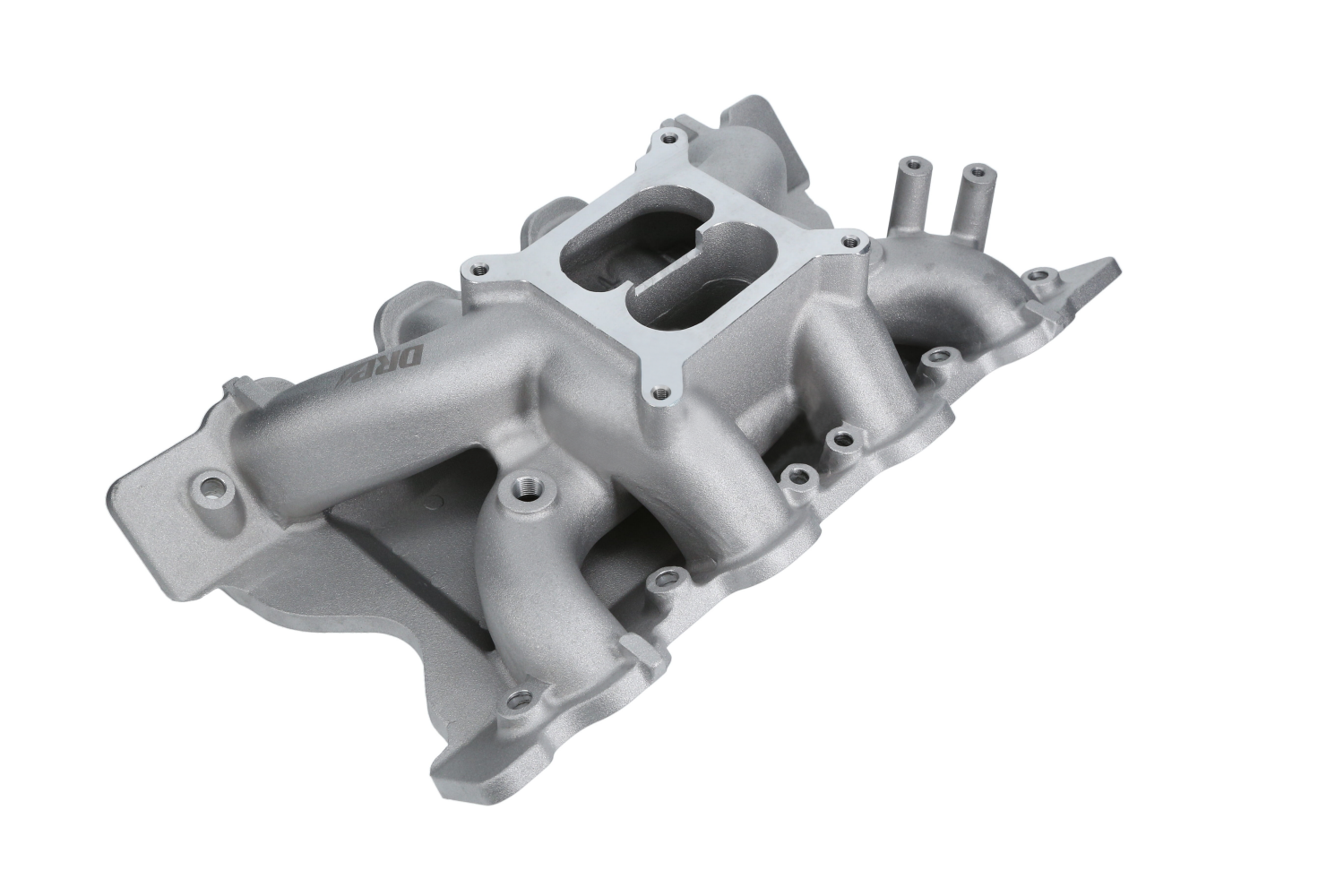

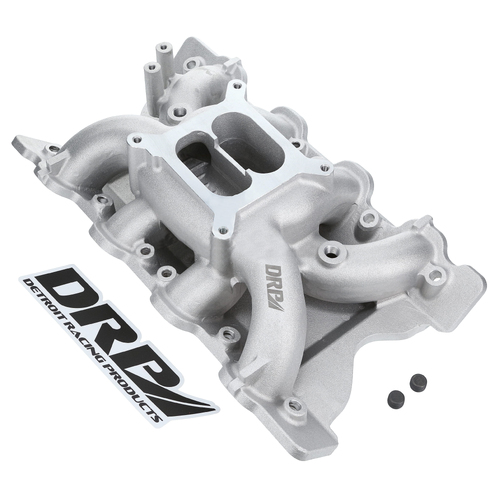

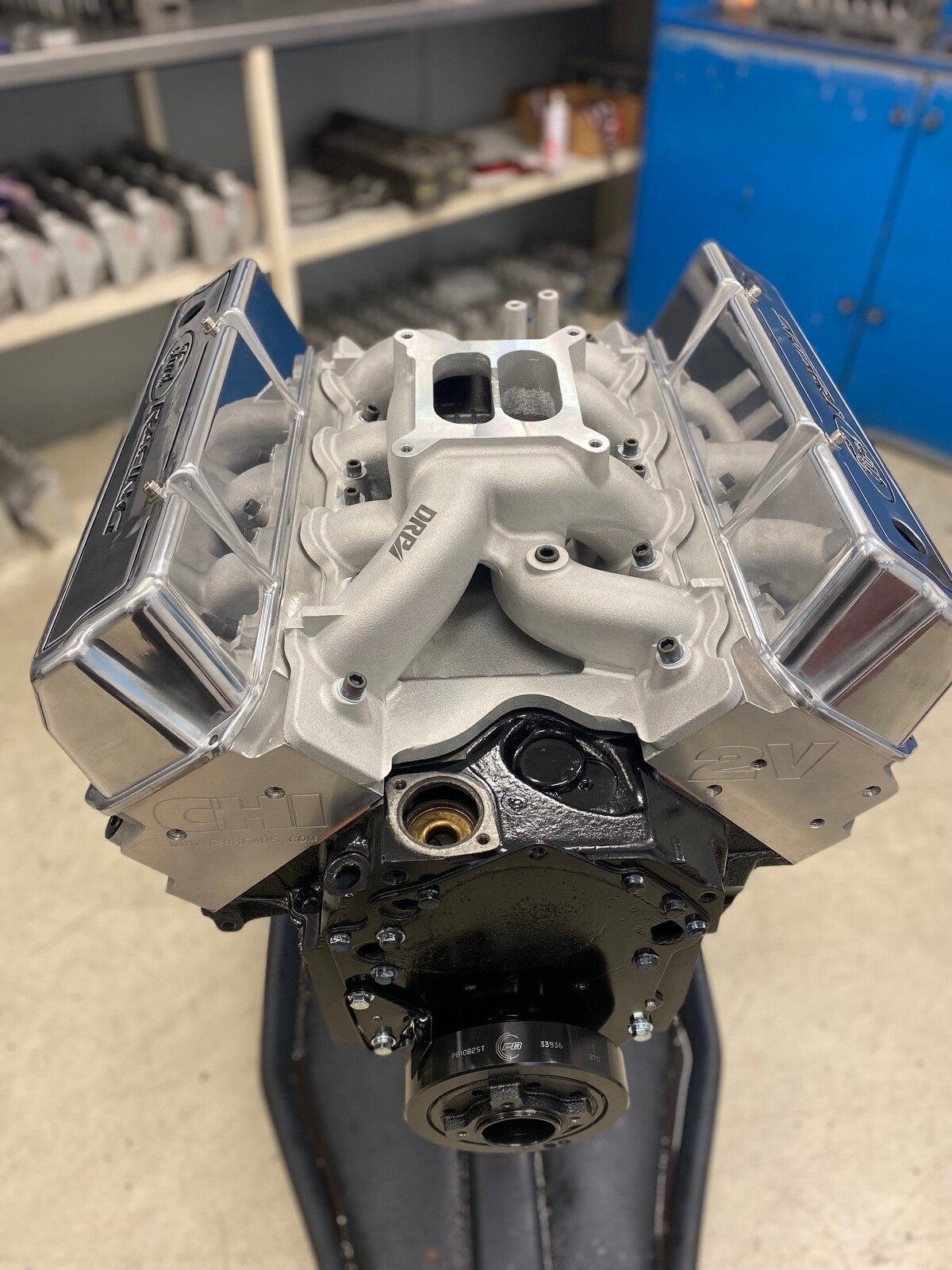

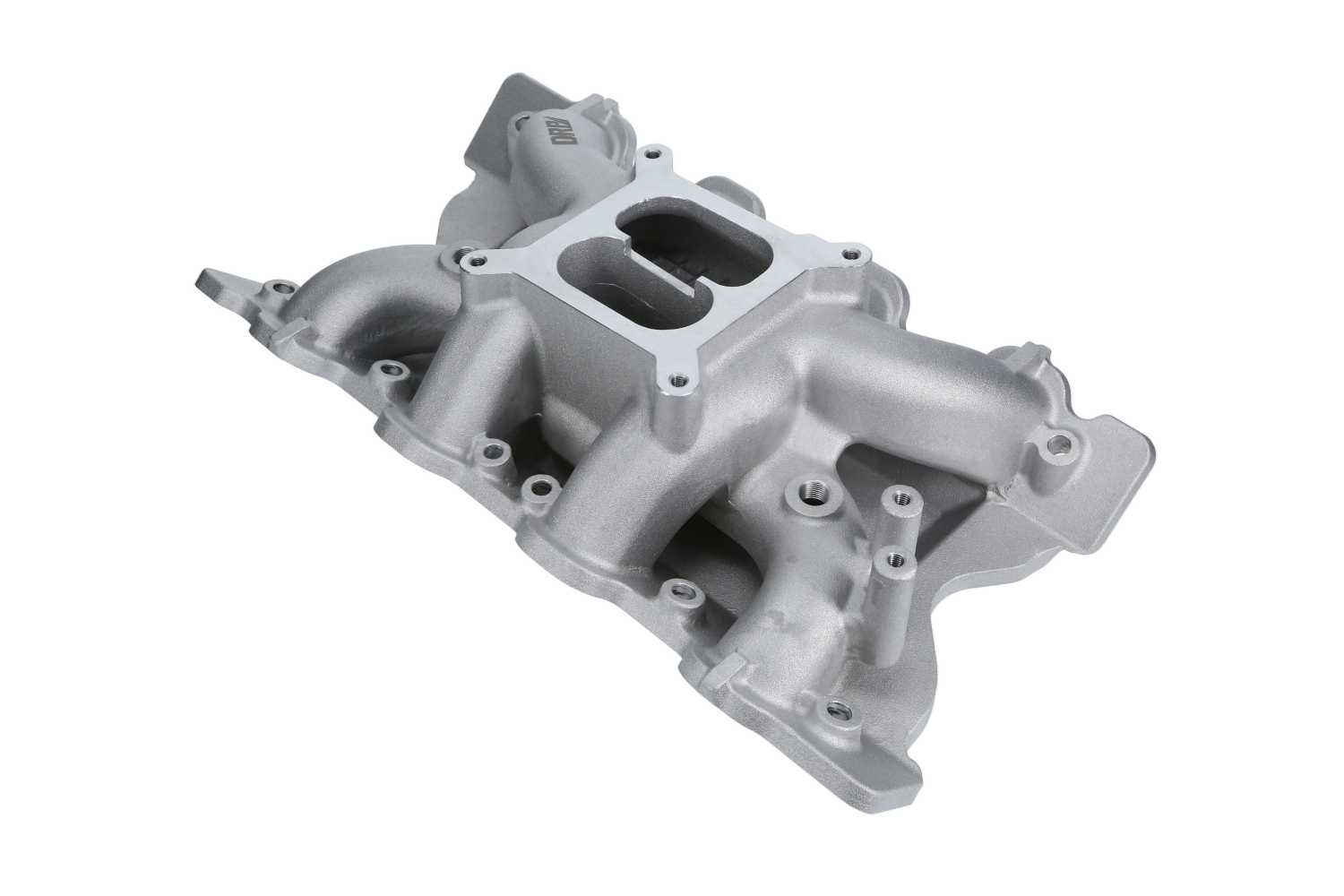

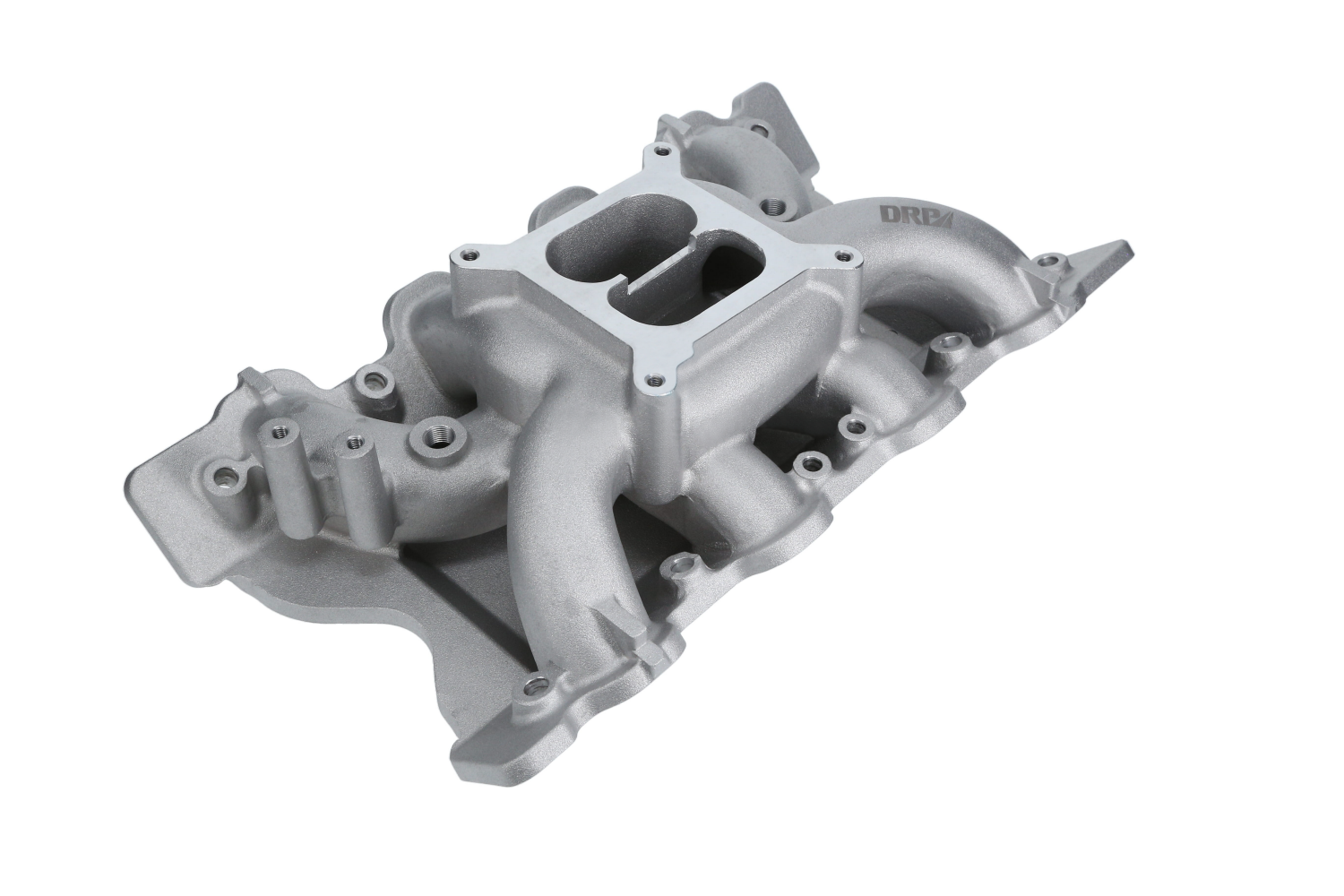

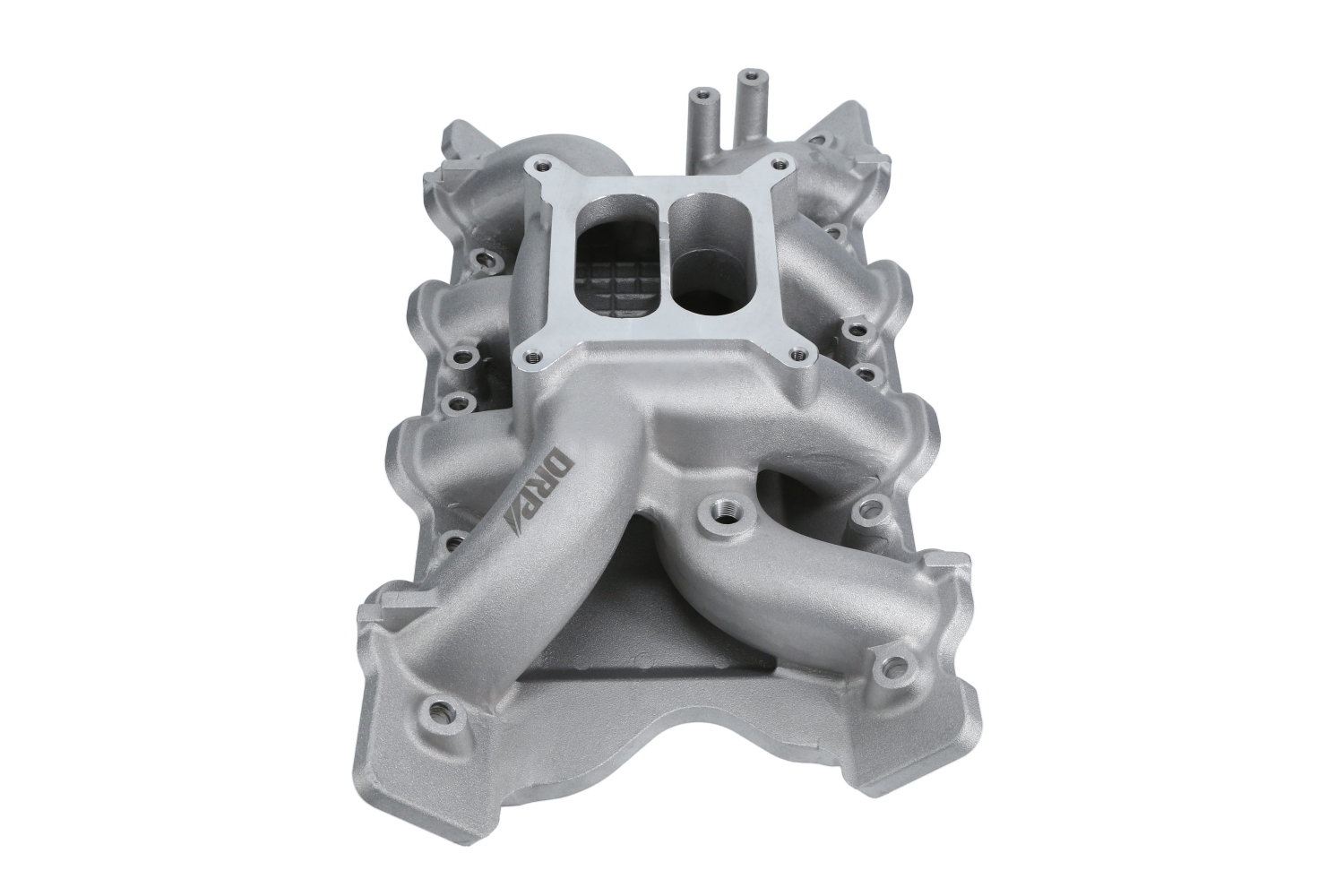

2V, DUAL PLANE, INTAKE MANIFOLD, AIR GAP, TYPE.
Suits the Ford 351 Cleveland.
A High Performance and High Quality piece by DRP.

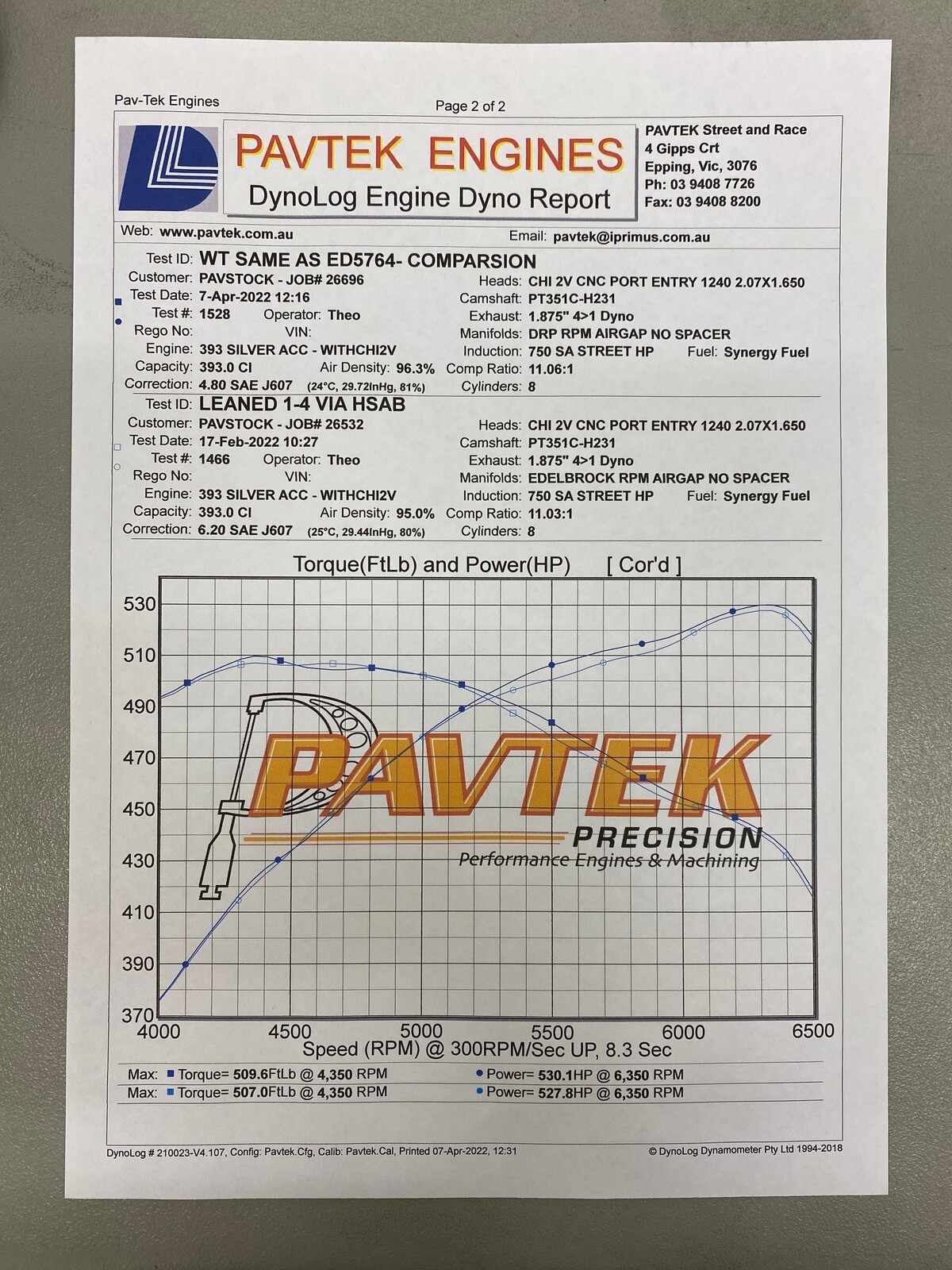

Independently Dyno tested by Pavtek.
DRP intake manifolds are premium manifolds manufactured to tight tolerances and made in OEM type production patterns. This method ensures consistant casting quality for Performance and quality control.
The separation from the plenum to the base of the manifold allows a separation gap. This air gap keeps built up engine heat away from the runners and intake plenum. This allows for a much cooler and hence dense air charge entering the motor, resulting in more power. Same principals as a single plane intake, now incorporated in the street friendly dual plane manifold.
The intake is tuned to operate from approx 1500 Rpm to approx 6500 Rpm. (all depending on your engine combination/camshaft/heads etc)
Note: Suits the factory port opening of a 2V Cleveland cylinder head. This manifold will also fit a 4V cylinder head, the ports of the manifold are smaller than the 4V and the mis-match is acceptable and still works well.
Requires aftermarket bolt kit (oem bolts wont fit)
You can use the Edelbrock # 8565 bolt kit
Recommended intake gaskets:
- Edelbrock # ED7265
- Felpro # FEL-1240
Manifold height: A-4.48", B-5.56
CNC Ported No
Engine Block Deck Height: Standard deck
Carburetor Quantity: One – Square Bore 4150 Style Base.
Intake Style: Dual plane
Basic Operating RPM Range: 1,500-6,500
Intake Manifold Height: 5.020 in.
Intake Finish: Natural / Satin
Intake Material: Aluminum
EGR: No
Specifications
Center Maximum Height | 5.020 in |
---|---|
CNC Ported | No |
Finish | Satin |
Front Maximum Height | 4.480 in |
Material | Aluminum |
Rear Maximum Height | 5.560 in |
Single Or Dual Plane Type | Dual Plane |
SKU | DRP-351C-DPMAN |
Brand | DRP |
