650 cfm AVS2 Manual Choke Carburetor Carby, 4 Barrel, Mechanical Secondary, 4150 Square Bore Annular Boosters Carburettor

Edelbrock ED1905, AVS2 650 cfm Carburettor. Mechanical Secondary, Four Barrel 4150 base Carby with CNC Annular boosters.

Edelbrock ED1905 AVS2 650 CFM Carburettor - super easy carby to use and drive with. We have persoanl experience with these ED1905 and highly recommend them. View the image of the Dyno run we did on our 351 Cleveland stroked to 393. The 650 has a super flat torque line all the way to 6000rpm! Impressive.

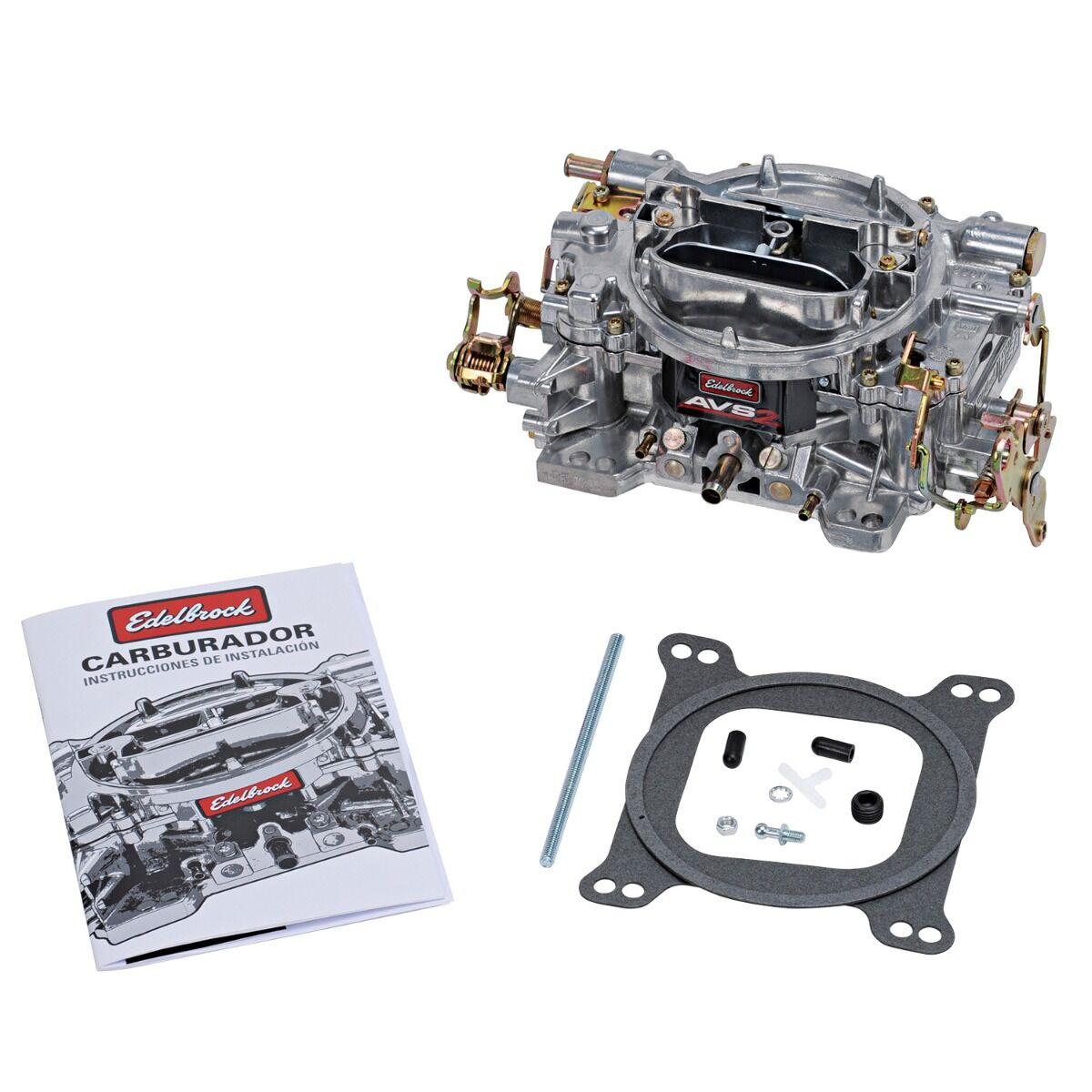

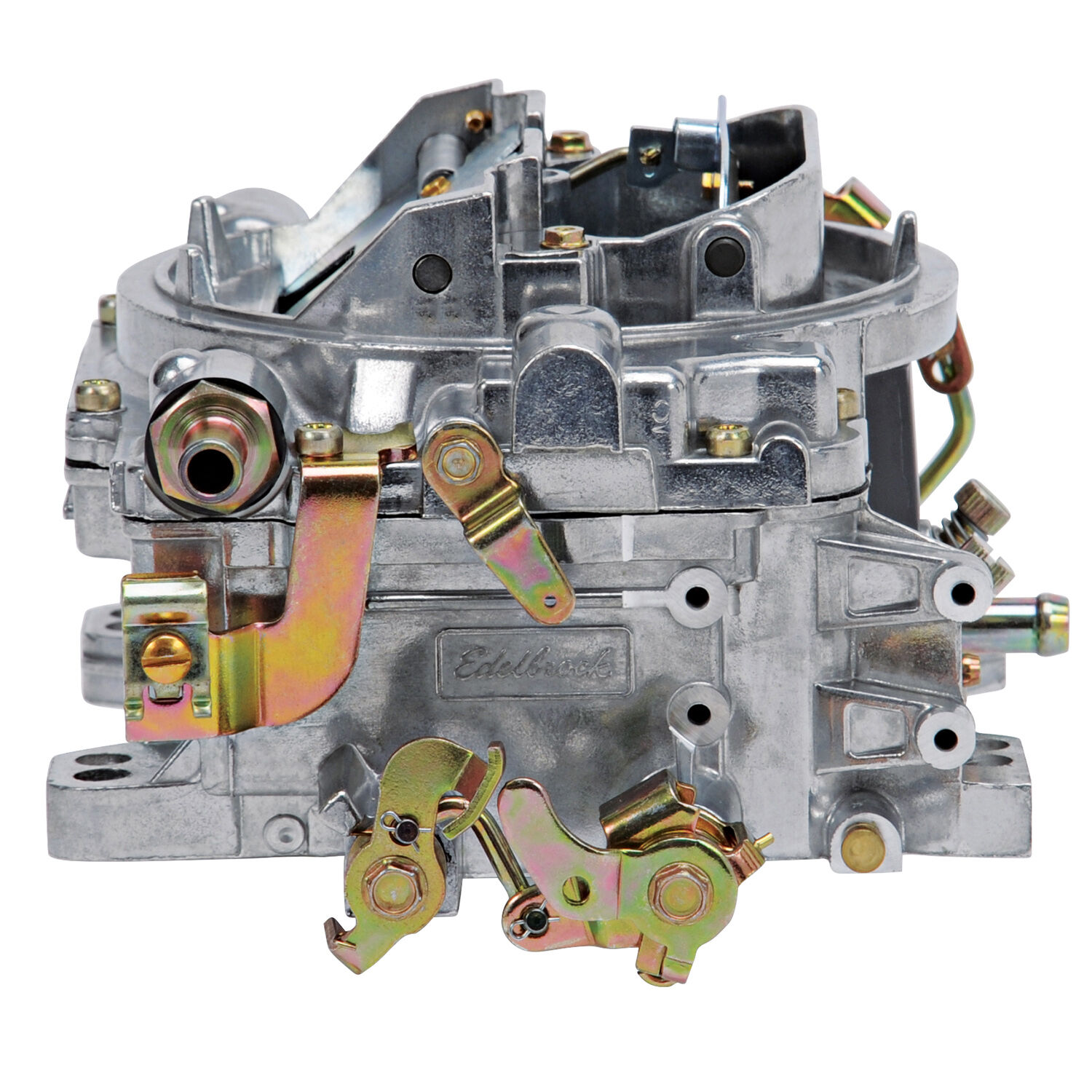

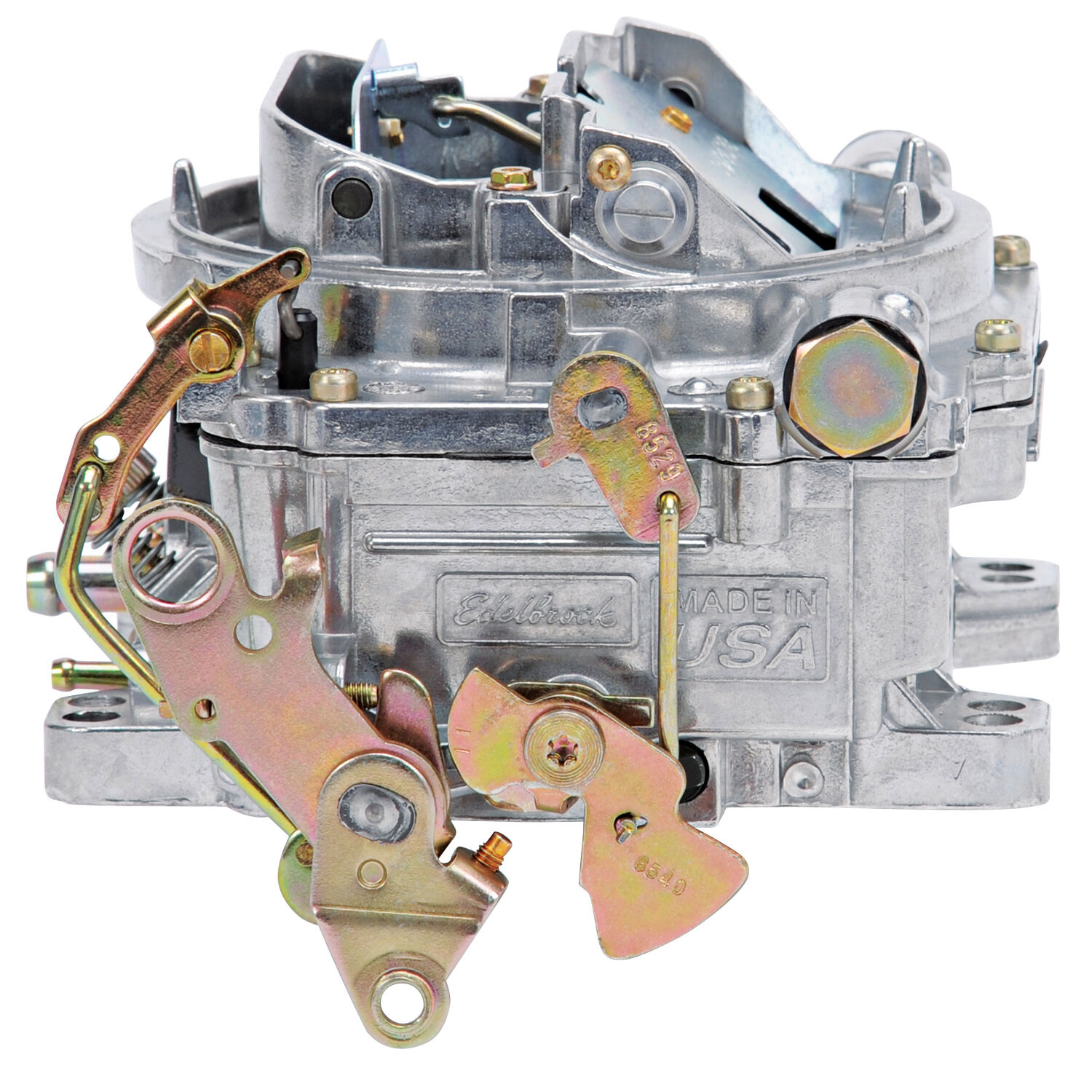

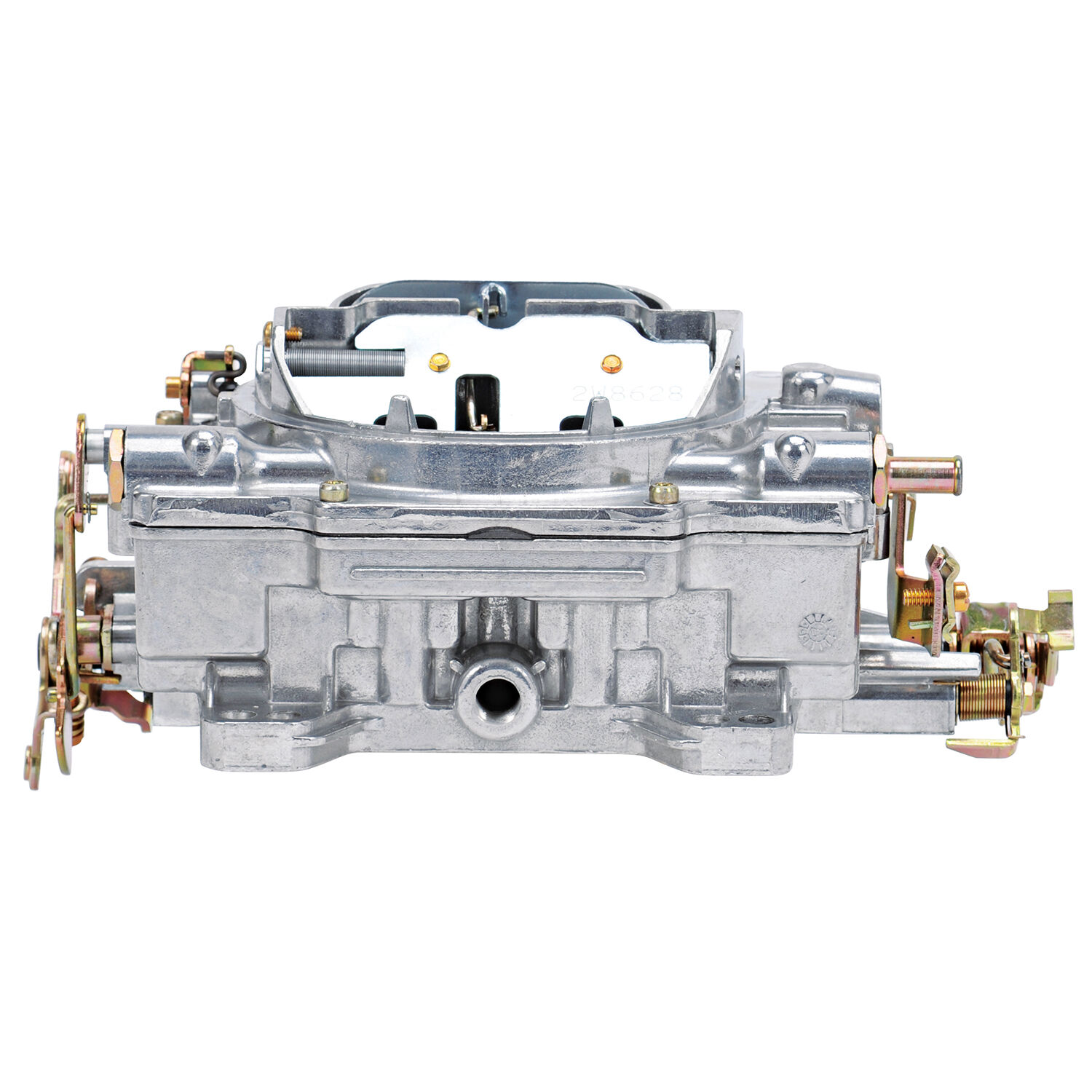

The Edelbrock ED1905 is a 650 CFM AVS2 four-barrel carburettor with a manual choke, mechanical secondaries and Holley 4150 square-bore mounting pattern.

The AVS2 uses annular-flow primary boosters to improve fuel atomisation, throttle response and fuel delivery during the transition from idle into the main circuit. This helps reduce the flat spots commonly experienced with conventional booster designs.

Its adjustable air-valve secondary controls how quickly the secondary airflow comes in, giving the engine the airflow it needs without making the carburettor feel lazy or doughy at lower RPM.

Total Performance rates the Edelbrock ED1905 as one of the best 650 CFM carburettors for a street-driven Small Block Chevy 350. It is also an excellent choice for Ford 302 Windsor, 351 Windsor, 351 Cleveland, Holden V8 and other mild small-block and big-block combinations.

The carburettor comes with a single fuel inlet. It can also accept the Edelbrock #8132 dual-feed fuel line, sold separately.

The ED1905 includes timed and full-manifold vacuum ports for distributor advance. It suits dual-plane and single-plane intake manifolds with a Holley 4150 square-bore mounting pattern.

Tune up kit link: Edelbrock Part# ED1948  (not included)

For the electric choke version, see Edelbrock ED1906 - AVS2 Electric Choke 650cfm

Use our Edelbrock Carburettor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2, order part #19053.

Edelbrock ED1905 Carburettor Specifications:

CFM:  650 cfm

Number of Barrels:  4

Carburetor Flange:  Square bore

Choke:  Manual

Secondary Type:  Mechanical

Fuel Inlet:  Dual

Primary Jet Size:  101

Secondary Jet Size:  98

Carburetor Colour:  Satin

Ford Kickdown:  No

Booster Type:   Annular

Throttle Linkage Type:   Universal

Carburetor Height (in.):   3.250 in.

Metring Rods:    Metering rod size is .070 in. x .037 in.

Suits: SBC Chevy 350, 351 Cleveland 4 barrel,

Tune up Kit that suits: Edelbrock Part# ED1948  (not included)

NOTE: if you want the Manual Choke version - plesae see Edelbrock part# ED1906

The Edelbrock AVS2 #1905 Features:

includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring.
