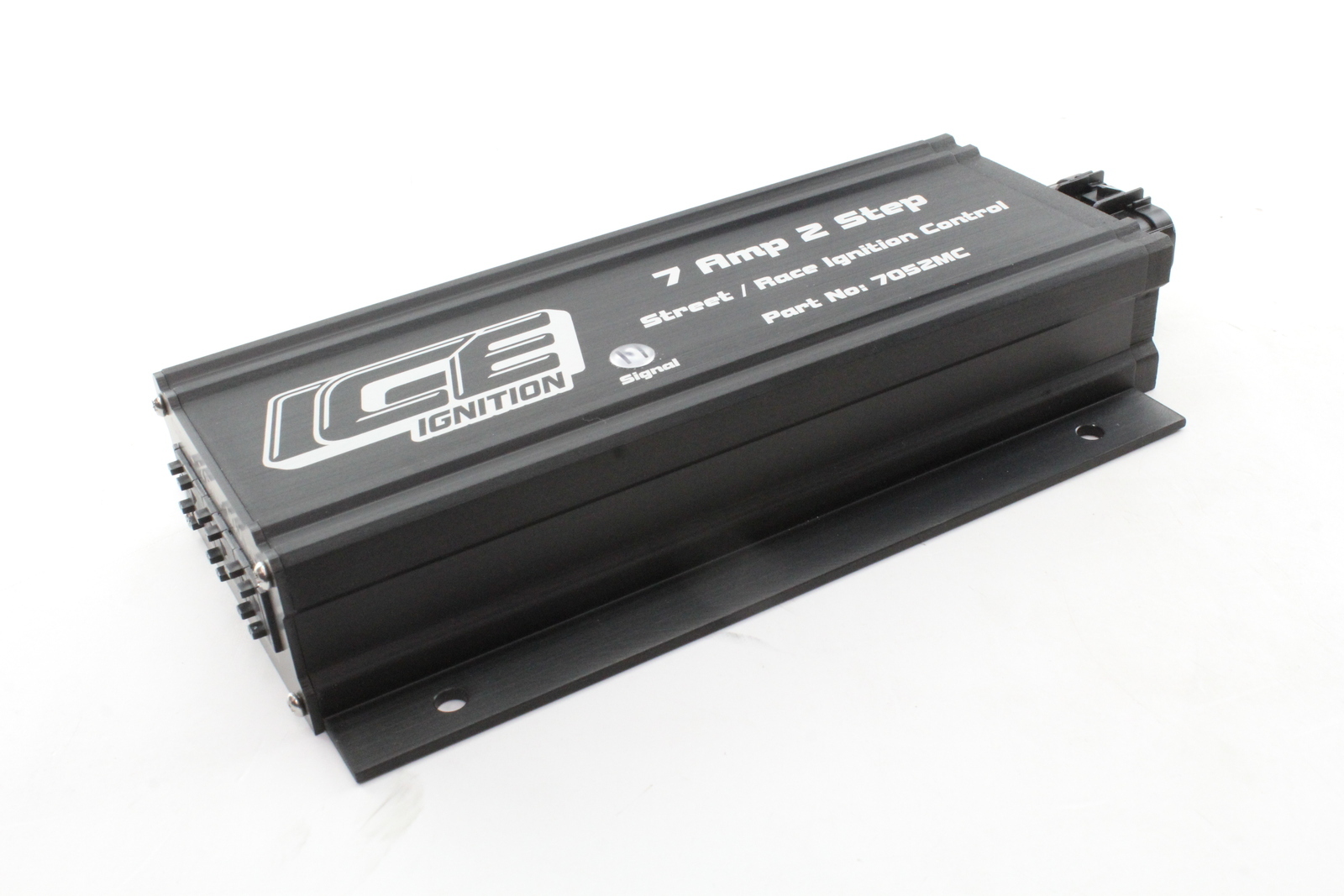

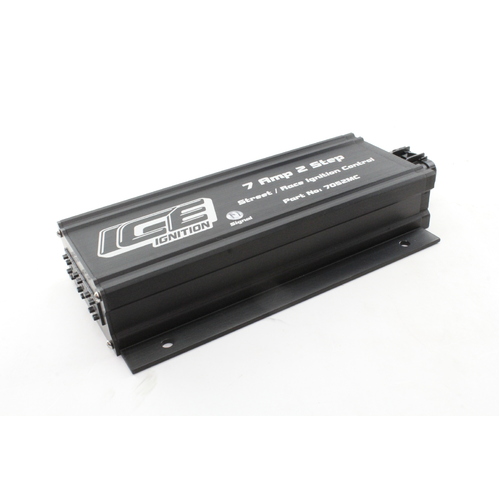

7 AMP 2 STEP STREET RACE SERIES DIGITAL IGNITION CONTROL BOX 2 REV LIMITERS.

ICE IGNITION CONTROL MODULE -2 STEP STREET/RACE CONTROLLER

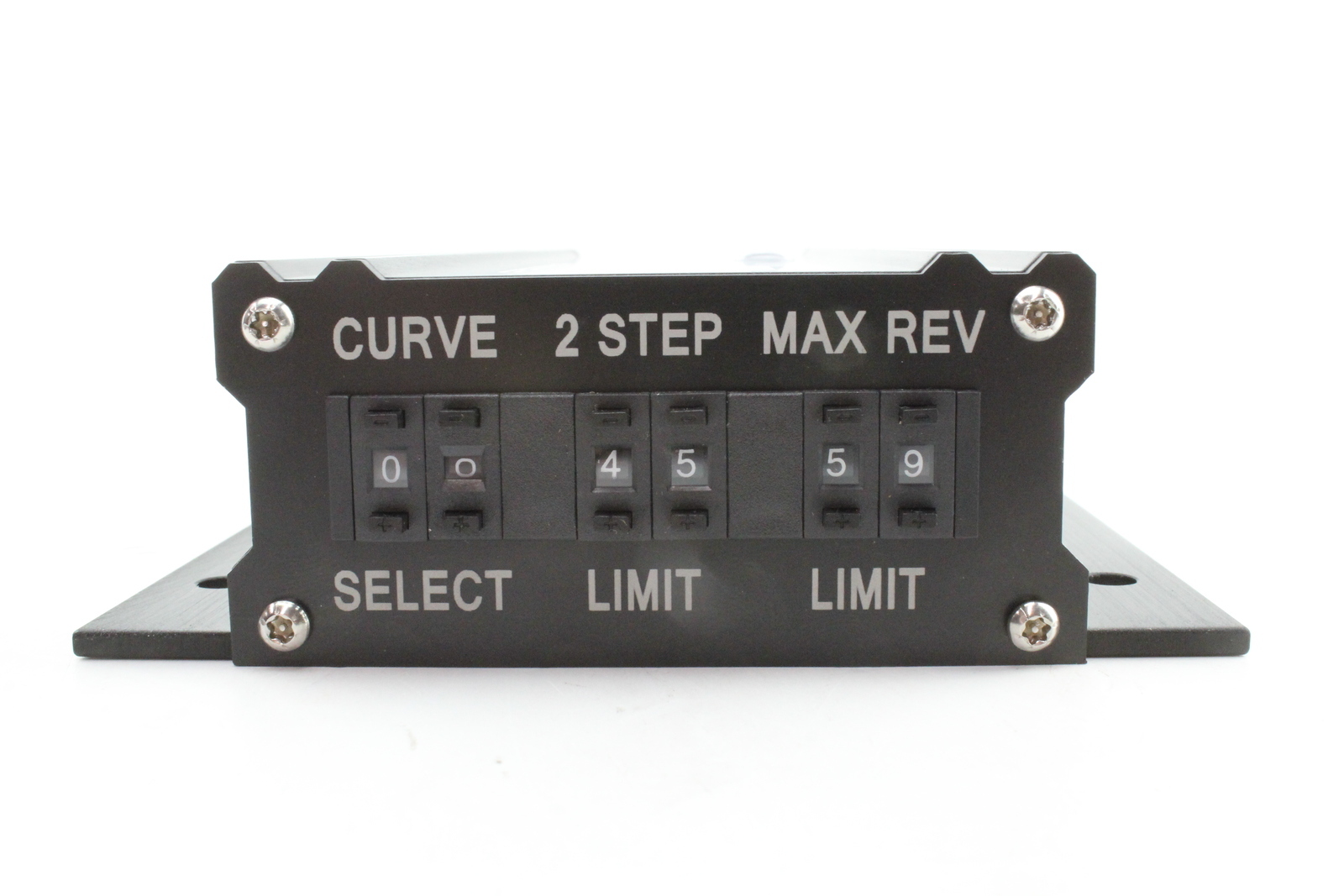

The 7062MC kit is a very popular package aimed at highly modified street / race cars. It features 128 pre-programmed advance curves push button adjustable in 1 degree increments from 0 to 20 degrees with various rates of advance as well as two fully adjustable RPM limiters. This provides easy and effective tune-ability for all combinations with the added security of one RPM limiter to protect the engine and a second RPM limiter which can be used as a launch RPM, valet mode or for anti-theft purposes. It results in excellent performance and exceptional long term reliability.

7 Amp digital ignition control with signal LED indicator, dedicated tach output and two RPM limiters adjustable from 1000rpm through to 10 900rpm in 100rpm increments.
Suitable for both 6cyl and 8cyl applications.

NOTE: Second rev limiter can be used as a valet safe mode / low rpm safety for transportation or storage of your vehicle.

Rev Limiter:  Yes X 2

Tacho output:  Yes

Circuitry:  Digital

Data Acquisition:  No

Operating Voltage:  13.8V-14.8 V

Ignition Box Color:   Black

Coil Included:   No
