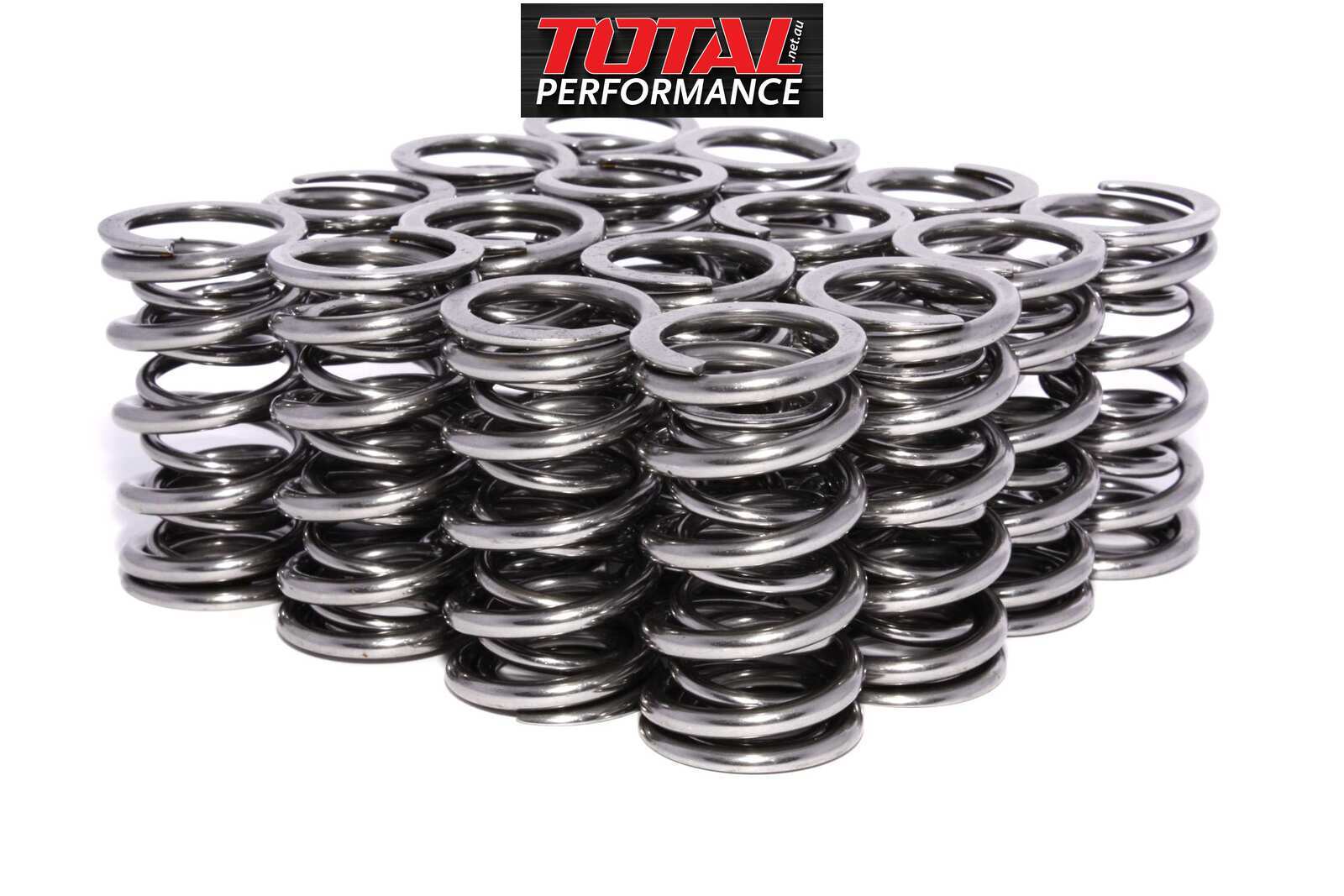

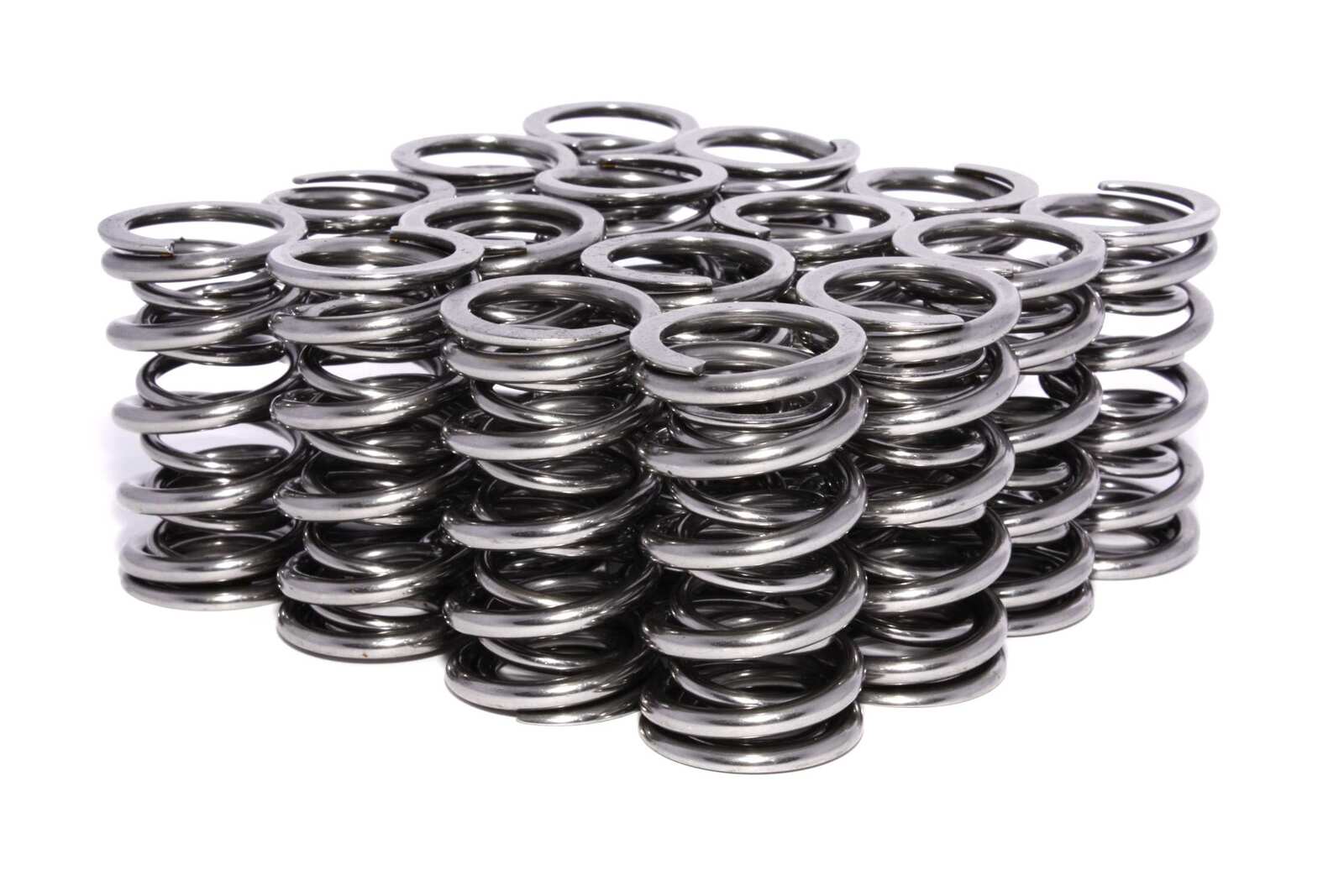

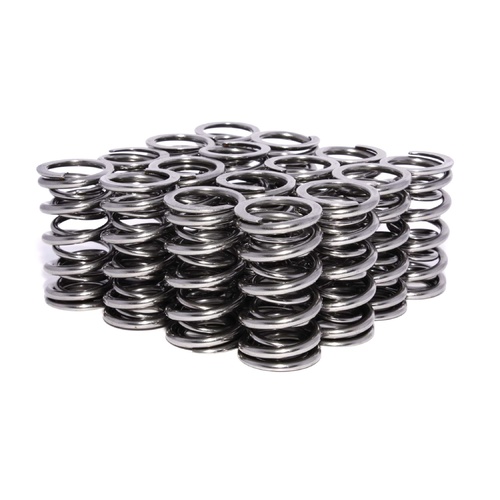

LS1 LS3 LS Race Street 1.320" OD Dual Springs; 1.810" Installed Height; 16 Springs
Description
Dual Valve Springs: 1.320" O.D. Outer, .680" I.D. Inner
COMP Cams® Dual Valve Springs for street/strip applications are manufactured from Super Clean™ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams® Dual Valve Springs exceed the expectations of today’s engine builders and racers.
Specifications
| SKU | 26925-16 |
| Barcode # | 036584200895 |
| Brand | COMP CAMS |
| Seat Height | 1.81 |
| Coil Bind Height | 1.07 |
| Number Of Springs | 2 |
| Seat Pressure | 141 |
| Valve Spring Series | Race/Street |
| Outer Spring Inside Diameter | 0.958 |
| Damper | No |
| Spring Rate | 400 |
| Inner Spring Inside Diameter | 0.68 |
| Outer Spring Outside Diameter | 1.32 |
