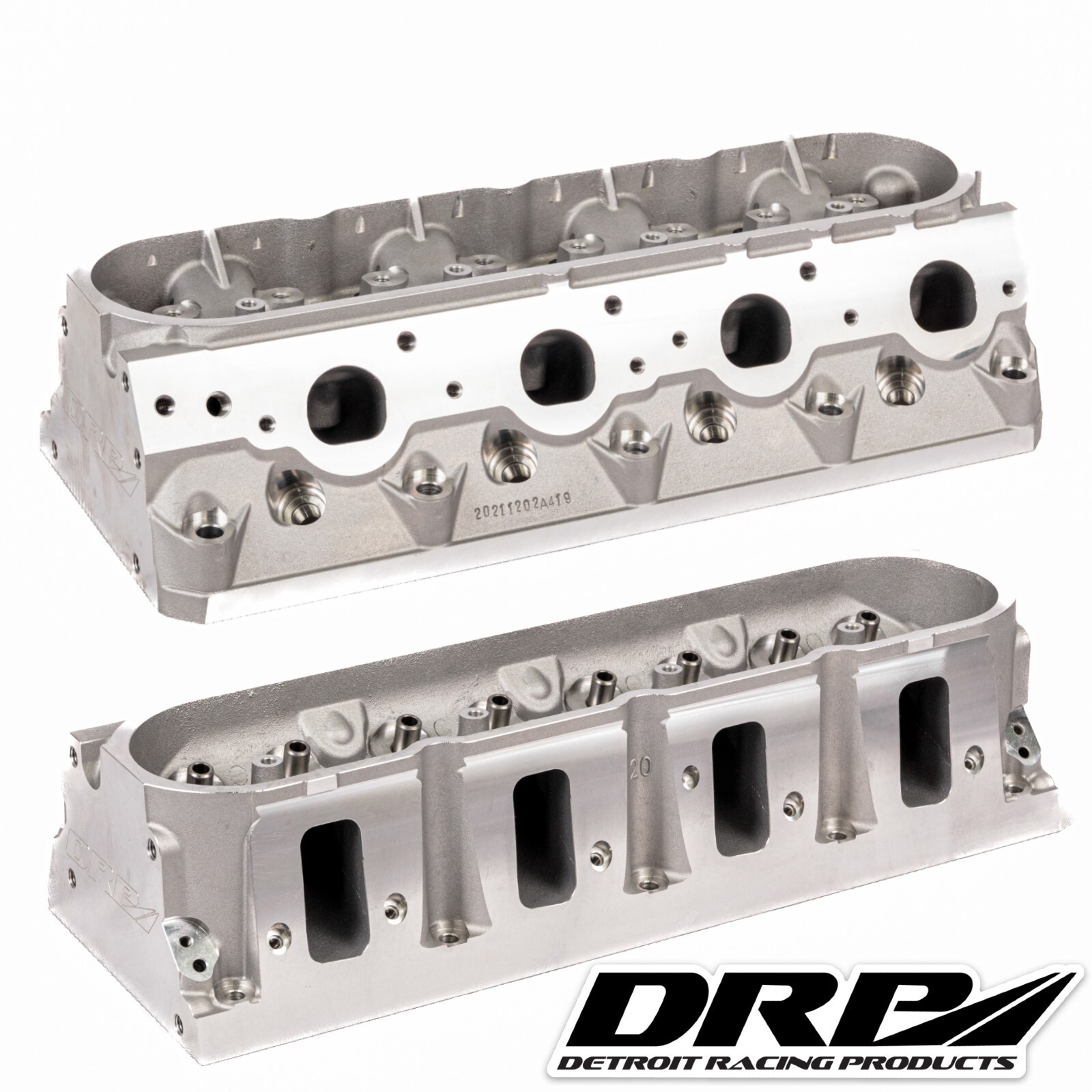

670hp LS3 Cylinder Heads 265cc LS2 LS3 L92 Rectangle Port, Assembled with Proline RPM Springs (PAC)

670HP Assembled LS3 Cylinder Heads - DRP - Detroit Racing Products -

LS3 performance as cast cylinder heads with High RPM Proline DRP Springs by PAC

LS3 Rectangle Port Cylinder Heads

LS3 - L92 style Cylinder Heads - 4 BOLT + 15° valve angle.

670HP! Bolt on power upgrade. Rectangle Port. Complete with Stainless Valves & PAC Dual Valve Springs.

These LS3 cylinder heads are bolt on horse power upgrades. No need to rebuild or CNC port your old cylinder heads, just fit these assembled LS3 Cylinder heads, bolt on and go! Perfect upgrade LS cylinder heads, CNC multi angle valve seats and all factory mounting points. Everything will swap over. Oustanding quality castings, you wont be dissapointed. These LS3 heads are assembled and come complete with high quality DRP valves that are made in Argentina. Fitted out with PAC Polished Dual Vavle springs.

Quantity: Sold as a PAIR

Valves:  DRP high quality Stainless Steel, made in Argentina (Ferrea Options available - please ask)

Valve Springs: PAC Dual Valve Springs - DRP Polished Proline RPM Series

Valve Springs Specs: DRP-8415P  160lbs@1.800" 417lbs/in, 0.670" lift

Guides: Bronze Guides

Material:  Hard 356 Aluminium -  Race Quality.

Valve Seats:  3 Angle Valve Seats

Intake Port Volume:    264cc

Exhaust port Volume:  86cc

Chamber size:  66cc - 68cc depending on valve dish

Intake Valve size:  2.165"

Exhaust Valve size: 1.600"

Valve Angle:                    15° (stock Angle)

Min bore dia:                   4.000"  (LS2 / 6.0L bore)

Intake port location:   stock location - factory manifold fits

Exhaust port location:   stock location - factory exhaust fits

Quantity Sold:  Pair (2 Assembled cylinder heads)

Flow Figures: 4.000" Bore @28"

Lift          Intake   Exhaust

200      134       108

300      201       145

400      256       169

500      295       189

550      303       197

600      312       202      643 HP*

650      320       207      660 HP*

700      325       210      670 HP*

750      328       212

* HP ratings are a Potential what the cylinder head can produce based on calculations from air flow testing. Your actual results will depenend on the motor build and other components and build.
