Description

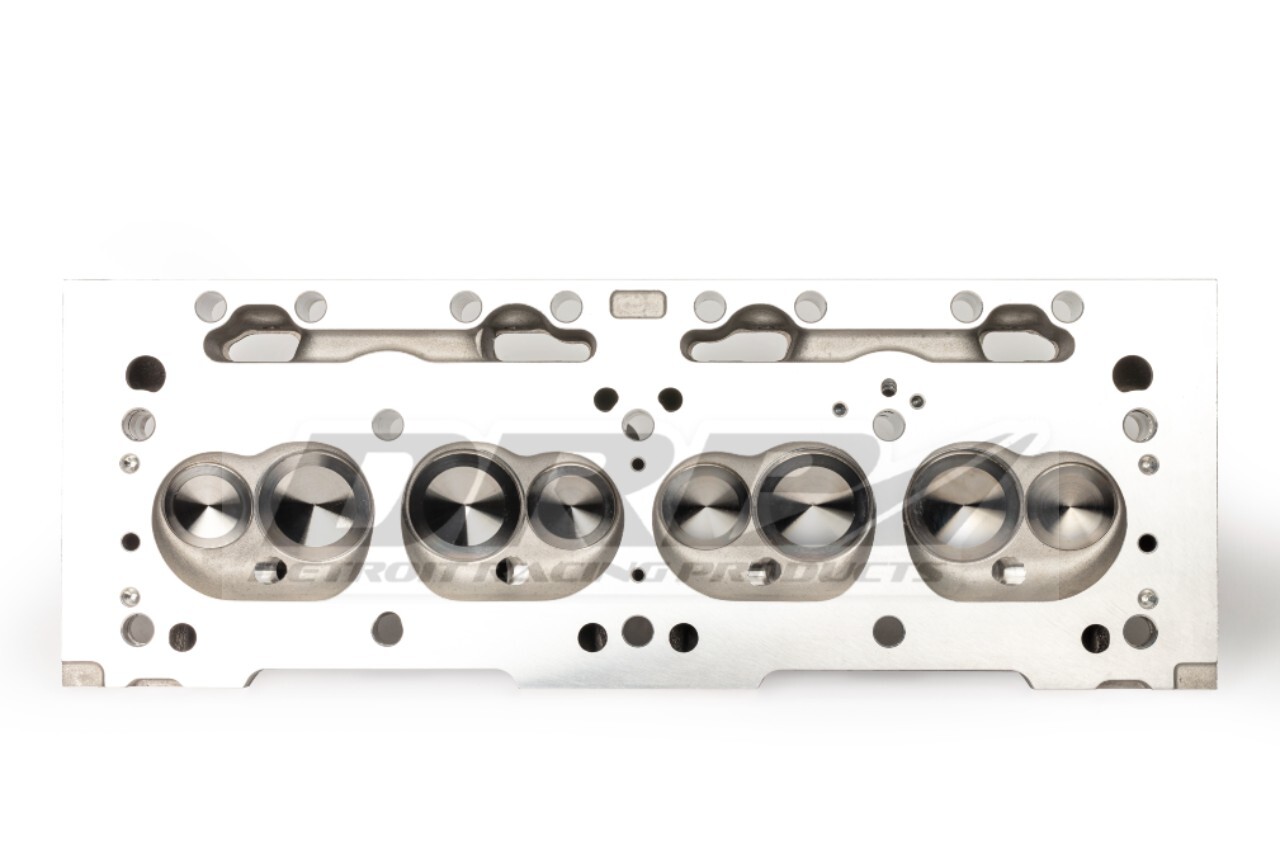

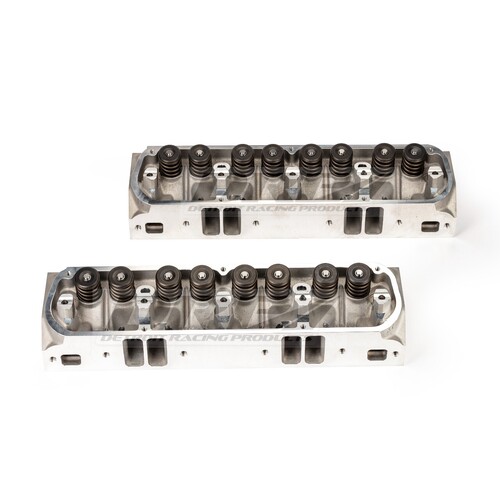

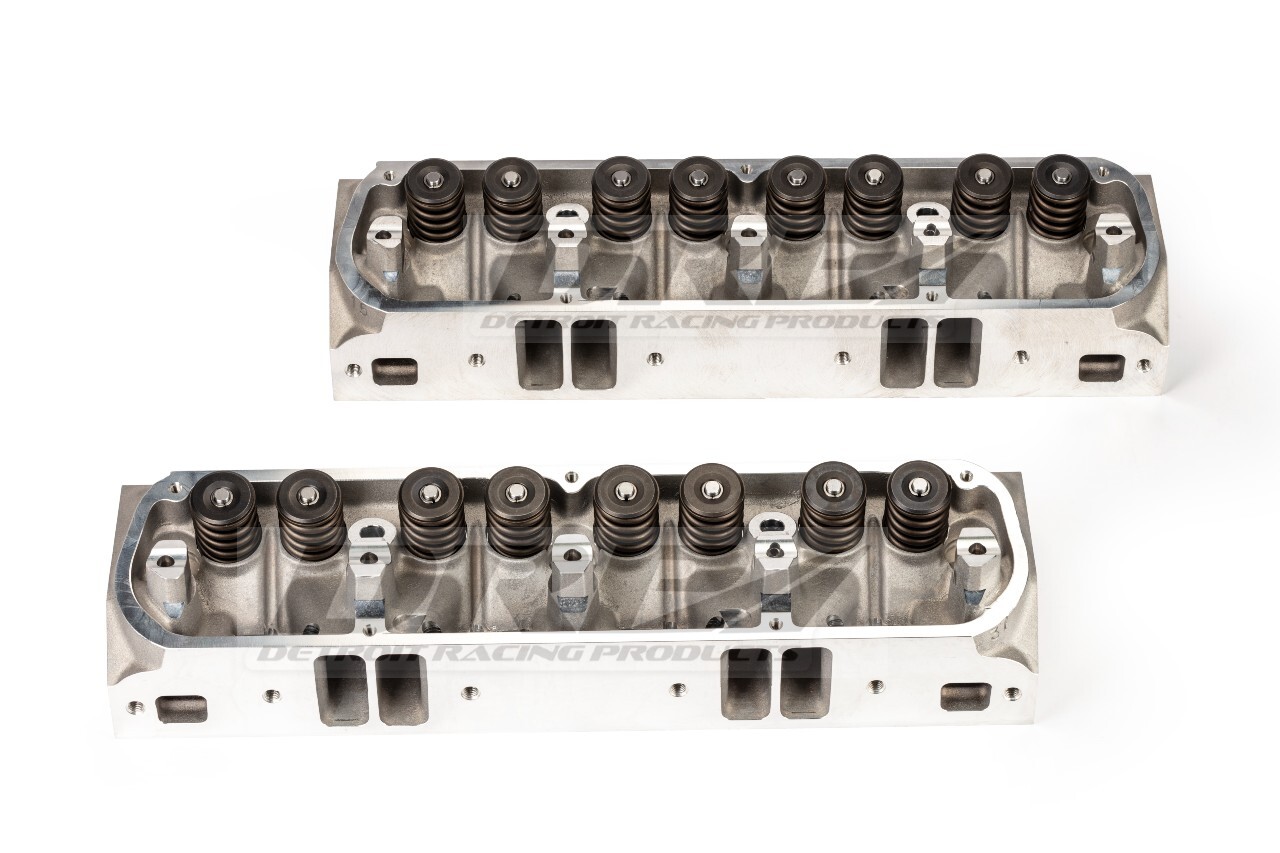

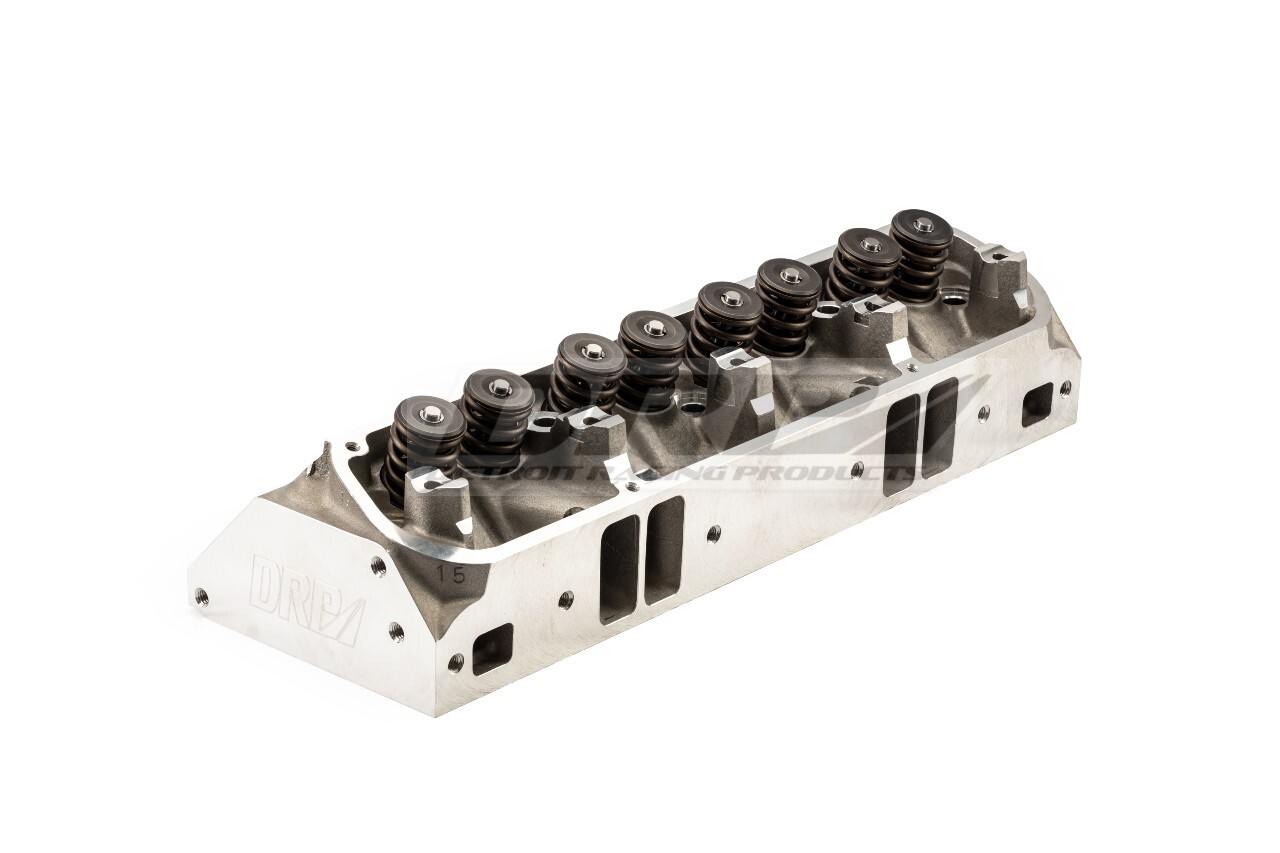

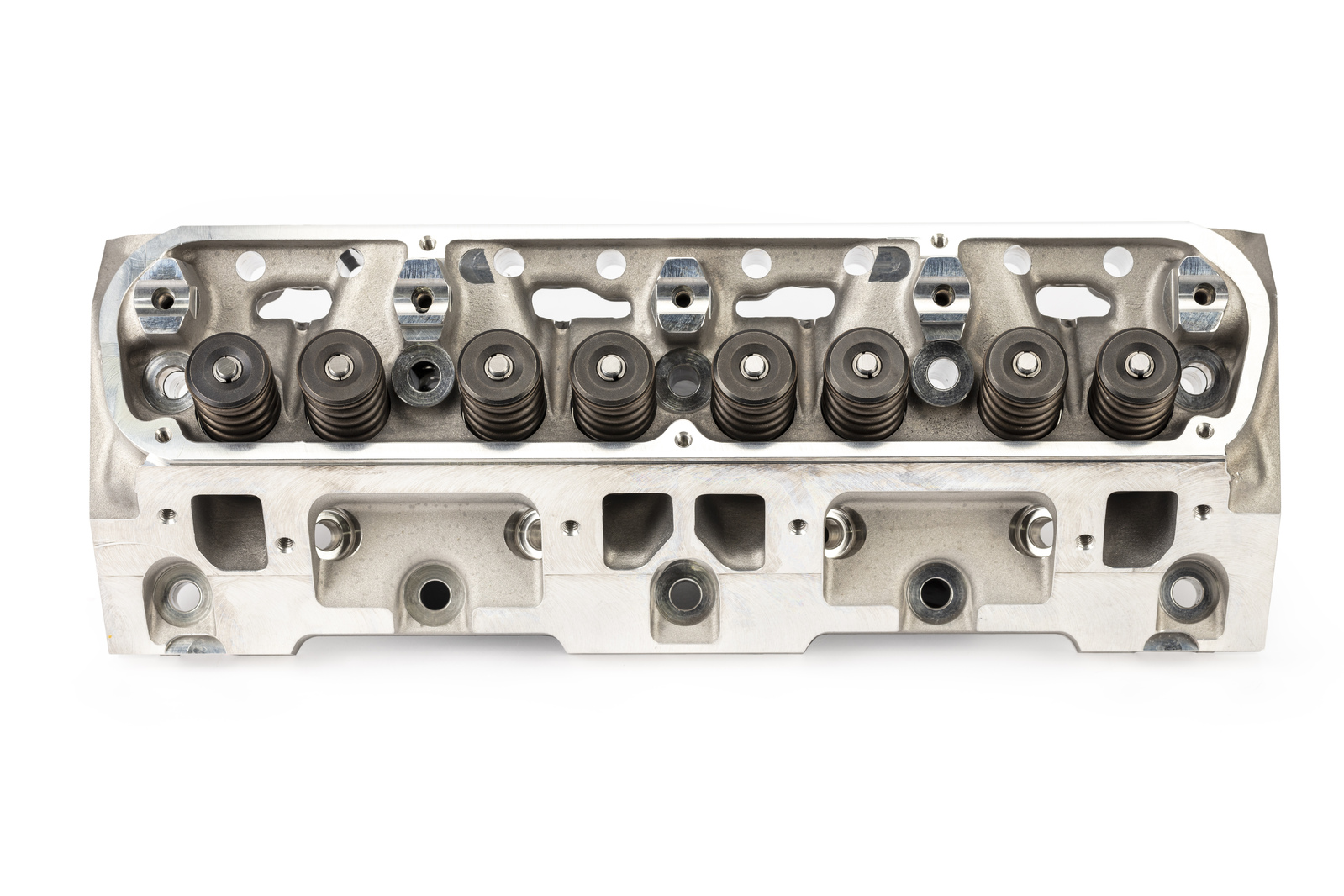

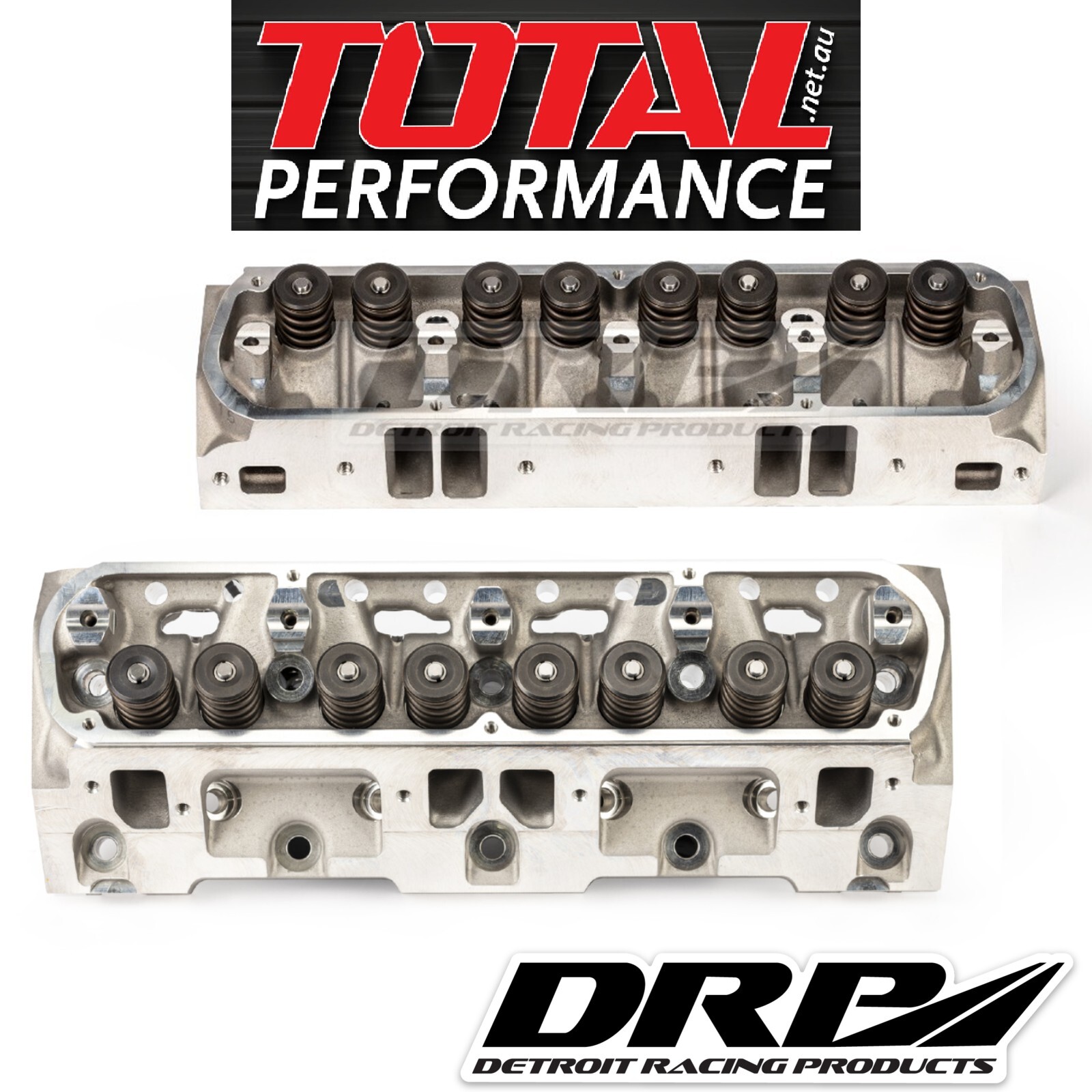

Small Block Chrysler Cylinder Heads. - Sold as a Pair.
Chrysler 1967 onwards LA 318-340-360 c.i.d. engines
Complete - set up for Hydraulic Flat Tappet camshafts.
Assembled with DRP Valves and Comp Cams hardware.
Valves: DRP 5000
Springs: Comp Cams @ 115lbs installed / 280 lbs open @ 0.500" Lift
Cylinder Head Material: Aluminium A356.2 T6
Combustion Chamber Volume: 63cc
Intake Runner Volume: 170cc
Exhaust Runner Volume: 77cc
Intake Valve Diameter: 2.02''
Exhaust Valve Diameter: 1.60''
Valve Stem Diameter: 11/32''
Valve Guides: Manganese Bronze
Deck Thickness: 5/8''
Valve Spring Diameter: 1.46''
Valve Spring Maximum Lift: 0.575''
Valve Angle: 18°
Exhaust Port Location: Stock
Spark Plug Fitment: 14mm x 3/4'' Reach, Gasket Seat
Head bolts: use ARP 144-3601
Disclaimer
We have described the product to the best of our knowledge. It is up to the purchaser to ensure it is suitable for their application. Some products require specialised fitting and additional parts.
Specifications
SKU | DRP-SBM170-HFT |
Brand | DRP |
Unit Of Measure | ea |
Custom Bundle | Yes |
Bundle Description | PAIR |
