350-450 HP, Small Block Chrysler, 318, 340, 360, V8, Cylinder Heads, Aluminium, Assembled suits Hydraulic Roller Camshaft
*EACH* Assembled to suit Hydraulic Roller Cam
Description
The Edelbrock #60775 Performer RPM heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.

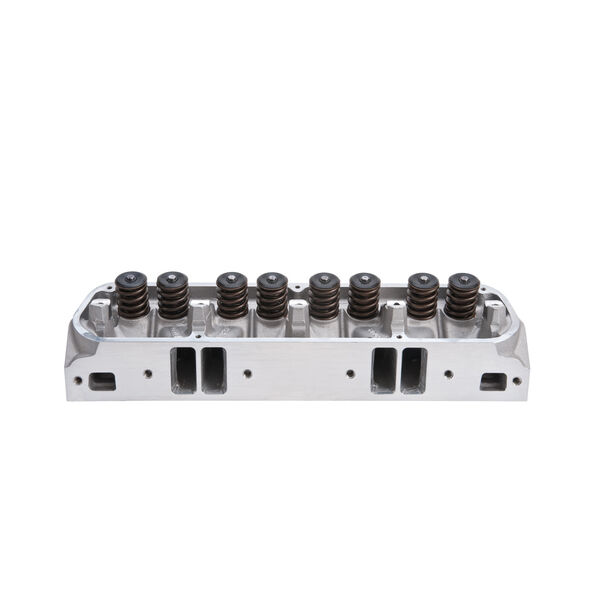

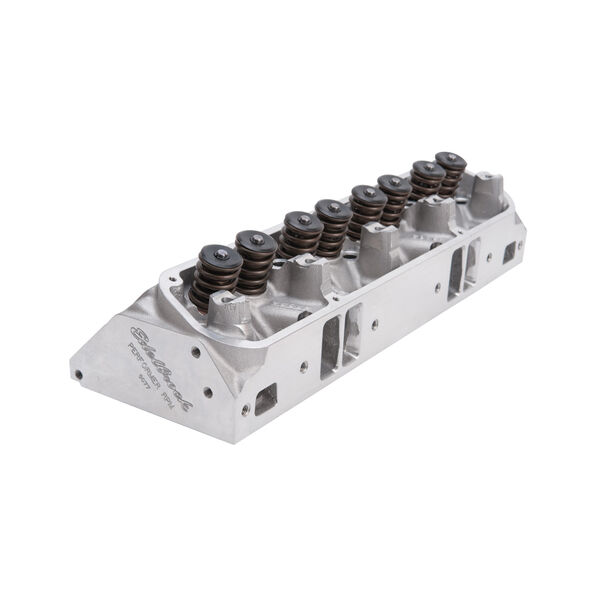

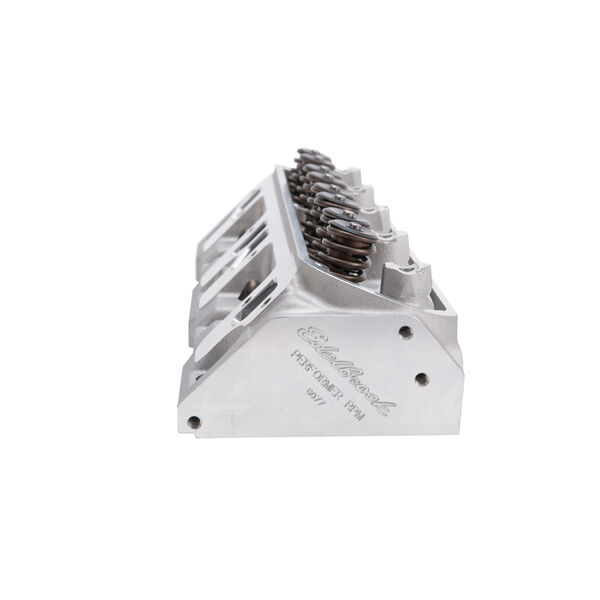

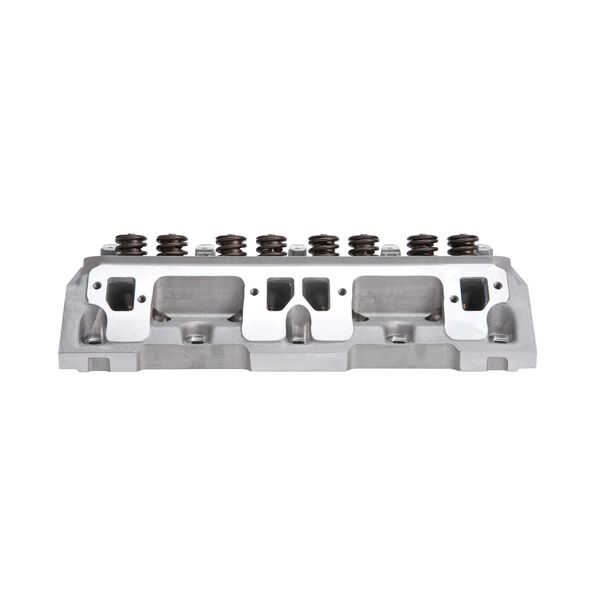

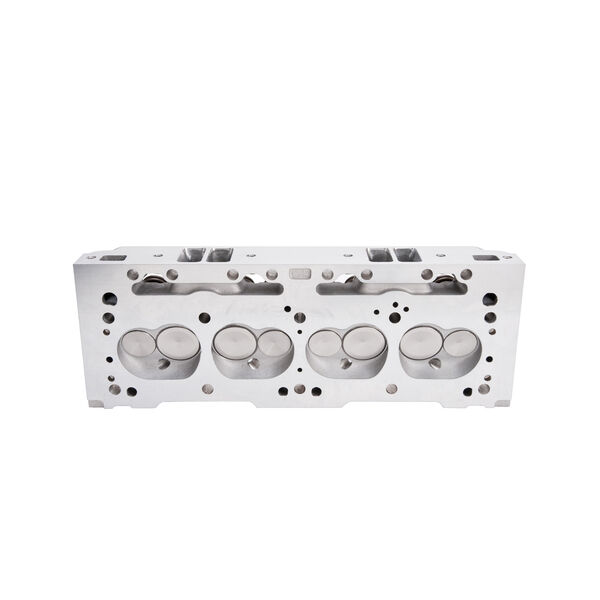

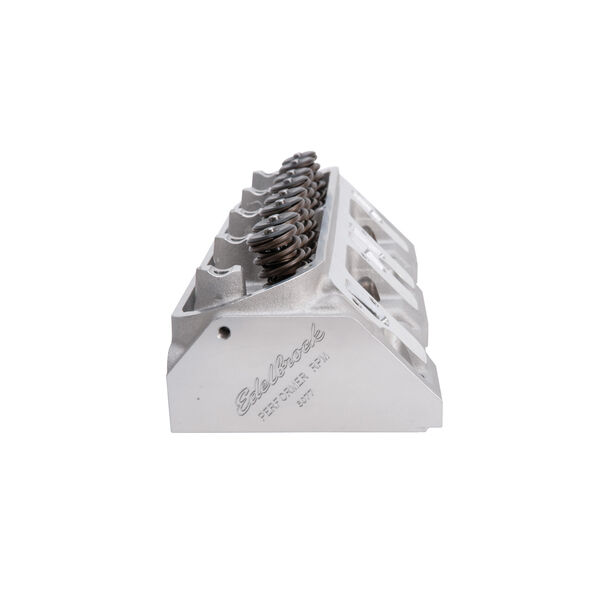

Aluminium Chrysler Small Block Cylinder head.
Edelbrock 60775 Specs:
Assembled: Yes - suits Hydraulic Roller Camshaft
Valve Springs Lift Max: 0.575" (Edelbrock 5845)
Valve Springs Installed Height: 1.800" @ 150 lbs
Valve Springs Open Pressure: 420 lbs
Intake Valve: 2.020" diameter
Exhaust Valve: 1.600" diameter
Intake Port Size: 171cc
Combustion Chamber Size: 63cc
Recommended Parts:
Head Bolts: ARP-144-3601
Intake Gaskets: Edelbrock ED7276
Spark Plugs: RC12YC
Top End Gasket Kit: ED7370
Specifications
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
| SKU | ED60775 |
| Barcode # | 00085347607754 |
| Brand | Edelbrock |
