SKU: ED7219

Intake Inlet manifold gaskets Ford SBF 289 302W 347 351W Windsor


or 4 payments of $12.74 with Info

Sold Out

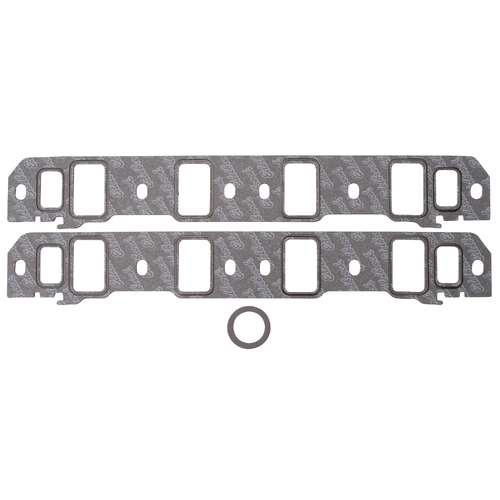

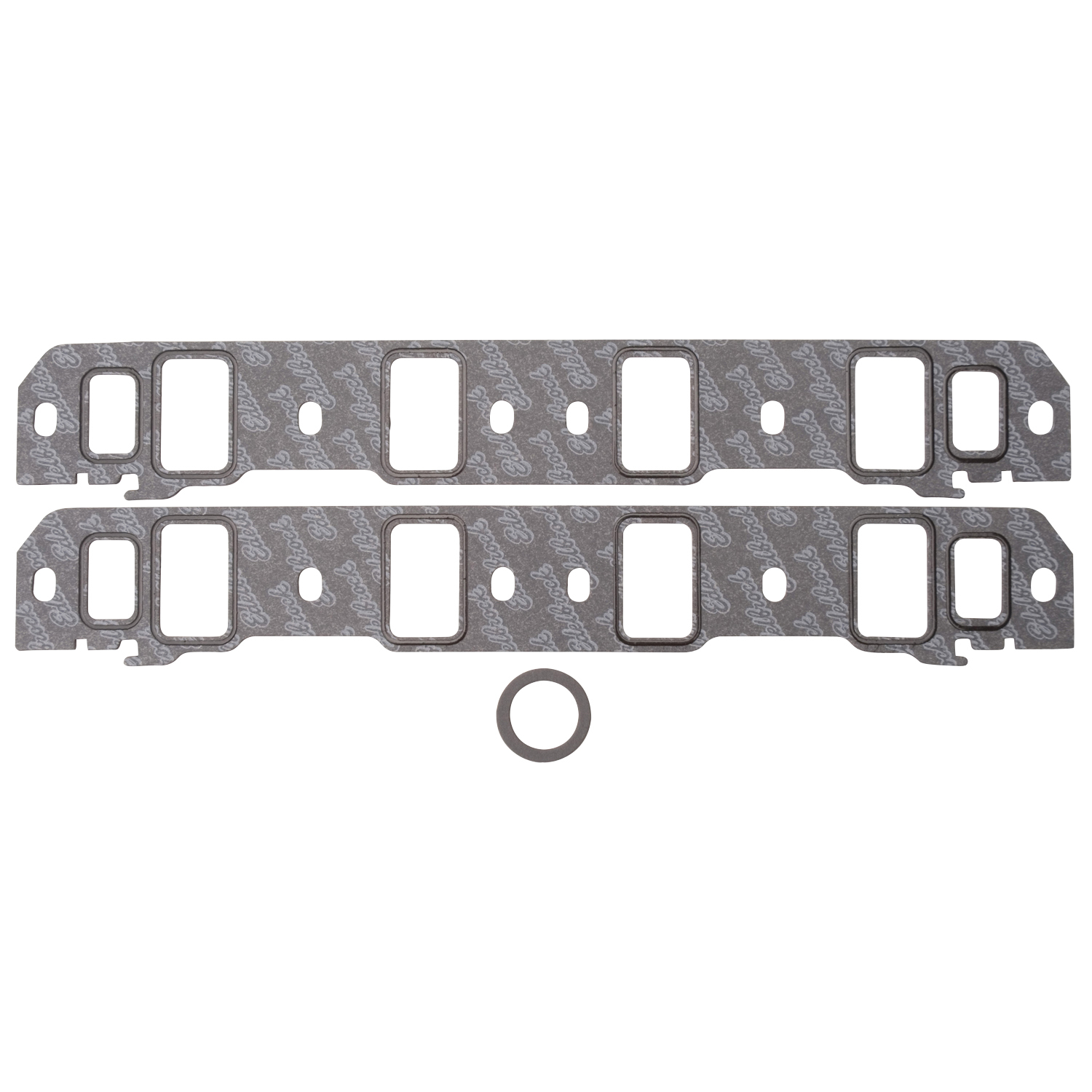

Edelbrock 7219 Ford Windsor 302 347 Intake Inlet Manifold Gaskets - Larger Ports - Premium High Quality

Edelbrock ED7219 Intake Gaskets for Small-Block Ford, Edelbrock Victor Jr. Cylinder Heads allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better.

Manifold Gasket Bolt Hole Quantity        6

Configuration    Multi Piece

Valley Pan Included        No

Colour   Grey

Finish    Grey

Thickness: 060"

Material               Synthetic Fibre composite

Installation Notes

Port Size: 1.28" x 2.10"; Thickness: .60"; We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. Silicon beads facing up towards intake manifold


Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)

SKU ED7219
Barcode # 00085347072194
Brand Edelbrock
