Edelbrock Fuel Injector Rails, Fits Ford Windsor Victor EFI Intake Manifold with Short Injectors 302W 351W SBF, Small Block Ford

Edelbrock #3625 Fuel Rail Kit fits #29215, #29285 & #29245 EFI Manifolds.

Premium CNC machined aluminium fuel rails. These have a straight, flow through design with -6 AN threaded on both ends. The rails have a clear anodized, finish with -6AN end threads.

The low profile, offset rail position will clear the throttle body arm in low profile applications

Aluminum Fuel Rail Kit #3625 is intended to be used with the Edelbrock Small Block Ford EFI Intake Manifolds #29215, 29285 & 29245. This kit is compatible with Pico injectors (1.50” o-ring center to center spacing) and is designed to clear the throttle body arm in low profile applications. Please visit the Edelbrock website at www. edelbrock.com for more details. This fuel rail kit may also be used in custom applications where manifold #29215 is not being used.

Fuel Rails fits: Edelbrock Victor Manifolds Part# 29215, 29285, 29245 - Ford Windsor

Rail Material: Aluminum

Fuel Rail Finish: Clearcoat

Fuel Rail Inlet/Outlet Size:  -6 AN O-ring

Fittings Included:  No

Mounting Hardware Included:  Yes

Quantity: Sold as a pair, 2 x Fuel Rails

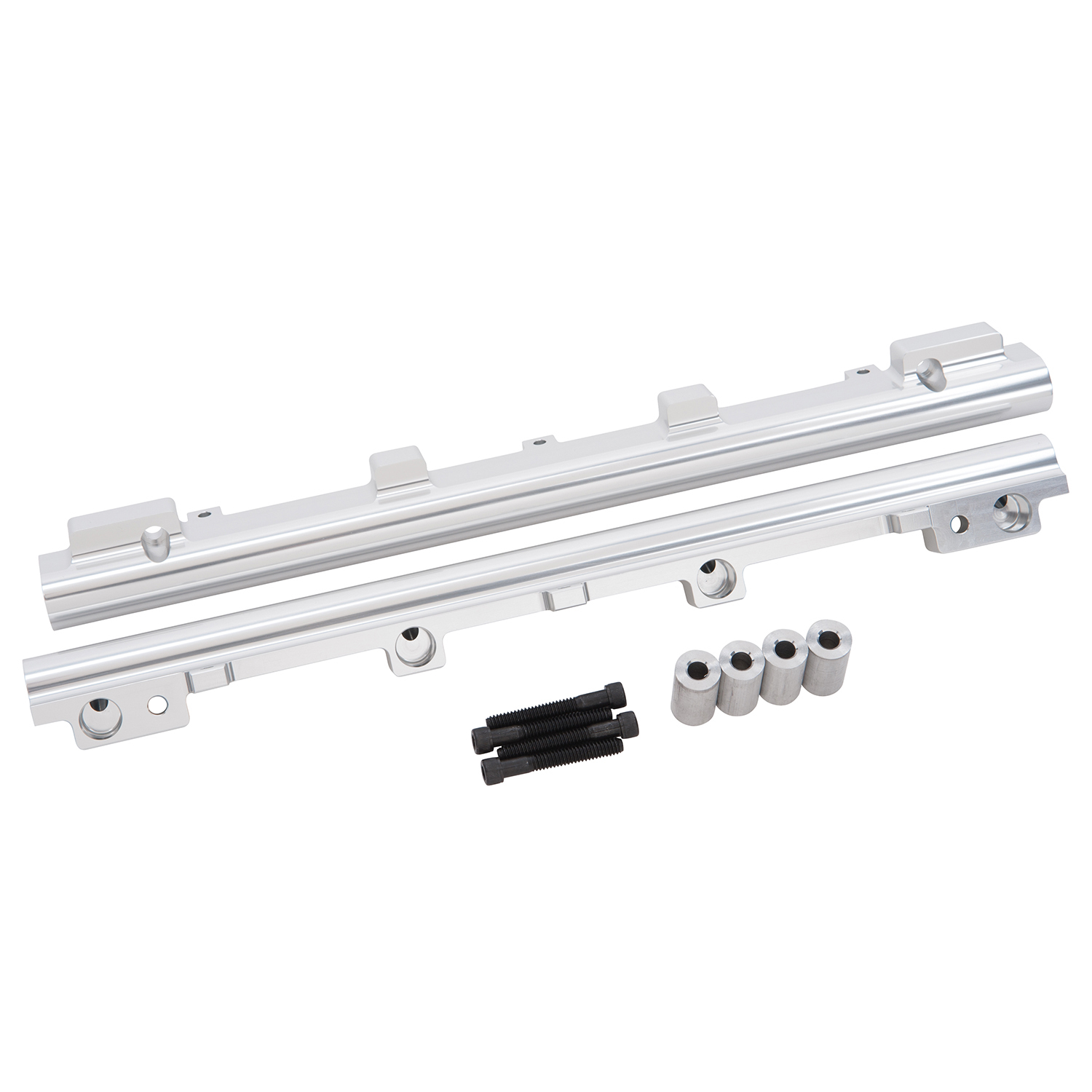

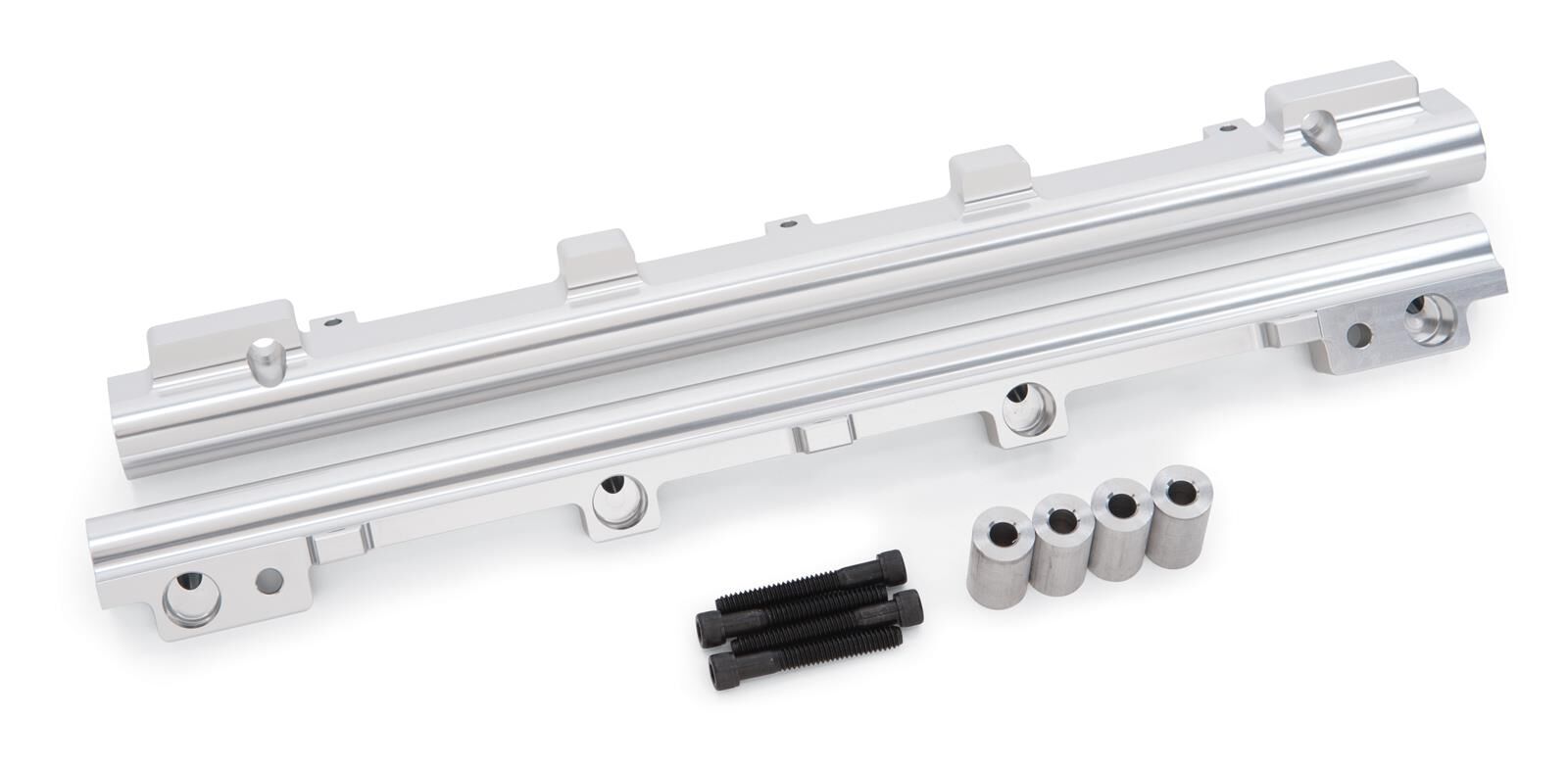

Edelbrock Fuel Raill Kit Part# ED3625 Kit includes the following:

• 2 - Machined Fuel Rail (Ends are tapped for -6 AN fittings)
• 4 - Fuel Rail Spacers
• 4 - 1/4-20 x 1.75” Socket Head Bolt
