SKU: 451000

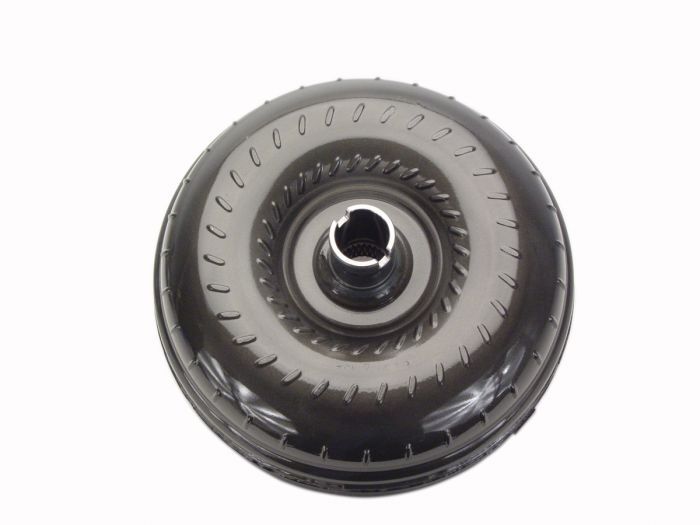

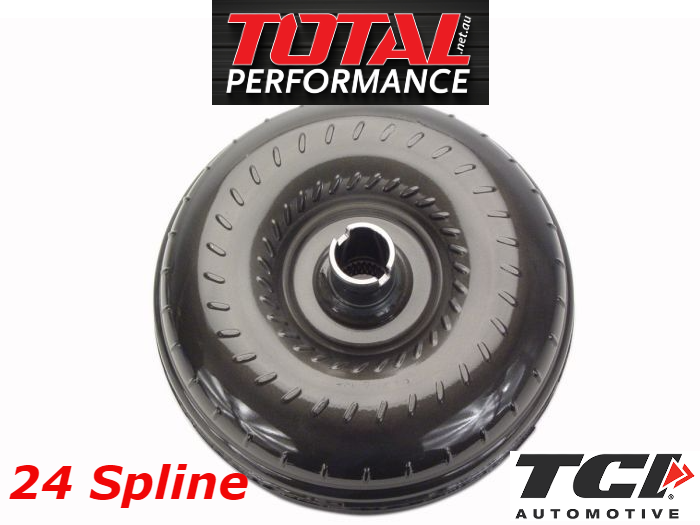

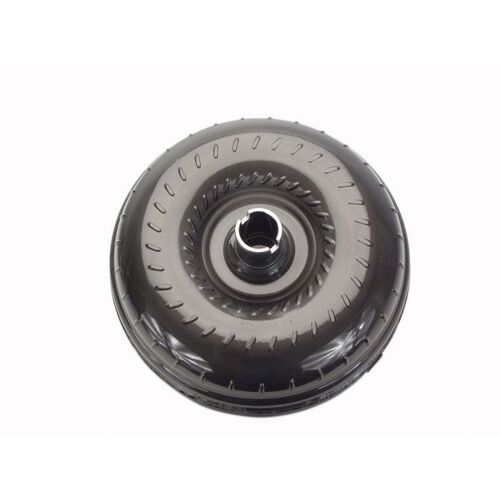

FORD C4 Torque Converter In-Case Case Fill Dipstick Early 24 Spline 2200-2400 Breakaway

1966 -1969, 24 Spline, 2200 to 2400 RPM

$1,001.00

or 4 payments of $250.25 with Info

In Stock

Description

This Breakaway Converter is designed specifically for C4 Transmissions from '66-69 with in-case dipsticks.

2200 to 2400 Stall behind Small Blocks and

2400-2600 Stall behind Big Blocks.

For 24 Spline - Early Ford Transmissions.

The first step into serious high performance, the Breakaway® is a great torque converter for moderately modified street machines and weekend racers also used as daily drivers. It provides approximately 2400 to 2600 rpm flash stall without negatively affecting part throttle driving. Designed for efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway® is a fantastic all-around torque converter.

Features: Furnaced-brazed fins, needle bearings, hardened pre-ground pump hub, computer balanced

Benefits: Harder launches, quicker acceleration, improved low end power, bolt-in (no modifications required), 1,000+ RPM increase in stall over stock

Dipstick Goes into Transmission Case



Warranty

12

Specifications

SKU 451000
Barcode # 788120010061
Brand TCI
Expected Stall Speed With Small Block 2200 to 2400 RPM
Torque Converter Series Breakaway
Rear Gear Ratio 3.00 to 3.73
Expected Stall Speed With Big Block 2400 to 2600 RPM
Advertised Cam Duration 265 to 280 Degrees
