Big Block Chevy, 396, 454 Intake Inlet Manifold Gaskets, suits Rectangle Ports. 2.54" x 1.82", Printoseal, Mark 4 with upper bolt holes. BBC

Big Block Chevrolet Intake Manifold Gaskets

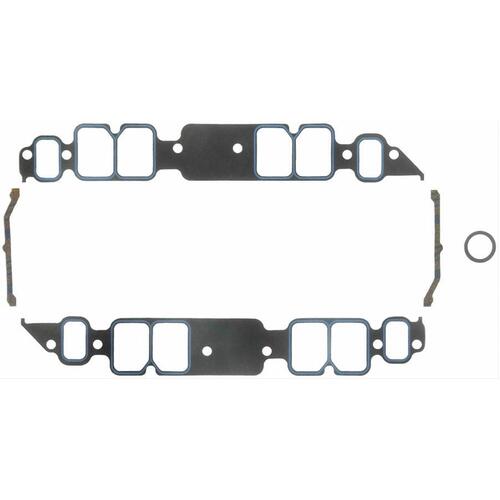

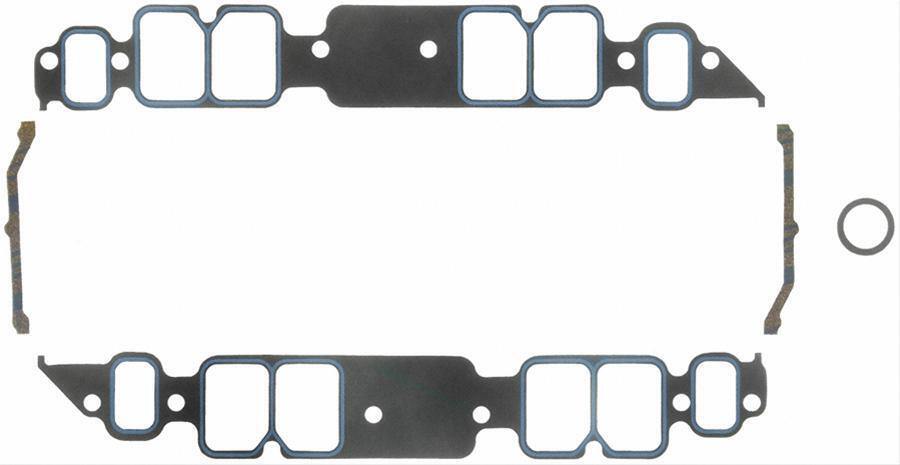

Fel-Pro Intake Manifold Gasket, Printoseal, 0.06 in Thick, 1.82 x 2.54 in Rectangular Port, Composite, Big Block Chevy, Kit

Fel-Pro High Performance intake, inlet manifold gaskets have a "Printoseal" construction. This process has beads of special elastomers around the intake port opening for extra sealing capability. These intake gaskets also feature a non-metallic, rubber-fiber base material that resists fuel and alcohol. This type of material is soft enough to allow engine builders to precision-trim around the intake ports.

PEngine Type: Big Block Chevy 396, 454

Port Shape: Rectanlge

Port Height (in.):  2.540

Port Width (in.):  1.820

Gasket Material:  Printoseal - Silicone beading / Composite

Thickness (in.):  0.060

Port Style:  Rectangular

Water Crossover Style:  Blocked

End Rails:  Yes included

Distributor base gasket: Yes included

Quantity:  Sold as a set.
