Description

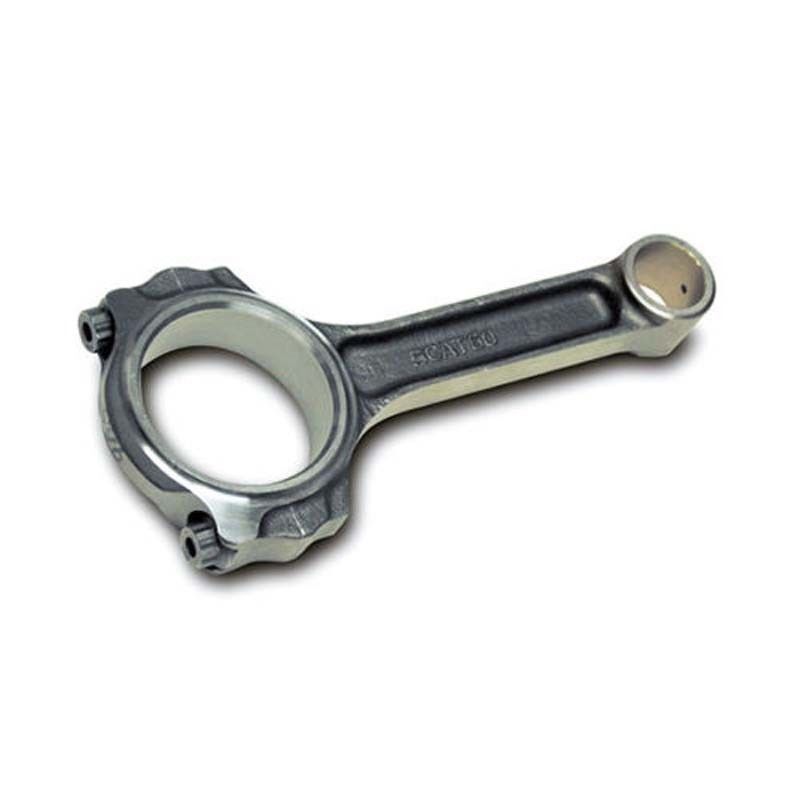

SCAT I-Beam Holden 355 Stroker Connecting Con Rods - Pro Stock - Short part 2570012
Scat Holden 308 out to 355 Stroker Pro Stock 4340 Forged I-Beam Connecting Rods with ARP 3/8" Cap Screw Bolts. These Holden 355 conrods come with bushed pins. The single rib cap design offers added strength and bearing support. The lightweight Scat I-Beam design provides increased strength and quicker RPMs. The Holden 5.700" Stroker Pro Stock 4340 Forged I-Beam Connecting Rods have a special hollow doweled cap for accurate cap-to-rod beam alignment.
- Manufactured from high-tensile 4340 forged material and then clearanced for stroker engines
- Features increased strength and a lightweight I-beam design
- lmprove horsepower capacity over factory units or stock replacements
SCAT 2-ICR308-5700-2124 Suits Holden V8 Stroker Cranks.
Holden Journal, 5.700" long and Chevy Gudgeon Pin
Style & Application: Pro Stock
Connecting Rod Length Center to Center (in.), 5.700"
Connecting Rod Beam Style, I-beam
Connecting Rod Material, Forged 4340 steel
Connecting Rod Finish, As cast
Wrist Pin Style, Full Floating
Rod Journal Diameter (in), 2.124 in.
Big End Bore Diameter (in.),
Big End Width (in.), 0.880 in.
Pin End Bore Diameter, 0.927 in. (Chevy)
Cap Retention Style, Cap screw
Connecting Rod Bolt Brand, ARP
Connecting Rod Bolt Diameter, 3/8 in.
Connecting Rod Bolt Material, ARP 8740 alloy
Fastener Tensile Strength (psi):
Connecting Rod Bolt Head Style, 12-point
Weight Matched Set, Yes

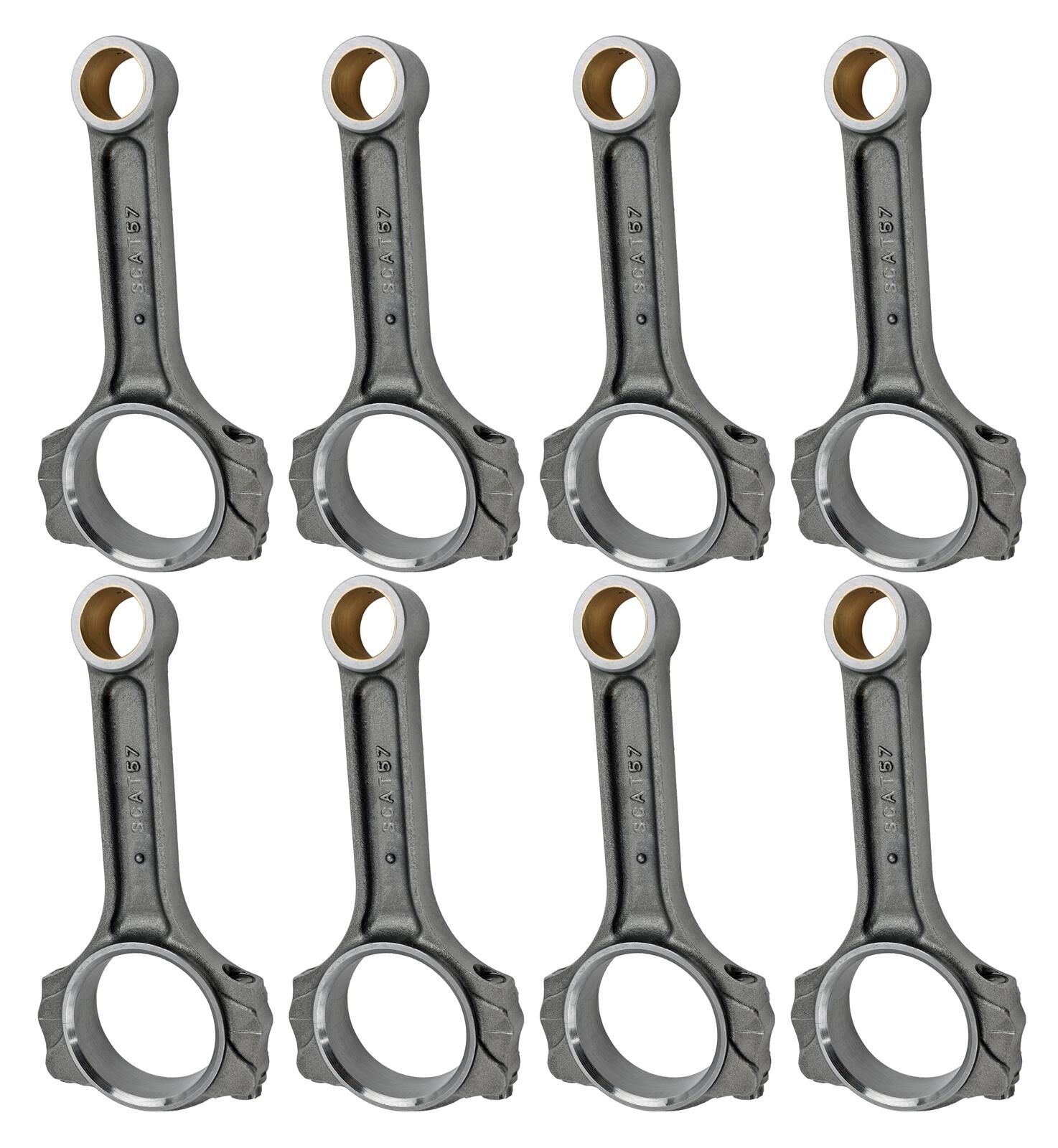

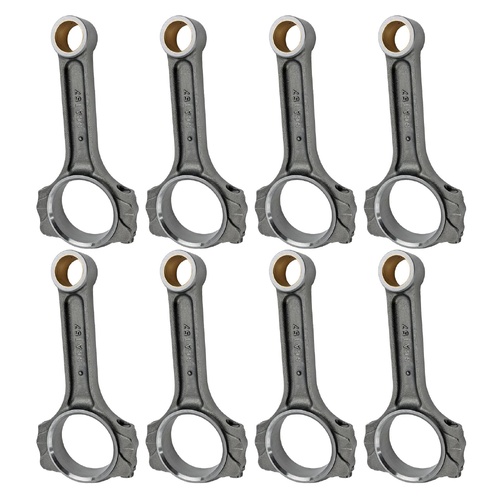

Quantity, Sold as a set of 8
Notes: Includes rod bolts and bronze small end bush. Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
Specifications
SKU | SCAT-2-ICR308-5700-2124 |
Brand | SCAT |
