Reduced Travel Tie Bar Hydraulic Roller lifters Retro Fit GM LS1, LS2 LS3, 5.7L, 6.0L, 6.2L, L98,

SKU: JH-2116LSR

Reduced Travel Tie Bar Hydraulic Roller lifters Retro Fit GM LS1, LS2 LS3, 5.7L, 6.0L, 6.2L, L98,

Reduced Travel | NO Axle Oiling

$1,361.71

or 4 payments of $340.43 with Info

SOLD OUT
Notify Me

Description

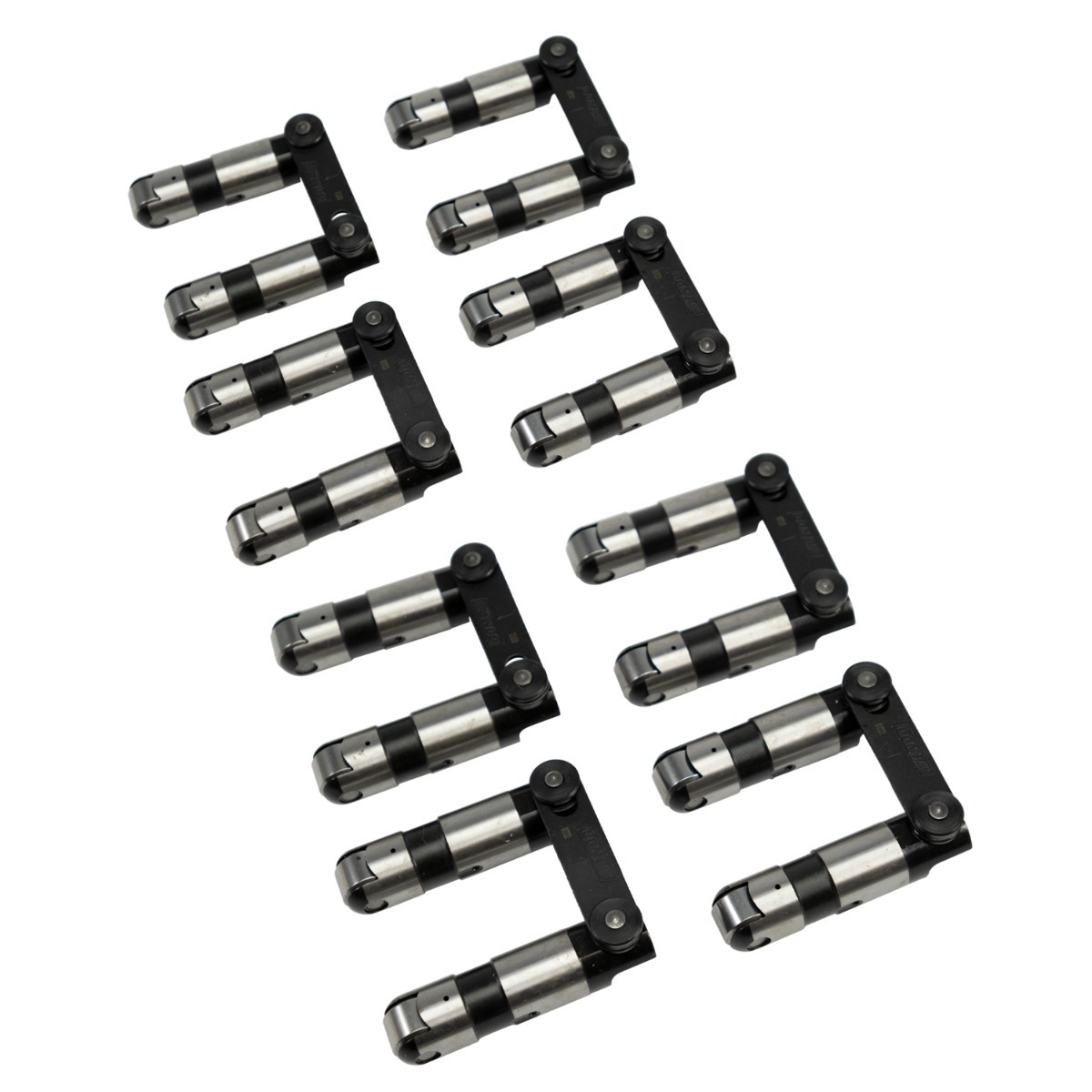

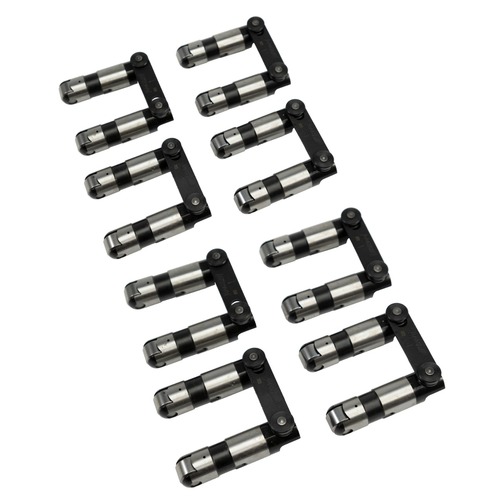

Johnson Hydraulic Roller Lifters, Tie Bar, Retro-Fit for the LS1 LS2 LS3 Engines.

FEATURES: Reduced Travel.

*NO Axle Oiling*

  • Accept No Imitation ~ Insist On Johnson Lifters
  • Best street / race hydraulic roller lifter in the WORLD!!!
  • Cold forged steel body heat treated for exceptional wear resistance.
  • Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction.
  • Cold forged extra long piston, precision ground and fitted for controlled leak down and pump up.
  • High flow disc style quick reacting check valve for better reaction at higher RPM.
  • Precision oil metering assuring proper oiling to the rocker arms without sacrificing oil pressure.

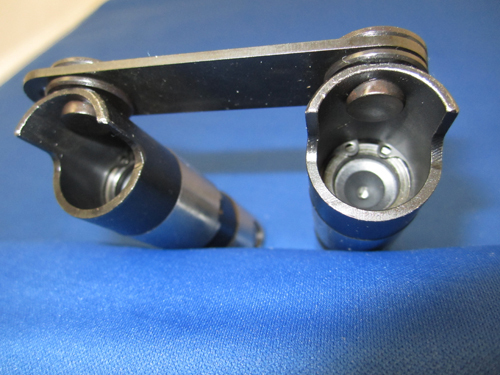

  • Proprietary tie-bar system.
  • All hydraulic lifters are available with short travel, variable duration lift, and axle oiling features.

SPECIFICATIONS

  • Johnson Part # 2116LSR
  • Engine Family: LS1 LS2 LS3 / 5.7L 6.0L 6.2L
  • Hydraulic-Roller - TIE BAR
  • Will Accommodate Higher Open Spring Pressures of 500+ lb.
  • .093" Total Plunger Travel (REDUCED Travel)
  • .035" Recommended Pre-Load +-.010"
  • Set of 16 Lifters
  • NOTES:   *Non-DOD Applications Only

Specifications

SKU JH-2116LSR
Brand JOHNSON
Lifter Diameter 0.842
Lifter Type Retro-Fit Link Bar Hydraulic Roller
Seat Height 2.66
Plunger Travel Short
Link Bar Included Yes
