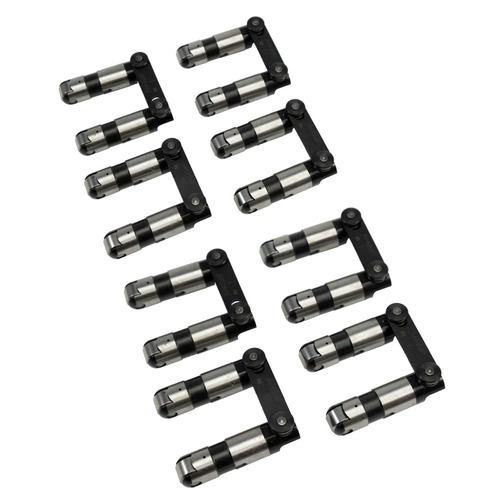

Reduced Travel Tie Bar Hydraulic Roller lifters Retro Fit GM LS1, LS2 LS3, 5.7L, 6.0L, 6.2L, L98, AXLE OILING
Reduced Travel + Axle Oiling
or 4 payments of $340.43 with
Info
*FREE SHIPPING ON ORDERS OVER $200!
Description
DRP Hydraulic Roller Lifters, Tie Bar, Retro-Fit for the LS1 LS2 LS3 Engines.
FEATURES: Axle Oiling & Reduced Travel.
- Cold forged steel body heat treated for exceptional wear resistance.
- Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction.
- Cold forged extra long piston, precision ground and fitted for controlled leak down and pump up.
- High flow disc style quick reacting check valve for better reaction at higher RPM.

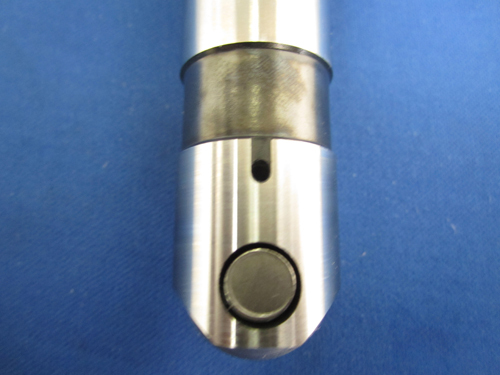

- Precision oil metering assuring proper oiling to the rocker arms without sacrificing oil pressure.

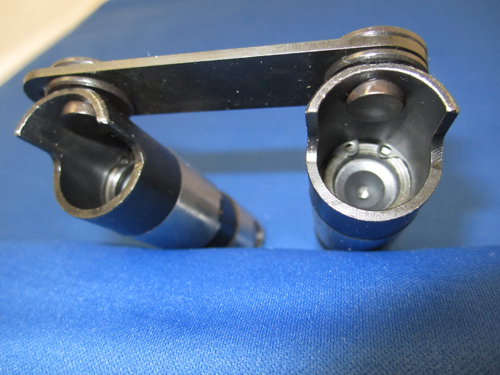

- Proprietary tie-bar system.
- All hydraulic lifters are available with short travel, variable duration lift, and axle oiling features.
SPECIFICATIONS
- Engine Family: LS1 LS2 LS3 / 5.7L 6.0L 6.2L
- Hydraulic-Roller - TIE BAR
- Will Accommodate Higher Open Spring Pressures of 500+ lb.
- .093" Total Plunger Travel (REDUCED Travel)
- .035" Recommended Pre-Load +-.010"
- Set of 16 LifterS
- NOTES: *Non-DOD Applications Only
Specifications
| SKU | DRP-LS-HRLT-PL-16 |
| Brand | DRP |
| Lifter Diameter | 0.842 |
| Lifter Type | Retro-Fit Link Bar Hydraulic Roller |
| Seat Height | 2.66 |
| Plunger Travel | Short |
| Link Bar Included | Yes |
