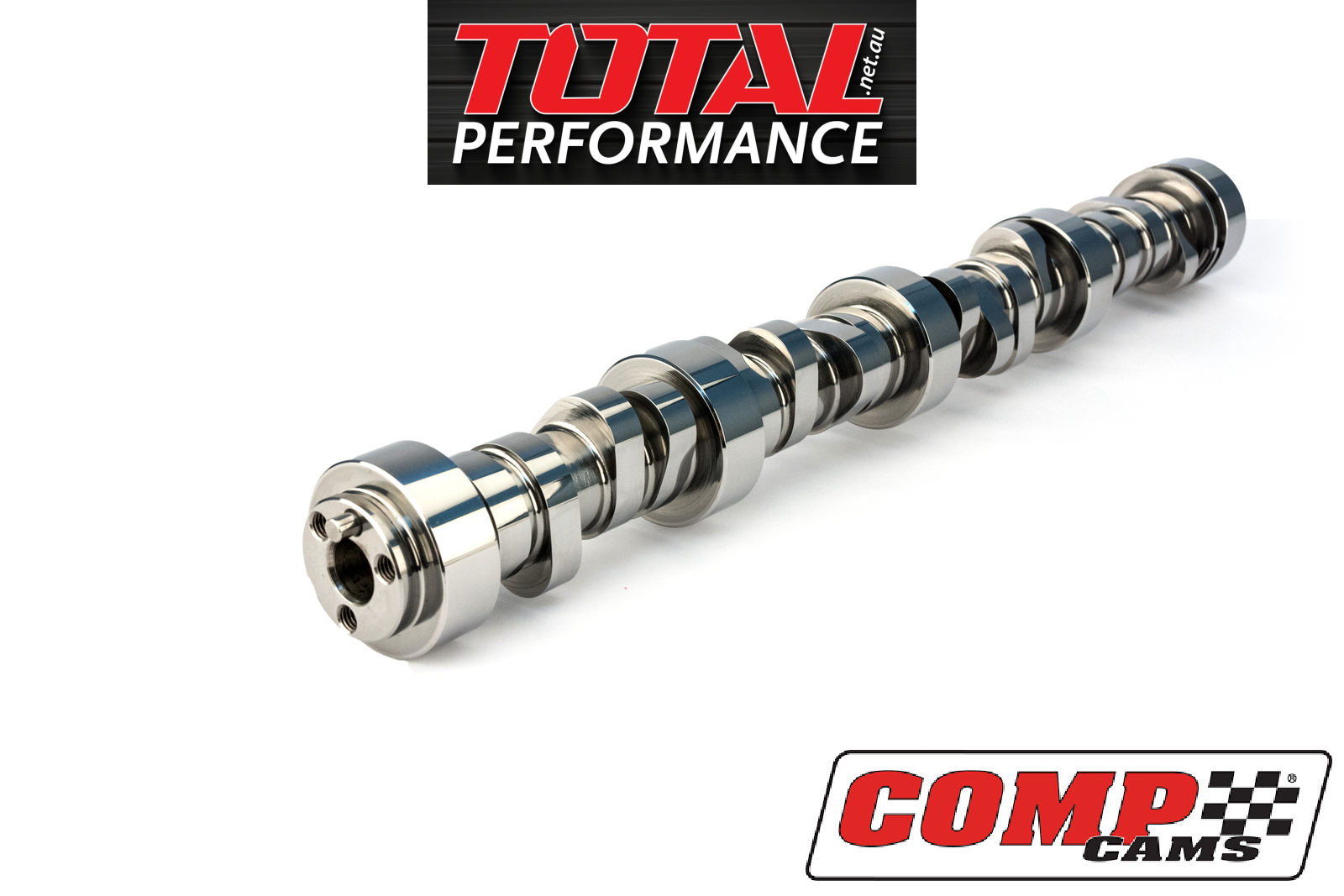

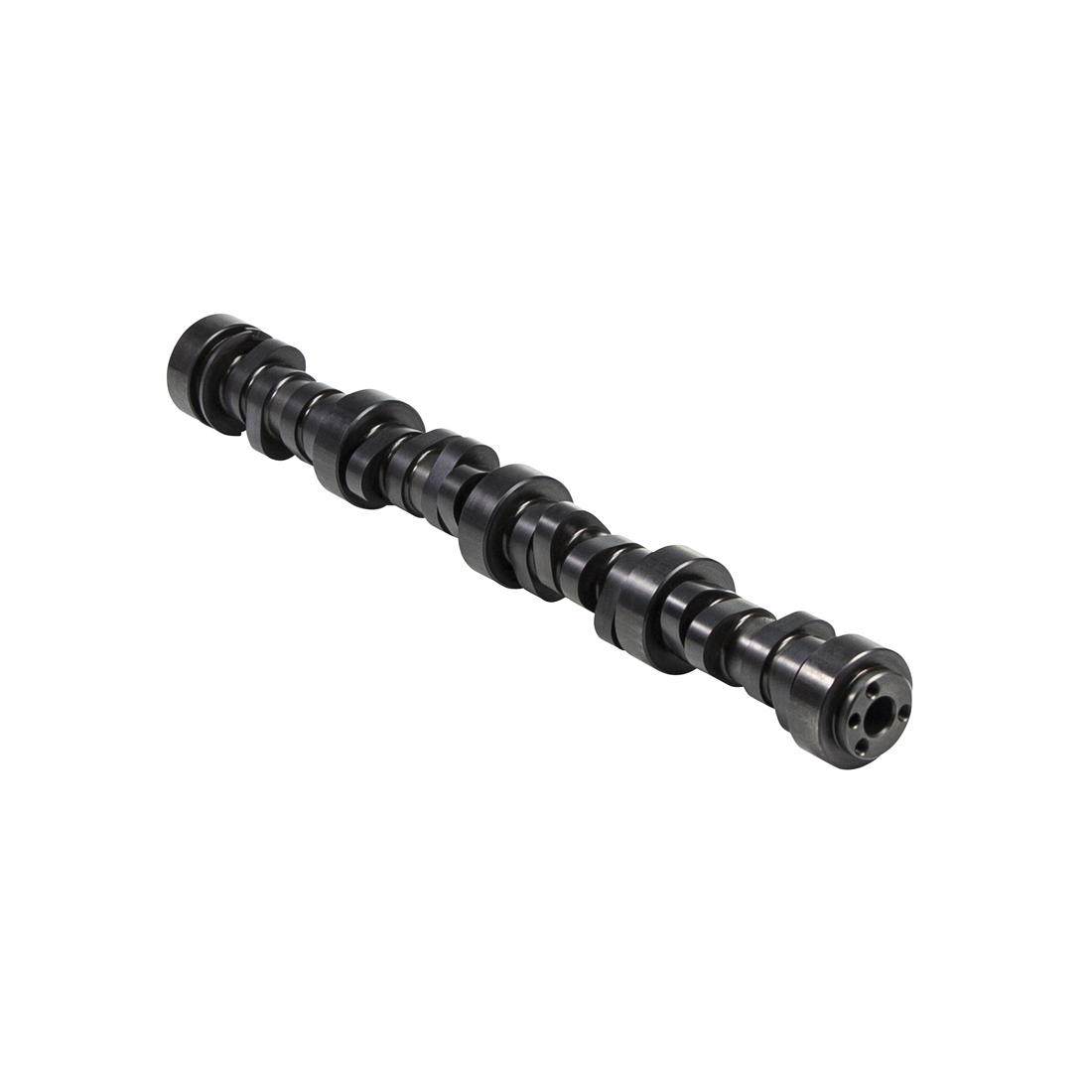

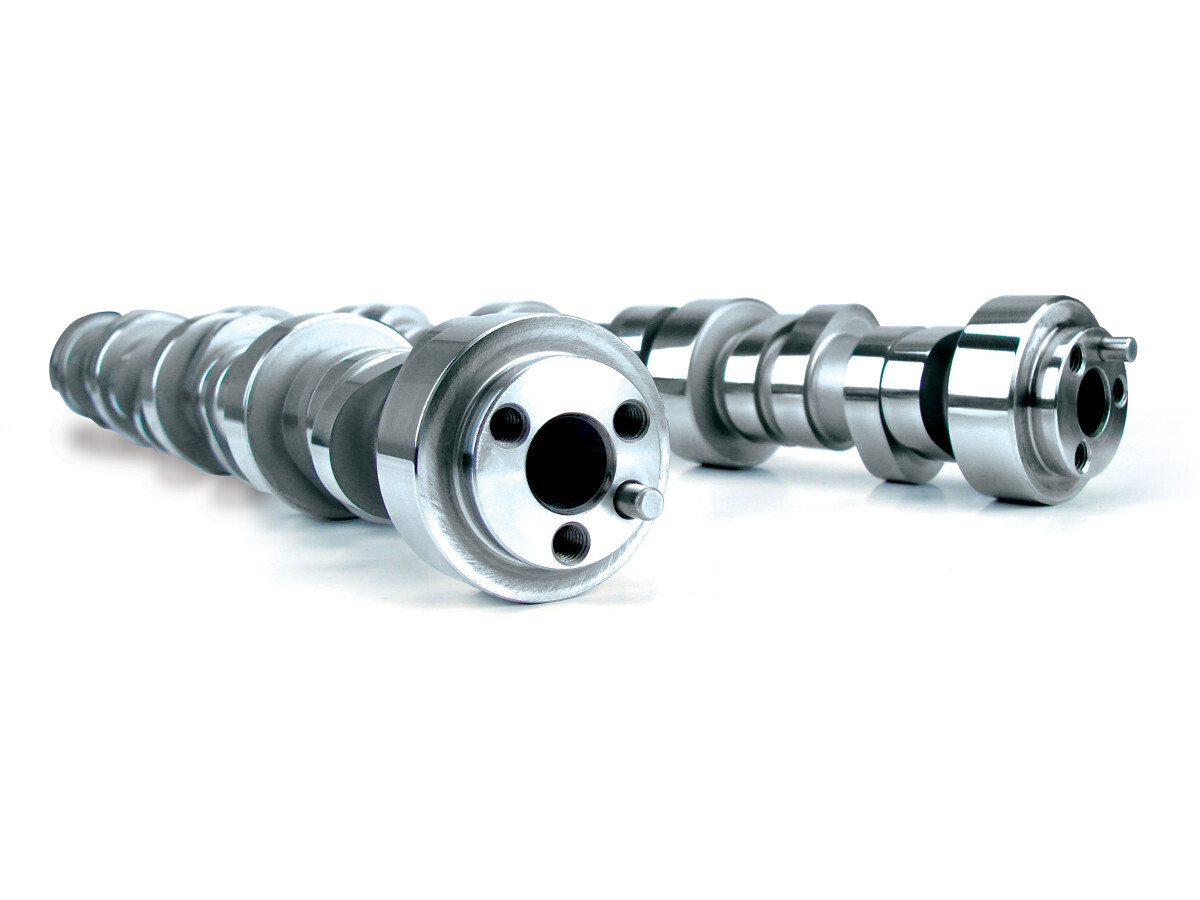

Voodoo LS1 LS2 Cathedral Port 227/233 LSA 113 Hydraulic Roller Camshaft LS 5.7L 6.0L, Grind: V277HR13
RPM Operating Range: 1,900-7,000
Description
Good street/strip camshaft with wide range. Must have substantial airflow upgrades, inlet and exhaust.
Voodoo Hydraulic Roller Camshaft
LS 5.7L, 6.0L Cathedral Port, Hydraulic Roller Camshaft. Street/race cam. Requires computer mods. Needs upgraded intake and exhaust to maximize performance.
- Advertised Camshaft Duration (Int/Exh):277/283
- Duration @ .050 (Int/Exh):227/233
- Gross Valve Lift (Int/Exh):.584"/.584"
- LSA: 113
- ICL: 109
- RPM Range:2200-6800
Specifications
| SKU | 20540714LUN |
| Brand | LUNATI |
| Lifter Type | Hydraulic Roller |
| Cam Type | Hydraulic Roller |
| Exhaust Duration At .050 Inch Lift | 235 |
| Intake Duration At .050 Inch Lift | 227 |
| Lobe Separation | 113 |
| Camshaft Series | LSR Cathedral Port Small Displacement/Max Torque |
| Basic Operating Rpm Range | 1,900-7,000 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
