LS1 LS2 LS3 SELECT OIL PUMP Standard Volume High Pressure Performance HOLDEN COMMODORE

Oil Pump, Wet Sump, Internal, Standard Volume, High Pressure, GM LS-Series, Each

• Features a stiffer pressure relief spring, which increases the maximum system oil pressure by approx 10%

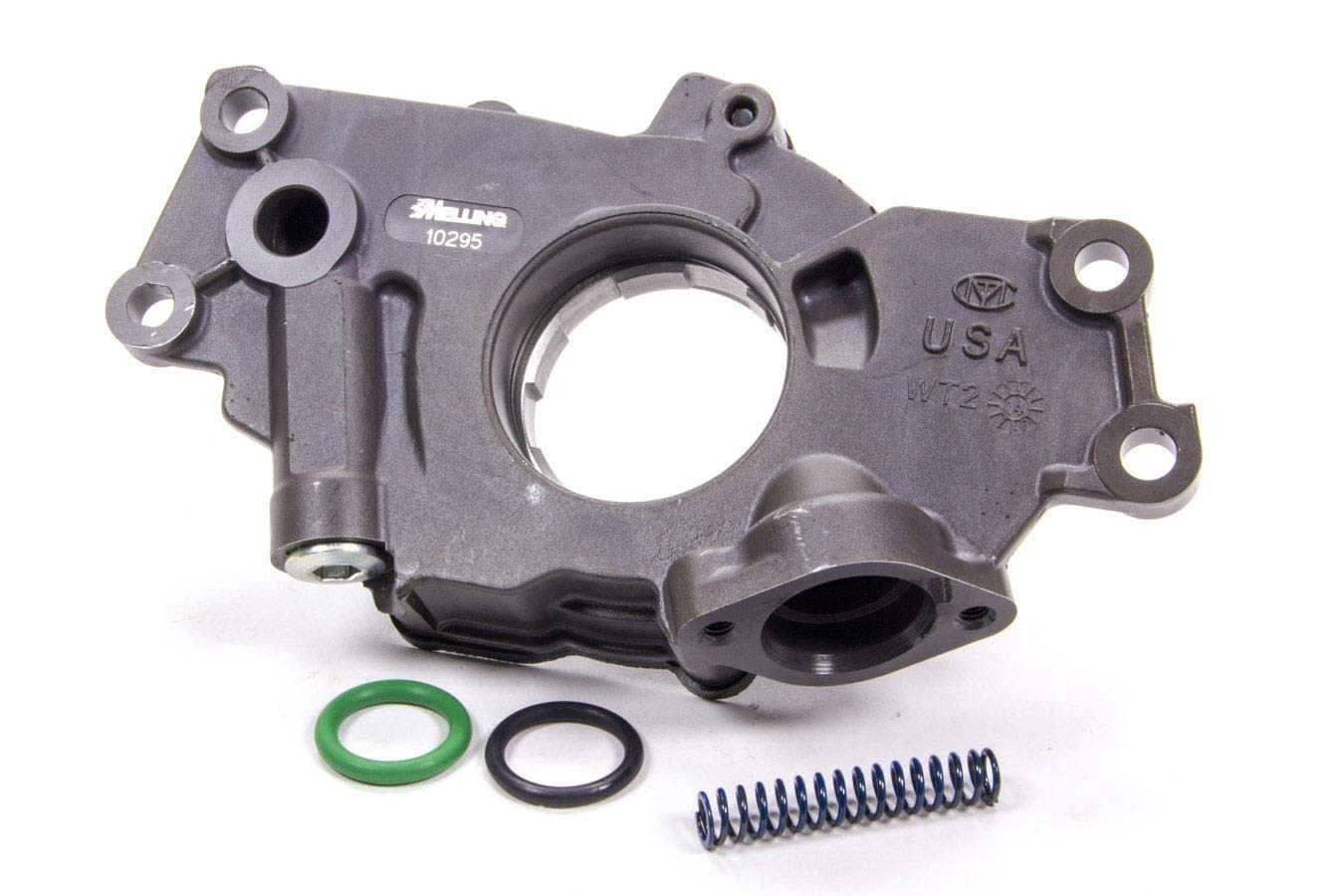

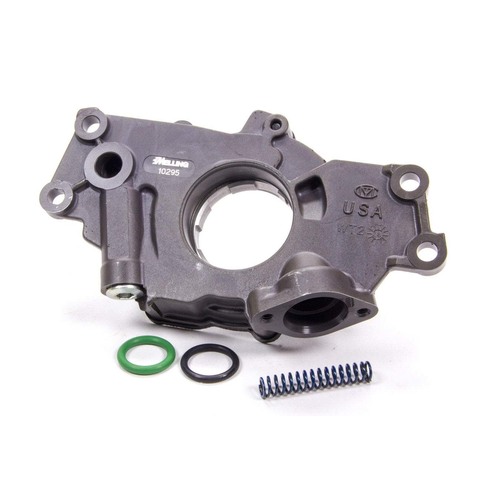

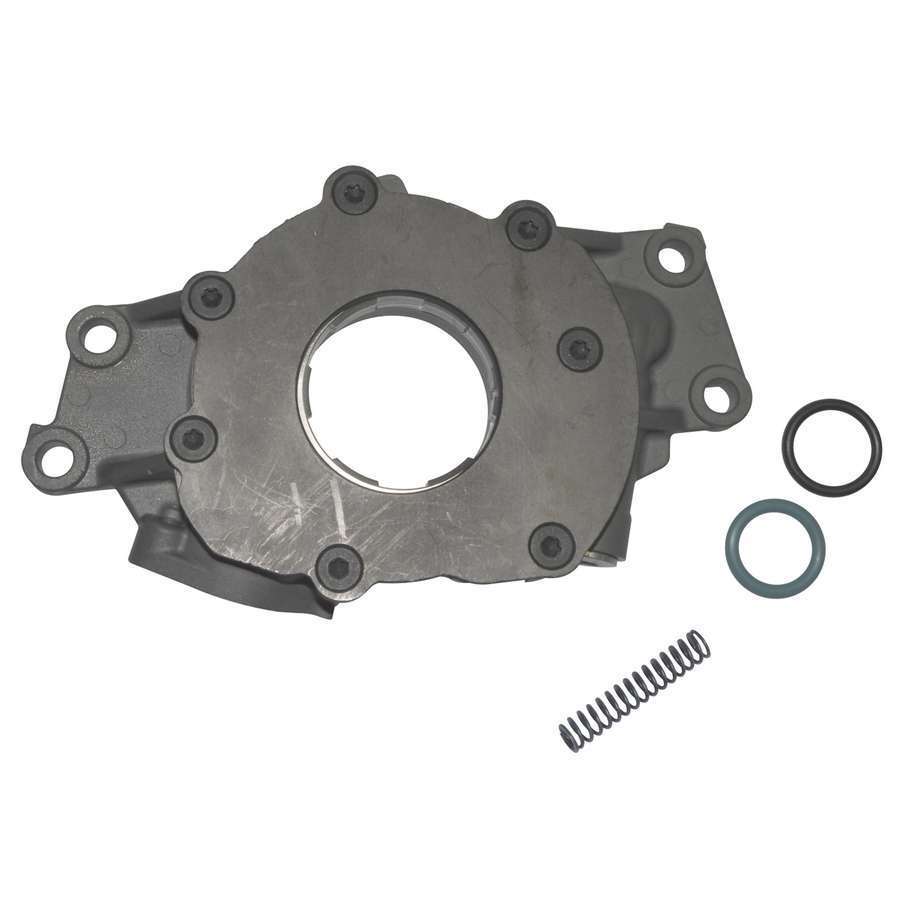

The Melling 10295 high performance oil pump is a high pressure, standard volume upgrade of the M295. The cast aluminum housing is CNC machined and hardcoat anodized. The cast iron cover is CNC machined and phosphate coated for improved pump performance and durability. The relief valve features a screw in valve plug with the optional lower stock pressure spring supplied. The oil pump and screen seals are included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.

Product Attributes

Additional Pressure Over Stock

Percentage: 10 PSI

Adjustable Bypass Pressure: Yes

Alternate Pressure Springs

Included: Yes

Drive Type: Crankshaft

Gasket Or Seal Included: Yes

Grade Type: Performance

Height: 4.45 in

Height: 116.0 mm

Housing Finish: Anodized Hardcoat

Housing Material: Cast Aluminum

Mounting Hole Diameter: 0.34 in

Mounting Hole Diameter: 8.86 mm

Mounting Hole Quantity: 4

Oil Pump Pressure Type: High

Pressure

Oil Pump Type: Rotary

Oil Pump Volume Type: Standard

Volume

Pick Up Tube Diameter: 0.875 in

Pick Up Tube Diameter: 22.225 mm

Width: 8.0 in

Width: 204.0 mm
