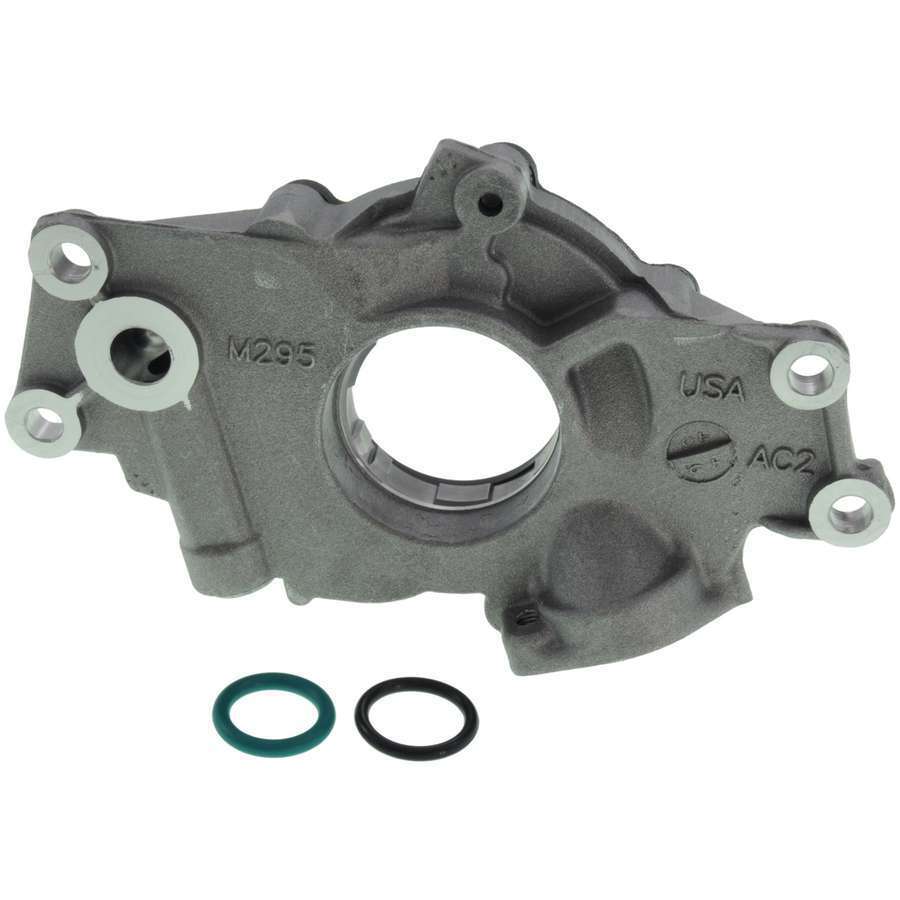

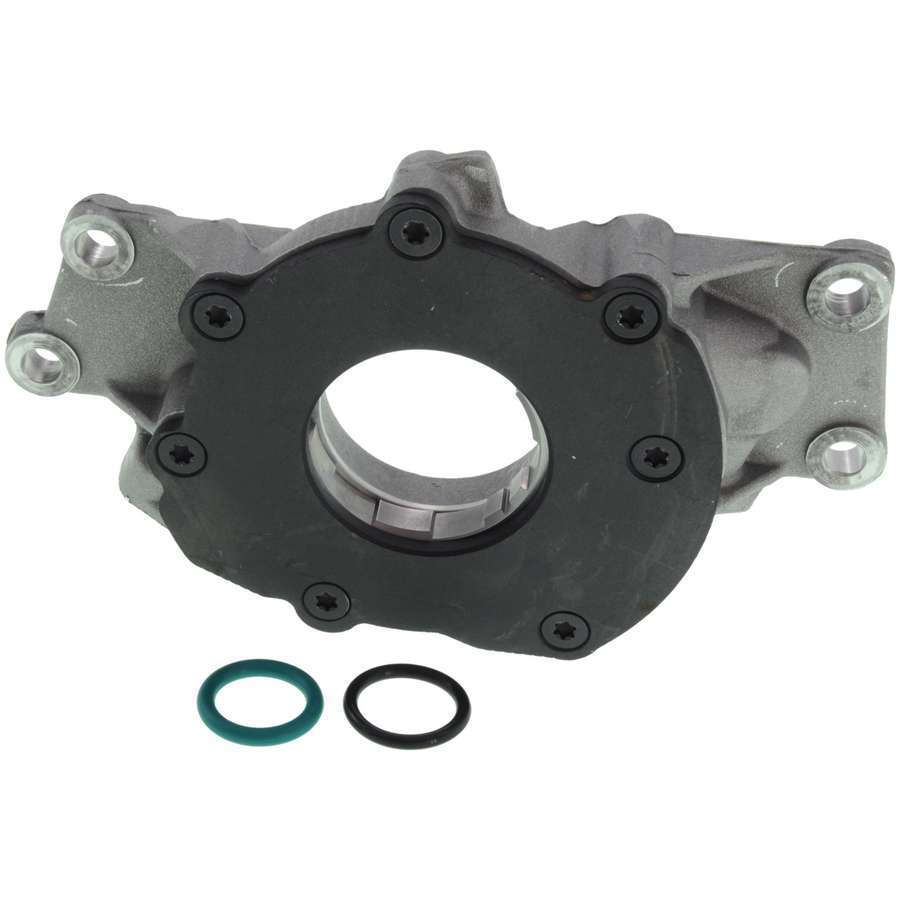

LS1 LS2 LS3 OIL PUMP STANDARD VOLUME HOLDEN COMMODORE 97-15

Engine Oil Pump Part Number: M295

Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Drive Type: Crankshaft

Gasket Or Seal Included: Yes

Grade Type: Regular Height: 4.66 in Height: 118.37 mm

Housing Material: Cast Aluminum

Mounting Hole Diameter: 0.36 in Mounting Hole Diameter: 9.30 mm

Mounting Hole Quantity: 4

Oil Pump Pressure Type: Standard Pressure

Oil Pump Type: Rotary

Oil Pump Volume Type: Standard Volume

Pick Up Tube Diameter: 0.875 in Pick Up Tube Diameter: 22.225 mm Width: 8.0 in Width: 203.20 mm
