PAIR Ford 302 351 Windsor 170cc Cylinder Heads, Hydraulic Flat Tappet, SBF, 2.02" valve, E Street,

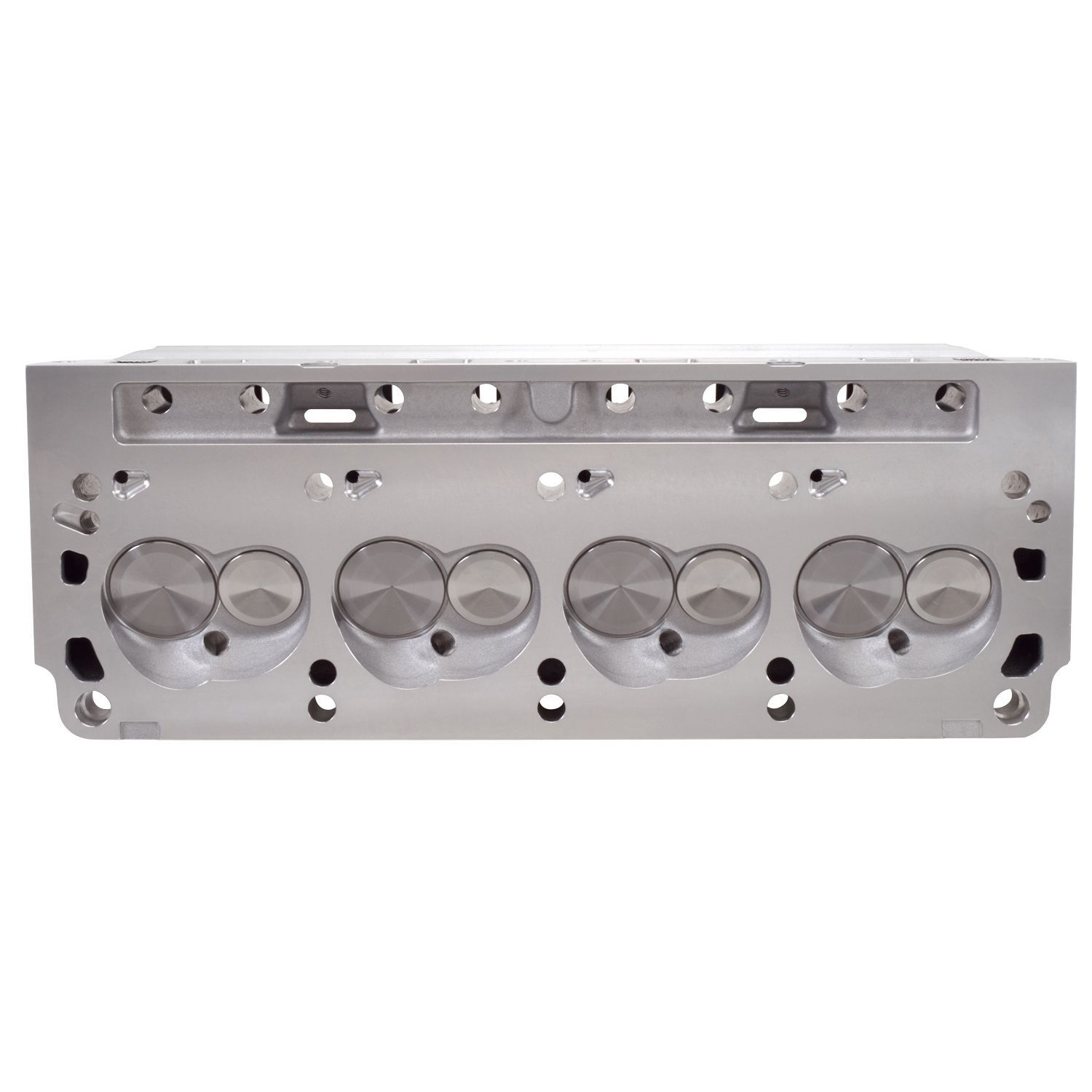

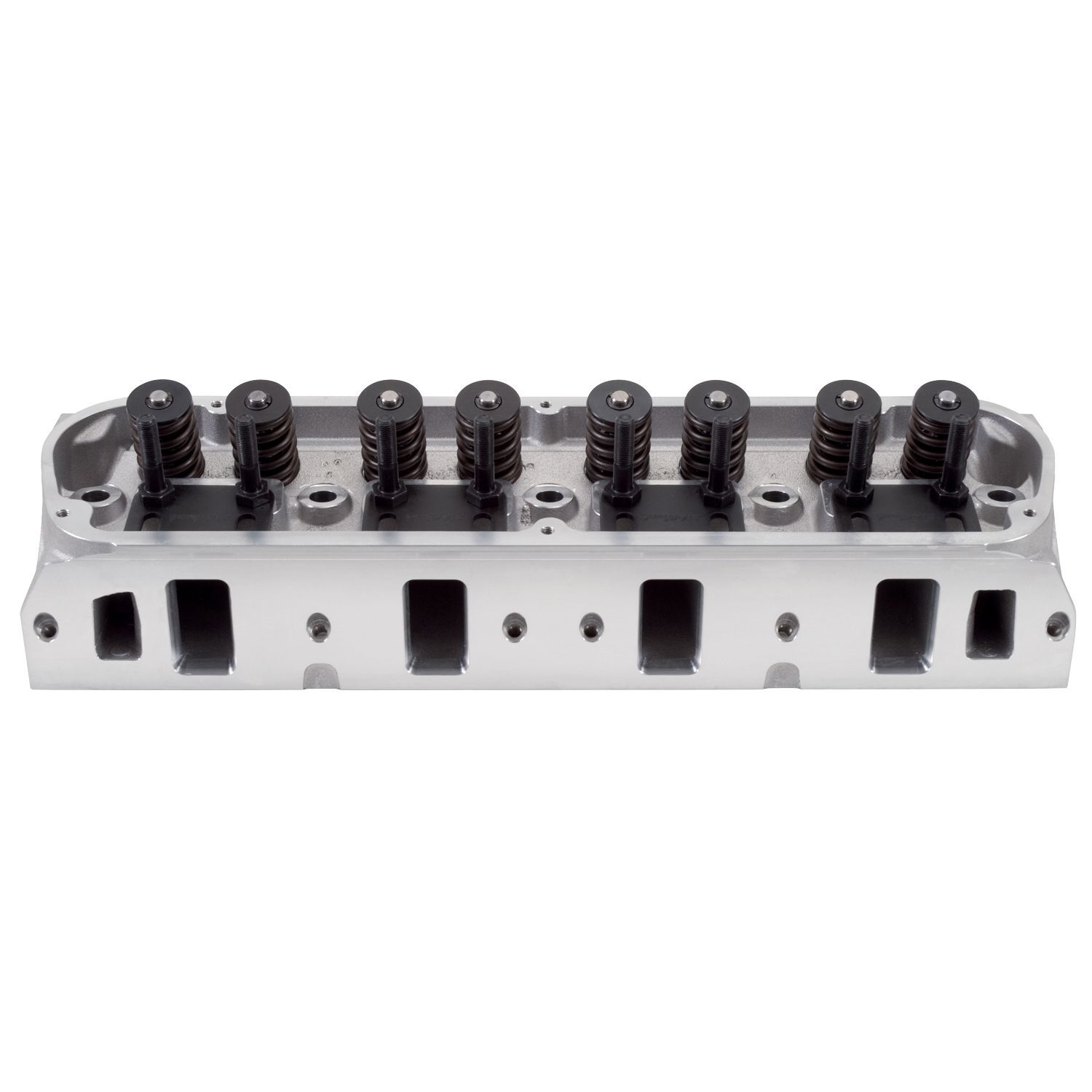

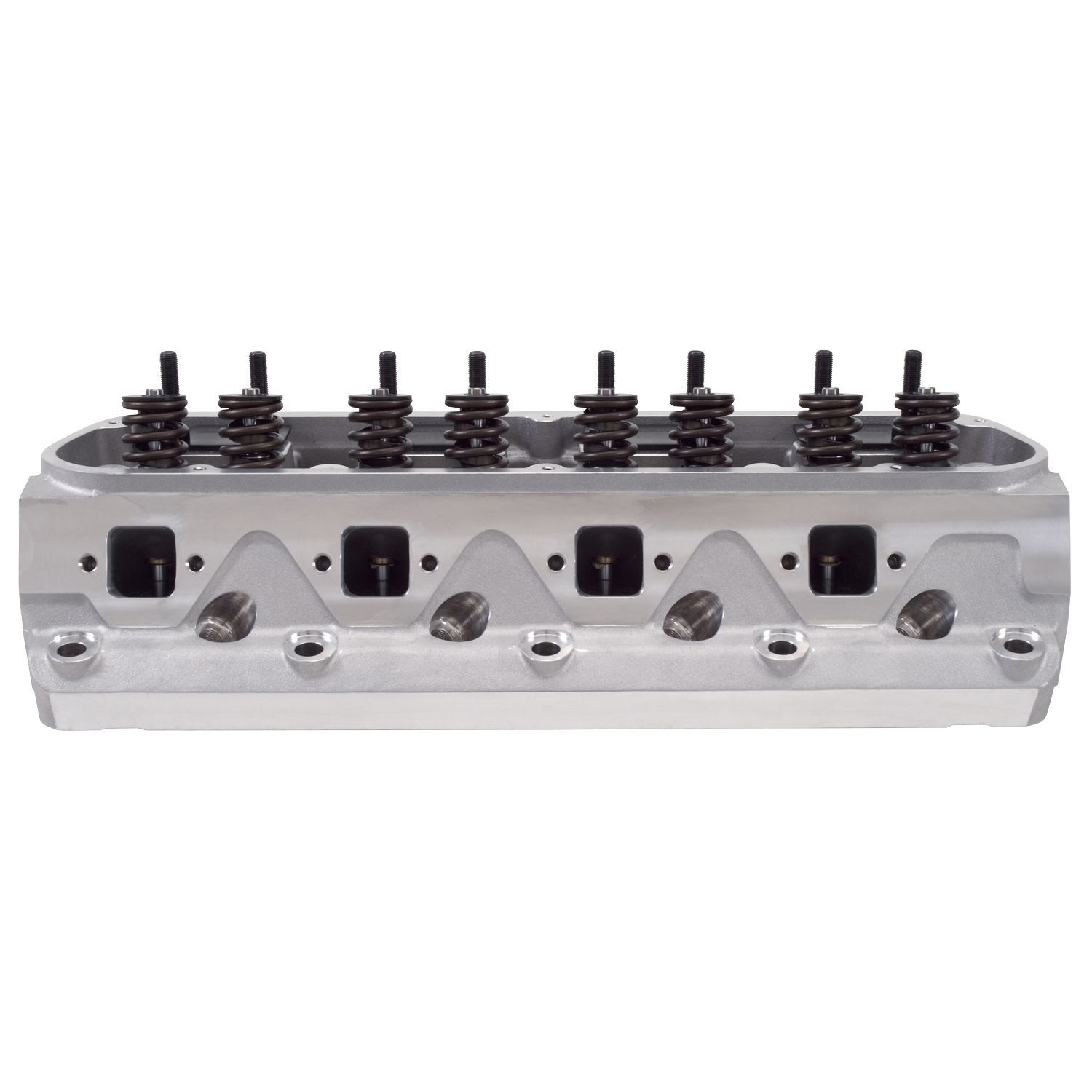

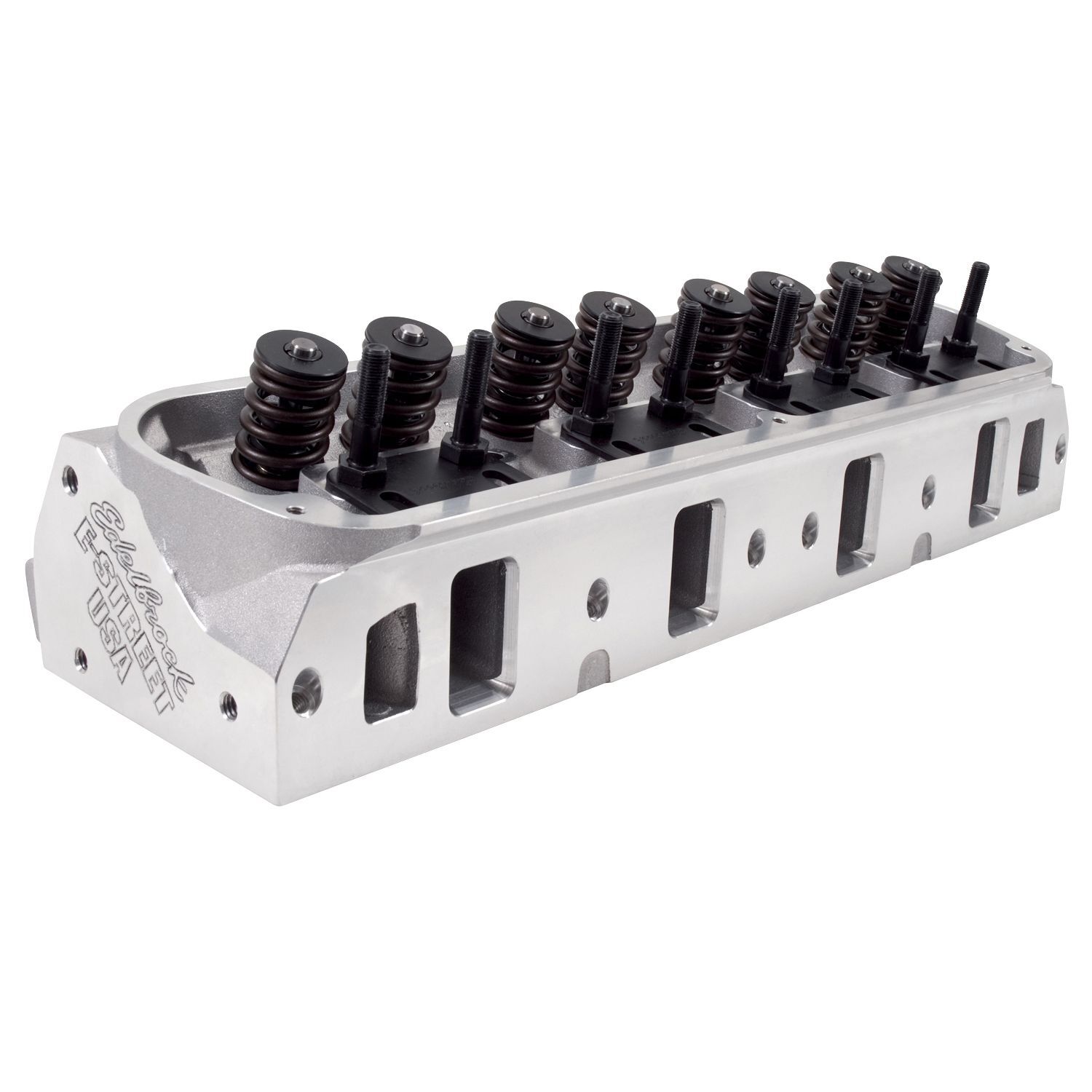

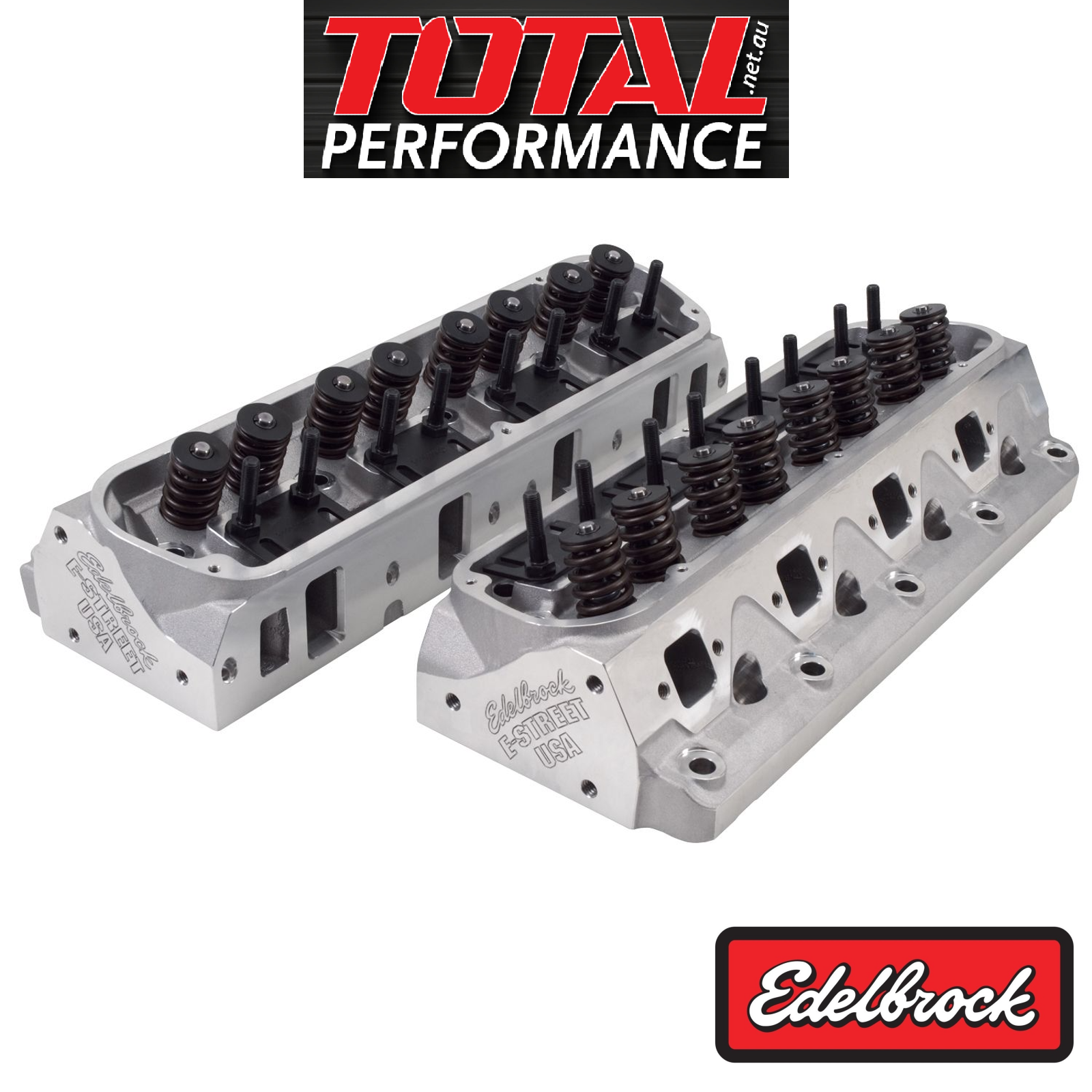

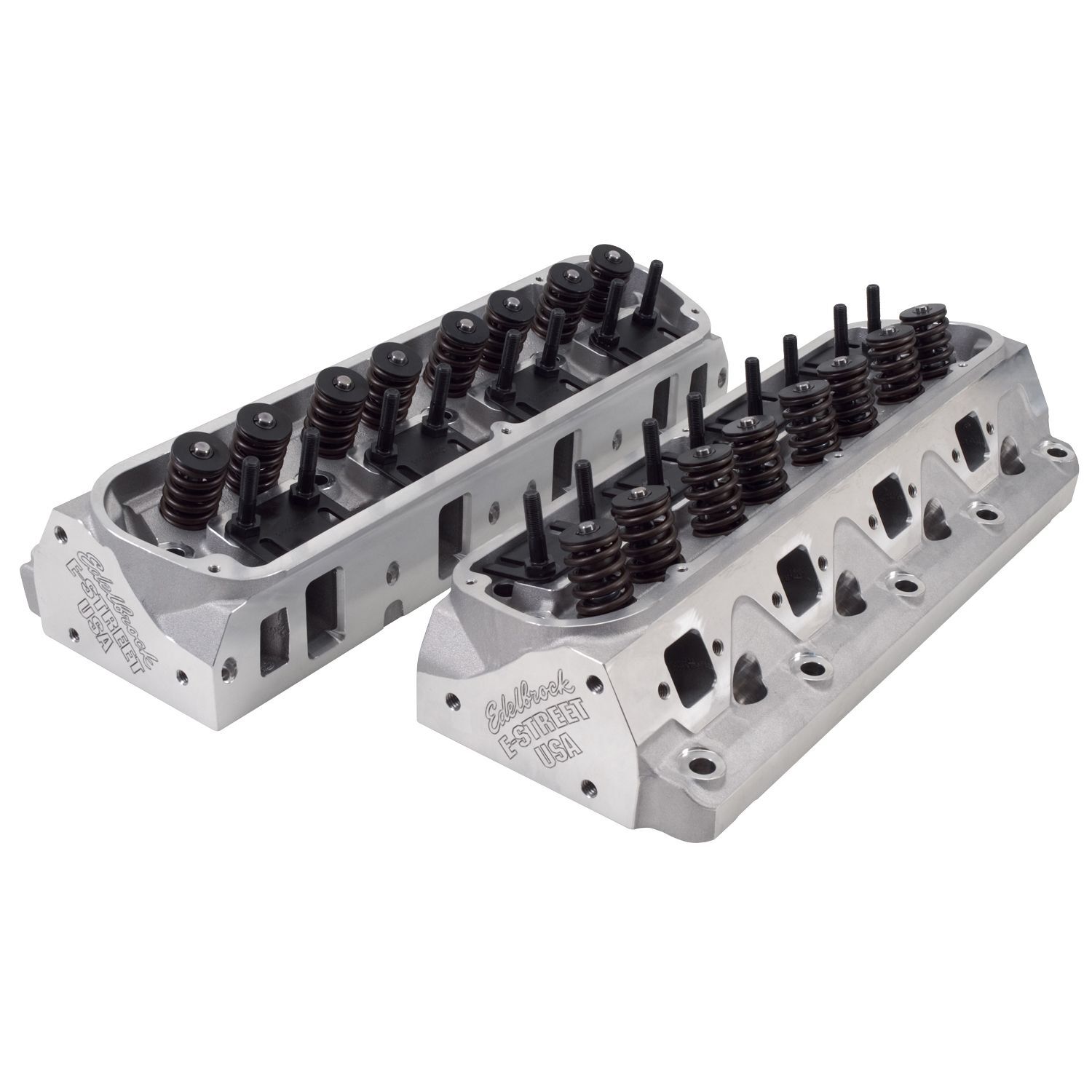

Ford Windsor 302 351 Cylinder Heads, Assembled, Complete for Hydraulic Flat Tappet, The Edelbrock 5025 E-Street cylinder heads.

These Edelbrock E Street Cylinder heads are designed for the Ford 289 302 351 W Windsor applications. American made quality and affordable performance. E-Street heads feature as-cast ports and are designed for street performance applications.

Quantity              Set of 2 / PAIR

Series    E-Street

Grade Type         Performance

Camshaft Type  Flat Tappet

Horsepower       200-400 HP

CNC Ported         No

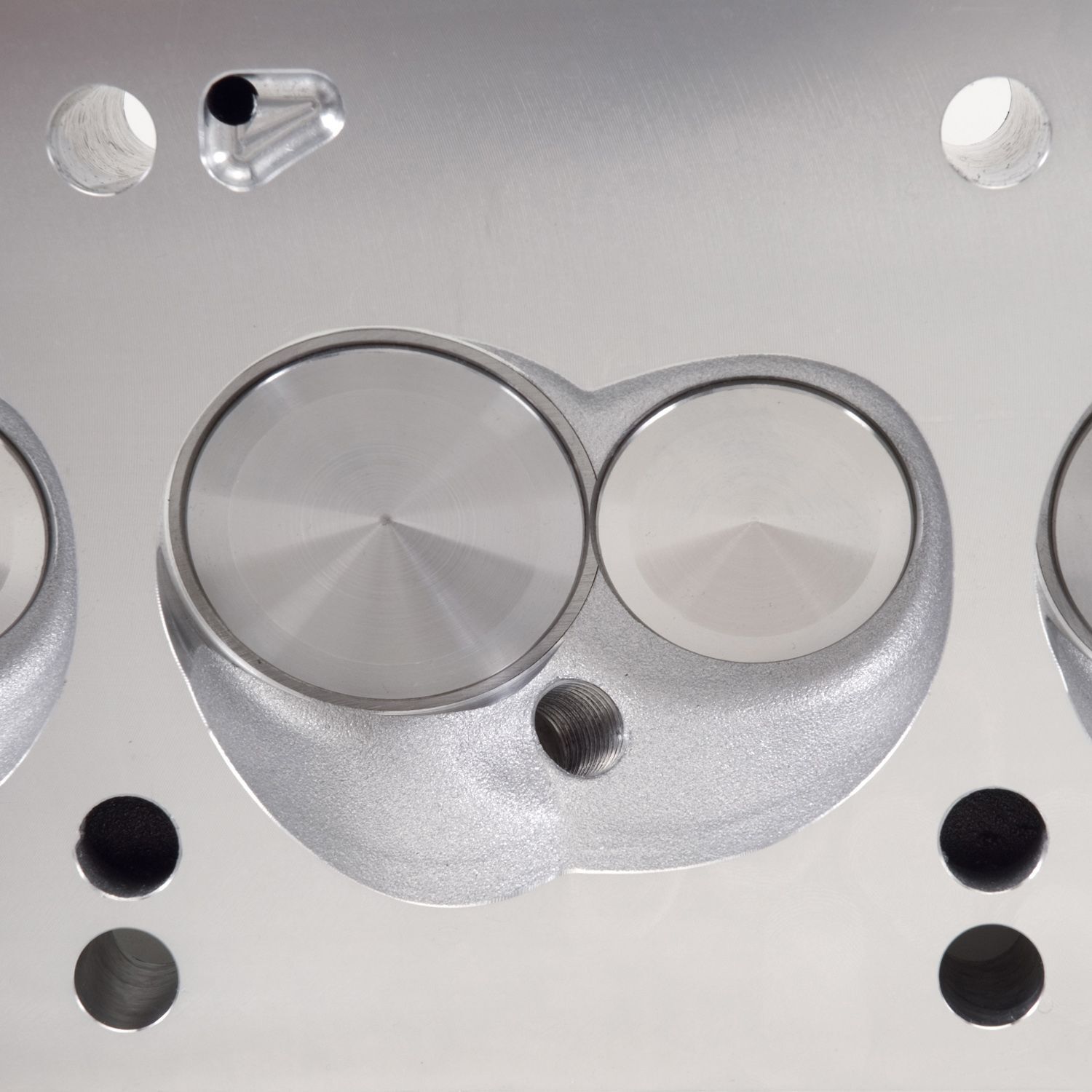

Combustion Chamber Volume   60 cc

Deck Thickness 0.625 in

Intake Valve Diameter   2.02 in

Exhaust Valve Diameter 1.60 in

Guide Plates Included    Yes

Intake Runner Volume   170 cc

Material               Aluminium

Rocker Stud Diameter    3/8”

Valve Spring Diameter   1.46 in

Valve Spring Maximum Lift           0.550 in

Valve Stem Diameter      0.341 in

Installation Notes

If bolting to a SBF 289-302 c.i.d. with 7/16" head bolts, you will need Edelbrock #9680 head bolt bushing kit.

Ideal for operating in the idle to 5500 rpm range; Use with hydraulic flat tappet camshafts, .550" maximum lift - not compatible with hydraulic roller camshafts; 289-302 with 7/16" head bolts require #9680 head bolt kit; 2.02" heads require additional piston to valve clearance; Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.; Requires hardened pushrods.
